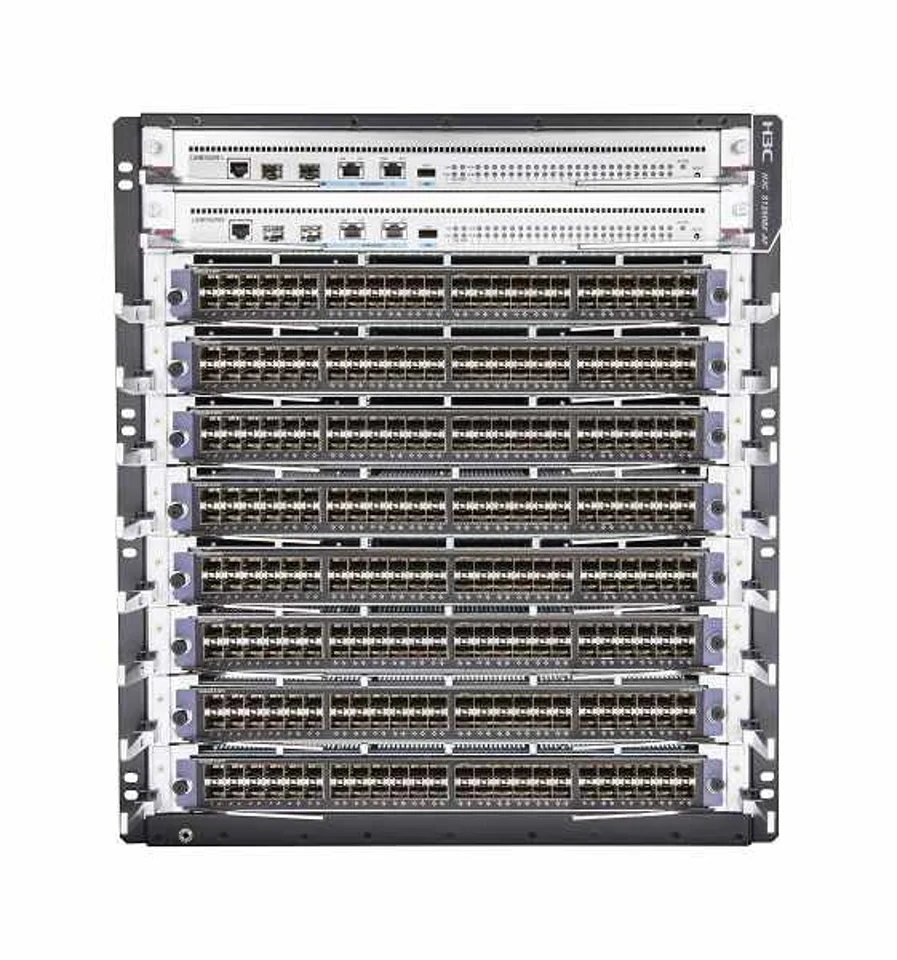

H3C LS-12508F-AF Ethernet Switch. H3C S12508F-AF Ethernet Switch Host.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-12508F-AF Ethernet Switch is H3C S12508F-AF Ethernet Switch Host.
Compatible and optional SKUs are listed in the ordering information, including 0231AJ2U 0231AJ2U, 0231AJ2P 0231AJ2P, 0231A563 SFP-GE-LX-SM1310-A, 0231A962 SFP-GE-LX-SM1310-D, 0231A562 SFP-GE-SX-MM850-A.
| Key Specifications | |
|---|---|
| Switching Capacity (Bps) | 387T/580T |
| Packet Forwarding Rate (Pps) | 230400M |
| Dimensions (H×W×D)Mm | 531 x 440 x 857（12U） |
| Weight (Full Configuration) | ≤190 kg |
| Supervisor Engine Module Slot Quantity | 2 |
| Maximum Device Power | 9600W |
| Product Specifications | |
| Switching Capacity (Bps) | 387T/580T |
| Packet Forwarding Rate (Pps) | 230400M |
| Dimensions (H×W×D)Mm | 531 x 440 x 857（12U） |
| Weight (Full Configuration) | ≤190 kg |
| Supervisor Engine Module Slot Quantity | 2 |
| Maximum Device Power | 9600W |
| Product Specifications | |
| Switching Capacity (Bps) | 387T/580T |
| Packet Forwarding Rate (Pps) | 230400M |
| Supervisor Engine Module Slot Quantity | 2 |
| Service Module Slot Quantity | 8 |
| Fabric Module Slot Quantity | 6 |
| Redundancy design | Key components such as Supervisor Engine Module, Fabric Module, power supply, and fans adopt redundant backup design. |
| IPv4 | Supports static routing, RIP, OSPF, IS-IS, BGP4, etc. Supports VRRP, VRRP load sharing mode, equal-cost routing, policy routing, routing policy, GRE, IPv4 in IPv4 tunnel functions. Whole system IPv4 routing table forwarding capacity maximum supports 4M |
| IPv6 | Supports IPv4 and IPv6 dual protocol stack. Supports IPv6 static routing, RIPng, OSPFv3, IS-ISv6, BGP4+. Supports VRRPv3 and VRRPv3 load sharing mode. Supports ND, PMTUD. Supports Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6. Supports IPv4 to IPv6 transition technologies, including: IPv6 manual tunnel, 6to4 tunnel, ISATAP tunnel, GRE tunnel, IPv4 compatible auto Configuration tunnel. Supports equal-cost routing, policy routing, and routing policies. |
| ACL | Supports standard and extended ACLs; supports Ingress/Egress ACLs; supports VLAN ACLs; supports global ACLs. Single board supports up to 2M ACLs. |
| SDN/OPENFLOW | Cloud Supervisor Engine Module supports running SDN controllers; supports OPENFLOW standard; supports multiple controllers (EQUAL mode, Master/Slave mode); supports multi-table pipeline; supports Group table; supports Meter; supports Netconf; supports OVSDB. |
| VXLAN | Supports VXLAN Gateway, supports VXLAN Layer 2 switching, supports VXLAN Routing and Switching, supports IS-IS+ENDP based VxLAN distributed control plane, supports Open Flow+Netconf based VxLAN centralized control plane, supports MP-BGP+EVPN based VxLAN distributed control plane, supports VXLAN over IPv6, supports IPv6 VXLAN over IPv4 |
| Reliability | Independent hardware Fabric Module design, achieving true separation of control and forwarding. Key components: Management Routing Processing Board and Power Supply both support 1+1 redundancy backup. Fabric Module supports N+1 redundancy backup. Backplane adopts passive design, avoiding single point of failure. All components support hot-plug function. Supports real-time hot backup of various Configuration data on active/standby Supervisor Engine Module. Supports hot patch function, can perform patch upgrade online. Supports NSR/GR for OSFP/BGP/IS-IS/RSVP etc. Supports Port aggregation, supports link cross-board aggregation. Supports BFD for VRRP/BGP/IS-IS/OSPF/RSVP/Static Routing etc., implementing fast failure detection mechanism for various protocols, failure detection time less than 50ms. Supports IP FRR, TE FRR, service switchover time less than 50ms. Supports micro-segmentation security isolation. |
| Security | Supports user level management and password protection, supports SSHv2 providing a secure encrypted channel for user login, supports FTP login with controllable IP addresses and password mechanism, supports standard and extended ACLs to filter packets and prevent network attacks, supports attack prevention functions for ARP, unknown multicast packets, broadcast packets, unknown unicast packets, local network segment routing scan packets, TTL=1 packets, protocol packets, etc., supports MAC address restriction and IP+MAC binding functions, supports uRPF technology to prevent network attack behaviors based on source address spoofing, supports plaintext and MD5 ciphertext authentication for OSPF, RIPv2 and BGP4 packets, supports 802.1x, supports Radius/AAA, supports secure network management SNMPv3, SSHv2, supports unknown unicast, unknown multicast, broadcast packet suppression, supports active-standby data backup mechanism |
| System Management | Supports Console/AUX Modem/Telnet/SSH2.0 command line Configuration, supports FTP, TFTP, Xmodem, SFTP file upload/download management, supports SNMP V1/V2c/V3, supports RMON, supports groups 1, 2, 3, 9, supports NTP clock, supports NQA (Network Quality Analyzer), supports alarm and self-recovery after failure, supports system operation logs |
| Ambient temperature | Operating ambient temperature: 0℃～40℃ Storage ambient temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Environmental protection | WEEE, RoHS |
| Safety regulations | CE, UL/cUL, FCC-PART15, VCCI, etc. |
| Maximum Device Power | 9600W |
| Weight (Full Configuration) | ≤190 kg |
| Dimensions (H×W×D)Mm | 531 x 440 x 857（12U） |
| Catalog Description | |
| Description | H3C S12508F-AF Ethernet Switch Host |
| Key Features | |
| Feature 1 | Advanced CLOS+Multi-level Multi-plane Switching Architecture. Adopting Advanced CLOS+Multi-level Multi-plane Orthogonal Switching Architecture, Backplane/Intermediate Board-less Design, Providing Continuous Bandwidth Upgrade Capability. |
| Feature 2 | Supports high-density 40GE and 100G Ethernet Ports, fully meeting data center application and future development needs. |
| Feature 3 | Independent Fabric Module. Control engine and Fabric Module hardware are independent, maximizing device reliability while ensuring continuous bandwidth upgrades for future products. |
| Feature 4 | Dynamic variable cell segmentation strict non-blocking switching, improving overall forwarding performance. |
| Feature 5 | Comprehensive Virtualization Capability IRF2 (Intelligent Resilient Framework2, 2nd Generation Intelligent Resilient Architecture) S12500F-AF Series Products Support IRF2 Technology, Virtualizing Up to 4 High-end Devices into One Logical Device, Possessing Strong Advantages in Reliability, Distribution, and Manageability. |
| Ordering Information | |
| SFP Gigabit port | |
| 0231AJ2U | Type: SFP Gigabit port |
| 0231AJ2P | Type: SFP Gigabit port |
| 0231A563 | SFP-GE-LX-SM1310-A; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: SFP Gigabit port |
| 0231A962 | SFP-GE-LX-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: SFP Gigabit port |
| 0231A562 | SFP-GE-SX-MM850-A; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: SFP Gigabit port |
| 0231A961 | SFP-GE-SX-MM850-D; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: SFP Gigabit port |
| Supervisor Engine Module | |
| 0231A3Q4 | LSXM1SUPB0; Type: Supervisor Engine Module |
| 0231A5GW | H3C S12500F-AF Ethernet Switch; Type: Supervisor Engine Module |
| SFP Gigabit port | |
| 0231AJ2K | Type: SFP Gigabit port |
| 0231A085 | SFP-GE-T; SFP GE copper transceiver (100m, RJ45); Type: SFP Gigabit port |
| 0231A960 | SFP-GE-T-D; SFP GE copper transceiver (100m, RJ45); Type: SFP Gigabit port |
| Supervisor Engine Module | |
| 0231A4YT | H3C S12500F-AF Ethernet Switch; Type: Supervisor Engine Module |
| Fabric Module | |
| 0231A3QU | H3C S12500F-AF Ethernet Switch; Type: Fabric Module |
| 0231A3Q6 | H3C S12500F-AF Ethernet Switch; Type: Fabric Module |
| 0231A5GN | LSXM1SFH08C0; Type: Fabric Module |
| 0231A5K9 | LSXM1SFH08D0; Type: Fabric Module |
| Fabric Module Filler Panel | |
| 0231A3RL | LSXM1BFP08A; 08Fabric Module Filler Handle Strip; Type: Fabric Module Filler Panel |
| Fan Module | |
| 0231A2UH | LSXM108XFAN; H3C S12508X-AF Ethernet Switch Fan Module; Type: Fan Module |
| 0231A4X0 | LSXM108XFANH; Type: Fan Module |
| Power Supply Module | |
| 0231A6PS | PSR3000-54AHD; Type: Power Supply Module |
| 0231A5CH | PSR3000-54A; 3000W AC Power Supply Module; Type: Power Supply Module |
| 0231A2SN | PSR2400-54A; AC Power Supply Module-2400W; Type: Power Supply Module |
| 0231A2X7 | PSR2400-54D; DC Power Supply Module-2400W; Type: Power Supply Module |
| License Certificate | |
| 3130A1GA | H3C S12500F-AF Ethernet Switch; Type: License Certificate |
| 3130A1GC | H3C S12500F-AF Ethernet Switch; Type: License Certificate |
| Service | |
| 8813A0S6 | SV-MA-HPOSS; Type: Service |
| 8814A05J | Type: Service |
| Rail Kit | |
| 0231A0PL | LSTM2KSGD0; Type: Rail Kit |
| 0231A4EK | LSXM1BSR; 1U Adjustable Rack Rail-630mm~900mm; Type: Rail Kit |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m; Type: Serial Cable |
| Base Configuration | |
| 0235A1LF | LS-12508F-AF; H3C S12508F-AF Ethernet Switch Chassis |
| Product Identity | |
| Brand | H3C |
| Series | H3C S12500F-AF Series Switches |
