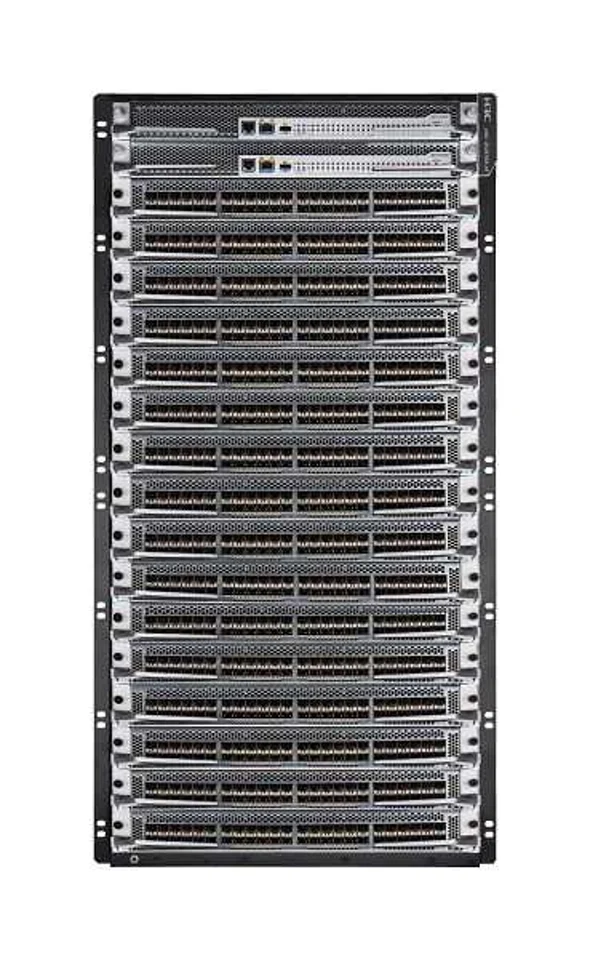

H3C LS-12516X-AF Ethernet Switch. H3C S12516X-AF Ethernet Switch Host.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-12516X-AF Ethernet Switch is H3C S12516X-AF Ethernet Switch Host.
Compatible and optional SKUs are listed in the ordering information, including 0231AJ2U 0231AJ2U, 0231AJ2P 0231AJ2P, 0231A563 SFP-GE-LX-SM1310-A, 0231A962 SFP-GE-LX-SM1310-D, 0231A562 SFP-GE-SX-MM850-A.
| Key Specifications | |
|---|---|
| Switching Capacity (Tbps) | 3615/10844 |
| Packet Forwarding Rate (Mpps) | 921600 |
| Dimensions (H×W×D)Mm | 931x440x857（21U） |
| Weight (Full Configuration) | ≤350 kg |
| Supervisor Engine Module Slot Quantity | 2 |
| Maximum Device Power | 19200W |
| Product Specifications | |
| Switching Capacity (Tbps) | 3615/10844 |
| Packet Forwarding Rate (Mpps) | 921600 |
| Dimensions (H×W×D)Mm | 931x440x857（21U） |
| Weight (Full Configuration) | ≤350 kg |
| Supervisor Engine Module Slot Quantity | 2 |
| Maximum Device Power | 19200W |
| Product Specifications | |
| Switching Capacity (Tbps) | 3615/10844 |
| Packet Forwarding Rate (Mpps) | 921600 |
| Supervisor Engine Module Slot Quantity | 2 |
| Service Module Slot Quantity | 16 |
| Fabric Module Slot Quantity | 6 |
| Maximum Device Power | 19200W |
| Weight (Full Configuration) | ≤350 kg |
| Dimensions (H×W×D)Mm | 931x440x857（21U） |
| Redundancy design | Key components such as Supervisor Engine Module, Fabric Module, power supply, and fans adopt redundant backup design. |
| IPv4 | Supports static routing, RIP, OSPF, IS-IS, BGP4, etc. Supports VRRP and VRRP load sharing mode. Supports equal-cost routing. Supports policy routing and routing policies. Supports GRE, IPv4 in IPv4, and other tunnel functions. The entire system IPv4 routing table forwarding capacity supports up to 4M. |
| IPv6 | Supports IPv4 and IPv6 dual protocol stack. Supports IPv6 static routing, RIPng, OSPFv3, IS-ISv6, BGP4+. Supports VRRPv3 and VRRPv3 load sharing mode. Supports ND, PMTUD. Supports Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6. Supports IPv4 to IPv6 transition technologies, including: IPv6 manual tunnel, 6to4 tunnel, ISATAP tunnel, GRE tunnel, IPv4 compatible auto Configuration tunnel. Supports equal-cost routing, policy routing, and routing policies. |
| ACL | Supports standard and extended ACLs; supports Ingress/Egress ACLs; supports VLAN ACLs; supports global ACLs. Single board supports up to 2M ACLs. |
| SDN/OPENFLOW | Cloud Supervisor Engine Module supports running SDN controllers; supports OPENFLOW standard; supports multiple controllers (EQUAL mode, Master/Slave mode); supports multi-table pipeline; supports Group table; supports Meter; supports Netconf; supports OVSDB. |
| Reliability | Independent hardware Fabric Module design achieves true separation of control and forwarding. Key components, Management Routing Processing Board and Power Supply, both support 1+1 redundancy backup. Fabric Module supports N+M redundancy backup. Backplane adopts passive design to avoid single point of failure. Board panel perforated heat dissipation design improves heat dissipation efficiency of system components such as Ports, Optical Modules, Chips, etc., enhancing system operation reliability and service life. All components support hot-swappable functionality. Supports real-time hot backup of various Configuration data on Master/Slave Supervisor Engine Modules. Supports hot patch functionality, allowing online patch upgrades. Supports NSR/GR for OSPF/BGP/IS-IS/RSVP, etc. Supports Port aggregation, link cross-board aggregation, and cross-device link aggregation (M-LAG). Supports BFD for VRRP/BGP/IS-IS/OSPF/RSVP/Static Routing, etc., implementing fast fault detection mechanisms for each protocol with a minimum detection interval of 3.3ms. Supports IP FRR and TE FRR, with service switchover time less than 50ms. Supports micro-segmentation security isolation. Supports lossless Ethernet features such as RDMA, RoCE v2, PFC, ECN, etc. Supports NVMe Over RoCE protocol. |
| Security | Supports user level management and password protection. Supports SSHv2, providing a secure encrypted channel for user login. Supports FTP login with controllable IP addresses and password mechanisms. Supports standard and extended ACLs to filter packets and prevent network attacks. Supports prevention of ARP, unknown multicast, broadcast, unknown unicast, local subnet route scan, TTL=1/0, and protocol packet attacks. Supports MAC address restriction and IP+MAC binding. Supports uRPF technology to prevent source address spoofing attacks. Supports plaintext and MD5 ciphertext authentication for OSPF, RIPv2, and BGP4 packets. Supports secure network management SNMPv3 and SSHv2. Supports suppression of unknown unicast, unknown multicast, and broadcast packets. Supports master-slave data backup mechanisms. Supports anti-DDoS, ARP, and ICMP attack prevention. |
| System Management | Supports Console/AUX Modem/Telnet/SSH2.0 Command Line Configuration. Supports FTP, TFTP, Xmodem, SFTP file upload and download management. Supports SNMP V1/V2/V3. Supports RMON, supports groups 1, 2, 3, 9. Supports NTP clock synchronization. Supports NQA (Network Quality Analyzer). Supports alarm and self-recovery after faults. Supports system operation logs. Supports Syslog, can be managed by Netcool network management. Supports s Flow, Net Stream. Supports Port mirroring SPAN, RSPAN. Supports Telemetry traffic visualization functions. |
| Ambient temperature | Operating environment temperature: 0℃～40℃ Storage environment temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Environmental protection | WEEE, RoHS |
| Safety regulations | CE, UL/cUL, FCC-PART15, VCCI, etc. |
| Catalog Description | |
| Description | H3C S12516X-AF Ethernet Switch Host |
| Key Features | |
| Feature 1 | Advanced CLOS+ Multi-level Multi-plane Switching Architecture. Adopting advanced CLOS/CLOS+ Multi-level Multi-plane Orthogonal Architecture, Service Module Cards and Fabric Modules adopt a fully orthogonal design (90 degrees), providing continuous bandwidth upgrade capability. |
| Feature 2 | Adopts Backplane-less/Midplane-less design, enhancing device ventilation and heat dissipation capability. |
| Feature 3 | Supports high-density 40GE and 100G Ethernet Ports, fully meeting data center application and future development needs. |
| Feature 4 | Independent Fabric Module. Control engine and Fabric Module hardware are independent, maximizing device reliability while ensuring continuous bandwidth upgrades for future products. |
| Feature 5 | Dynamic variable cell segmentation strict non-blocking switching, improving overall forwarding performance. |
| Ordering Information | |
| SFP Gigabit port | |
| 0231AJ2U | Type: SFP Gigabit port |
| 0231AJ2P | Type: SFP Gigabit port |
| 0231A563 | SFP-GE-LX-SM1310-A; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: SFP Gigabit port |
| 0231A962 | SFP-GE-LX-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: SFP Gigabit port |
| 0231A562 | SFP-GE-SX-MM850-A; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: SFP Gigabit port |
| 0231A961 | SFP-GE-SX-MM850-D; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: SFP Gigabit port |
| Supervisor Engine Module | |
| 0231A5GX | H3C S12500X-AF Ethernet Switch; Type: Supervisor Engine Module |
| 0231A2UG | LSXM1SUPB1; Type: Supervisor Engine Module |
| SFP Gigabit port | |
| 0231AJ2K | Type: SFP Gigabit port |
| 0231A085 | SFP-GE-T; SFP GE copper transceiver (100m, RJ45); Type: SFP Gigabit port |
| 0231A960 | SFP-GE-T-D; SFP GE copper transceiver (100m, RJ45); Type: SFP Gigabit port |
| Supervisor Engine Module | |
| 0231A5L9 | LSXM1SUPH1; Type: Supervisor Engine Module |
| Fabric Module | |
| 0231A3BY | H3C S12500X-AF Ethernet Switch; Type: Fabric Module |
| 0231A2TP | H3C S12500X-AF Ethernet Switch; Type: Fabric Module |
| 0231A2U2 | H3C S12500X-AF Ethernet Switch; Type: Fabric Module |
| 0231A5CG | LSXM2SFH16C1; Type: Fabric Module |
| 0231A4QG | LSXM1SFH16E1; Type: Fabric Module |
| Fabric Module Filler Panel | |
| 0231A3RK | LSXM1BFP16A; 16Fabric Module Filler Handle Strip; Type: Fabric Module Filler Panel |
| Fan Module | |
| 0231A2T1 | LSXM116XFAN; H3C S12516X-AF Ethernet Switch Fan Module; Type: Fan Module |
| 0231A4WX | LSXM116XFANH; Type: Fan Module |
| Power Supply Module | |
| 0231A6PS | PSR3000-54AHD; Type: Power Supply Module |
| 0231A5CH | PSR3000-54A; 3000W AC Power Supply Module; Type: Power Supply Module |
| 0231A2SN | PSR2400-54A; AC Power Supply Module-2400W; Type: Power Supply Module |
| 0231A2X7 | PSR2400-54D; DC Power Supply Module-2400W; Type: Power Supply Module |
| Configuration Options | |
| 3130A1G9 | LIS-S12500-X-VD |
| 3130A1GB | LIS-S12500-X-DC |
| 3130A3UA | LIS-U-WAF-1Y |
| 3130A3U9 | LIS-U-WAF-3Y |
| 3130A375 | LIS-SER-URL-1Y |
| 3130A376 | LIS-SER-URL-3Y |
| 3130A1QN | LIS-U-IPS-1Y |
| 3130A1QP | LIS-U-IPS-3Y |
| 3130A1QS | LIS-U-LB; H3C Secblade-Advance, LB License Certificate |
| 3130A1QV | H3C S12500X-AF Ethernet Switch |
| 3130A1QT | LIS-U-SSL-200 |
| 3130A1QW | H3C S12500X-AF Ethernet Switch |
| 3130A1QU | LIS-U-SSL-500 |
| 3130A1QQ | LIS-U-ACG-1Y |
| 3130A1QR | LIS-U-ACG-3Y |
| 3130A1YG | LIS-U-AV-1Y |
| 3130A1YH | LIS-U-AV-3Y |
| Service | |
| 8813A0S6 | SV-MA-HPOSS; Type: Service |
| 8814A05J | Type: Service |
| 8814A0TB | SV-PS-ASOAS; High-End switch Operations Support Service; Type: Service |
| Rail Kit | |
| 0231A4EK | LSXM1BSR; 1U Adjustable Rack Rail-630mm~900mm; Type: Rail Kit |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m; Type: Serial Cable |
| 0404A1EE | CAB-Console-1.8m-W31R; Console Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Serial Cable |
| Base Configuration | |
| 0235A1EL | LS-12516X-AF; H3C S12516X-AF Ethernet Switch Chassis |
| Product Identity | |
| Brand | H3C |
| Series | H3C S12500X-AF Series Switches |
