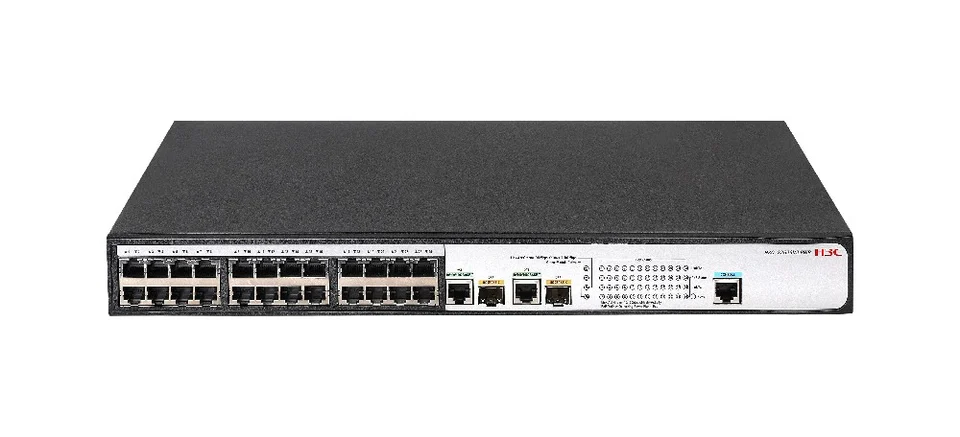

H3C LS-2626V2-PWR Ethernet Switch. H3C S2626V2-PWR L2 Ethernet Switch with 24*10/100Base-T PoE+ Ports and 2*100/1000Base-X SFP Combo Ports,AC.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-2626V2-PWR Ethernet Switch is H3C S2626V2-PWR L2 Ethernet Switch with 24*10/100Base-T PoE+ Ports and 2*100/1000Base-X SFP Combo Ports,AC.
Compatible and optional SKUs are listed in the ordering information, including 9801A2NU LS-2626V2-PWR, 02312173 SFP-GE-LH80-SM1550, 0231A563 SFP-GE-LX-SM1310-A, 0231A962 SFP-GE-LX-SM1310-D, 02312170 SFP-GE-LH40-SM1310.
| Key Specifications | |
|---|---|
| Switching Capacity | 260Gbps |
| Packet Forwarding Rate | 24Mpps |
| Management Port | 1 Console port |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×173×44 |
| Weight (Full Configuration) | ≤ 2.2kg |
| PoE+ Power Supply | Supports PoE+ Maximum output of the whole unit: 190W |
| Product Specifications | |
| Switching Capacity | 260Gbps |
| Packet Forwarding Rate | 24Mpps |
| Management Port | 1 Console port |
| Fixed Port | 24*10/100 Base-TXEthernet Port2*100/1000 Base-X SFPOptical Port(Combo) |
| Electrical Port Attributes | Supports half-duplex, full-duplex, and self-negotiation operating modes Supports MDI/MDI-X |
| Ethernet Features | Supports LLDP static MAC configuration Supports MAC address learning number limit (MAC address depth max. 16K supported) Supports port mirroring and flow mirroring functions Supports port aggregation (max. 8 ports for aggregation group ports) Supports port isolation Supports STP/RSTP/MSTP Supports IEEE 802.3ad (dynamic link aggregation), static port aggregation |
| VLAN | Supports 802.1Q (up to 4K VLANs)Supports protocol-based VLANs Supports IP subnet-based VLANs Supports MAC-based VLANs Supports GUEST VLANs Supports QinQ, Flexible QinQ |
| IP Routing | Supports static routing, RIP |
| DHCP | Supports DHCP Relay Supports DHCP Client Supports DHCP Snooping Supports DHCP Snooping Option82 |
| Multicast | Supports IGMP V1/V2/V3 Snooping |
| QoS | Supports Diff-Serv QoS Supports queue scheduling mechanisms such as WRR/HQ-WRR Supports 802.1p, DSCP priority mapping Supports bi-directional rate limiting on ports |
| ACL | - Supports Layer 2, Layer 3, Layer 4 ACLs Supports IPv4, IPv6 ACLs Supports VLAN ACLs |
| IPv6 | Supports IPv6 Static Routing, Dual Protocol Stack supports DHCPv6 Client, DHCPv6 Snooping supports ND, PMTU supports IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 Domain Name Resolution |
| Reliability | Supports hot patch functionality, allowing online patch upgrades |
| Security | Supports user hierarchical management and password protection Supports SSHv2 to provide a secure encrypted channel for user login Supports SSL to secure data transmission Supports FTP login and password mechanism for controllable IP addresses Supports the function of preventing attacks such as ARP, unknown multicast message, broadcast message, unknown unicast message, TTL=1 message, protocol message, etc. Supports the function of preventing Dos attacks Supports the function of MAC address restriction Supports the function of IP + MAC + PORT + VLAN binding support IEEE 802.1x support SAVI source address validity verification support Radius, support for HWTACACS support for secure network management SNMPv3 support for broadcast message suppression support for CPU anti-attacks |
| System Management | Support Console/AUX Modem/Telnet/SSH2.0 Command Line Configuration Support FTP, TFTP, Xmodem, SFTP File Upload and Download Management Support SNMP V1/V2c/V3 Support NTP Clock Support System Work Log Support Cluster Management |
| PoE+ Power Supply | Supports PoE+ Maximum output of the whole unit: 190W |
| Ambient temperature | Operating ambient temperature: 0℃～40℃ Storage ambient temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Environmental protection | China RoHs,、EEE |
| Maximum Device Power | ≤ 220W |
| Weight (Full Configuration) | ≤ 2.2kg |
| Input voltage | AC：100V～240V AC, 50/60Hz； |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×173×44 |
| Catalog Description | |
| Description | H3C S2626V2-PWR L2 Ethernet Switch with 24*10/100Base-T PoE+ Ports and 2*100/1000Base-X SFP Combo Ports,AC |
| Ordering Information | |
| Base Configuration | |
| 9801A2NU | LS-2626V2-PWR |
| SFP Gigabit Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP Gigabit Optical Port |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP Gigabit Optical Port |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP Gigabit Optical Port |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 0231A964 | SFP-GE-LH80-SM1550-D; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP Gigabit Optical Port |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP Gigabit Optical Port |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP Gigabit Optical Port |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit Optical Module (850 nm, 550 m, SX, LC); Type: SFP Gigabit Optical Port |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit Optical Module (1310 nm, 10 km, LX, LC); Type: SFP Gigabit Optical Port |
| Product Identity | |
| Brand | H3C |
| Series | Commercial Entry-Level switch |
