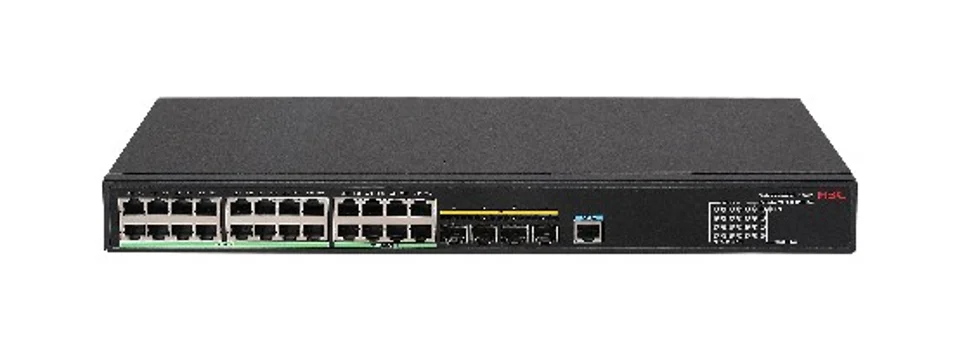

H3C LS-3600V3-54TP-SI Layer 3 Ethernet Switch Chassis, 32 10/100BASE-Telectrical port, 16 10/100/1000BASE-Telectrical port, 6 100/1000BASE-X SFP Port, AC
Brand H3C
N/AVerified
H3C LS-3600V3-54TP-SI
Model (MPN)
9801A2MQ
Condition
Factory Sealed
Out of Stock
H3C LS-3600V3-54TP-SI Layer 3 Ethernet Switch Chassis, 32 10/100BASE-Telectrical port, 16 10/100/1000BASE-Telectrical port, 6 100/1000BASE-X SFP Port, AC. Switching Capacity: 216Gbps. Packet Forwarding Rate: 37.8Mpps. Service Port: 32 10/100Base-T Ethernet Ports, 16 10/100/1000Base-T Ethernet Ports, 6 SFP Ports
Key Specifications
DescriptionH3C S3600V3-54TP-SI L3 Ethernet Switch Chassis,Supports 32 x10/100BASE-Telectrical port,16 x10/100/1000BASE-Telectrical port,Supports 6 x100/1000BASE-X SFP Port,Supports AC
Switching Capacity216Gbps
Packet Forwarding Rate37.8Mpps
Dimensions(mm)W x D x H440×260×43.6
Weight≤4.0Kg
Power ConsumptionMIN：23WMAX：34W
Your Price
Best Value
$4,642.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S3600V3-54TP-SI L3 Ethernet Switch Chassis,Supports 32 x10/100BASE-Telectrical port,16 x10/100/1000BASE-Telectrical port,Supports 6 x100/1000BASE-X SFP Port,Supports AC |
| Key Specifications | |
| Switching Capacity | 216Gbps |
| Packet Forwarding Rate | 37.8Mpps |
| Dimensions(mm)W x D x H | 440×260×43.6 |
| Weight | ≤4.0Kg |
| Power Consumption | MIN：23WMAX：34W |
| Input voltage | AC: rated voltage range: 100 to 240V AC; 50/60Hz |
| Product Specifications | |
| Switching Capacity | 216Gbps |
| Packet Forwarding Rate | 37.8Mpps |
| Dimensions(mm)W x D x H | 440×260×43.6 |
| Service Port | 32 10/100Base-T Ethernet Ports, 16 10/100/1000Base-T Ethernet Ports, 6 SFP Ports |
| Weight | ≤4.0Kg |
| Power Consumption | MIN：23WMAX：34W |
| Input voltage | AC: rated voltage range: 100 to 240V AC; 50/60Hz |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Functions Features | Characterization |
| Port | Supports IEEE 802.3x flow control (full duplex), broadcast storm suppression based on port-rate percentage, and PPS-based broadcast storm suppression |
| Port Aggregation | Supports LACP and manual link aggregation |
| MAC Address | Supports blackhole MAC entries and configuring the maximum number of learned MAC addresses per port |
| VLAN | Supports port-based VLANs (4K), protocol-based VLANs, MAC-based VLANs, Voice VLAN, Super VLAN, PVLAN, MVRP, VLAN VPN (QinQ), and flexible QinQ |
| stacking | Supports IRF2 intelligent resilient architecture, distributed device management, distributed link aggregation, stacking through standard Ethernet interfaces, local stacking, and remote stacking |
| DHCP | Supports DHCP Client, DHCP Relay, DHCP Snooping, and DHCP Server |
| IP Routing | Supports static routing, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, policy-based routing, ECMP, and VRRP/VRRPv3 |
| MCE | Supports MCE (Multi-CE) |
| Reliability | Supports STP/RSTP/MSTP protocols, Smart Link, Smart Link multi-instance, BFD, and RRPP |
| IPV6 | Supports ND (Neighbor Discovery), ND snooping, ND proxy, ND detection, PMTU, IPv6 Ping, IPv6 Tracert, IPv6 Telnet, and IPv6 TFTP |
| Mirroring | Supports N:1 port mirroring, traffic mirroring, and RSPAN (Remote Switched Port Analyzer) |
| QoS/ACL | Supports time-based ACLs, bidirectional inbound and outbound ACL policies, VLAN-based ACL deployment, ingress and egress port rate limiting, 802.1p and DSCP priority remarking, packet redirection, CAR, 8 output queues per port, and flexible queue scheduling algorithms configured by port and queue, including SP, WRR, and SP+WRR modes |
| Security Features | Supports user privilege management and password protection; IEEE 802.1X authentication and centralized MAC address authentication; Layer 2-Portal/triple authentication; AAA and RADIUS authentication; MAC address learning limits; MAC address binding with ports and IP addresses; SSH 2.0; DoS attack prevention; ARP intrusion detection; port isolation; and blackhole MAC entries |
| Management and Maintenance | Supports XModem/FTP/TFTP loading and upgrade; configuration through CLI, Telnet, and Console; SNMPv1/v2/v3 and web management; RMON groups 1, 2, 3, and 9 MIBs; iMC intelligent management center; system logs, hierarchical alarms, and debug information output; PING and Tracert; detection and alarms for POST, fan blockage, and device overheating; VCT cable detection; DLDP (Device Link Detection Protocol); port loopback detection; and IPv6 host features for IPv6 management |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0LS | 0231A0LS - H3C S3600V3-SI Switch Series |
| 0231A0HL | 0231A0HL - H3C S3600V3-SI Switch Series |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - H3C S3600V3-SI Switch Series |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - H3C S3600V3-SI Switch Series |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S3600V3-SI Series Switch |
