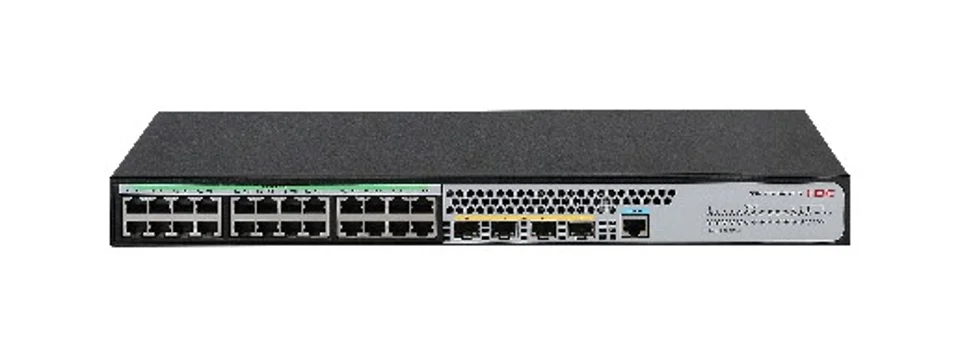

H3C LS-5024PV5-EI Layer 2 Ethernet Switch Chassis, 24 10/100/1000BASE-Telectrical port, 4 1000BASE-X SFP Port, AC
Brand H3C
N/AVerified
H3C LS-5024PV5-EI
Model (MPN)
9801A2KY
Condition
Factory Sealed
Out of Stock
H3C LS-5024PV5-EI Layer 2 Ethernet Switch Chassis, 24 10/100/1000BASE-Telectrical port, 4 1000BASE-X SFP Port, AC. Switching Capacity: 336Gbps. Packet Forwarding Rate: 96Mpps. Fixed Port: 24*10/100/1000Base-TEthernet Port4*1000 Base-X SFPOptical Port
Key Specifications
DescriptionH3C S5024PV5-EI L2Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-Telectrical port,Supports 4 x1000BASE-X SFP Port,Supports AC
Switching Capacity336Gbps
Packet Forwarding Rate96Mpps
Fixed Port24*10/100/1000Base-TEthernet Port4*1000 Base-X SFPOptical Port
Weight (Full Configuration)≤ 2.5kg
Dimensions (Length × Width × Height) (Unit: mm)440×160×44
Your Price
Best Value
$1,114.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5024PV5-EI L2Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-Telectrical port,Supports 4 x1000BASE-X SFP Port,Supports AC |
| Key Specifications | |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 96Mpps |
| Fixed Port | 24*10/100/1000Base-TEthernet Port4*1000 Base-X SFPOptical Port |
| Weight (Full Configuration) | ≤ 2.5kg |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×160×44 |
| Power Consumption | ≤ 23W |
| Product Specifications | |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 96Mpps |
| Management Port | 1 Console port |
| Fixed Port | 24*10/100/1000Base-TEthernet Port4*1000 Base-X SFPOptical Port |
| Electrical Port Attributes | Supports half-duplex, full-duplex, and self-negotiation operating modes Supports MDI/MDI-X |
| Ethernet Features | Supports IRF2 (supports up to 9 stacked units; S5008PV5-EI and S5008PV5-EI-HPWR do not support IRF2) Supports LLDP static MAC configuration Supports MAC address learning limit (maximum MAC address depth of 8K) Supports port mirroring and flow mirroring Supports port aggregation (up to 8 ports per aggregation group, with a maximum of 24 aggregation groups); supports port isolation; supports STP/RSTP/MSTP; supports IEEE 802.3ad (dynamic link aggregation) and static port aggregation |
| VLAN | Supports 802.1Q (up to 4K VLANs); supports protocol-based VLANs; supports MAC-based VLANs; supports GUEST VLAN; supports VLAN mapping; supports MVRP |
| IP Routing | Supports Static Routing |
| DHCP | Supports DHCP Relay Supports DHCP Client Supports DHCP Snooping |
| Multicast | Supports IGMP V1/V2/V3 Snooping; supports PIM Snooping; supports multicast VLANs; supports IPv6 multicast configuration |
| QoS | Supports SP/WRR/SP+WRR Queue Scheduling Supports 802.1p, DSCP Priority Mapping Supports Port Limiting |
| ACL | · Supports Layer 2, Layer 3, and Layer 4 ACLs; supports IPv4 and IPv6 ACLs; · Supports VLAN ACLs |
| IPv6 | Supports IPv6 Static Routing, Dual Protocol Stack supports DHCPv6 Client, DHCPv6 Snooping supports ND, PMTU supports IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 Domain Name Resolution |
| Reliability | Supports EthernetOAMSupports DLDPSupports Monitor Link |
| Security | Supports User hierarchical managementand password protection Supports SSH, providing a secure encrypted channel for User logins Supports FTP logins with controllable IP addressesand password mechanism Supports Protection against ARP, Unknown Multicast messages, Broadcast messages, Unknown Unicast messages, TTL=1 messages, protocols messagesetc.Attacksfunctions Supports MAC Address restrictions Supports IP + MAC + PORT bindingfunctions Supports IEEE 802.1x Supports Radius, Supports AAASupports Secure Network Management SNMPv3Supports Broadcast Message Supports |
| System Management | Supports Console/AUX Modem/Telnet/SSH command-line configuration; supports FTP, TFTP, Xmodem, and SFTP file upload and download management; supports SNMP V1/V2c/V3; supports SFlow; supports NQA; supports NTP clock; supports system event logs |
| Ambient temperature | Operating ambient temperature: -5°C to 45°C |
| Ambient humidity | Operating humidity: 10%–95% (non-condensing) Storage humidity: 10%–95% (non-condensing) |
| Environmental protection | China RoHs,、EEE |
| POE | Not supported |
| Power Consumption | ≤ 23W |
| Weight (Full Configuration) | ≤ 2.5kg |
| Input voltage | AC: • Rated Voltage Range: 100V～240V AC, 50/60Hz • Maximum Voltage Range: 90V～264V AC, 47～63Hz |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×160×44 |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5000PV5-EI Series Switch |
