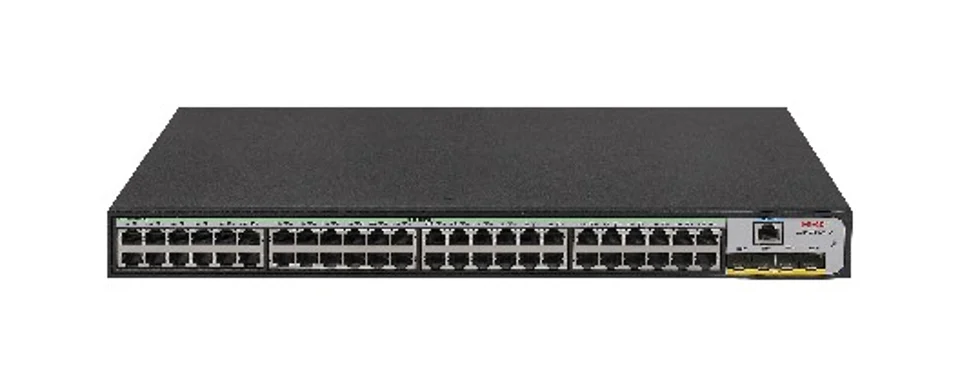

H3C LS-5048X-EI Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 1G/10G BASE-X SFP+ Port, AC
Brand H3C
N/AVerified
H3C LS-5048X-EI
Model (MPN)
9801A2SF
Condition
Factory Sealed
Out of Stock
H3C LS-5048X-EI Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 1G/10G BASE-X SFP+ Port, AC. Switching Capacity (full duplex): 502Gbps/5.02Tbps. Packet Forwarding Rate (entire system): 144Mpps. Port Description: 48*10/100/1000TX Ethernet Ports + 4 SFP+ Ports
Key Specifications
DescriptionH3C S5048X-EI L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,4 x1G/10G BASE-X SFP Plus Port,Supports AC
Switching Capacity (full duplex)502Gbps/5.02Tbps
Packet Forwarding Rate (entire system)144Mpps
Weight (Full Configuration)≤ 3.5kg
Dimensions (Length × Width × Height) (Unit: mm)440×230×43.6
PoE+ Power SupplyNot supported
Your Price
Best Value
$2,982.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5048X-EI L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,4 x1G/10G BASE-X SFP Plus Port,Supports AC |
| Key Specifications | |
| Switching Capacity (full duplex) | 502Gbps/5.02Tbps |
| Packet Forwarding Rate (entire system) | 144Mpps |
| Weight (Full Configuration) | ≤ 3.5kg |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×230×43.6 |
| PoE+ Power Supply | Not supported |
| Input voltage | AC：100V～240V AC，50/60Hz |
| Product Specifications | |
| Switching Capacity (full duplex) | 502Gbps/5.02Tbps |
| Packet Forwarding Rate (entire system) | 144Mpps |
| Port Description | 48*10/100/1000TX Ethernet Ports + 4 SFP+ Ports |
| Ethernet Features | IRF2StaticMACConfiguration supports Port Mirroring and Flow Mirroring functions, supports Port Aggregation (Aggregation group Port max 8-Ports), supports 10GE Port Aggregation, supports Port Isolation, supports STP/RSTP/MSTP, supports IEEE 802.3ad (Dynamic Link Aggregation) and Static Port Aggregation, supports Jumbo Frame. |
| VLAN | Supports Port-based VLAN, MAC VLAN, Guest VLAN |
| ARP | Supports ARP Detection function, ARP rate limiting |
| IPv6 | Supports IPv6 Static Routing, Dual Protocol Stack supports DHCPv6 Client, DHCPv6 Snooping supports ND, PMTU supports IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 Domain Name Resolution |
| DHCP | Supports DHCP Client, DHCP Snooping, DHCP Relay, DHCP Option82 |
| DNS | Supports static domain name resolution, dynamic domain name resolution, client, and IPv4/IPv6 addresses |
| Routing protocols | Supports IPv4/IPv6 static routing |
| Supports broadcast, multicast, and unicast storm suppression | Storm suppression based on port rate percentage Storm suppression based on PPS |
| QoS/ACL | Support for packet filtering functions Support for SP/WRR/SP+WRR queue scheduling Support for bidirectional ACLSupport for port-based rate limiting Support for flow-based redirection Support for time-based policies |
| Mirroring | Support for port mirroring Support for flow mirroring |
| Security Features | Supports user level management and password protection Supports SSH2.0 Supports Port isolation Supports 802.1X Supports Port security Supports MAC address authentication Supports IP Source Guard Supports HTTPS |
| Loading and Upgrade | Supports FTP (File Transfer Protocol) loading upgrade, supports TFTP (Trivial File Transfer Protocol) loading upgrade |
| Management | Supports Command Line Interface (CLI) Configuration Supports Telnet Remote Configuration Supports Console Port Configuration Supports SNMP (Simple Network Management Protocol) Supports RMON (Remote Monitoring) Alarm, Event, Historical Record Support iMC Network Management System Support Web Management Support System Log Support Hierarchical Alarm Support IRF Support NTP |
| Maintenance | Supports debug information output. Supports Ping, Tracert. Supports Telnet remote maintenance. Supports NQA. Supports DLDP. Supports Virtual Cable Test. |
| PoE+ Power Supply | Not supported |
| Ambient temperature | Operating environment temperature: -5℃～45℃ Storage environment temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Maximum Device Power | ≤ 44W |
| Weight (Full Configuration) | ≤ 3.5kg |
| Input voltage | AC：100V～240V AC，50/60Hz |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×230×43.6 |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0LS | 0231A0LS - H3C S5000X-EI Switch Series |
| 0231A0HL | 0231A0HL - H3C S5000X-EI Switch Series |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - H3C S5000X-EI Switch Series |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - H3C S5000X-EI Switch Series |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5000X-EI Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching Capacity (full duplex) specification for LS-5048X-EI?
LS-5048X-EI lists Switching Capacity (full duplex) as 502Gbps/5.02Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate (entire system) specification for LS-5048X-EI?
LS-5048X-EI lists Packet Forwarding Rate (entire system) as 144Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Supports broadcast, multicast, and unicast storm suppression specification for LS-5048X-EI?
LS-5048X-EI lists Supports broadcast, multicast, and unicast storm suppression as Storm suppression based on port rate percentage Storm suppression based on PPS. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Weight (Full Configuration) specification for LS-5048X-EI?
LS-5048X-EI lists Weight (Full Configuration) as ≤ 3.5kg. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
