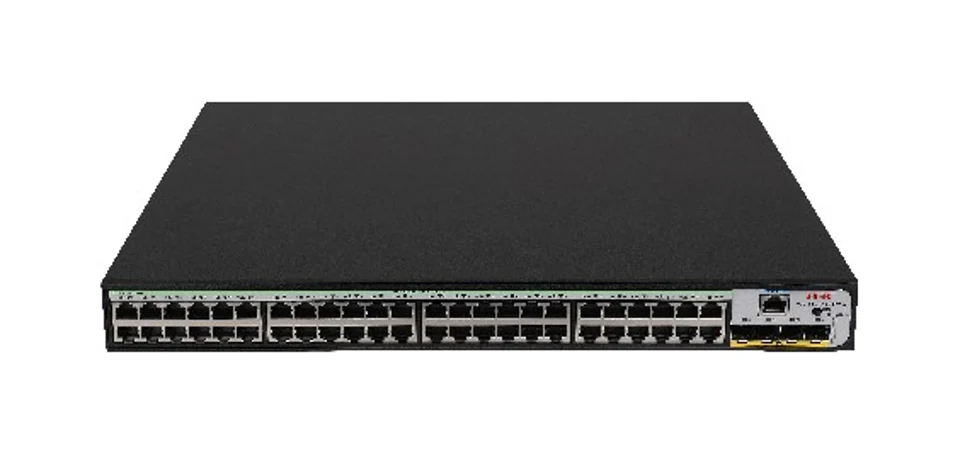

H3C LS-5048X-PWR-EI Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-T PoE+electrical port, 4 1G/10G BASE-X SFP+ Port, AC
Brand H3C
N/AVerified
H3C LS-5048X-PWR-EI
Model (MPN)
9801A2S7
Condition
Factory Sealed
Out of Stock
H3C LS-5048X-PWR-EI Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-T PoE+electrical port, 4 1G/10G BASE-X SFP+ Port, AC. Switching Capacity (full duplex): 502Gbps/5.02Tbps. Packet Forwarding Rate (entire system): 144Mpps. Port Description: 48*10/100/1000TX Ethernet Ports + 4 SFP+ Ports
Key Specifications
DescriptionH3C S5048X-PWR-EI L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-T PoE+electrical port,4 x1G/10G BASE-X SFP Plus Port,Supports AC
Switching Capacity (full duplex)502Gbps/5.02Tbps
Packet Forwarding Rate (entire system)144Mpps
Weight (Full Configuration)≤ 6kg
Dimensions (Length × Width × Height) (Unit: mm)440×400×43.6
PoE+ Power SupplyPort Maximum Output: 30W Whole Machine Maximum Output: 370W
Your Price
Best Value
$3,612.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5048X-PWR-EI L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-T PoE+electrical port,4 x1G/10G BASE-X SFP Plus Port,Supports AC |
| Key Specifications | |
| Switching Capacity (full duplex) | 502Gbps/5.02Tbps |
| Packet Forwarding Rate (entire system) | 144Mpps |
| Weight (Full Configuration) | ≤ 6kg |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×400×43.6 |
| PoE+ Power Supply | Port Maximum Output: 30W Whole Machine Maximum Output: 370W |
| Input voltage | AC：100V～240V AC，50/60Hz |
| Product Specifications | |
| Switching Capacity (full duplex) | 502Gbps/5.02Tbps |
| Packet Forwarding Rate (entire system) | 144Mpps |
| Port Description | 48*10/100/1000TX Ethernet Ports + 4 SFP+ Ports |
| Ethernet Features | IRF2StaticMACConfiguration supports Port Mirroring and Flow Mirroring functions, supports Port Aggregation (Aggregation group Port max 8-Ports), supports 10GE Port Aggregation, supports Port Isolation, supports STP/RSTP/MSTP, supports IEEE 802.3ad (Dynamic Link Aggregation) and Static Port Aggregation, supports Jumbo Frame. |
| VLAN | Supports Port-based VLAN, MAC VLAN, Guest VLAN |
| ARP | Supports ARP Detection function, ARP rate limiting |
| IPv6 | Supports IPv6 Static Routing, Dual Protocol Stack supports DHCPv6 Client, DHCPv6 Snooping supports ND, PMTU supports IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 Domain Name Resolution |
| DHCP | Supports DHCP Client, DHCP Snooping, DHCP Relay, DHCP Option82 |
| DNS | Supports static domain name resolution, dynamic domain name resolution, client, and IPv4/IPv6 addresses |
| Routing protocols | Supports IPv4/IPv6 static routing |
| Supports broadcast, multicast, and unicast storm suppression | Storm suppression based on port rate percentage Storm suppression based on PPS |
| QoS/ACL | Support for packet filtering functions Support for SP/WRR/SP+WRR queue scheduling Support for bidirectional ACLSupport for port-based rate limiting Support for flow-based redirection Support for time-based policies |
| Mirroring | Support for port mirroring Support for flow mirroring |
| Security Features | Supports user level management and password protection Supports SSH2.0 Supports Port isolation Supports 802.1X Supports Port security Supports MAC address authentication Supports IP Source Guard Supports HTTPS |
| Loading and Upgrade | Supports FTP (File Transfer Protocol) loading upgrade, supports TFTP (Trivial File Transfer Protocol) loading upgrade |
| Management | Supports Command Line Interface (CLI) Configuration Supports Telnet Remote Configuration Supports Console Port Configuration Supports SNMP (Simple Network Management Protocol) Supports RMON (Remote Monitoring) Alarm, Event, Historical Record Support iMC Network Management System Support Web Management Support System Log Support Hierarchical Alarm Support IRF Support NTP |
| Maintenance | Supports debug information output. Supports Ping, Tracert. Supports Telnet remote maintenance. Supports NQA. Supports DLDP. Supports Virtual Cable Test. |
| PoE+ Power Supply | Port Maximum Output: 30W Whole Machine Maximum Output: 370W |
| Ambient temperature | Operating environment temperature: -5℃～45℃ Storage environment temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Maximum Device Power | ≤467W |
| Weight (Full Configuration) | ≤ 6kg |
| Input voltage | AC：100V～240V AC，50/60Hz |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×400×43.6 |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0LS | 0231A0LS - H3C S5000X-EI Switch Series |
| 0231A0HL | 0231A0HL - H3C S5000X-EI Switch Series |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - H3C S5000X-EI Switch Series |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - H3C S5000X-EI Switch Series |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5000X-EI Series Switch |
