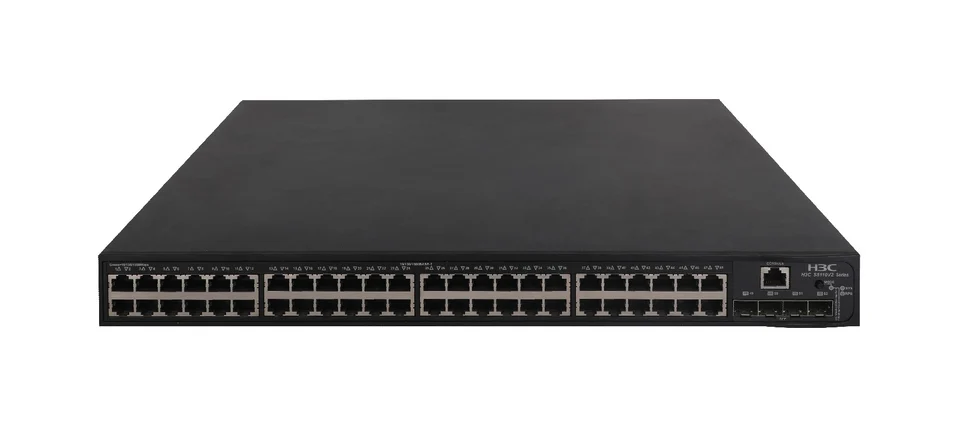

H3C LS-5110V2-52P-PWR Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-T PoE+electrical port(AC 370W, DC 740W), 4 1000BASE-X SFP Port, AC/DC
Brand H3C
N/AVerified
H3C LS-5110V2-52P-PWR
Model (MPN)
9801A1ER
Condition
Factory Sealed
Out of Stock
H3C LS-5110V2-52P-PWR Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-T PoE+electrical port(AC 370W, DC 740W), 4 1000BASE-X SFP Port, AC/DC. Switching Capacity: 256Gbps. Packet Forwarding Rate: 78Mpps/132Mpps. Fixed Port: 48 10/100/1000Base-T Ethernet Ports 4 1000Base-X Ethernet Ports
Key Specifications
DescriptionH3C S5110V2-52P-PWR L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-T PoE+electrical port(AC 370W,DC 740W),Supports 4 x1000BASE-X SFP Port,Supports AC/DC
Switching Capacity256Gbps
Packet Forwarding Rate78Mpps/132Mpps
Fixed Port48 10/100/1000Base-T Ethernet Ports 4 1000Base-X Ethernet Ports
Weight≤6kg
Dimensions (Length × Width × Height) (Unit: mm)440×400×43.6
Your Price
Best Value
$415.94
List Price: $5,942.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5110V2-52P-PWR L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-T PoE+electrical port(AC 370W,DC 740W),Supports 4 x1000BASE-X SFP Port,Supports AC/DC |
| Key Specifications | |
| Switching Capacity | 256Gbps |
| Packet Forwarding Rate | 78Mpps/132Mpps |
| Fixed Port | 48 10/100/1000Base-T Ethernet Ports 4 1000Base-X Ethernet Ports |
| Weight | ≤6kg |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×400×43.6 |
| Po Epower supply | PWR models all support PoE+ Power Supply |
| Product Specifications | |
| Switching Capacity | 256Gbps |
| Packet Forwarding Rate | 78Mpps/132Mpps |
| Management Port | 1 Console port |
| Fixed Port | 48 10/100/1000Base-T Ethernet Ports 4 1000Base-X Ethernet Ports |
| Po Epower supply | PWR models all support PoE+ Power Supply |
| Port Aggregation | Supports LACP and manual aggregation; each aggregation group supports up to 8-Ports. |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP |
| VLAN | Supports Port's VLANs (4K) Supports MAC's VLANSupports protocols' VLANSupports GVRP, MVRPSupports QinQ, Flexible QinQSupports VLAN Mapping Supports GUEST VLAN |
| DHCP | Supports DHCP Server Supports DHCP Client Supports DHCP Relay Supports DHCP Snooping Supports DHCP Snooping Option82 |
| IPv4 | Supports IPv4static routing, RIP, ospf |
| IPv6 | Supports IPv4 and IPv6 dual stacks Supports IPv6 static routing Supports ND, PMTUD Supports Pingv6, Telnetv6, FTPv6, TFTPv6, ICMPv6 |
| Multicast | Supports IGMP Snooping, Fast Leave, MLD Snooping, Multicast VLAN |
| stacking | Supports mixed stacking of up to 9 devices |
| Mirroring | Support for port mirroring Support for flow mirroring |
| ACL | Supports L2-L4 packet filtering functionality, can match the first 80 bytes of packets, provides ACL definition based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP Port, TCP/UDP Port range, VLAN, etc. Supports ACL deployment based on Port, VLAN, supports ACL based on Time Range, supports hardware-based IPv6 ACL and QoS |
| QoS | Supported Diff-Serv QoS per x portsSupported 8 x output queuesSupported 802.1p/DSCP priority mappingSupported queue scheduling mechanismsSupported priority marking Mark/RemarkSupported flow-based packet filteringSupported flow-based redirectionSupported flow-based rate limitingSupported Voice VLAN |
| Security | User Rating Managementand Password Protection Supports Guest VLANSupports IEEE 802.1XAuthentication/Centralized MAC Address Authentication Supports EAD Rapid Deployment Supports AAA & RADIUS&HWTACACS Authentication Supports MAC Address Learning Number Limit Supports MAC Address Blackhole Supports SSH 2.0, provides secure encrypted channel for User login Supports SSL, protects data transmission security Supports SAVI source address validity verification Supports Port isolation Supports ARP message rate limiting functions Supports IP source address protection Supports ARP intrusion detection functions Supports anti-Dos attacks Supports broadcast message suppression Supports Primary backup mechanism Supports IP+Port binding, IP+MAC binding, Port+MAC binding, IP+MAC+Port binding, IP+MAC+Port+VLAN bindingfunctions Supports CPU protectionfunctions |
| Reliability | Supports EthernetOAMSupports CFD connectivity error detection Supports Smart Link, which provides efficient and reliable link backup, load sharing and fast convergence for dual uplink networks Supports Monitor Link, which can Surveillance uplink status, together with Smart Link for more efficient link backup switching Supports DLDP, which can detect and discover unidirectional connectivity links Supports RRPP fast ring protection protocolss Supports Monitor Link, which can monitor the uplink status and provide more efficient link backup switching with Smart Link Supports DLDP, which can detect and discover unidirectional connectivity Supports RRPP fast ring protection protocols |
| System Management | Supports Console/AUX Modem/Telnet/SSH 2.0 command-line configuration; supports FTP, TFTP, Xmodem, and SFTP file upload/download management; supports SNMP V1/V2c/V3; supports RMON; supports VCT cable detection; supports TR069; supports NTP clock synchronization; supports system event logs; supports cluster management; supports H3C iMC Intelligent Management Center |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Environmental protection | China RoHs,、EEE |
| Weight | ≤6kg |
| Static Power Consumption | AC:36WDC:26W |
| Full Load Power Consumption | AC:467（POE 370W）DC:807（POE 740W） |
| Input voltage | AC：100V～240V AC，50/60Hz |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×400×43.6 |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5110V2 Series Switch |
