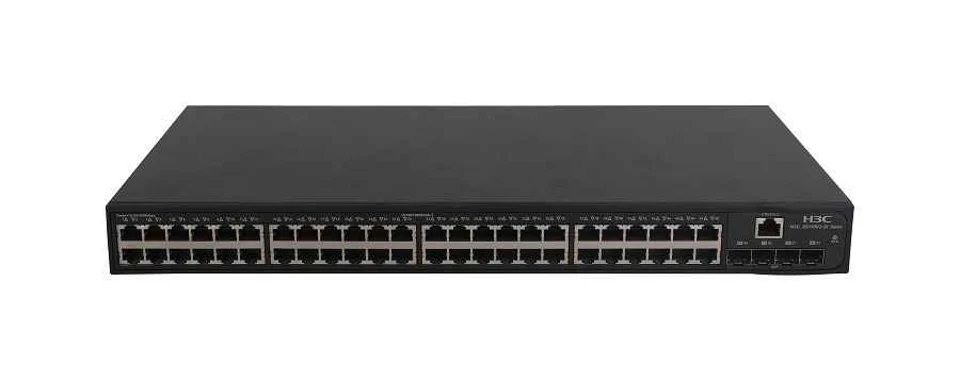

H3C LS-5110V2-52P-SI Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 1000BASE-X SFP Port, AC
Brand H3C
N/AVerified
H3C LS-5110V2-52P-SI
Model (MPN)
9801A1EM
Condition
Factory Sealed
Out of Stock
H3C LS-5110V2-52P-SI Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 1000BASE-X SFP Port, AC. Switching Capacity: 336Gbps. Packet Forwarding Rate: 132Mbps. Fixed Port: 48 10/100/1000Base-T Ethernet Ports 4 1000Base-X Ethernet Ports
Key Specifications
DescriptionH3C S5110V2-52P-SI L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,Supports 4 x1000BASE-X SFP Port,Supports AC
Switching Capacity336Gbps
Packet Forwarding Rate132Mbps
Fixed Port48 10/100/1000Base-T Ethernet Ports 4 1000Base-X Ethernet Ports
Weight (Full Configuration)≤ 3.5kg
Dimensions (Length × Width × Height) (Unit: mm)440×230×43.6
Your Price
Best Value
$2,742.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5110V2-52P-SI L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,Supports 4 x1000BASE-X SFP Port,Supports AC |
| Key Specifications | |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 132Mbps |
| Fixed Port | 48 10/100/1000Base-T Ethernet Ports 4 1000Base-X Ethernet Ports |
| Weight (Full Configuration) | ≤ 3.5kg |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×230×43.6 |
| Power Consumption | AC: MIN 18W MAX 41W |
| Product Specifications | |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 132Mbps |
| Management Port | 1 Console port |
| Fixed Port | 48 10/100/1000Base-T Ethernet Ports 4 1000Base-X Ethernet Ports |
| Port Aggregation | Supports LACP and manual aggregation; each aggregation group supports up to 8-Ports. |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP |
| VLAN | Supports Port-based VLAN, MAC-based VLAN, GUEST VLAN |
| DHCP | Supports DHCP Client, DHCP Relay, DHCP Snooping, DHCP Snooping Option82 |
| IP Routing | Supports Static routing, RIPV1/2 |
| Multicast | Supports IGMP Snooping, Fast Leave, MLD Snooping, Multicast VLAN |
| stacking | Supports mixed stacking of up to 9 devices |
| Mirroring | Support for port mirroring Support for flow mirroring |
| ACL | Supports L2-L4 packet filtering functionality, can match the first 80 bytes of packets, provides ACL definition based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP Port, TCP/UDP Port range, VLAN, etc. Supports ACL deployment based on Port, VLAN, supports ACL based on Time Range, supports hardware-based IPv6 ACL and QoS |
| QoS | Supports Diff-Serv QoS, each Port supports 8 output queues, supports 802.1p/DSCP priority mapping, supports queue scheduling mechanism, supports priority marking Mark/Remark, supports flow-based packet filtering, supports flow-based redirection, supports flow-based rate limiting |
| Security | Supports user privilege management and password protection, supports Guest VLAN, supports IEEE 802.1X authentication/Centralized MAC address authentication, supports AAA & RADIUS & HWTACACS authentication, supports MAC address learning limit, supports MAC address blackhole, supports SSH 2.0 providing a secure encrypted channel for user login, supports SSL ensuring data transmission security, supports HABP, supports Port isolation, supports broadcast storm suppression, supports active-standby data backup mechanism, supports binding functions of IP+Port, IP+MAC, Port+MAC, IP+MAC+Port, IP+MAC+Port+VLAN. |
| System Management | Supports Console/AUX Modem/Telnet/SSH2.0 command line Configuration, Supports FTP, TFTP, Xmodem, SFTP file upload/download management, Supports SNMP V1/V2c/V3, Supports RMON, Supports NTP clock, Supports system operation logs, Supports cluster management, Supports H3C iMC Intelligent Management Center |
| Ambient temperature | Operating Environment Temperature: 0℃～45℃ Storage Environment Temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Environmental protection | China RoHs,、EEE |
| Weight (Full Configuration) | ≤ 3.5kg |
| Fan | 1 |
| Power Consumption | AC: MIN 18W MAX 41W |
| Input voltage | AC：100V～240V AC，50/60Hz |
| Dimensions (Length × Width × Height) (Unit: mm) | 440×230×43.6 |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5110V2-SI Series Switch |
