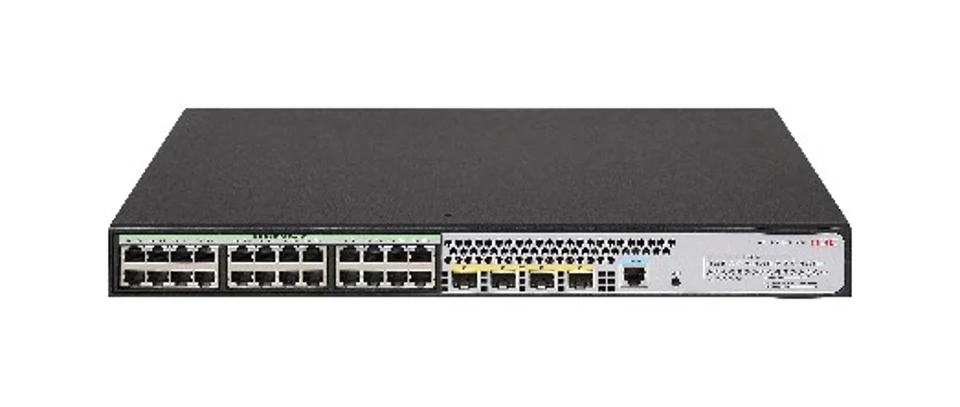

H3C LS-5120V3-28P-HPWR-LI Layer 2 Ethernet Switch, featuring 24 10/100/1000BASE-T PoE+ ports (AC 370W), 4 100/1000BASE-X SFP ports, 4 GE Combo ports, and AC
Brand H3C
N/AVerified
H3C LS-5120V3-28P-HPWR-LI
Model (MPN)
9801A316
Condition
Factory Sealed
Out of Stock
H3C LS-5120V3-28P-HPWR-LI Layer 2 Ethernet Switch, featuring 24 10/100/1000BASE-T PoE+ ports (AC 370W), 4 100/1000BASE-X SFP ports, 4 GE Combo ports, and AC. Switching Capacity: 336Gbps/3.36Tbps. Packet Forwarding Rate: 108/126Mpps. Service Port Description: 24 10/100/1000BASE-T Electrical Ports, supports 4 1000BASE-X SFP Ports
Key Specifications
DescriptionH3C S5120V3-28P-HPWR-LI L2 Ethernet Switch, featuring 24 10/100/1000BASE-T PoE+ ports (AC 370W), 4 100/1000BASE-X SFP ports, 4 GE Combo ports, and AC
Switching Capacity336Gbps/3.36Tbps
Packet Forwarding Rate108/126Mpps
VLAN virtual interfaceSupports
Dimensions (W x D x H, Unit: mm)440×260 ×43.6 mm
Weight≤4kg
Your Price
Best Value
$2,368.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5120V3-28P-HPWR-LI L2 Ethernet Switch, featuring 24 10/100/1000BASE-T PoE+ ports (AC 370W), 4 100/1000BASE-X SFP ports, 4 GE Combo ports, and AC |
| Key Specifications | |
| Switching Capacity | 336Gbps/3.36Tbps |
| Packet Forwarding Rate | 108/126Mpps |
| VLAN virtual interface | Supports |
| Dimensions (W x D x H, Unit: mm) | 440×260 ×43.6 mm |
| Weight | ≤4kg |
| Input voltage | AC• Rated Voltage Range: 100V～240V AC, 50/60Hz |
| Product Specifications | |
| Switching Capacity | 336Gbps/3.36Tbps |
| Packet Forwarding Rate | 108/126Mpps |
| Service Port Description | 24 10/100/1000BASE-T Electrical Ports, supports 4 1000BASE-X SFP Ports |
| stacking | Maximum stacking quantity: 9 switches |
| Dimensions (W x D x H, Unit: mm) | 440×260 ×43.6 mm |
| Weight | ≤4kg |
| CONSOLE port | 1 |
| Input voltage | AC• Rated Voltage Range: 100V～240V AC, 50/60Hz |
| Maximum Power Consumption of the Entire System | S5120V3-28P-PWR-LI: 294W (240W for poe) S5120V3-28P-HPWR-LI: 400W (370W for poe) |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Link aggregation | Supports GE port aggregation, supports static aggregation, supports dynamic aggregation, supports cross-device aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports |
| MAC Address Table | Supports blackhole MAC address, supports setting port MAC address, maximum number of MAC address learning per port |
| VLAN | Supports port-based VLAN, QinQ, Voice VLAN, protocol VLAN, and MAC VLAN |
| ARP | Supports ARP Detection function, ARP rate limiting |
| ND | Supports ND |
| VLAN virtual interface | Supports |
| DHCP | Supports DHCP Client, DHCP Snooping, DHCP Relay, DHCP Server, and DHCP Option82 |
| DNS | Supports static domain name resolution, dynamic domain name resolution, client, and IPv4/IPv6 addresses |
| Routing protocols | Supports IPv4/IPv6 static routing, RIP/RIPng, OSPFV1/V2/V3 |
| Supports broadcast, multicast, and unicast storm suppression | Storm suppression based on port rate percentage Storm suppression based on PPS |
| Smart Link | Supports |
| Layer 2 Ring Protocol | Support for STP/RSTP/MSTP protocols Support for STP Root Protection Support for RRPP |
| QoS/ACL | Supports packet filtering function, supports SP/WRR/SP+WRR queue scheduling, supports bidirectional ACL, supports port-based rate limiting, supports flow-based redirection |
| Mirroring | Support for port mirroring Support for flow mirroring |
| Security Features | Support for user level management and password protection Support for SSH2.0Support for port isolation Support for 802.1XSupport for port security Support for MAC address authentication Support for IP Source Guard Support for HTTPS and EAD |
| Loading and Upgrade | Supports FTP (File Transfer Protocol) loading upgrade, supports TFTP (Trivial File Transfer Protocol) loading upgrade |
| Management | Supports Command Line Interface (CLI) Configuration Supports Telnet Remote Configuration Supports Console Port Configuration Supports SNMP (Simple Network Management Protocol) Supports RMON (Remote Monitoring) Alarm, Event, Historical Record Support iMC Network Management System Support Web Management Support System Log Support Hierarchical Alarm Support IRF Support NTP |
| Maintenance | Supports debug information output. Supports Ping, Tracert. Supports Telnet remote maintenance. Supports NQA. Supports DLDP. Supports Virtual Cable Test. |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A0LU | 0231A0LU - H3C S5120V3-LI Switch Series |
| 0231A0LP | 0231A0LP - H3C S5120V3-LI Switch Series |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0LS | 0231A0LS - H3C S5120V3-LI Switch Series |
| 0231A0HL | 0231A0HL - H3C S5120V3-LI Switch Series |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - H3C S5120V3-LI Switch Series |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - H3C S5120V3-LI Switch Series |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5120V3-LI Series Switch |
