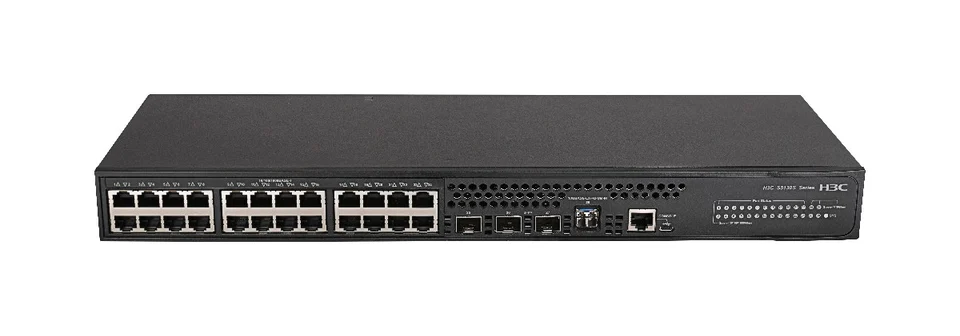

H3C LS-5130S-28S-SI-SM Layer 2 Ethernet Switch, supporting 24 10/100/1000BASE-T Ethernet ports, 1 fixed 1G/10G BASE-X single-mode 10 km fiber port, and 3 1G/10G BASE-X SFP+ ports; supports AC
Brand H3C
N/AVerified
H3C LS-5130S-28S-SI-SM
Model (MPN)
9801A2EX
Condition
Factory Sealed
Out of Stock
H3C LS-5130S-28S-SI-SM Layer 2 Ethernet Switch, supporting 24 10/100/1000BASE-T Ethernet ports, 1 fixed 1G/10G BASE-X single-mode 10 km fiber port, and 3 1G/10G BASE-X SFP+ ports; supports AC. Switching Capacity: 336Gbps/3.36Tbps. Packet Forwarding Rate (entire system): 126Mpps. Management Port: 1 Console port
Key Specifications
DescriptionH3C S5130S-28S-SI-SM L2 Ethernet Switch, supporting 24 10/100/1000BASE-T Ethernet ports, 1 fixed 1G/10G BASE-X single-mode 10 km fiber port, and 3 1G/10G BASE-X SFP+ ports; supports AC
Switching Capacity336Gbps/3.36Tbps
Packet Forwarding Rate (entire system)126Mpps
Dimensions (Width x Depth x Height) (Unit: mm)440×160×43.6 mm
Weight<2.5kg
Input voltageAC: Rated voltage range: 100V～240V A.C, 50/60Hz
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5130S-28S-SI-SM L2 Ethernet Switch, supporting 24 10/100/1000BASE-T Ethernet ports, 1 fixed 1G/10G BASE-X single-mode 10 km fiber port, and 3 1G/10G BASE-X SFP+ ports; supports AC |
| Key Specifications | |
| Switching Capacity | 336Gbps/3.36Tbps |
| Packet Forwarding Rate (entire system) | 126Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×160×43.6 mm |
| Weight | <2.5kg |
| Input voltage | AC: Rated voltage range: 100V～240V A.C, 50/60Hz |
| Total Power Consumption | MIN: |
| Product Specifications | |
| Switching Capacity | 336Gbps/3.36Tbps |
| Packet Forwarding Rate (entire system) | 126Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×160×43.6 mm |
| Weight | <2.5kg |
| Management Port | 1 Console port |
| Service Port Description | 24×100/1000BASE-X SFP (including 8 GE Combo ports) + 4 SFP+ Ports |
| Input voltage | AC: Rated voltage range: 100V～240V A.C, 50/60Hz |
| Total Power Consumption | MIN: |
| Operating Environment Temperature | 0℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 10%～95% |
| Link aggregation | Supports GE Port Aggregation |
| stacking | IRF2 |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports Port-based VLAN |
| ARP | Supports ARP Detection function |
| ND | Supports ND |
| DHCP | Supports DHCP Client |
| DNS | Supports Static domain name resolution |
| Routing protocols | Supports IPv4/IPv6 static routing |
| Supports broadcast, multicast, and unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Smart Link | Supports |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols |
| QoS/ACL | Supports packet filtering function |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| Loading and Upgrade | Supports FTP (File Transfer Protocol) loading upgrade |
| Management | Supports Command Line Interface (CLI) Configuration |
| Maintenance | Supports debug information output |
| Ordering Information | |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| SFP+ 10G Port Cable | |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5130S-SI Series Switch |
