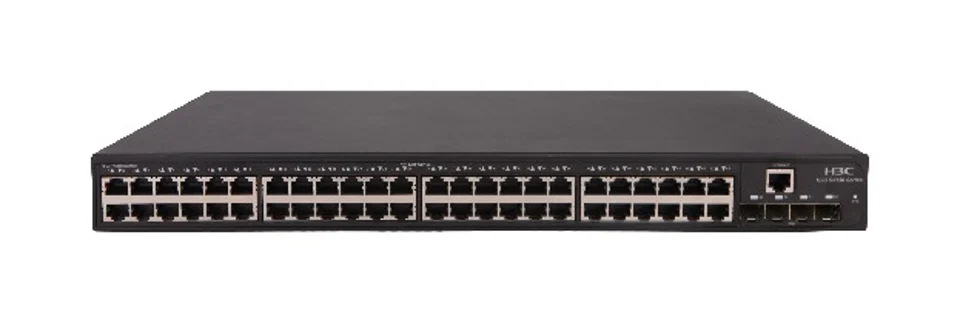

H3C LS-5130S-52P-EI-H1 S5130S-52P-EI Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 1000BASE-X SFP Port, AC. Flow Control: Supports 802.3x flow control and half-duplex back pressure flow control. Jumbo Frame: Supports Maximum Frame Length of 10K. SDN/Openflow: Supports Open Flow 1.3 Standard

Key Specifications

DescriptionH3C S5130S-52P-EI L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,Supports 4 x1000BASE-X SFP Port,Supports AC

VLAN virtual interfaceSupports

CharacteristicsCharacterization

Link aggregationSupports GE Port Aggregation

Flow ControlSupports 802.3x flow control and half-duplex back pressure flow control

Jumbo FrameSupports Maximum Frame Length of 10K

Your Price

Best Value

$245.70

List Price: $3,510.00Save 93%

Availability Out of Stock

Quantity

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment

VISA

Pay

WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs

Avg. Shipping

99%

On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year

Warranty

0.1%

RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+

Countries

20k+

Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7

Assistance

CCIE

Certified

Overview

H3C LS-5130S-52P-EI-H1 S5130S-52P-EI Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 1000BASE-X SFP Port, AC

Specifications

Catalog Description
Description	H3C S5130S-52P-EI L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,Supports 4 x1000BASE-X SFP Port,Supports AC
Key Specifications
VLAN virtual interface	Supports
Characteristics	Characterization
Link aggregation	Supports GE Port Aggregation
Flow Control	Supports 802.3x flow control and half-duplex back pressure flow control
Jumbo Frame	Supports Maximum Frame Length of 10K
MAC Address Table	Supports Static, Dynamic, and Blackhole MAC Address
Product Specifications
Characteristics	Characterization
Link aggregation	Supports GE Port Aggregation
Flow Control	Supports 802.3x flow control and half-duplex back pressure flow control
Jumbo Frame	Supports Maximum Frame Length of 10K
MAC Address Table	Supports Static, Dynamic, and Blackhole MAC Address
SDN/Openflow	Supports Open Flow 1.3 Standard
VLAN	Supports 802.1Q VLAN
ARP	Supports Gratuitous ARP
ND	Supports ND
VLAN virtual interface	Supports
DHCP	Supports DHCP/DHCPv6 Client
DNS	Supports Static domain name resolution
Unicast routing	Supports IPv4/IPv6 dual stack
Multicast	Supports IGMPv1/v2/v3 Snooping and rapid leave mechanism
Broadcast/Multicast/Unicast storm suppression	Supports storm suppression based on Port rate percentage
Layer 2 Ring Protocol	Supports STP/RSTP/MSTP/PVST protocols
QoS/ACL	Supports 802.1p/DSCP priority marking
Mirroring	Supports Port Mirroring
Security Features	Supports user hierarchical management and password protection
802.1X	Supports 802.1X authentication
Loading and Upgrade	Supports XModem protocol for loading and upgrading
Management	Supports Command Line Interface (CLI) Configuration
Maintenance	Supports debug information output
S5130S-10P-EI	672Gbps/6.72Tbps
S5130S-12TP-EI	672Gbps/6.72Tbps
S5130S-20P-EI	672Gbps/6.72Tbps
S5130S-28P-EI	672Gbps/6.72Tbps
S5130S-28S-EI	672Gbps/6.72Tbps
S5130S-28TP-EI	672Gbps/6.72Tbps
S5130S-52P-EI	672Gbps/6.72Tbps
S5130S-52S-EI	672Gbps/6.72Tbps
S5130S-52TP-EI	672Gbps/6.72Tbps
S5130S-52ST-EI	672Gbps/6.72Tbps
S5130S-28ST-EI	672Gbps/6.72Tbps
S5130S-28F-EI	672Gbps/6.72Tbps
S5130S-52F-EI	672Gbps/6.72Tbps
S5130S-28PS-EI	672Gbps/6.72Tbps
S5130S-20P-PWR-EI	672Gbps/6.72Tbps
S5130S-10P-HPWR-EI	672Gbps/6.72Tbps
S5130S-12TP-HPWR-EI	672Gbps/6.72Tbps
S5130S-28P-PWR-EI	672Gbps/6.72Tbps
S5130S-28S-PWR-EI	672Gbps/6.72Tbps
S5130S-28P-HPWR-EI	672Gbps/6.72Tbps
S5130S-28S-HPWR-EI	672Gbps/6.72Tbps
S5130S-52P-PWR-EI	672Gbps/6.72Tbps
S5130S-52S-PWR-EI	672Gbps/6.72Tbps
S5130S-28P-HPWR-EI-AC	672Gbps/6.72Tbps
S5130S-28S-HPWR-EI-AC	672Gbps/6.72Tbps
S5130S-52P-PWR-EI-AC	672Gbps/6.72Tbps
S5130S-52S-PWR-EI-AC	672Gbps/6.72Tbps
S5130S-28S-HPWR-EI-Q	672Gbps/6.72Tbps
S5130S-16S-UPWR-EI-Q	672Gbps/6.72Tbps
S5130S-28S-UPWR-EI-Q	672Gbps/6.72Tbps
S5130S-52ST-PWR-EI	672Gbps/6.72Tbps
S5130S-28ST-PWR-EI	672Gbps/6.72Tbps
S5130S-16S-PWR-EI	672Gbps/6.72Tbps
S5130S-10MS-UPWR-EI	672Gbps/6.72Tbps
S5130S-28S-EI-DP	672Gbps/6.72Tbps
Ordering Information
Not supported Fast EthernetSFP port
02312173	SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC)
0231A2UN	SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC)
0231A2UL	SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC)
0231A2UP	SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC)
0231A2UM	SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC)
0231A54T	SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module)
0231ADWF	SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC)
0231ADWE	SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC)
0231A563	SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC)
0231A962	SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC)
02312170	SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC)
0231A963	SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC)
0231A964	SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC)
0231A562	SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC)
0231A961	SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC)
0231A11U	SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC
0231A11V	SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC
0231AEUP	SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC)
0231AEUN	SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC)
0231A085	SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45)
0231A960	SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45)
Power Supply Cable
0404A0K4	CAB-PDU-2.0m-C14-C13-MUL-50598 - PDU Power Supply Cable - 2.0 m - 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV) & H05VV-F & SJT) - (C13) - Chinese Standard + U.S. Standard + European Standard + Korean Standard
0404A27M	CAB-AC-0.6m-CHN-51005 - PDUPower Supply Cable-0.6m-3*0.75mm^2-Black-(C14 Connector(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector(3P) Straight Female 250V10A)-National Standard
0404A27L	CAB-AC-1.0m-CHN-51004 - PDUPower Supply Cable-1.0m-3*0.75mm^2-Black-(C14 Connector(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector(3P) Straight Female 250V10A)-National Standard
0404A1W1	CAB-AC PWR-3m-CHN-50905 - PDU Power Supply Cable - 3.0 m - 3 × 1.5 mm² - Black - (C20 Connector (3P) Straight Male 250 V 16 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - National Standard
0404A0U5	CAB-HVDC PWR-2m-PDU - PDU Power Supply Cable - 2.0 m - 3 × 1.0 mm² - Yellow 121C - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - Chinese Standard
0404A02W	CAB-C13-C14-1.0m - PDU Power Supply Cable - 1.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - GB Standard
0404A098	CAB-C13-C14-1.5m - PDU Power Supply Cable - 1.5 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250 V 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - National Standard
0404A02X	CAB-C13-C14-2.0m - PDU Power Supply Cable - 2.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male, 250 V, 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female, 250 V, 10 A) - Chinese National Standard
0404A0W5	CAB-PDU PWR-5m-C13/C14 - PDU Power Supply Cable - 5.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250 V 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - Chinese Standard
0404A213	CAB-AC PWR-1.5m-CHN-50937 - Wall Plug AC power cable-1.5m-3*0.75mm^2-Black-(GB1002 Plug (3P) Bent Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector (3P) Right Bent Female 250V10A)-National Standard
0404A214	CAB-AC PWR-1.5m-50936 - Wall Plug AC power Cord-1.5m-3*0.75mm^2-Black-(GB1002 Plug(3P) Curved Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector(3P) Left Curved Female 250V10A)-National Standard
0404A1GY	Cab-PDU-C14-3m-C13-CHN - PDU Power Supply Cable - 3.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male, 250 V, 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female, 250 V, 10 A) - Chinese National Standard
0404A19E	0404A19E - H3C S5130S-EI Switch Series
0404A0GF	CAB-HVDC-10A-PDU-3m-Y - PDU Power Supply Cable - 3.0 m - 3 × 1.0 mm² - Yellow 121C - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - National Standard
Configuration Cables
04042967	CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port)
0404A1EE	CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP)
Product Identity
