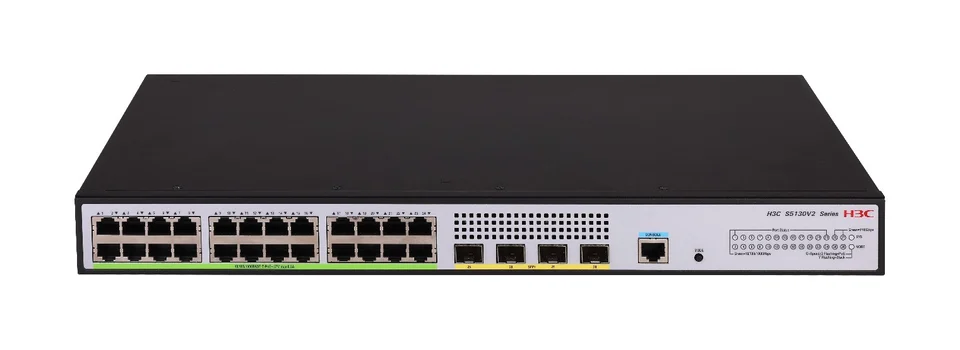

H3C LS-5130V2-28S-HPWR-LI Layer 2 Ethernet Switch Chassis, 24 10/100/1000BASE-T PoE+electrical port, 4 1G/10G BASE-X SFP+Port, AC
Brand H3C
N/AVerified
H3C LS-5130V2-28S-HPWR-LI
Model (MPN)
9801A58R
Condition
Factory Sealed
Out of Stock
H3C LS-5130V2-28S-HPWR-LI Layer 2 Ethernet Switch Chassis, 24 10/100/1000BASE-T PoE+electrical port, 4 1G/10G BASE-X SFP+Port, AC. Switching Capacity: 672Gbps/6.72Tbps. Packet Forwarding Rate: 171Mpps/ 256Mpps. Service Port Description: 24*10/100/1000BASE-T(POE+)Electrical Port+4*1G/10G BASE-X SFP+Port
Key Specifications
DescriptionH3C S5130V2-28S-HPWR-LI L2Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-T PoE+electrical port,Supports 4 x1G/10G BASE-X SFP+Port,Supports AC
Switching Capacity672Gbps/6.72Tbps
Packet Forwarding Rate171Mpps/ 256Mpps
VLAN virtual interfaceSupports
Dimensions (W x D x H, Unit: mm)440*260*43.6
Weight≤3.7kg
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5130V2-28S-HPWR-LI L2Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-T PoE+electrical port,Supports 4 x1G/10G BASE-X SFP+Port,Supports AC |
| Key Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 171Mpps/ 256Mpps |
| VLAN virtual interface | Supports |
| Dimensions (W x D x H, Unit: mm) | 440*260*43.6 |
| Weight | ≤3.7kg |
| Input voltage | AC:90-264V,47-63Hz |
| Product Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 171Mpps/ 256Mpps |
| Service Port Description | 24*10/100/1000BASE-T(POE+)Electrical Port+4*1G/10G BASE-X SFP+Port |
| stacking | Maximum stacking quantity: 9 switches |
| Dimensions (W x D x H, Unit: mm) | 440*260*43.6 |
| Weight | ≤3.7kg |
| Input voltage | AC:90-264V,47-63Hz |
| Power Consumption (Static) | AC：18W |
| Power consumption (at full load) | AC: 451W (poe power supply 375W) |
| Operating Environment Temperature | -5℃～45℃ |
| Operating environment relative humidity | 5%～95% (Non-condensing) |
| Characteristics | Characterization |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports Port-based VLAN |
| ARP | Supports Gratuitous ARP |
| ND | Supports ND |
| VLAN virtual interface | Supports |
| DHCP | Supports DHCP Client |
| Unicast routing | Supports IPv4/IPv6 static routing |
| Multicast | Supports IGMP Snooping |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols |
| QoS/ACL | Supports 802.1p/DSCP priority marking |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| 802.1X | Supports 802.1X authentication |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management | Supports Command Line Interface (CLI) Configuration |
| Maintenance | Supports debug information output |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231AK6N | 0231AK6N - H3C S5130V2-LI Switch Series |
| 0231AK6J | 0231AK6J - H3C S5130V2-LI Switch Series |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231AK6K | 0231AK6K - H3C S5130V2-LI Switch Series |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231AK6G | 0231AK6G - H3C S5130V2-LI Switch Series |
| 0231ALXS | SFP-GE-LX-SM1310-F - SFPGigabit All-Optical 3.0 Optical Module (1310nm, 10km, SM, LC) |
| 0231AK6F | 0231AK6F - H3C S5130V2-LI Switch Series |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231AK6M | 0231AK6M - H3C S5130V2-LI Switch Series |
| 0231AK6L | 0231AK6L - H3C S5130V2-LI Switch Series |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231AK6H | 0231AK6H - H3C S5130V2-LI Switch Series |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5130V2-LI Series Switch |
