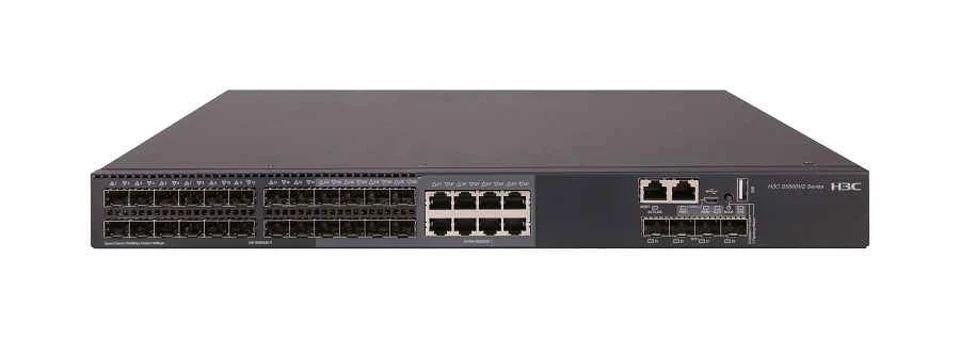

H3C LS-5500V2-30F-EI Layer 3 Ethernet Switch Chassis(24SFP(8GE Combo)+4SFP Plus+1Slot), No Power Supply
Brand H3C
N/AVerified
H3C LS-5500V2-30F-EI
Model (MPN)
0235A2BL
Condition
Factory Sealed
Out of Stock
H3C LS-5500V2-30F-EI Layer 3 Ethernet Switch Chassis(24SFP(8GE Combo)+4SFP Plus+1Slot), No Power Supply. Switching Capacity: 1.36Tbps/13.6Tbps. Packet Forwarding Rate: 228Mpps/256Mpps. Front panel service port description: 24 SFP Gigabit Ports, 8 Combo ports, 4 1/10G BASE-X SFP+ 10G Ports, 1 expansion slot;
Key Specifications
DescriptionH3C S5500V2-30F-EI L3 Ethernet Switch Chassis(24SFP(8GE Combo)+4SFP Plus+1Slot),No Power Supply
Switching Capacity1.36Tbps/13.6Tbps
Packet Forwarding Rate228Mpps/256Mpps
Dimensions (Width x Depth x Height) (Unit: mm)440×360×43.6
Weight≤3.9kg
Input voltageAC: Rated voltage range: 100V～240V AC, 50/60Hz
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5500V2-30F-EI L3 Ethernet Switch Chassis(24SFP(8GE Combo)+4SFP Plus+1Slot),No Power Supply |
| Key Specifications | |
| Switching Capacity | 1.36Tbps/13.6Tbps |
| Packet Forwarding Rate | 228Mpps/256Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×43.6 |
| Weight | ≤3.9kg |
| Input voltage | AC: Rated voltage range: 100V～240V AC, 50/60Hz |
| Power Consumption (Static) | MIN:AC:20WMAX:AC:58W |
| Product Specifications | |
| Switching Capacity | 1.36Tbps/13.6Tbps |
| Packet Forwarding Rate | 228Mpps/256Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×43.6 |
| Weight | ≤3.9kg |
| Management port | Console Port |
| Management serial port | mini USB console，USB |
| Front panel service port description | 24 SFP Gigabit Ports, 8 Combo ports, 4 1/10G BASE-X SFP+ 10G Ports, 1 expansion slot; |
| extended slot | NO |
| Expansion line cards | Not expandable |
| Port aggregation | Supports GE port aggregation, 10GE port aggregation, 40G aggregation, Static aggregation, Dynamic aggregation, Cross-device aggregation, 8-Port link aggregation |
| Port Features | Supports IEEE 802.3x flow control (full-duplex) Supports multicast storm suppression Supports broadcast storm suppression Supports storm suppression based on Port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports maximum frame length of 10000 |
| MAC Address Table | Supports blackhole MAC address Supports Static, Dynamic MAC address assignment Supports MAC address automatic learning and aging |
| VLAN | Supports VLAN based on Port Supports VLAN based on MAC address Supports VLAN based on protocol Supports VLAN based on IP subnet Supports QinQ, flexible QinQ* Supports VLAN Mapping Supports Voice VLAN Supports SuperVLAN Supports Guest VLAN Supports PVLAN Supports MVRP |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP Supports Smart Link Supports RRPP |
| DHCP | DHCP ClientDHCP SnoopingDHCP RelayDHCP Relay SECURITYDHCP ServerDHCP Snooping option82/DHCP Relay option82 |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 intelligent elastic architecture for distributed device management, distributed link aggregation, and distributed elastic routing. Supports stacking via standard Ethernet interfaces, including local stacking and remote stacking. Supports stacking of up to 9 devices. |
| IP Routing | Supports Static routing Supports RIPv1/v2, RIPng Supports OSPFv1/v2, OSPFv3 Supports BGP4, BGP4+ for IPv6 Supports equal-cost routing, policy routing Supports VRRP/VRRPv3 |
| IPv6 | Supports Neighbor Discovery (ND) Supports Path MTU (PMTU) Supports IPv6-Ping, IPv6-Traceroute, IPv6-Telnet, IPv6-TFTP Supports Manual Configuration Tunnel Supports 6to4 Tunnel Supports ISATAP Tunnel Supports IPv6 in IPv6 Tunnel Supports IPv4 in IPv6 Tunnel Supports GRE Tunnel Supports MLD SNOOPING |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 Supports PIM Snooping Supports MLD Proxy Supports Multicast VLAN Supports IGMP v1/v2/v3, MLD v1/v2 Supports PIM-DM, PIM-SM, PIM-SSM Supports MSDP, MSDP for IPv6 |
| Mirroring | Supports Flow Mirroring Supports N:4-Port Mirroring Supports Local and Remote Port Mirroring |
| Supports ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, and VLAN, with IPv6 ACL support, Time Range ACL support, bidirectional ACL policies in inbound and outbound directions, ACL deployment based on VLAN, rate limiting on received and transmitted packets per Port with minimum granularity of 8Kbps, packet redirection support, 802.1p and DSCP priority remarking support, CAR (Committed Access Rate) function support, flexible queue scheduling algorithms that allow simultaneous configuration based on Port and queue, supporting SP, WRR, and SP+WRR modes, and WRED support. |
| Security Features | Supports user level management and password protection Supports 802.1X authentication/centralized MAC address authentication Maximum users per port limit Supports Guest VLANSupports RADIUS authentication Supports SSH 2.0Supports Port isolation Supports Port security Supports EADSupports DHCP Snooping to prevent rogue DHCP servers Supports dynamic ARP inspection to prevent man-in-the-middle attacks and ARP DoS attacks Supports HTTPSSupports BPDU guard, Root guard Supports uRPF (unicast reverse path forwarding) to prevent IP source address spoofing and mitigate virus and attack threats Supports binding of IP/Port/MACSupports plaintext and MD5 authentication for OSPF and RIPv2 packets Supports PKI (Public Key Infrastructure) |
| Management and Maintenance | Supports XModem/FTP/TFTP loading and upgrade, Supports Command Line Interface (CLI), Telnet, Console port for configuration, Supports SNMPv1/v2/v3, WEB management, Supports RMON (Remote Monitoring) alarms, events, historical records, Supports iMC intelligent management center, Supports system logs, hierarchical alarms, debug information output, Supports NTP, Supports Power Supply alarms, Fan, temperature alarms, Supports Ping, Tracert, Supports VCT (Virtual Cable Test) cable detection function, Supports DLDP (Device Link Detection Protocol) unidirectional link detection protocol, Supports LLDP, Supports Loopback-detection Port loop detection |
| Green Energy Saving | Port automatic Power down function, Port scheduled Power down function (Schedule job) |
| Input voltage | AC: Rated voltage range: 100V～240V AC, 50/60Hz |
| Power Consumption (Static) | MIN:AC:20WMAX:AC:58W |
| Operating Environment Temperature | 0℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 10%－90% |
| Ordering Information | |
| Expansion Module | |
| 0231A2TA | LSWM2SP2PM - 2-Port 10G SFP+ MACSec Interface Card |
| SFP+ 10G Port | |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A2TB | LSWM2SP8P - 8-Port10GSFP Plus Interface Card |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0HL | 0231A0HL - 8-Port10GSFP Plus Interface Card |
| 0231A0LS | 0231A0LS - 8-Port10GSFP Plus Interface Card |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - 8-Port10GSFP Plus Interface Card |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - 8-Port10GSFP Plus Interface Card |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A2TC | LSWM2QP2P - 2-Port40G QSFP Plus Interface Card |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A4F7 | LSPM6FWD - H3C S5000 series Sec Blade IV next-generation firewall Module |
| 0231A5RG | LSPM4G4T6P - 4-Port Gigabit Electrical Port + 6-Port SFP (2*Combo) Interface Module |
| SFP Gigabit Port | |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A0LU | 0231A0LU - 4-Port Gigabit Electrical Port + 6-Port SFP (2*Combo) Interface Module |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A0LP | 0231A0LP - 4-Port Gigabit Electrical Port + 6-Port SFP (2*Combo) Interface Module |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A0HL | 0231A0HL - 4-Port Gigabit Electrical Port + 6-Port SFP (2*Combo) Interface Module |
| 0231A0LS | 0231A0LS - 4-Port Gigabit Electrical Port + 6-Port SFP (2*Combo) Interface Module |
| 0231A0LQ | 0231A0LQ - 4-Port Gigabit Electrical Port + 6-Port SFP (2*Combo) Interface Module |
| 0231A0HK | 0231A0HK - 4-Port Gigabit Electrical Port + 6-Port SFP (2*Combo) Interface Module |
| 0231A5RQ | LSWM4SP8PM - 8-Port 10G SFP+ Interface Module with MACSec |
| 0231A0HL | 0231A0HL - 8-Port 10G SFP+ Interface Module with MACSec |
| 0231A0LS | 0231A0LS - 8-Port 10G SFP+ Interface Module with MACSec |
| 0231A0LQ | 0231A0LQ - 8-Port 10G SFP+ Interface Module with MACSec |
| 0231A0HK | 0231A0HK - 8-Port 10G SFP+ Interface Module with MACSec |
| 0231A8HW | LSWM2MGT8P - 8-Port 1/2.5/5G BASE-T Ethernet Electrical Interface Module |
| 0231A8HX | LSWM2XMGT8P - 8-Port 1/2.5/5/10G BASE-T Ethernet Port Module |
| 0231A8J8 | LSWM2ZSP2P - 2-Port25G SFP28Ethernet Optical Interface Module |
| SFP28-Port | |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A9UF | LSWM2SP2PB - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0HL | 0231A0HL - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0LS | 0231A0LS - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0LQ | 0231A0LQ - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0HK | 0231A0HK - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A9UG | LSWM2SP4PB - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0HL | 0231A0HL - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0LS | 0231A0LS - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0LQ | 0231A0LQ - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A0HK | 0231A0HK - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231AC7K | LSPM6FWD8 - H3C S5500 Sec BladeIV Next Generation Firewall Module |
| 0231ADSD | LSWM2EC - H3C Eagle Vision Scanner Module |
| 0231ADT6 | LSWM2FPGAB - H3C Net Stream Interface Modulewithoutoptical port |
| 0231AFDB | LSWM2-iMC - H3C Intelligent Network Management System Module |
| 0231A0LU | 0231A0LU - S5500V2EI |
| 0231A0LP | 0231A0LP - S5500V2EI |
| 0231A0HL | 0231A0HL - S5500V2EI |
| 0231A0LS | 0231A0LS - S5500V2EI |
| 0231A0LQ | 0231A0LQ - S5500V2EI |
| 0231A0HK | 0231A0HK - S5500V2EI |
| Fan | |
| 0231A2VT | LSPM1FANSA - Fan Module(SW, 4028, Fan Panel Side Air Intake) |
| 0231A2VU | LSPM1FANSB - Fan Module(SW, 4028,Fan Panel Side Air Outlet) |
| Power Supply | |
| 0231A1U0 | LSPM2150A - 150W Asset ManagementAC Power Module |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| 0231A5PW | PSR75-12A - 75WAC Pluggable Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Security License Options | |
| 3130A1XB | LIS-F100G2-AV-1Y - H3C Sec Path F100-G2 AV antivirus security service license certificate,1 year |
| 3130A1XA | LIS-F100G2-IPS-1Y - H3C Sec Path F100-G2 IPS signature database update service license certificate,1 year |
| 3130A1XX | LIS-F100G2-SSL-100 - H3C Sec Path F100-G2 SSL VPN 100 x user license certificate |
| 3130A1XW | LIS-F100G2-SSL-30 - H3C Sec Path F100-G2 SSL VPN 30 x user license certificate |
| 3130A1XC | LIS-F100G2-ACG-1Y - H3C Sec Path F100-G2 application identificationsignature database update service license certificate,1 year |
| 3130A2CF | LIS-F100G2-LB - H3C Sec Path F100G2,LBlicense certificate |
| 3130A374 | LIS-F100G2-URL-1Y - H3C Sec Path F100G2 URLsignature database update service license certificate,1 year |
| 3130A37L | LIS-F100G2-URL-3Y - H3C Sec Path F100G2 URLsignature database update service license certificate,3 years |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5500V2-EI Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching Capacity specification for LS-5500V2-30F-EI?
LS-5500V2-30F-EI lists Switching Capacity as 1.36Tbps/13.6Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate specification for LS-5500V2-30F-EI?
LS-5500V2-30F-EI lists Packet Forwarding Rate as 228Mpps/256Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Management port specification for LS-5500V2-30F-EI?
LS-5500V2-30F-EI lists Management port as Console Port. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W x D x H) (Unit: Mm) specification for LS-5500V2-30F-EI?
LS-5500V2-30F-EI lists Dimensions (W x D x H) (Unit: Mm) as 440×360×43.6. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
