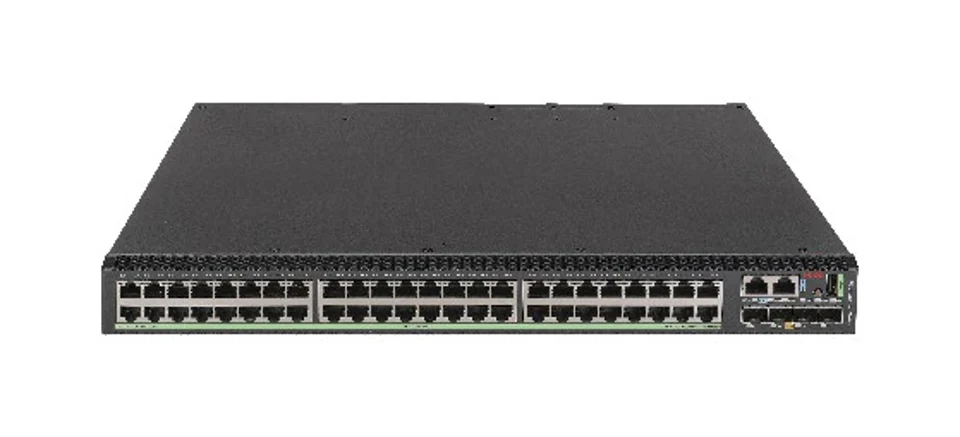

H3C LS-5500V3-48T4XC-HI Layer 3 Ethernet Switch Chassis, supports 48 10/100/1000Base-T ports, 4 1G/10GBase-X SFP+ ports, supports 1 slot, without power supply
Brand H3C
N/AVerified
H3C LS-5500V3-48T4XC-HI
Model (MPN)
0235A2FH
Condition
Factory Sealed
Out of Stock
H3C LS-5500V3-48T4XC-HI Layer 3 Ethernet Switch Chassis, supports 48 10/100/1000Base-T ports, 4 1G/10GBase-X SFP+ ports, supports 1 slot, without power supply. Switching Capacity: 2.4Tbps/24Tbps. Packet Forwarding Rate: 432Mpps. Management Ethernet port: 10/100/1000Base-T Electrical Port: 1
Key Specifications
DescriptionH3C S5500V3-48T4XC-HI Layer 3 Ethernet Switch Chassis, supports 48 10/100/1000Base-T ports, 4 1G/10GBase-X SFP Plus ports, supports 1 slot, without power supply
Switching Capacity2.4Tbps/24Tbps
Packet Forwarding Rate432Mpps
Management Ethernet port10/100/1000Base-T Electrical Port: 1
10/100/1000BASE-T Adaptive Ethernet Port48 ports
SFP+ port4 ports
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5500V3-48T4XC-HI Layer 3 Ethernet Switch Chassis, supports 48 10/100/1000Base-T ports, 4 1G/10GBase-X SFP Plus ports, supports 1 slot, without power supply |
| Key Specifications | |
| Switching Capacity | 2.4Tbps/24Tbps |
| Packet Forwarding Rate | 432Mpps |
| Management Ethernet port | 10/100/1000Base-T Electrical Port: 1 |
| 10/100/1000BASE-T Adaptive Ethernet Port | 48 ports |
| SFP+ port | 4 ports |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Product Specifications | |
| Switching Capacity | 2.4Tbps/24Tbps |
| Packet Forwarding Rate | 432Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Weight | ≤7kg |
| Console Port | 1 |
| Management Ethernet port | 10/100/1000Base-T Electrical Port: 1 |
| USB port | 1 |
| 10/100/1000BASE-T Adaptive Ethernet Port | 48 ports |
| SFP+ port | 4 ports |
| expansion card slot | 1 |
| Expansion line cards | 8-Port 10G SFP+ Interface Card 8-Port 25G SFP28 Interface Card 2-Port 40G QSFP+ Interface Card 2-Port 100G QSFP28 Interface Card Eagle Vision Scanner Expansion Card Firewall Line Card |
| Input voltage | AC: Rated Voltage Range: 100~240V AC: 50/60Hz |
| Operating Environment Temperature | -5ºC～45ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Characteristics | Characterization |
| Port aggregation | Supports Port Aggregation Supports Static Aggregation Supports Dynamic Aggregation Supports Cross-Device Link Aggregation |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports maximum frame length of 13312 |
| MAC Address Table | Supports blackhole MAC address, supports setting port MAC address, maximum number of MAC address learning per port |
| VLAN | Supports 4K VLAN Supports Port-based VLAN Supports MAC-based VLAN Supports Protocol-based VLAN Supports IP Subnet-based VLAN Supports QinQ, Flexible QinQ Supports VLAN Mapping Supports Voice VLAN Supports 802.1Q Supports MVRP |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP Supports Smart Link Supports RRPP Supports ERPS (G.8032) Ethernet Ring Protection Switching Supports PVST Supports Port Single-Character Detection, Root Protection, Loop Protection, Edge Port, BPDU Protection |
| DHCP | DHCP ClientDHCP SnoopingDHCP RelayDHCP ServerDHCP Snooping option82/DHCP Relay option82 |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 Intelligent Elastic Architecture Supports Distributed Device Management, Distributed Link Aggregation, Distributed Elastic Routing Supports Stacking via Standard Ethernet Interface etc. Supports Local Stacking and Remote Stacking |
| IP Routing | Supports Static routing, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, BGP4, BGP4+ for IPv6, IS-IS, IS-IS V6, equal-cost routing, policy routing, VRRP/VRRPv3, OSPF multiple processes, MD5 authentication, STUB/NSSA areas, routing COST settings, inter-area route filtering |
| IPv6 | Supports IPv4/IPv6 dual-stack protocol Support ND (Neighbor Discovery) Support PMTU Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet, IPv6 TFTP, IPv6 ICMP, IPv6 DNS, IPv6 FTP, IPv6 NTP Support manual tunnel, automatic tunnel Support IPv4 over IPv6 tunnel Support 6to4 tunnel Support ISATAP tunnel Support GRE tunnel |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2/v3, PIM Snooping, MLD Proxy, multicast VLAN, IGMP v1/v2/v3, MLD v1/v2, PIM-DM, PIM-SM, PIM-SSM, MSDP, MSDP for IPv6, MBGP, MBGP for IPv6 |
| Mirroring | Supports flow Mirroring, N:9-Port Mirroring, local and remote Port Mirroring, ERSPAN |
| ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing traffic classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP Port number, VLAN, supports Time Range ACL, bidirectional ACL policies for inbound and outbound directions, supports ACL deployment based on VLAN, supports rate limiting for received and sent packets on Port, supports packet redirection, supports 802.1p and DSCP priority remarking, supports CAR (Committed Access Rate) function, supports flexible queue scheduling algorithms, can be configured simultaneously based on Port and queue, supports SP, WFQ, and SP+WFQ three modes |
| Security Features | Supports user level management and password protection Supports 802.1X authentication/centralized MAC address authentication Supports Portal authentication Supports Guest VLANSupports RADIUS authentication Supports HWTACACS+ authentication Supports SSH 2.0Supports Port isolation Supports Port security Supports EADSupports SAVI/SAVA, ensuring security in IPv6 environments Supports DHCP Snooping to prevent rogue DHCP server attacks Supports dynamic ARP inspection to prevent man-in-the-middle attacks and ARP DoS attacks Supports BPDU guard, Root guard Supports uRPF (unicast reverse path forwarding) to prevent IP source address spoofing and mitigate virus and attack threats Supports binding of IP/Port/MACSupports plaintext and MD5 authentication for OSPF and RIPv2 packets Supports PKI (Public Key Infrastructure) |
| Management and Maintenance | Supports hot patch functionality for online patch upgrades. Supports XModem/FTP/TTFTP loading and upgrade. Supports CLI, Telnet, and Console port for configuration. Compatible with Netcool network management platform. Supports SNMPv1/v2/v3 and RMON (Remote Monitoring). Supports BFD for VRRP/IS-IS/BGP/RIP/OSPF/Static routing. Compatible with iMC intelligent management center. Supports Syslog, system logs, hierarchical alarms, and debug information output. Supports NTP. Power supply alarm functionality, fan and temperature alarms. Supports Ping and Tracert. Supports VCT (Virtual Cable Test) cable detection. Supports DLDP (Device Link Detection Protocol) for unidirectional link detection. Supports LLDP. Supports NETCONF network management protocol. Supports Python script-based management and operations maintenance. Supports Loopback-detection Port loop detection. |
| Green Energy Saving | Port automatic power down function, Port scheduled power down function (Schedule job), EEE (802.3az) energy saving standard support |
| Ordering Information | |
| Expansion Module | |
| 0231A2TC | LSWM2QP2P - 2-Port40G QSFP Plus Interface Card |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A2TB | LSWM2SP8P - 8-Port10GSFP Plus Interface Card |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0HL | 0231A0HL - 8-Port10GSFP Plus Interface Card |
| 0231A0LS | 0231A0LS - 8-Port10GSFP Plus Interface Card |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A0LQ | 0231A0LQ - 8-Port10GSFP Plus Interface Card |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A0HK | 0231A0HK - 8-Port10GSFP Plus Interface Card |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A4F7 | LSPM6FWD - H3C S5000 series Sec Blade IV next-generation firewall Module |
| 0231AB53 | LSWM2ZQP2P - 2-Port 100G QSFP28 Interface Module |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231AC0J | QSFP-100G-LR4-WDM1300-A - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231AB52 | LSWM2ZSP8P - 8-Port25G SFP28Interface Module |
| SFP28-Port | |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231ALXT | SFP-25G-LR-SM1310-F - 25G SFP28 All-Optical 3.0 Optical Module(1310nm,10km,LR,SM,LC) |
| 0231ADSD | LSWM2EC - H3C Eagle Vision Scanner Module |
| SFP/SFP+10GOptical Port | |
| 0231A0LS | 0231A0LS - H3C S5500V3-HI Series Ethernet Switches |
| 0231A0HL | 0231A0HL - H3C S5500V3-HI Series Ethernet Switches |
| 0231A0LQ | 0231A0LQ - H3C S5500V3-HI Series Ethernet Switches |
| 0231A0HK | 0231A0HK - H3C S5500V3-HI Series Ethernet Switches |
| Fan Options | |
| 0231AG9E | LSPM1FANSA-SN - H3C Fan Module (Fan side air intake) |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| Power Module | |
| 0231AG3A | PSR180-12A-B - 180W Asset Management AC power Module (Air Exhaust on Power Supply Side) |
| 0231AG3B | PSR180-12A-F - 180W Asset Management AC power Module (Air Intake on Power Supply Side) |
| 0231AG39 | PSR180-12D-B - 180W Asset ManagementDC Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5500V3-HI Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Jumbo Frame specification for LS-5500V3-48T4XC-HI?
LS-5500V3-48T4XC-HI lists Jumbo Frame as Supports maximum frame length of 13312. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the MAC Address Table specification for LS-5500V3-48T4XC-HI?
LS-5500V3-48T4XC-HI lists MAC Address Table as Supports blackhole MAC address, supports setting port MAC address, maximum number of MAC address learning per port. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Ports specification for LS-5500V3-48T4XC-HI?
LS-5500V3-48T4XC-HI lists Ports as 48*10/100/1000Base-T Ports,4*1G/10GBase-X SFP Plus Ports and 1*Slot,Without Power Supplies. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the DHCP specification for LS-5500V3-48T4XC-HI?
LS-5500V3-48T4XC-HI lists DHCP as DHCP ClientDHCP SnoopingDHCP RelayDHCP ServerDHCP Snooping option82/DHCP Relay option82. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
