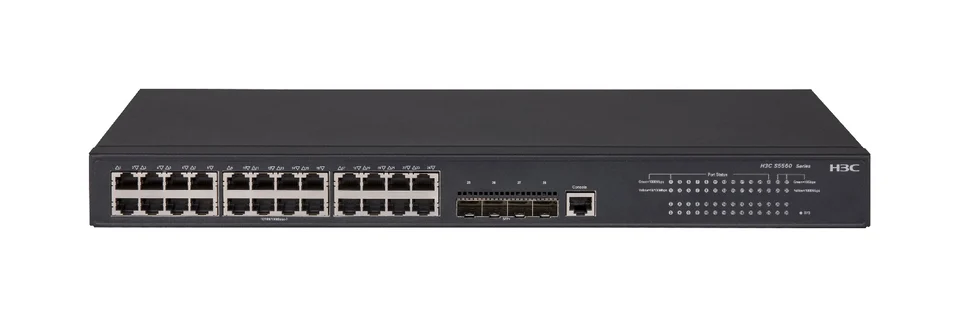

H3C LS-5560-28S-SI Layer 3 Ethernet Switch Chassis, 24 10/100/1000BASE-Telectrical port, 4 10G BASE-X SFP+Port, AC110/220V
Brand H3C
N/AVerified
H3C LS-5560-28S-SI
Model (MPN)
0235A1HD
Condition
Factory Sealed
Out of Stock
H3C LS-5560-28S-SI Layer 3 Ethernet Switch Chassis, 24 10/100/1000BASE-Telectrical port, 4 10G BASE-X SFP+Port, AC110/220V. Jumbo Frame: Supports maximum frame length of 13312. DHCP: DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82. Mirroring: Supports flow Mirroring. Supports N:1-Port Mirroring. Supports local and remote Port Mirroring. Supports E
Key Specifications
DescriptionH3C S5560-28S-SI L3 Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-Telectrical port,Supports 4 x10G BASE-X SFP+Port,Supports AC110/220V
CharacteristicsCharacterization
Port aggregationSupports Port Aggregation, Supports Static Aggregation, Supports Dynamic Aggregation, Supports Cross-Device Link Aggregation, M-LAG
Port FeaturesSupports IEEE802.3x flow control (full-duplex) Supports storm suppression based on port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps
Jumbo FrameSupports maximum frame length of 13312
MAC Address TableSupports static, dynamic, and blackhole MAC address modes. Supports source MAC address filtering. Supports setting the maximum number of learned Port MAC addresses.
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5560-28S-SI L3 Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-Telectrical port,Supports 4 x10G BASE-X SFP+Port,Supports AC110/220V |
| Key Specifications | |
| Characteristics | Characterization |
| Port aggregation | Supports Port Aggregation, Supports Static Aggregation, Supports Dynamic Aggregation, Supports Cross-Device Link Aggregation, M-LAG |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports maximum frame length of 13312 |
| MAC Address Table | Supports static, dynamic, and blackhole MAC address modes. Supports source MAC address filtering. Supports setting the maximum number of learned Port MAC addresses. |
| DHCP | DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82 |
| Product Specifications | |
| Characteristics | Characterization |
| Port aggregation | Supports Port Aggregation, Supports Static Aggregation, Supports Dynamic Aggregation, Supports Cross-Device Link Aggregation, M-LAG |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports maximum frame length of 13312 |
| MAC Address Table | Supports static, dynamic, and blackhole MAC address modes. Supports source MAC address filtering. Supports setting the maximum number of learned Port MAC addresses. |
| VLAN | Supports 802.1Q VLAN, supports 4K VLAN, supports Port-based VLAN, supports QinQ and flexible QinQ, supports Guest VLAN, supports STP, RSTP, MSTP, PVST, supports MVRP, supports Voice VLAN, supports Policy VLAN, supports IP Subnet-based VLAN, supports Protocol-based VLAN, supports MAC-based VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols. Supports STP Root Protection. Supports BPDU Protection. Supports G.8032 Ethernet Ring Protection Protocol (ERPS), with switching time ≤50ms, compatible with other products supporting this protocol. Supports Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection for primary/secondary links. Supports RRPP ring topology and RRPP multi-instance. Supports Port single-end detection, Root Protection, Loop Protection, Edge Port, BPDU Protection. |
| DHCP | DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82 |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 intelligent elastic architecture for distributed device management, distributed link aggregation, and distributed elastic routing. Supports stacking via standard Ethernet interfaces, including local stacking and remote stacking. Supports stacking of up to 9 devices. |
| IP Routing | Supports IPv4/IPv6 static routing, IPv4/IPv6 dual stack, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, BGP4, BGP4+ for IPv6, IS-IS, IS-IS V6, equal-cost routing, policy routing, VRRP/VRRPv3/VRRPv6, OSPF multiple processes, MD5 authentication, STUB/NSSA area support, route COST setting, inter-area route filtering |
| IPv6 | Supports IPv4/IPv6 dual-stack protocol Support ND (Neighbor Discovery) Support PMTU Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet, IPv6 TFTP, IPv6 ICMP, IPv6 DNS, IPv6 FTP, IPv6 NTP Support manual tunnel, automatic tunnel Support IPv4 over IPv6 tunnel Support 6to4 tunnel Support ISATAP tunnel Support GRE tunnel |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2, PIM Snooping, MLD Proxy, Multicast VLAN, Port Bundle Multicast Load Balancing, Port-based Multicast Traffic Statistics, Controlled Multicast, IGMP v1/v2/v3 and MLD v1/v2, PIM-DM, PIM-SM, PIM-SSM, MSDP, MSDP for IPv6, MBGP, MBGP for IPv6 |
| Mirroring | Supports flow Mirroring. Supports N:1-Port Mirroring. Supports local and remote Port Mirroring. Supports ERSPAN. |
| TAP | Support based on PortN:M copy, support based on traffic N:M copy, support GRE tunnel decapsulation, support same source same destination, support packet truncation, support source Port identification, support adding timestamp and Ethernet header recognition for specified packets, modify MAC address or IP address and copy forward |
| ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, and VLAN, supports time-based (Time Range) ACLs with bidirectional ACL policies in both inbound and outbound directions, supports 8 queues per port, supports ACL deployment based on VLAN, supports rate limiting on both incoming and outgoing packets per port, supports packet redirection, supports 802.1p and DSCP priority remarking, supports CAR (Committed Access Rate) function, supports flexible queue scheduling algorithms with simultaneous configuration based on port and queue, supports SP, WFQ, and SP+WFQ three modes, supports network slicing |
| MPLS | Supports MPLS MCE | Supports MPLS L3VPN | Supports MPLS L2VPN | Supports MPLS SR | Supports MPLS TE* |
| SDN/OPENFLOW | Supports OPENFLOW 1.3 standard, multiple controllers (EQUAL mode, active-standby mode), multi-table pipeline, Group table support, Meter support |
| VxLAN | Support VXLAN Layer 2 switching Support VXLAN routing and switching Support VXLAN centralized gateway and distributed Anycast gateway Support BGP EVPN Support Open Flow+Netconf VXLAN centralized control plane and automated deployment |
| Security Features | Supports user level management and password protection Supports 802.1X authentication/centralized MAC address authentication Supports Portal authentication Supports Guest VLANSupports RADIUS authentication Supports HWTACACS+ authentication Supports SSH 2.0Supports Port isolation, Port security, Sticky MACSupports binding of IP, MAC, Port, VLAN in combination Supports blacklist and whitelist Supports MFFSupports EADSupports SAVI, SAVA, ensuring security in IPv6 environment Supports DHCP Snooping, DHCPv6 Snooping, preventing rogue DHCP servers Supports dynamic ARP inspection (Dynamic ARP Inspection, DAI), preventing man-in-the-middle attacks and ARP denial of service Supports anti-DOS attack Supports anti-ARP attack Supports anti-ICMP attack Supports CPU protection Supports CPU anti-attack Supports BPDU guard, Root guard Supports uRPF (unicast reverse path forwarding), preventing IP source address spoofing, preventing viruses and attacks Supports binding of IP/Port/MACSupports plaintext and MD5 ciphertext authentication of OSPF, RIPv2 packets Supports PKI (Public Key Infrastructure, public key infrastructure) |
| Management and Maintenance | Supports hot patch functionality for online patch upgrades. Supports XModem/FTP/TFTP loading and upgrade methods. Supports CLI, Telnet, and Console port for configuration. Supports integrated AC. Supports netcool network management platform. Supports cloud management and local management. Supports SNMPv1/v2/v3, RMON (Remote Monitoring). Supports hardware BFD for VRRP/IS-IS/BGP/RIP/OSPF/Static routing with minimum detection interval of 3ms. Supports iMC intelligent management center. Supports Syslog, system logs, hierarchical alarms, and debug information output. Supports NTP. Supports Power Supply alarm functions, Fan and temperature alarms. Supports Ping and Tracert. Supports VCT (Virtual Cable Test) cable detection functionality. Supports DLDP (Device Link Detection Protocol) unidirectional link detection protocol. Supports LLDP. Supports hardware BFD with minimum 3ms detection interval. Supports BFD for BGP/IS-IS/OSPF/Static routing, etc. Supports Y.1731. Supports OAM. Supports Telemetry visualization. Supports NETCONF network management protocol. Supports Python script management and operations. Supports Loopback-detection Port loop detection. Supports Net Stream function with traffic analysis sampling ratio of 1:1. Supports SFLOW. Supports USB for file upload and download, and USB initialization. Supports ID indicator light for device location identification via LED flashing |
| iNQA | Supports iNQA intelligent network quality analysis. Supports direct marking of business packets to obtain real-time statistics of packet loss count and packet loss rate. Supports packet loss count and packet loss rate statistics at network level and device level. |
| Green Energy Saving | Port automatic power down function, Port scheduled power down function (Schedule job), EEE (802.3az) energy saving standard support |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5560-SI Series Switch |
