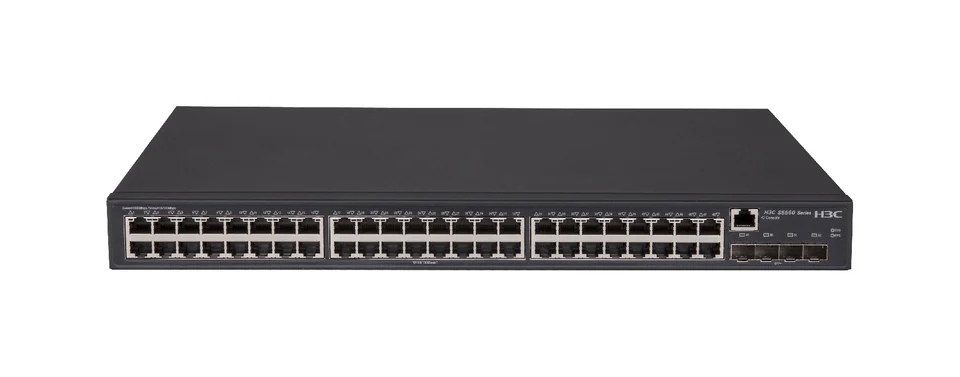

H3C LS-5560-52S-SI Layer 3 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 10G/1G BASE-X SFP+Port, AC/DC
Brand H3C
N/AVerified
H3C LS-5560-52S-SI
Model (MPN)
0235A1HF
Condition
Factory Sealed
Out of Stock
H3C LS-5560-52S-SI Layer 3 Ethernet Switch Chassis, 48 10/100/1000BASE-Telectrical port, 4 10G/1G BASE-X SFP+Port, AC/DC. Supports ACLQoS: Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, and VLAN. Jumbo Frame: Supports 12K. MAC A
Key Specifications
DescriptionH3C S5560-52S-SI L3 Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,4 x10G/1G BASE-X SFP+Port,Supports AC/DC
CharacteristicsCharacterization
Port aggregationSupports GE Port Aggregation
Port FeaturesSupport IEEE802.3x flow control (full-duplex)
Jumbo FrameSupports 12K
MAC Address TableSupports 32K MAC addresses
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5560-52S-SI L3 Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-Telectrical port,4 x10G/1G BASE-X SFP+Port,Supports AC/DC |
| Key Specifications | |
| Characteristics | Characterization |
| Port aggregation | Supports GE Port Aggregation |
| Port Features | Support IEEE802.3x flow control (full-duplex) |
| Jumbo Frame | Supports 12K |
| MAC Address Table | Supports 32K MAC addresses |
| VLAN | Supports 802.1Q VLAN |
| Product Specifications | |
| Characteristics | Characterization |
| Port aggregation | Supports GE Port Aggregation |
| Port Features | Support IEEE802.3x flow control (full-duplex) |
| Jumbo Frame | Supports 12K |
| MAC Address Table | Supports 32K MAC addresses |
| VLAN | Supports 802.1Q VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST |
| DHCP | DHCPv4/v6 Client |
| stacking | Supports IRF2 Intelligent Resilient Fabric |
| IP Routing | Supports IPv4/IPv6 static routing, supports dual-stack |
| IPv6 | Supports ND (Neighbor Discovery) |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| MPLS | Support MPLS MCE |
| Mirroring | Supports Port Mirroring |
| OAM | Supports 802.1ag |
| Supports ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, and VLAN |
| Security Features | Supports user hierarchical management and password protection |
| Management and Maintenance | Supports XMODEM/FTP/TFTP loading and upgrade |
| Green Energy Saving | Supports EEE (802.3az) |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5560-SI Series Switch |
