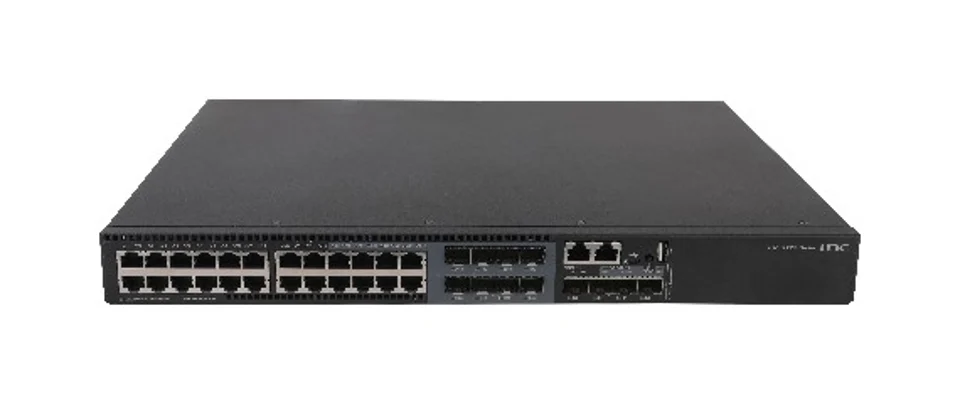

H3C LS-5560S-28P-EI Ethernet Switch Chassis, 24 10/100/1000BASE-Telecommunications ports, 8 100/1000BASE-X SFP Combo ports, 4 1000BASE-X SFP Port
Brand H3C
N/AVerified
H3C LS-5560S-28P-EI
Model (MPN)
9801A1DF
Condition
Factory Sealed
Out of Stock
H3C LS-5560S-28P-EI Ethernet Switch Chassis, 24 10/100/1000BASE-Telecommunications ports, 8 100/1000BASE-X SFP Combo ports, 4 1000BASE-X SFP Port. Switching Capacity: 826Gbps/8.26Tbps. Packet Forwarding Rate: 126Mpps. Management port: 1
Key Specifications
DescriptionH3C S5560S-28P-EI Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-Telecommunications ports,Supports 8 x100/1000BASE-X SFP Combo ports,Supports 4 x1000BASE-X SFP Port
Switching Capacity826Gbps/8.26Tbps
Packet Forwarding Rate126Mpps
Dimensions (Width x Depth x Height) (Unit: mm)440×360 ×43.6
Weight≤8kg
Input voltageAC: Rated voltage range: 100V～240V AC, 50/60Hz
Your Price
Best Value
$252.98
List Price: $3,614.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5560S-28P-EI Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-Telecommunications ports,Supports 8 x100/1000BASE-X SFP Combo ports,Supports 4 x1000BASE-X SFP Port |
| Key Specifications | |
| Switching Capacity | 826Gbps/8.26Tbps |
| Packet Forwarding Rate | 126Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360 ×43.6 |
| Weight | ≤8kg |
| Input voltage | AC: Rated voltage range: 100V～240V AC, 50/60Hz |
| Power Consumption (Static) | Single 75W Power Supply AC: 12W |
| Product Specifications | |
| Switching Capacity | 826Gbps/8.26Tbps |
| Packet Forwarding Rate | 126Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360 ×43.6 |
| Weight | ≤8kg |
| Management port | 1 |
| Management serial port | 1 RJ-45 Console port, 1 USB and MICRO USB port (cannot work simultaneously, MICRO USB takes priority) |
| Front Panel | 24 10/100/1000Base-T Adaptive Ethernet Ports, of which 8 are combo ports |
| Service Port Description | 4 Gigabit SFP Ports |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| Port aggregation | Supports GE Port Aggregation |
| Port Features | Support IEEE802.3x flow control (full-duplex) |
| Jumbo Frame | Supports |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports Port-based VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP, PVST |
| DHCP | DHCP Client |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 Intelligent Resilient Fabric |
| IP Routing | Supports IPv4/IPv6 static routing, supports dual-stack |
| IPv6 | Supports ND (Neighbor Discovery) |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| MPLS | Support MPLS MCE |
| Mirroring | Supports Flow Mirroring |
| OAM | Supports 802.1ag |
| Supports ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port numbers, and VLAN |
| Security Features | Supports user hierarchical management and password protection |
| Management and Maintenance | Supports XModem/FTP/TFTP for loading upgrades |
| Green Energy Saving | Supports EEE (802.3az) |
| Input voltage | AC: Rated voltage range: 100V～240V AC, 50/60Hz |
| Power Consumption (Static) | Single 75W Power Supply AC: 12W |
| Dual 75W Power Supply AC: 14W | Dual 75W Power Supply AC: 13W |
| Single 150W Power Supply AC: 16W | Single 150W Power Supply AC: 15W |
| Dual 150W Power Supply AC: 22W | Dual 150W Power Supply AC: 20W |
| Power consumption (at full load) | Single 75W Power Supply AC: 29W |
| Dual 75W Power Supply AC: 36W | Dual 75W Power Supply AC: 32W |
| Single 150W Power Supply AC: 35W | Single 150W Power Supply AC: 32W |
| Single 150W Power Supply DC: 40W | Single 150W Power Supply DC: 35W |
| Dual 150W Power Supply AC: 42W | Dual 150W Power Supply AC: 39W |
| Dual 150W power supplies; DC: 47W | Dual 150W Power Supply DC: 44W Single1110W:898W (PoE is 810W) Dual1110W:905W (PoE is 810W) |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Single 150W Power Supply DC: 15W | Single 150W Power Supply DC: 25W |
| Dual 150W Power Supply DC: 21W | Dual 150W Power Supply DC: 30W |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| SFP Port Cable | |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| Power Module | |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| 0231A5PW | PSR75-12A - 75WAC Pluggable Power Module |
| 9801A2Q0 | CA-70A12 - Pluggable AC (70W) Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5560S-EI Series Switch |
