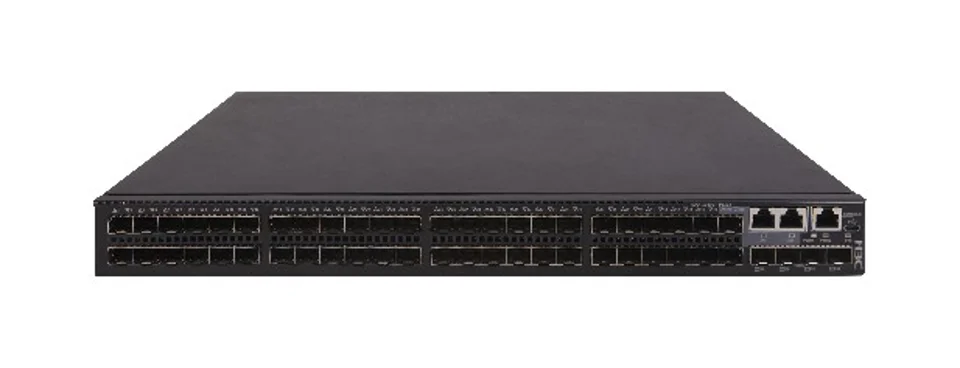

H3C LS-5560S-52F-EI Layer 3 Ethernet Switch, supports 48 100/1000 BASE-X SFP ports, 2 GE Combo ports, and 4 1G/10G BASE-X SFP+ ports
Brand H3C
N/AVerified
H3C LS-5560S-52F-EI
Model (MPN)
9801A24B
Condition
Factory Sealed
Out of Stock
H3C LS-5560S-52F-EI Layer 3 Ethernet Switch, supports 48 100/1000 BASE-X SFP ports, 2 GE Combo ports, and 4 1G/10G BASE-X SFP+ ports. Switching Capacity: 1.28Tbps/12.8Tbps. Packet Forwarding Rate: 264Mpps. Management port: 1
Key Specifications
DescriptionH3C S5560S-52F-EI L3 Ethernet Switch, supports 48 100/1000 BASE-X SFP ports, 2 GE Combo ports, and 4 1G/10G BASE-X SFP+ ports
Switching Capacity1.28Tbps/12.8Tbps
Packet Forwarding Rate264Mpps
Dimensions (Width x Depth x Height) (Unit: mm)440×360 ×43.6
Weight≤8.5kg
Input voltageAC: Rated voltage range: 100V～240V AC, 50/60Hz
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5560S-52F-EI L3 Ethernet Switch, supports 48 100/1000 BASE-X SFP ports, 2 GE Combo ports, and 4 1G/10G BASE-X SFP+ ports |
| Key Specifications | |
| Switching Capacity | 1.28Tbps/12.8Tbps |
| Packet Forwarding Rate | 264Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360 ×43.6 |
| Weight | ≤8.5kg |
| Input voltage | AC: Rated voltage range: 100V～240V AC, 50/60Hz |
| Power Consumption (Static) | Single 75W Power Supply AC: 21W |
| Product Specifications | |
| Switching Capacity | 1.28Tbps/12.8Tbps |
| Packet Forwarding Rate | 264Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360 ×43.6 |
| Weight | ≤8.5kg |
| Management port | 1 |
| Management serial port | 1 RJ-45 Console port, 1 USB and MICRO USB port (cannot work simultaneously, MICRO USB takes priority) |
| Front Panel | 48 100/1000BASE-X SFP ports (including 2 GE Combo ports) |
| Service Port Description | 4 10G SFP+ ports |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| Port aggregation | Supports GE Port Aggregation |
| Port Features | Support IEEE802.3x flow control (full-duplex) |
| Jumbo Frame | Supports |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports Port-based VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP, PVST |
| DHCP | DHCP Client |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 Intelligent Resilient Fabric |
| IP Routing | Supports IPv4/IPv6 static routing, supports dual-stack |
| IPv6 | Supports ND (Neighbor Discovery) |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| MPLS | Support MPLS MCE |
| Mirroring | Supports Flow Mirroring |
| OAM | Supports 802.1ag |
| Supports ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port numbers, and VLAN |
| Security Features | Supports user hierarchical management and password protection |
| Management and Maintenance | Supports XModem/FTP/TFTP for loading upgrades |
| Green Energy Saving | Supports EEE (802.3az) |
| Input voltage | AC: Rated voltage range: 100V～240V AC, 50/60Hz |
| Power Consumption (Static) | Single 75W Power Supply AC: 21W |
| Dual 75W Power Supply AC: 14W | Dual 75W Power Supply AC: 24W |
| Single 150W Power Supply AC: 16W | Single 150W Power Supply AC: 25W |
| Single 150W Power Supply DC: 15W | Single 150W Power Supply DC: 26W |
| Dual 150W Power Supply AC: 22W | Dual 150W Power Supply AC: 30W |
| Dual 150W Power Supply DC: 21W | Dual 150W Power Supply DC: 32W |
| Power consumption (at full load) | Single 75W Power Supply AC: 47W |
| Dual 75W Power Supply AC: 36W | Dual 75W Power Supply AC: 49W |
| Single 150W Power Supply AC: 35W | Single 150W Power Supply AC: 49W |
| Single 150W Power Supply DC: 40W | Single 150W Power Supply DC: 58W |
| Dual 150W Power Supply AC: 42W | Dual 150W Power Supply AC: 56W |
| Dual 150W power supplies; DC: 47W | Dual 150W Power Supply DC: 60W Single1110W:1019W (PoE is 900W) Dual1110W:1854W (PoE is 1680W) |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| SFP Port Cable | |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| SFP/SFP+10GOptical Port | |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| SFP+ 10G Port Cable | |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Power Module | |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| 0231A5PW | PSR75-12A - 75WAC Pluggable Power Module |
| 9801A2Q0 | CA-70A12 - Pluggable AC (70W) Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5560S-EI Series Switch |
