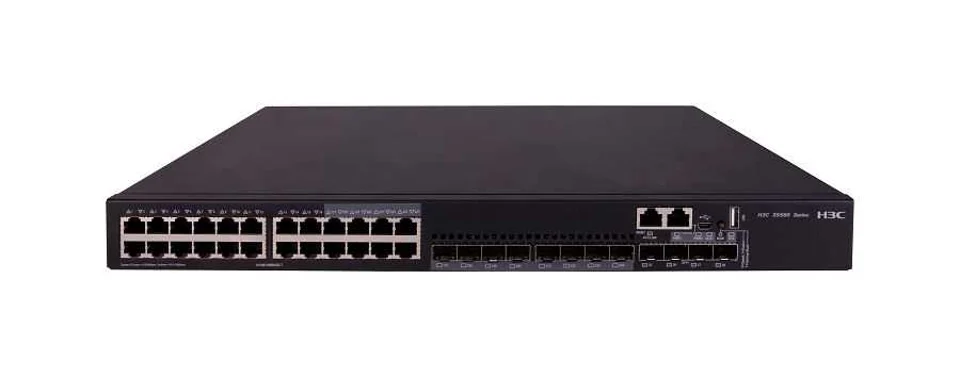

H3C LS-5560X-30C-EI Layer 3 Ethernet Switch Chassis (24GE(8SFP Combo)+4SFP Plus+1Slot), no Power Supply
Brand H3C
N/AVerified
H3C LS-5560X-30C-EI
Model (MPN)
LS-5560X-30C-EI
Condition
Factory Sealed
Out of Stock
H3C LS-5560X-30C-EI Layer 3 Ethernet Switch Chassis (24GE(8SFP Combo)+4SFP Plus+1Slot), no Power Supply. Switching Capacity: 756Gbps/7.56Tbps. Packet Forwarding Rate: 222Mpps/396Mpps. USB port: 1
Key Specifications
DescriptionH3C S5560X-30C-EI L3 Ethernet Switch Chassis (24GE(8SFP Combo)+4SFP Plus+1Slot), no Power Supply
Switching Capacity756Gbps/7.56Tbps
Packet Forwarding Rate222Mpps/396Mpps
Dimensions (Width x Depth x Height) (Unit: mm)440×360×43.6
Weight≤6.7kg
Power Consumption (Static)SingleAC:24WDC:24WDual AC:29WDC:28W
Your Price
Best Value
$417.97
List Price: $5,971.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5560X-30C-EI L3 Ethernet Switch Chassis (24GE(8SFP Combo)+4SFP Plus+1Slot), no Power Supply |
| Key Specifications | |
| Switching Capacity | 756Gbps/7.56Tbps |
| Packet Forwarding Rate | 222Mpps/396Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×43.6 |
| Weight | ≤6.7kg |
| Power Consumption (Static) | SingleAC:24WDC:24WDual AC:29WDC:28W |
| Power consumption (at full load) | Single AC:87WSingle DC:88WDual AC:91WDualDC:95W |
| Product Specifications | |
| Switching Capacity | 756Gbps/7.56Tbps |
| Packet Forwarding Rate | 222Mpps/396Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×43.6 |
| Weight | ≤6.7kg |
| USB port | 1 |
| Management port | 1 |
| Management serial port | 1 RJ-45 Console port, 1 Micro USB Console port (cannot work simultaneously, Micro USB takes priority) |
| Front panel service port description | 24 x10/100/1000Base-T Adaptive Ethernet Ports (8 x of which are 100/1000BASE-X combo SFP ports), 4 x1/10GE SFP+ ports |
| extended slot | 1 |
| Expansion line cards | 4-port 10/100/1000BASE-T + 6-port SFP interface card, 2-port 40GE QSFP+ interface card, 2-port 10 Gigabit SFP+ interface card, 2-port 10 Gigabit copper interface card, 8-port 10 Gigabit SFP+ interface card, 12-port 10 Gigabit SFP+ interface card* 2-port 25G SFP28 Ethernet Optical Interface module, 8-port 1/2.5/5/10G BASE-T Ethernet copper interface module, 8-port 1/2.5/5G BASE-T Ethernet copper interface module, 4-port 40G/100G interface card* |
| SDN/Openflow | Support Open Flow 1.3 standard, support multi-controllers (EQUAL mode, active-standby mode), support multi-table pipeline, support Group table, support Meter |
| VXLAN | Support VXLAN Layer 2 switching Support VXLAN routing and switching Support VXLAN centralized gateway and distributed Anycast gateway Support BGP EVPN Support Open Flow+Netconf VXLAN centralized control plane and automated deployment |
| Port aggregation | Supports GE port aggregation Supports 10GE port aggregation Supports 40G aggregation Supports static aggregation Supports dynamic aggregation Supports cross-device link aggregation M-LAG |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports maximum frame length of 10000 |
| MAC Address Table | Supports static, dynamic, and blackhole MAC address modes. Supports source MAC address filtering. Supports setting the maximum number of learned Port MAC addresses. |
| VLAN | Supports 802.1Q VLAN, supports 4K VLAN, supports Port-based VLAN, supports QinQ and flexible QinQ, supports Guest VLAN, supports STP, RSTP, MSTP, PVST, supports MVRP, supports Voice VLAN, supports Policy VLAN, supports IP Subnet-based VLAN, supports Protocol-based VLAN, supports MAC-based VLAN |
| Layer 2 Ring Protocol | Supported STP/RSTP/MSTP/PVST protocolsSupported STP Root ProtectionSupported BPDU ProtectionSupported G.8032 Ethernet Ring Protection Switching (ERPS), switching time ≤50ms, compatible with otherSupported products that support this protocolSupported SmartLink tree topology and SmartLink multi-instance, providing millisecond-level protection for main/backup linksSupported RRPP ring topology and RRPP multi-instance |
| DHCP | DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82 |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 Intelligent Resilient Architecture Supports distributed device management, distributed link aggregation, distributed resilient routing Supports stacking via standard Ethernet interfaces, etc. Supports local stacking and remote stacking Maximum stacking 9 units |
| IP Routing | Supports IPv4/IPv6 static routing, IPv4/IPv6 dual-stack, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, BGP4, BGP4+ for IPv6, IS-IS, IS-IS for IPv6, equal-cost routing, policy routing, VRRP/VRRPv3. |
| IPv6 | Supports ND (Neighbor Discovery) Supports ND Snooping Supports PMTU Supports IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP Supports manual configuration of Tunnel Supports 6to4 tunnel Supports ISATAP tunnel Supports GRE tunnel |
| Multicast | Supports IGMP Snooping v1/v2/v3 and rapid leave mechanism, MLD Snooping v1/v2, PIM Snooping, MLD Proxy, multicast VLAN, multicast load balancing across bundled ports, port-based multicast traffic statistics, controlled multicast, IGMP v1/v2/v3, MLD v1/v2, PIM-DM, PIM-SM, PIM-SSM, MSDP, MSDP for IPv6, MBGP, MBGP for IPv6 |
| MPLS | Supports MPLS with MCE, Supports MPLS VPN, VPLS, VLL, Supports MPLS TE* |
| Mirroring | Support for stream mirroring Support for N:4 port mirroring Support for local and remote port mirroring Support for ERSPAN |
| Supports ACL\QoS | Supports L2 (Layer 2)~L4 (Layer 4) packet filtering, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, and VLAN Supports Time Range ACLs Supports inbound and outbound bi-directional ACL policies Supports 8 queues per port Supports issuing ACLs based on VLANs Supports limiting the rate of incoming messages and the rate of outgoing messages on the port Supports restricting the rate of receiving messages and transmitting messages on the port Supports bi-directional ACL policy in inbound and outbound directions Supports 8 queues per port Supports VLAN-based ACL issuance Supports limiting the rate at which a port can receive messages and the rate at which it can send messages Supports message redirection Supports 802.1p and DSCP priority re-tagging of messages Supports CAR (Committed Access Rate) function Supports a flexible queuing algorithm, which can be set up based on both ports and queues. Supports flexible queue scheduling algorithms that can be set based on both port and queue, and supports three modes: SP, WRR, and SP+WRR. |
| Security Features | Supports user tiered management and password protection; supports 802.1X authentication and centralized MAC address authentication; supports Portal authentication; supports Guest VLAN; supports RADIUS authentication; supports TACACS authentication; supports SSH 2.0; supports port isolation, port security, and Sticky MAC; supports binding combinations of IP, MAC, port, and VLAN combination binding; supports blacklists and whitelists; supports MFF; supports EAD; supports DHCP Snooping to prevent spoofed DHCP servers; supports SAVI and SAVA to ensure security in IPv6 environments; supports Dynamic ARP Inspection (DAI) to prevent man-in-the-middle attacks and ARP denial-of-service attacks; supports DoS attack prevention; supports ARP attack prevention; supports ICMP attack prevention; supports CPU protection; supports BPDU Guard, Root Guard; Supports uRPF (Unicast Reverse Path Forwarding) to prevent IP source address spoofing and defend against viruses and attacks; Supports IP/Port/MAC binding; Supports plaintext and MD5-encrypted authentication for OSPF and RIPv2 packets; Supports PKI (Public Key Infrastructure); Supports CPU attack prevention; Supports MACsec |
| Management and Maintenance | Support XModem/FTP/TFTP load upgrade Support Command Line Interface (CLI), Telnet, Console port for configuration Support SNMPv1/v2/v3 Support RMON (Remote Monitoring) alarms, events, history Support iMC Intelligent Management Center Support Telemetry visualization Support NETCONF network management protocol support Python script management operation and maintenance support public cloud management support system log syslog, hierarchical alarm, debugging information output support NTP support power alarm function, fan, temperature alarm support Ping, Tracert support VCT (Virtual Cable Test) cable detection function support DLDP (Device Link Detection Protocol) unidirectional detection function, and support for the use of the device link detection protocol. Device Link Detection Protocol) unidirectional link detection protocol support LLDP support hardware BFD, the minimum detection interval of 3ms support BFD for BGP/IS-IS/OSPF/static routing, etc. support Y.1731 support OAM 802.3ah, 802.1ag support Loopback- detection detection port loopback detection support Net Stream function, traffic analysis sampling ratio of 1:1 support SFLOW support USB for file upload and download, support USB open bureau |
| iNQA | Supports iNQA intelligent network quality analysis. Supports direct marking of business packets to obtain real-time statistics of packet loss count and packet loss rate. Supports packet loss count and packet loss rate statistics at network level and device level. |
| Green Energy Saving | Port automatic power down function, Port scheduled power down function (Schedule job), EEE (802.3az) energy saving standard support |
| Input voltage | Input power supply for non-PoE models: AC: Rated voltage range: 100V ~ 240V AC, 50/60Hz DC: Input rated voltage range -48V ~ -60V Input power supply for DCPoE models: 360W AC: 100V ~ 240V, 50Hz ~ 60Hz720W AC: 100V ~ 240V, 50Hz ~ 60Hz1110W AC: 115V ~ 240V, 50Hz ~ 60Hz560W DC: -48V ~ 60V DC |
| Power Consumption (Static) | SingleAC:24WDC:24WDual AC:29WDC:28W |
| Power consumption (at full load) | Single AC:87WSingle DC:88WDual AC:91WDualDC:95W |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Ordering Information | |
| Expansion Module | |
| 0231A8J8 | LSWM2ZSP2P - 2-Port25G SFP28Ethernet Optical Interface Module |
| SFP28-Port | |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A2TC | LSWM2QP2P - 2-Port40G QSFP Plus Interface Card |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A2TA | LSWM2SP2PM - 2-Port 10G SFP+ MACSec Interface Card |
| SFP+ 10G Port | |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A5RG | LSPM4G4T6P - 4-Port Gigabit Electrical Port + 6-Port SFP (2*Combo) Interface Module |
| SFP Gigabit Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A8HX | LSWM2XMGT8P - 8-Port 1/2.5/5/10G BASE-T Ethernet Port Module |
| 0231A8HW | LSWM2MGT8P - 8-Port 1/2.5/5G BASE-T Ethernet Electrical Interface Module |
| 0231A5RQ | LSWM4SP8PM - 8-Port 10G SFP+ Interface Module with MACSec |
| 0231A2TB | LSWM2SP8P - 8-Port10GSFP Plus Interface Card |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A9UF | LSWM2SP2PB - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A9UG | LSWM2SP4PB - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231ADT6 | LSWM2FPGAB - H3C Net Stream Interface Modulewithoutoptical port |
| 0231AH8J | LSPM6FWDB - H3C S5000Series Sec Blade IV Next Generation FirewallBModule |
| 0231A4F7 | LSPM6FWD - H3C S5000 series Sec Blade IV next-generation firewall Module |
| 0150A17D | NS-LSPM6FWD+AV-1 - H3C S5500-LSPM6FWD-Sec Blade IV Antivirus Module-with 1-year AV Antivirus |
| 0231AFDB | LSWM2-iMC - H3C Intelligent Network Management System Module |
| 0231ADSD | LSWM2EC - H3C Eagle Vision Scanner Module |
| SFPGigabit Optical Port | |
| SFP/SFP+10GOptical Port | |
| Fan Options | |
| 0231A2VU | LSPM1FANSB - Fan Module(SW, 4028,Fan Panel Side Air Outlet) |
| 0231A2VT | LSPM1FANSA - Fan Module(SW, 4028, Fan Panel Side Air Intake) |
| Power Module | |
| 0231A1U0 | LSPM2150A - 150W Asset ManagementAC Power Module |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| 0231A6N5 | 0231A6N5 - H3C S5560X-EI Switch Series |
| Wireless License Options | |
| 3130A1L9 | LIS-WX-1-BE - Enhanced Wireless Controller License Authorization Letter - Management 1AP - For Enterprise Networks - V7V9 |
| 3130A1LA | LIS-WX-8-BE - Enhanced Wireless Controller License Authorization Letter - Manage 8AP - Enterprise Network Only - V7V9 |
| 3130A1LB | LIS-WX-16-BE - Enhanced Wireless Controller License Authorization Letter - Manage 16APs - For Enterprise Networks - V7V9 |
| 3130A1LC | LIS-WX-32-BE - Enhanced Wireless Controller License Authorization Letter - Manage 32APs - For Enterprise Networks - V7V9 |
| 3130A1LD | LIS-WX-128-BE - Enhanced Wireless Controller License Agreement - Manages 128 APs - Enterprise Network Exclusive - V7V9 |
| 3130A2HB | LIS-WX-4-BE - Enhanced Wireless Controller License Authorization Letter - Manage 4AP - Enterprise Network Only - V7V9 |
| Security License Options | |
| 3130A1Y2 | LIS-LSP-IPS-1Y - H3C Sec Blade-Standard IPS signature database update service license certificate,1 year |
| 3130A1Y3 | LIS-LSP-IPS-3Y - H3C Sec Blade-Standard IPS signature database update service license certificate,3 years |
| 3130A1YA | LIS-LSP-LB - H3C Sec Blade-Standard LBlicense certificate |
| 3130A1Y8 | LIS-LSP-SSL-100 - H3C Sec Blade-Standard SSL VPN 100 x user license certificate |
| 3130A1Y9 | LIS-LSP-SSL-500 - H3C Sec Blade-Standard SSL VPN 500 x user license certificate |
| 3130A3UB | LIS-LSP-WAF-1Y - H3C Sec Blade-Standard WAF feature library upgrade license certificate,1 year |
| 3130A3UC | LIS-LSP-WAF-3Y - H3C Sec Blade-Standard WAF Signature Database Upgrade License, 3 years |
| 3130A1Y6 | LIS-LSP-ACG-1Y - H3C Sec Blade-Standard application identificationsignature database update service license certificate,1 year |
| 3130A1Y7 | LIS-LSP-ACG-3Y - H3C Sec Blade-Standard application identificationsignature database update service license certificate,3 years |
| 3130A1Y4 | LIS-LSP-AV-1Y - H3C Sec Blade-Standard antivirus security service license certificate,1 year |
| 3130A1Y5 | LIS-LSP-AV-3Y - H3C Sec Blade-Standard Antivirus Security Service License, 3 years |
| 3130A37A | LIS-SST-URL-1Y - H3C Secblade Standard URLsignature database update service license certificate,1 year |
| 3130A373 | LIS-SST-URL-3Y - H3C Secblade Standard URLsignature database update service license certificate,3 years |
| 3130A4DY | LIS-SECBLADES-TI-1Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Service license certificate,1 year |
| 3130A4DF | LIS-SECBLADES-TI-3Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Servicelicense certificate,3 years |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5560X-EI Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
