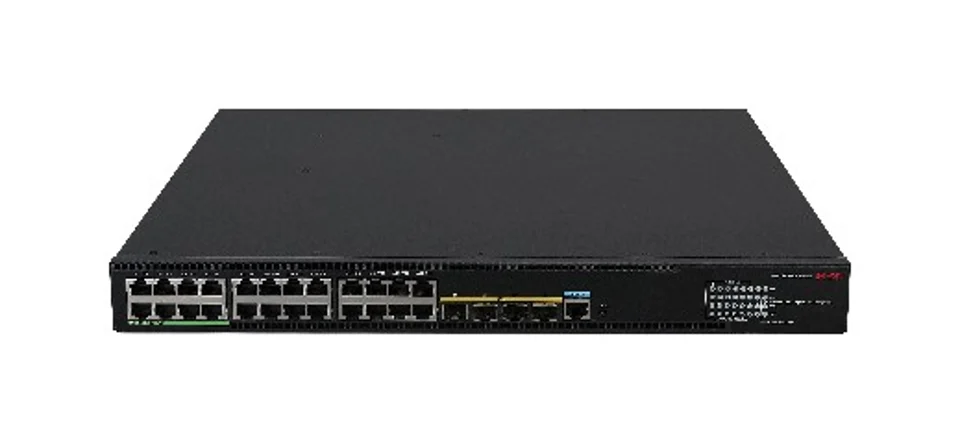

H3C LS-5570S-28S-HPWR-EI Layer 3 Ethernet Switch, supports 24 10/100/1000BASE-T Ethernet ports, supports 4 1G/10G BASE-X SFP+ ports, without power supply, POE+
Brand H3C
N/AVerified
H3C LS-5570S-28S-HPWR-EI
Model (MPN)
9801A2HT
Condition
Factory Sealed
Out of Stock
H3C LS-5570S-28S-HPWR-EI Layer 3 Ethernet Switch, supports 24 10/100/1000BASE-T Ethernet ports, supports 4 1G/10G BASE-X SFP+ ports, without power supply, POE+. Switching Capacity: 688Gbps/6.88Tbps. Packet Forwarding Rate: 171Mpps/297Mpps. Service Port Description*: 24 10/100/1000Base-T adaptive Ethernet Ports, 4 1/10GE SFP+ Ports
Key Specifications
DescriptionH3C S5570S-28S-HPWR-EI Layer 3 Ethernet Switch, supports 24 10/100/1000BASE-T Ethernet ports, supports 4 1G/10G BASE-X SFP Plus ports, without power supply, POE+
Switching Capacity688Gbps/6.88Tbps
Packet Forwarding Rate171Mpps/297Mpps
Dimensions (W x D x H, Unit: mm)440×360×43.6
Weight≤5.5kg
Input voltageAC• Rated voltage range: 100V～240V AC, 50/60Hz• Maximum voltage range: 90V～264V AC, 47～63HzDC• Rated voltage range: -48V～-60V DC• Maximum voltage range: -36V～-72V DC
Your Price
Best Value
$288.96
List Price: $4,128.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5570S-28S-HPWR-EI Layer 3 Ethernet Switch, supports 24 10/100/1000BASE-T Ethernet ports, supports 4 1G/10G BASE-X SFP Plus ports, without power supply, POE+ |
| Key Specifications | |
| Switching Capacity | 688Gbps/6.88Tbps |
| Packet Forwarding Rate | 171Mpps/297Mpps |
| Dimensions (W x D x H, Unit: mm) | 440×360×43.6 |
| Weight | ≤5.5kg |
| Input voltage | AC• Rated voltage range: 100V～240V AC, 50/60Hz• Maximum voltage range: 90V～264V AC, 47～63HzDC• Rated voltage range: -48V～-60V DC• Maximum voltage range: -36V～-72V DC |
| Power Consumption (Static) | Single AC: 42W Single DC: 39W Dual AC: 50W Dual DC: 55W |
| Product Specifications | |
| Switching Capacity | 688Gbps/6.88Tbps |
| Packet Forwarding Rate | 171Mpps/297Mpps |
| Service Port Description* | 24 10/100/1000Base-T adaptive Ethernet Ports, 4 1/10GE SFP+ Ports |
| PoE | PWR and HPWR models support PoE (802.3af)/PoE+ (802.3at) power supply standards, with maximum output of 30W per Port. HPWR models support PoE++ (802.3bt), compatible with PoE (802.3af)/PoE+ (802.3at), with maximum output of 90W per Port |
| Dimensions (W x D x H, Unit: mm) | 440×360×43.6 |
| Weight | ≤5.5kg |
| Management Port | 1 console port |
| Input voltage | AC• Rated voltage range: 100V～240V AC, 50/60Hz• Maximum voltage range: 90V～264V AC, 47～63HzDC• Rated voltage range: -48V～-60V DC• Maximum voltage range: -36V～-72V DC |
| Power Consumption (Static) | Single AC: 42W Single DC: 39W Dual AC: 50W Dual DC: 55W |
| Power consumption (at full load) | Single AC: 870W (PoE 810W) Single DC: 630W (PoE 490W) Dual AC: 867W (PoE 810W) Dual DC: 873W (PoE 810W) |
| Fan | 2 |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Characteristics | Characterization |
| Port aggregation | Supports GE Port Aggregation |
| Port Features | Support IEEE802.3x flow control (full-duplex) |
| Jumbo Frame | Supports 12K |
| MAC Address Table | Supports 32K MAC addresses |
| VLAN | Supports 802.1Q VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST |
| DHCP | DHCPv4/v6 Client |
| stacking | Supports IRF2 Intelligent Resilient Fabric |
| IP Routing | Supports IPv4/IPv6 static routing, supports dual-stack |
| IPv6 | Supports ND (Neighbor Discovery) |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| MPLS | Support MPLS MCE |
| Mirroring | Supports Port Mirroring |
| OAM | Supports 802.1ag |
| Supports ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, and VLAN |
| Security Features | Supports user hierarchical management and password protection |
| Management and Maintenance | Supports XMODEM/FTP/TFTP loading and upgrade |
| Green Energy Saving | Supports EEE (802.3az) |
| USB port | 1 port, supports USB file upload and download, supports zero-configuration deployment via USB. |
| Ordering Information | |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| Power Module | |
| 0231A2AK | LSPM1AC1110 - 1110W PoEAC Power Module |
| 0231A2PH | LSPM1AC360 - 360W PoEAC Power Module |
| 0231A5PV | PSR560-56D - 560WDC Pluggable Power Module |
| 0231A2AL | LSPM1AC720 - 720W PoEAC Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5570S-EI Series Switch |
