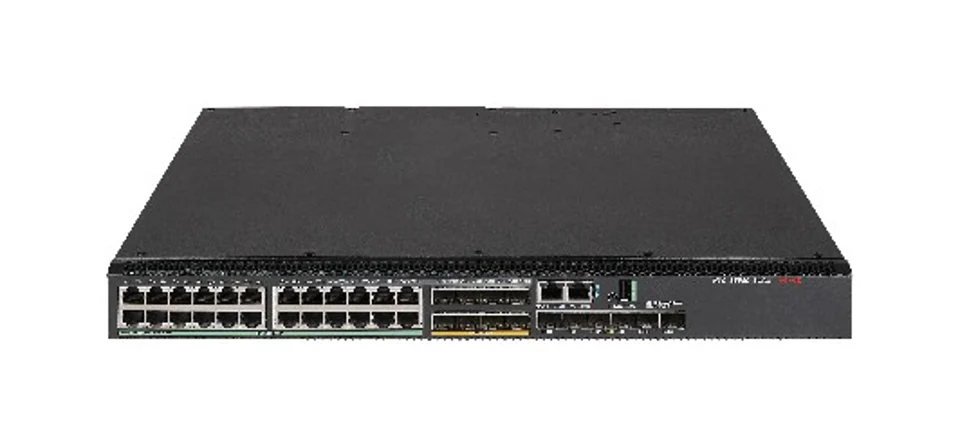

H3C LS-5580S-24T6X-EI Layer 3 Ethernet Switch Chassis, supports 24 10/100/1000Base-T ports, 8 1000 SFP combo ports, 6 1G/10GBase-X SFP+ ports, without power supply
Brand H3C
N/AVerified
H3C LS-5580S-24T6X-EI
Model (MPN)
9801A37C
Condition
Factory Sealed
Out of Stock
H3C LS-5580S-24T6X-EI Layer 3 Ethernet Switch Chassis, supports 24 10/100/1000Base-T ports, 8 1000 SFP combo ports, 6 1G/10GBase-X SFP+ ports, without power supply. Switching Capacity: 1.36Tbps/13.6Tbps. Packet Forwarding Rate: 171Mpps. Manage Ethernet ports: 1
Key Specifications
DescriptionH3C S5580S-24T6X-EI Layer 3 Ethernet Switch Chassis, supports 24 10/100/1000Base-T ports, 8 1000 SFP combo ports, 6 1G/10GBase-X SFP Plus ports, without power supply
Switching Capacity1.36Tbps/13.6Tbps
Packet Forwarding Rate171Mpps
Manage Ethernet ports1
Fixed Port24 10/100/1000BASE-T ports (including 8 100/1000BASE-X SFP Combo ports), 6 1/10GE SFP+ ports
Full Configuration Weight≤4.5kg
Your Price
Best Value
$350.00
List Price: $5,000.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5580S-24T6X-EI Layer 3 Ethernet Switch Chassis, supports 24 10/100/1000Base-T ports, 8 1000 SFP combo ports, 6 1G/10GBase-X SFP Plus ports, without power supply |
| Key Specifications | |
| Switching Capacity | 1.36Tbps/13.6Tbps |
| Packet Forwarding Rate | 171Mpps |
| Manage Ethernet ports | 1 |
| Fixed Port | 24 10/100/1000BASE-T ports (including 8 100/1000BASE-X SFP Combo ports), 6 1/10GE SFP+ ports |
| Full Configuration Weight | ≤4.5kg |
| Dimensions (W x D x H) (Unit:mm) | 440×360×43.6 |
| Product Specifications | |
| Switching Capacity | 1.36Tbps/13.6Tbps |
| Packet Forwarding Rate | 171Mpps |
| Full Configuration Weight | ≤4.5kg |
| Dimensions (W x D x H) (Unit:mm) | 440×360×43.6 |
| Console Port | 1 |
| Manage Ethernet ports | 1 |
| USB port | 1 |
| Fixed Port | 24 10/100/1000BASE-T ports (including 8 100/1000BASE-X SFP Combo ports), 6 1/10GE SFP+ ports |
| Power Module slot | 2 ports |
| Fan Module slot | Redundant fans (hardwired) |
| Input voltage | Rated voltage range: 100V～240V AC, 50/60Hz Maximum voltage range: 90V～290V AC, 47～63Hz |
| DC | Rated voltage range: -48V～-60V DC Maximum voltage range: -36V～-72V DC |
| Static Power Consumption | Single AC: 16W Single DC: 20W Dual AC: 18W Dual DC: 27W |
| Full Load Power Consumption | Single AC: 51W Single DC: 52W Dual AC: 53W Dual DC: 58W |
| Operating Environment Temperature | -5ºC～50ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Characteristics | Characterization |
| Port aggregation | Supports Port Aggregation Supports 1GE Port Aggregation Supports 10GE Port Aggregation Supports 25GE Port Aggregation Supports Static Aggregation Supports Dynamic Aggregation Supports Cross-device Link Aggregation |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports static, dynamic, and blackhole MAC address modes. Supports source MAC address filtering. Supports setting the maximum number of learned Port MAC addresses. |
| VLAN | Supports 802.1Q VLAN, supports 4K VLAN, supports Port-based VLAN, supports QinQ and flexible QinQ, supports Guest VLAN, supports STP, RSTP, MSTP, PVST, supports MVRP, supports Voice VLAN, supports Policy VLAN, supports IP Subnet-based VLAN, supports Protocol-based VLAN, supports MAC-based VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols, Supports STP Root Protection, Supports BPDU Protection, Supports G.8032 ERPS (Ethernet Ring Protection Switching) protocol, switching time ≤50ms, compatible with other vendors' products supporting this protocol, Supports Smart Link tree topology and Smart Link multi-instance, provides millisecond-level protection for primary/secondary links, Supports RRPP ring topology and RRPP multi-instance, Supports Port single-chain detection, Root Protection, Loop Protection, Edge Port, BPDU Protection, Supports RPR Light hub-ring function, convergence time ≤1ms |
| DHCP | DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82 |
| Device Virtualization | Supports IRF2 stacking, up to 9 devices stacking, Supports distributed device management, distributed link aggregation, distributed elastic routing, Supports stacking via standard Ethernet Interface, Supports local stacking and remote stacking, Supports cross-device link aggregation M-LAG |
| IP Routing | Supports IPv4/IPv6 static routing, dual-stack support, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, BGP4, BGP4+ for IPv6, IS-IS, IS-IS V6, equal-cost routing, policy routing, VRRP/VRRPv3, OSPF multiple processes, MD5 authentication verification, STUB/NSSA area routing COST setting, inter-area route filtering |
| IPv6 | Supports IPv4/IPv6 dual-stack protocol Support ND (Neighbor Discovery) Support PMTU Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet, IPv6 TFTP, IPv6 ICMP, IPv6 DNS, IPv6 FTP, IPv6 NTP Support manual tunnel, automatic tunnel Support IPv4 over IPv6 tunnel Support 6to4 tunnel Support ISATAP tunnel Support GRE tunnel |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2/v3, PIM Snooping, MLD Proxy, Multicast VLAN, bundled port multicast load balancing, port-based multicast traffic statistics, controlled multicast, IGMP v1/v2/v3, MLD v1/v2, PIM-DM, PIM-SM, PIM-SSM, MSDP, MSDP for IPv6, MBGP, MBGP for IPv6 |
| Mirroring | Supports Flow Mirroring, N:1-Port Mirroring, Local and Remote Port Mirroring, ERSPAN |
| ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing traffic classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP Port number, VLAN, supports Time Range ACL, bidirectional ACL policies for inbound and outbound directions, supports ACL deployment based on VLAN, supports rate limiting for received and sent packets on Port, supports packet redirection, supports 802.1p and DSCP priority remarking, supports CAR (Committed Access Rate) function, supports flexible queue scheduling algorithms, can be configured simultaneously based on Port and queue, supports SP, WFQ, and SP+WFQ three modes |
| MPLS | Support MPLS MCE |
| VxLAN | Support VXLAN Layer 2 switching Support VXLAN routing and switching Support VXLAN centralized gateway and distributed Anycast gateway Support BGP EVPN Support Open Flow+Netconf VXLAN centralized control plane and automated deployment |
| Security Features | Supports user level management and password protection Supports centralized MAC authentication Supports 802.1XSupports storm control Supports AAA authentication Supports Portal authentication Supports RADIUS authentication Supports HWTACACSSupports SSH and SSH 2.0Supports Port isolation, Port security, and Sticky MACSupports IP, MAC, and Port VLAN binding Supports blacklist and whitelist Supports MFFSupports EADSupports MACsec Supports SAVI and SAVA to ensure IPv6 environment security*Supports DHCP Snooping and DHCPv6 Snooping to prevent rogue DHCP servers Supports dynamic ARP inspection (Dynamic ARP Inspection, DAI) to prevent man-in-the-middle attacks and ARP denial of service Supports protection against DOS attacks Supports protection against ARP attacks Supports protection against ICMP attacks Supports CPU protection Supports BPDU guard and Root guard Supports IP+MAC+Port binding Supports IP Source Guard Supports HTTPSSupports SSLSupports PKI (Public Key Infrastructure)Supports dedicated basic network protection policy Supports CPU anti-attack protection |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration Supports Telnet Remote Configuration Supports Console Port Configuration Supports schedule job Supports ISSU* Supports OAM 802.1AG and 802.3AH Supports Y.1731 Supports BFD Supports SNMP (Simple Network Management Protocol) Supports Net Stream function, traffic analysis sampling ratio 1:1 Supports iMC management system Supports Telemetry visualization Supports NETCONF network management protocol Supports Python script management and operation maintenance Supports public cloud management Supports system log Syslog Supports hierarchical alarm Supports NTP, PTP Supports Power Supply alarm function Supports Fan, temperature alarm Supports debug information output Supports Ping, Tracert Supports Track Supports Telnet remote maintenance Supports USB for file upload and download, Supports USB for initial configuration Supports Xmodem protocol for loading and upgrade Supports FTP (File Transfer Protocol) loading and upgrade Supports TFTP (Trivial File Transfer Protocol) loading and upgrade |
| Green Energy Saving | Port automatic power down function, Port scheduled power down function (Schedule job), EEE (802.3az) energy saving standard support |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| SFP/SFP+10GOptical Port | |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Power Module | |
| 0231AG39 | PSR180-12D-B - 180W Asset ManagementDC Power Module |
| 0231A5PW | PSR75-12A - 75WAC Pluggable Power Module |
| 9801A2Q0 | CA-70A12 - Pluggable AC (70W) Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5580X-EI&S5580S-EISeries Switch |
