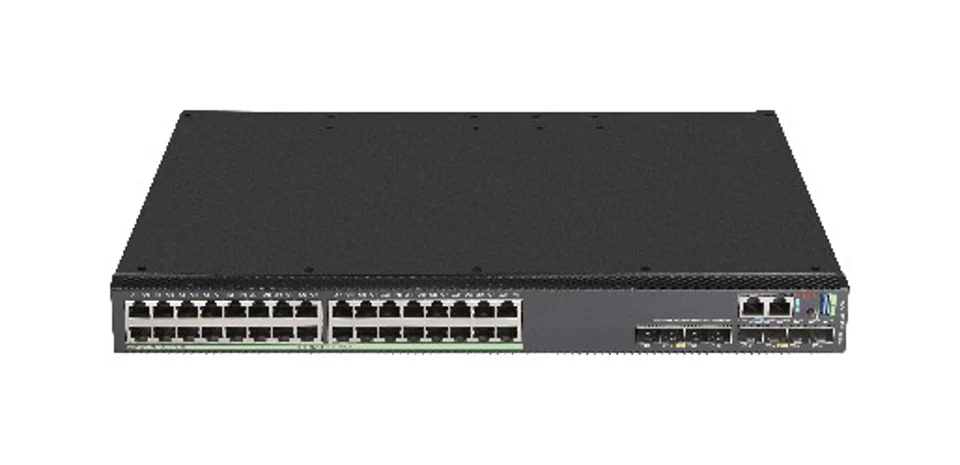

H3C LS-5580X-32P4X4YC-HI Layer 3 Ethernet Switch Chassis, supports 32 10/100/1000Base-T PoE++ ports, 4 1G/10GBase-X SFP+ ports, 4 10G/25GBase-X SFP28 ports, supports 1 slot, without power supply
Brand H3C
N/AVerified
H3C LS-5580X-32P4X4YC-HI
Model (MPN)
9801A37V
Condition
Factory Sealed
Out of Stock
H3C LS-5580X-32P4X4YC-HI Layer 3 Ethernet Switch Chassis, supports 32 10/100/1000Base-T PoE++ ports, 4 1G/10GBase-X SFP+ ports, 4 10G/25GBase-X SFP28 ports, supports 1 slot, without power supply. Switching Capacity: 2.56Tbps/25.6Tbps. Packet Forwarding Rate: 786Mpps/822Mpps. Manage Ethernet ports: 1
Key Specifications
DescriptionH3C S5580X-32P4X4YC-HI L3 Ethernet Switch Chassis, supports 32 10/100/1000Base-T PoE++ ports, 4 1G/10GBase-X SFP+ ports, 4 10G/25GBase-X SFP28 ports, supports 1 slot, without power supply
Switching Capacity2.56Tbps/25.6Tbps
Packet Forwarding Rate786Mpps/822Mpps
Manage Ethernet ports1
USB interface1
1/10GE SFP+Optical Port4
Your Price
Best Value
$682.99
List Price: $9,757.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5580X-32P4X4YC-HI L3 Ethernet Switch Chassis, supports 32 10/100/1000Base-T PoE++ ports, 4 1G/10GBase-X SFP+ ports, 4 10G/25GBase-X SFP28 ports, supports 1 slot, without power supply |
| Key Specifications | |
| Switching Capacity | 2.56Tbps/25.6Tbps |
| Packet Forwarding Rate | 786Mpps/822Mpps |
| Manage Ethernet ports | 1 |
| USB interface | 1 |
| 1/10GE SFP+Optical Port | 4 |
| 10/25GE SFP28Optical Port | 4 |
| Product Specifications | |
| Switching Capacity | 2.56Tbps/25.6Tbps |
| Packet Forwarding Rate | 786Mpps/822Mpps |
| Full Configuration Weight | ≤7.9kg |
| Dimensions (W x D x H) (Unit:mm) | 440×400×44 |
| Console Port | 1 |
| Manage Ethernet ports | 1 |
| USB interface | 1 |
| 10/100/1000BASE-TElectrical Port | 32 |
| 1/10GE SFP+Optical Port | 4 |
| 10/25GE SFP28Optical Port | 4 |
| extended slot | 1 |
| Expansion line cards | Firewall Plug-in Module Eagle Eye Plug-in Module mini iMC Plug-in Module 2-Port 10G SFP+ Ethernet Optical Interface Module 4-Port 10G SFP+ Ethernet Optical Interface Module 8-Port 10G SFP+ Ethernet Optical Interface Module 8-Port 10G SFP+ Ethernet Optical Interface Module with MACSec 8-Port 1/2.5/5G BASE-T Ethernet Electrical Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Electrical Interface Module 8-Port 25G SFP28 Ethernet Optical Interface Module 2-Port 40G QSFP+ Ethernet Interface Module 2-Port 100G QSFP28 Ethernet Interface Module |
| Power Module slot | 2 |
| Fan Module slot | 2 |
| PoE | Supports 802.3bt/PoE++, with single port maximum 90W PoE output, compatible with 802.3at/PoE+, 802.3af/PoE |
| Input voltage | Rated voltage range: 100V～240V AC, 50/60Hz Maximum voltage range: 90V～290V AC, 47～63Hz |
| DC | Rated voltage range: -48V～-60V DC Maximum voltage range: -36V～-72V DC |
| Static Power Consumption | Single AC: 48W Dual AC: 59W |
| Typical power consumption | Single AC: 69W Dual AC: 77W |
| Full Load Power Consumption | Single AC: 1705W (1470W PoE output) Dual AC: 3201W (2870W PoE output) refer to the overall power consumption and PoE power consumption of each Power Supply combination in the hardware description manual. |
| Operating Environment Temperature | -5ºC～50ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Characteristics | Characterization |
| Port aggregation | Supports 1G Port aggregation Supports 10G Port aggregation Supports 25G Port aggregation Supports Static aggregation Supports dynamic aggregation |
| Port Features | Supports IEEE802.3x flow control Supports storm suppression based on Port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports static, dynamic, and blackhole MAC address modes. Supports source MAC address filtering. Supports setting the maximum number of learned Port MAC addresses. |
| VLAN | Supports 802.1Q VLAN Supports 4K VLAN Supports Port-based VLAN Supports QinQ and flexible QinQ Supports Guest VLAN Supports STP, RSTP, MSTP, PVST Supports MVRP Supports Voice VLAN Supports policy-based VLAN Supports IP subnet-based VLAN Supports protocol-based VLAN Supports MAC-based VLAN |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols, Supports STP Root Protection, Supports BPDU Protection, Supports G.8032 ERPS (Ethernet Ring Protection Switching) protocol, switching time ≤50ms, compatible with other vendors' products supporting this protocol, Supports Smart Link tree topology and Smart Link multi-instance, provides millisecond-level protection for primary/secondary links, Supports RRPP ring topology and RRPP multi-instance, Supports Port single-chain detection, Root Protection, Loop Protection, Edge Port, BPDU Protection, Supports RPR Light hub-ring function, convergence time ≤1ms |
| DHCP | DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82 |
| Device Virtualization | Supports IRF2 stacking, up to 9 devices stacking, Supports distributed device management, distributed link aggregation, distributed elastic routing, Supports stacking via standard Ethernet Interface, Supports local stacking and remote stacking, Supports cross-device link aggregation M-LAG |
| IP Routing | Supports IPv4/IPv6 static routing, dual-stack support, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, BGP4, BGP4+ for IPv6, IS-IS, IS-IS V6, equal-cost routing, policy routing, VRRP/VRRPv3, OSPF multiple processes, MD5 authentication verification, STUB/NSSA area routing COST setting, inter-area route filtering |
| IPv6 | Supports IPv4/IPv6 dual-stack protocol Support ND (Neighbor Discovery) Support PMTU Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet, IPv6 TFTP, IPv6 ICMP, IPv6 DNS, IPv6 FTP, IPv6 NTP Support manual tunnel, automatic tunnel Support IPv4 over IPv6 tunnel Support 6to4 tunnel Support ISATAP tunnel Support GRE tunnel |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2/v3, PIM Snooping, MLD Proxy, Multicast VLAN, bundled port multicast load balancing, port-based multicast traffic statistics, controlled multicast, IGMP v1/v2/v3, MLD v1/v2, PIM-DM, PIM-SM, PIM-SSM, MSDP, MSDP for IPv6, MBGP, MBGP for IPv6 |
| Mirroring | Supports Flow Mirroring, N:1-Port Mirroring, Local and Remote Port Mirroring, ERSPAN |
| ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing traffic classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP Port number, VLAN, supports Time Range ACL, bidirectional ACL policies for inbound and outbound directions, supports ACL deployment based on VLAN, supports rate limiting for received and sent packets on Port, supports packet redirection, supports 802.1p and DSCP priority remarking, supports CAR (Committed Access Rate) function, supports flexible queue scheduling algorithms, can be configured simultaneously based on Port and queue, supports SP, WFQ, and SP+WFQ three modes |
| MPLS* | Supports MPLS MCE Supports MPLS L3VPN Supports MPLS L2VPN Supports MPLS SR |
| VxLAN | Support VXLAN Layer 2 switching Support VXLAN routing and switching Support VXLAN centralized gateway and distributed Anycast gateway Support BGP EVPN Support Open Flow+Netconf VXLAN centralized control plane and automated deployment |
| Security Features | Supports user level management and password protection Supports centralized MAC authentication Supports 802.1XSupports storm control Supports AAA authentication Supports Portal authentication Supports RADIUS authentication Supports HWTACACSSupports SSH and SSH 2.0Supports Port isolation, Port security, and Sticky MACSupports IP, MAC, and Port VLAN binding Supports blacklist and whitelist Supports MFFSupports EADSupports MACsec Supports SAVI and SAVA to ensure IPv6 environment security*Supports DHCP Snooping and DHCPv6 Snooping to prevent rogue DHCP servers Supports dynamic ARP inspection (Dynamic ARP Inspection, DAI) to prevent man-in-the-middle attacks and ARP denial of service Supports protection against DOS attacks Supports protection against ARP attacks Supports protection against ICMP attacks Supports CPU protection Supports BPDU guard and Root guard Supports IP+MAC+Port binding Supports IP Source Guard Supports HTTPSSupports SSLSupports PKI (Public Key Infrastructure)Supports dedicated basic network protection policy Supports CPU anti-attack protection |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration Supports Telnet Remote Configuration Supports Integrated AC, Maximum Supports Management of 2K APs Supports Console Port Configuration Supports Schedule Job Configuration Supports Single Node ISSU* Supports OAM 802.1AG and 802.3AH Supports Y.1731 Supports Hardware BFD For VRRP/IS-IS/BGP/RIP/OSPF/Static Routing, Minimum Detection Interval is 3ms Supports SNMP (Simple Network Management Protocol) Supports Net Stream Function, Traffic Analysis Sampling Ratio 1:1 Supports iMC Network Management System Supports Telemetry Visualization Supports NETCONF Network Management Protocol Supports Python Script Management and Operations Supports Public Cloud Management Supports System Log Syslog Supports Hierarchical Alarm Supports NTP, PTP Supports Power Supply Alarm Function Supports Fan, Temperature Alarm Supports Debug Information Output Supports Ping, Tracert Supports Track Supports Telnet Remote Maintenance Supports USB File Upload and Download, Supports USB Initial Configuration Supports Xmodem Protocol for Loading and Upgrade Supports FTP (File Transfer Protocol) Loading and Upgrade Supports TFTP (Trivial File Transfer Protocol) Loading and Upgrade |
| Green Energy Saving | Port automatic power down function, Port scheduled power down function (Schedule job), EEE (802.3az) energy saving standard support |
| Ordering Information | |
| Expansion Module | |
| 0231A2TC | LSWM2QP2P - 2-Port40G QSFP Plus Interface Card |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A8HX | LSWM2XMGT8P - 8-Port 1/2.5/5/10G BASE-T Ethernet Port Module |
| 0231A8HW | LSWM2MGT8P - 8-Port 1/2.5/5G BASE-T Ethernet Electrical Interface Module |
| 0231A5RQ | LSWM4SP8PM - 8-Port 10G SFP+ Interface Module with MACSec |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A2TB | LSWM2SP8P - 8-Port10GSFP Plus Interface Card |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A4F7 | LSPM6FWD - H3C S5000 series Sec Blade IV next-generation firewall Module |
| 0231AB53 | LSWM2ZQP2P - 2-Port 100G QSFP28 Interface Module |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231AB52 | LSWM2ZSP8P - 8-Port25G SFP28Interface Module |
| SFP28-Port | |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231ALXT | SFP-25G-LR-SM1310-F - 25G SFP28 All-Optical 3.0 Optical Module(1310nm,10km,LR,SM,LC) |
| 0231AFDB | LSWM2-iMC - H3C Intelligent Network Management System Module |
| 0231ADSD | LSWM2EC - H3C Eagle Vision Scanner Module |
| SFP/SFP+10GOptical Port | |
| Fan Options | |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| Power Module | |
| 9803A05Q | PSR1600-54A-B - H3C-PSR1600-54A-B-1600W/AC PoEPower Module |
| 9803A05N | PSR600-54A-B - H3C-PSR600-54A-B-600W/AC PoEPower Module |
| 9803A05P | PSR920-54A-B - H3C-PSR920-54A-B-920W/AC PoEPower Module |
| Authorization Letter Options | |
| 3130A1Y2 | LIS-LSP-IPS-1Y - H3C Sec Blade-Standard IPS signature database update service license certificate,1 year |
| 3130A1Y3 | LIS-LSP-IPS-3Y - H3C Sec Blade-Standard IPS signature database update service license certificate,3 years |
| 3130A1YA | LIS-LSP-LB - H3C Sec Blade-Standard LBlicense certificate |
| 3130A1Y8 | LIS-LSP-SSL-100 - H3C Sec Blade-Standard SSL VPN 100 x user license certificate |
| 3130A1Y9 | LIS-LSP-SSL-500 - H3C Sec Blade-Standard SSL VPN 500 x user license certificate |
| 3130A3UB | LIS-LSP-WAF-1Y - H3C Sec Blade-Standard WAF feature library upgrade license certificate,1 year |
| 3130A3UC | LIS-LSP-WAF-3Y - H3C Sec Blade-Standard WAF Signature Database Upgrade License, 3 years |
| 3130A1Y6 | LIS-LSP-ACG-1Y - H3C Sec Blade-Standard application identificationsignature database update service license certificate,1 year |
| 3130A1Y7 | LIS-LSP-ACG-3Y - H3C Sec Blade-Standard application identificationsignature database update service license certificate,3 years |
| 3130A1Y4 | LIS-LSP-AV-1Y - H3C Sec Blade-Standard antivirus security service license certificate,1 year |
| 3130A1Y5 | LIS-LSP-AV-3Y - H3C Sec Blade-Standard Antivirus Security Service License, 3 years |
| 3130A37A | LIS-SST-URL-1Y - H3C Secblade Standard URLsignature database update service license certificate,1 year |
| 3130A373 | LIS-SST-URL-3Y - H3C Secblade Standard URLsignature database update service license certificate,3 years |
| 3130A4DY | LIS-SECBLADES-TI-1Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Service license certificate,1 year |
| 3130A4DF | LIS-SECBLADES-TI-3Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Servicelicense certificate,3 years |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5580X-HI Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching Capacity specification for LS-5580X-32P4X4YC-HI?
LS-5580X-32P4X4YC-HI lists Switching Capacity as 2.56Tbps/25.6Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate specification for LS-5580X-32P4X4YC-HI?
LS-5580X-32P4X4YC-HI lists Packet Forwarding Rate as 786Mpps/822Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Console Port specification for LS-5580X-32P4X4YC-HI?
LS-5580X-32P4X4YC-HI lists Console Port as 1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W x D x H) (Unit:mm) specification for LS-5580X-32P4X4YC-HI?
LS-5580X-32P4X4YC-HI lists Dimensions (W x D x H) (Unit:mm) as 440×400×44. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
