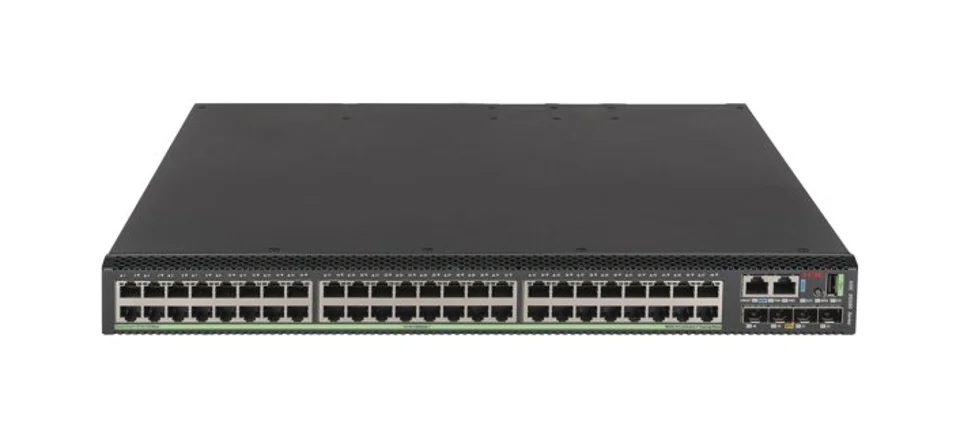

H3C LS-5590-48T4XC-EI-G3 Ethernet Switch is H3C S5590-48T4XC-EI L3 Ethernet Switch with 48*10/100/1000Base-T Ports, 4*1G/10G Base-X SFP Plus Ports and 1*Slot, Without Power Supplies.
Brand H3C
N/AVerified
H3C LS-5590-48T4XC-EI-G3 Ethernet Switch
Model (MPN)
9801A5NA
Condition
Factory Sealed
Out of Stock
H3C LS-5590-48T4XC-EI-G3 Ethernet Switch. H3C S5590-48T4XC-EI L3 Ethernet Switch with 48*10/100/1000Base-T Ports, 4*1G/10G Base-X SFP Plus Ports and 1*Slot, Without Power Supplies.
Key Specifications
Switching Capacity2.4Tbps/24Tbps
Packet Forwarding Rate672Mpps
Console Port1
Dimensions (W x D x H) (Unit: Mm)440×360×44
Weight≤7kg
Management Ethernet port10/100/1000Base-T Electrical Port: 1
Your Price
Best Value
$10,842.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Key Specifications | |
|---|---|
| Switching Capacity | 2.4Tbps/24Tbps |
| Packet Forwarding Rate | 672Mpps |
| Console Port | 1 |
| Dimensions (W x D x H) (Unit: Mm) | 440×360×44 |
| Weight | ≤7kg |
| Management Ethernet port | 10/100/1000Base-T Electrical Port: 1 |
| Product Specifications | |
| Switching Capacity | 2.4Tbps/24Tbps |
| Packet Forwarding Rate | 672Mpps |
| Weight | ≤7kg |
| Console Port | 1 |
| Management Ethernet port | 10/100/1000Base-T Electrical Port: 1 |
| USB port | 1 |
| Input voltage | AC: Rated voltage range: 100-240V AC: 50/60Hz DC: Rated voltage range: -48V to -60V DC |
| Whole machine leakage current | meets UL60950-1/EN60950-1/IEC60950-1/GB4943 standards |
| Operating Environment Temperature | -5ºC～45ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Product Specifications | |
| Switching Capacity | 2.56Tbps/25.6Tbps |
| Dimensions (W x D x H) (Unit: Mm) | 440×360×44 |
| Weight | ≤7kg |
| Console Port | RJ45*1 |
| Management Ethernet port | 1*10/100/1000M RJ45Electrical Port |
| USB port | 1 |
| 10/100/1000BASE-T Adaptive Ethernet Port | 24 units |
| 100/1000M SFPOptical Port | 24 units |
| 10/25GE SFP28 Optical Interface | 4 ports |
| 40GE QSFP+ port | 2 ports |
| expansion card slot | 1 |
| Input voltage | AC: Rated Voltage Range: 100~240V AC: 50/60Hz |
| Whole machine leakage current | meets UL60950-1/EN60950-1/IEC60950-1/GB4943 standards |
| Operating Environment Temperature | -5ºC～45ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Product Specifications | |
| Port aggregation | Supports Port Aggregation, Supports Static Aggregation, Supports Dynamic Aggregation, Supports Cross-Device Link Aggregation, M-LAG |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports maximum frame length of 13312 |
| MAC Address Table | Supports static, dynamic, and blackhole MAC address modes. Supports source MAC address filtering. Supports setting the maximum number of learned Port MAC addresses. |
| VLAN | Supports 802.1Q VLAN, supports 4K VLAN, supports Port-based VLAN, supports QinQ and flexible QinQ, supports Guest VLAN, supports STP, RSTP, MSTP, PVST, supports MVRP, supports Voice VLAN, supports Policy VLAN, supports IP Subnet-based VLAN, supports Protocol-based VLAN, supports MAC-based VLAN |
| DHCP | DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82 |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 intelligent elastic architecture for distributed device management, distributed link aggregation, and distributed elastic routing. Supports stacking via standard Ethernet interfaces, including local stacking and remote stacking. Supports stacking of up to 9 devices. |
| IP Routing | Supports IPv4/IPv6 static routing, IPv4/IPv6 dual stack, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, BGP4, BGP4+ for IPv6, IS-IS, IS-IS V6, equal-cost routing, policy routing, VRRP/VRRPv3/VRRPv6, OSPF multiple processes, MD5 authentication, STUB/NSSA area support, route COST setting, inter-area route filtering |
| IPv6 | Supports IPv4/IPv6 dual-stack protocol Support ND (Neighbor Discovery) Support PMTU Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet, IPv6 TFTP, IPv6 ICMP, IPv6 DNS, IPv6 FTP, IPv6 NTP Support manual tunnel, automatic tunnel Support IPv4 over IPv6 tunnel Support 6to4 tunnel Support ISATAP tunnel Support GRE tunnel |
| Mirroring | Supports flow Mirroring. Supports N:1-Port Mirroring. Supports local and remote Port Mirroring. Supports ERSPAN. |
| TAP | Support based on PortN:M copy, support based on traffic N:M copy, support GRE tunnel decapsulation, support same source same destination, support packet truncation, support source Port identification, support adding timestamp and Ethernet header recognition for specified packets, modify MAC address or IP address and copy forward |
| MPLS | Supports MPLS MCE | Supports MPLS L3VPN | Supports MPLS L2VPN | Supports MPLS SR | Supports MPLS TE* |
| SDN/OPENFLOW | Supports OPENFLOW 1.3 standard, multiple controllers (EQUAL mode, active-standby mode), multi-table pipeline, Group table support, Meter support |
| Vx LAN | Support VXLAN Layer 2 switching Support VXLAN routing and switching Support VXLAN centralized gateway and distributed Anycast gateway Support BGP EVPN Support Open Flow+Netconf VXLAN centralized control plane and automated deployment |
| Management and Maintenance | Supports hot patch functionality for online patch upgrades. Supports XModem/FTP/TFTP loading and upgrade methods. Supports CLI, Telnet, and Console port for configuration. Supports integrated AC. Supports netcool network management platform. Supports cloud management and local management. Supports SNMPv1/v2/v3, RMON (Remote Monitoring). Supports hardware BFD for VRRP/IS-IS/BGP/RIP/OSPF/Static routing with minimum detection interval of 3ms. Supports iMC intelligent management center. Supports Syslog, system logs, hierarchical alarms, and debug information output. Supports NTP. Supports Power Supply alarm functions, Fan and temperature alarms. Supports Ping and Tracert. Supports VCT (Virtual Cable Test) cable detection functionality. Supports DLDP (Device Link Detection Protocol) unidirectional link detection protocol. Supports LLDP. Supports hardware BFD with minimum 3ms detection interval. Supports BFD for BGP/IS-IS/OSPF/Static routing, etc. Supports Y.1731. Supports OAM. Supports Telemetry visualization. Supports NETCONF network management protocol. Supports Python script management and operations. Supports Loopback-detection Port loop detection. Supports Net Stream function with traffic analysis sampling ratio of 1:1. Supports SFLOW. Supports USB for file upload and download, and USB initialization. Supports ID indicator light for device location identification via LED flashing |
| I NQA | Supports iNQA intelligent network quality analysis. Supports direct marking of business packets to obtain real-time statistics of packet loss count and packet loss rate. Supports packet loss count and packet loss rate statistics at network level and device level. |
| Green Energy Saving | Port automatic power down function, Port scheduled power down function (Schedule job), EEE (802.3az) energy saving standard support |
| Catalog Description | |
| Description | H3C S5590-48T4XC-EI L3 Ethernet Switch with 48*10/100/1000Base-T Ports, 4*1G/10G Base-X SFP Plus Ports and 1*Slot, Without Power Supplies |
| Key Features | |
| Feature 1 | SmartMC (Intelligent Management Center) As network scale increases, the network edge requires a large number of access devices, making management of these devices very laborious. |
| Feature 2 | The main purpose of SmartMC is to solve the problem of centralized management of a large number of dispersed network devices. |
| Feature 4 | SmartMC achieves unified network operation and management through built-in methods and graphical operations, simplifying the operation and management of SmartMC's four service modules for small- and medium-sized campus networks: Intelligent Management: primarily includes device role selection, FTP server Configuration, global Configuration, and management port Configuration; Intelligent O&M: primarily includes group management, device or group upgrade backup, monitoring, and device fault replacement; Visualization: primarily includes network topology visualization and management, and device list display; Intelligent Services: primarily includes user management: after creating network access users and successfully activating them, these users can access the SmartMC network internal through one-click Port deployment. |
| Feature 5 | H3C S5590-EI Series switch built-in SmartMC, enables vertical virtualization and unified management capabilities |
| Product Identity | |
| Brand | H3C |
| Series | H3C S55xxSeries Switches |
