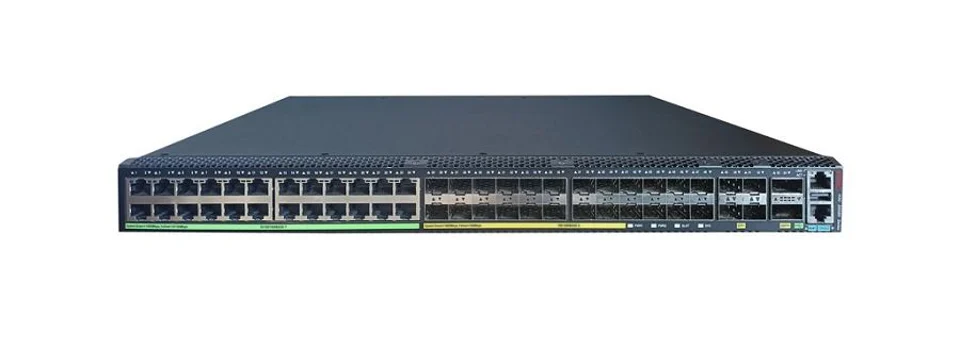

H3C LS-5590-48TS4X2QC-EI Ethernet Switch. H3C S5590-48TS4X2QC-EI L3 Ethernet Switch with 24*10/100/1000Base-T Ports, 24*100/1000 SFP Ports, 4*1G/10G SFP Plus Ports, 2*40G QSFP Plus Ports and 1*Slot, Without Power Supplies.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-5590-48TS4X2QC-EI Ethernet Switch is H3C S5590-48TS4X2QC-EI L3 Ethernet Switch with 24*10/100/1000Base-T Ports, 24*100/1000 SFP Ports, 4*1G/10G SFP Plus Ports, 2*40G QSFP Plus Ports and 1*Slot, Without Power Supplies.
Compatible and optional SKUs are listed in the ordering information, including 0235A4HC LS-5590-48TS4X2QC-EI, 0231A2TC LSWM2QP2P, 0231A1LS LSWM1QSTK0, 0231A1LT LSWM1QSTK1, 0231A1LU LSWM1QSTK2.
| Key Specifications | |
|---|---|
| Jumbo Frame | Supports maximum frame length of 13312 |
| DHCP | DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82 |
| Ports | 24*10/100/1000Base-T Ports, 24*100/1000 SFP Ports, 4*1G/10G SFP Plus Ports, 2*40G QSFP Plus Ports and 1*Slot, Without Po |
| MPLS | Supports MPLS MCE | Supports MPLS L3VPN | Supports MPLS L2VPN | Supports MPLS SR | Supports MPLS TE* |
| Model | LS-5590-48TS4X2QC-EI |
| Product Code | 0235A4HC |
| Product Specifications | |
| Port aggregation | Supports Port Aggregation, Supports Static Aggregation, Supports Dynamic Aggregation, Supports Cross-Device Link Aggregation, M-LAG |
| Port Features | Supports IEEE802.3x flow control (full-duplex) Supports storm suppression based on port rate percentage Supports storm suppression based on PPS Supports storm suppression based on bps |
| Jumbo Frame | Supports maximum frame length of 13312 |
| MAC Address Table | Supports static, dynamic, and blackhole MAC address modes. Supports source MAC address filtering. Supports setting the maximum number of learned Port MAC addresses. |
| VLAN | Supports 802.1Q VLAN, supports 4K VLAN, supports Port-based VLAN, supports QinQ and flexible QinQ, supports Guest VLAN, supports STP, RSTP, MSTP, PVST, supports MVRP, supports Voice VLAN, supports Policy VLAN, supports IP Subnet-based VLAN, supports Protocol-based VLAN, supports MAC-based VLAN |
| DHCP | DHCPv4/v6 ClientDHCP Snooping、DHCPv6 SnoopingDHCPv4/v6 RelayDHCPv4/v6 ServerDHCP Snooping option82/DHCP Relay option82 |
| IRF2 Intelligent Elastic Architecture | Supports IRF2 intelligent elastic architecture for distributed device management, distributed link aggregation, and distributed elastic routing. Supports stacking via standard Ethernet interfaces, including local stacking and remote stacking. Supports stacking of up to 9 devices. |
| IP Routing | Supports IPv4/IPv6 static routing, IPv4/IPv6 dual stack, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, BGP4, BGP4+ for IPv6, IS-IS, IS-IS V6, equal-cost routing, policy routing, VRRP/VRRPv3/VRRPv6, OSPF multiple processes, MD5 authentication, STUB/NSSA area support, route COST setting, inter-area route filtering |
| IPv6 | Supports IPv4/IPv6 dual-stack protocol Support ND (Neighbor Discovery) Support PMTU Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet, IPv6 TFTP, IPv6 ICMP, IPv6 DNS, IPv6 FTP, IPv6 NTP Support manual tunnel, automatic tunnel Support IPv4 over IPv6 tunnel Support 6to4 tunnel Support ISATAP tunnel Support GRE tunnel |
| Mirroring | Supports flow Mirroring. Supports N:1-Port Mirroring. Supports local and remote Port Mirroring. Supports ERSPAN. |
| TAP | Support based on PortN:M copy, support based on traffic N:M copy, support GRE tunnel decapsulation, support same source same destination, support packet truncation, support source Port identification, support adding timestamp and Ethernet header recognition for specified packets, modify MAC address or IP address and copy forward |
| MPLS | Supports MPLS MCE | Supports MPLS L3VPN | Supports MPLS L2VPN | Supports MPLS SR | Supports MPLS TE* |
| SDN/OPENFLOW | Supports OPENFLOW 1.3 standard, multiple controllers (EQUAL mode, active-standby mode), multi-table pipeline, Group table support, Meter support |
| VxLAN | Support VXLAN Layer 2 switching Support VXLAN routing and switching Support VXLAN centralized gateway and distributed Anycast gateway Support BGP EVPN Support Open Flow+Netconf VXLAN centralized control plane and automated deployment |
| Security Features | Supports user level management and password protection Supports 802.1X authentication/centralized MAC address authentication Supports Portal authentication Supports Guest VLANSupports RADIUS authentication Supports HWTACACS+ authentication Supports SSH 2.0Supports Port isolation, Port security, Sticky MACSupports binding of IP, MAC, Port, VLAN in combination Supports blacklist and whitelist Supports MFFSupports EADSupports SAVI, SAVA, ensuring security in IPv6 environment Supports DHCP Snooping, DHCPv6 Snooping, preventing rogue DHCP servers Supports dynamic ARP inspection (Dynamic ARP Inspection, DAI), preventing man-in-the-middle attacks and ARP denial of service Supports anti-DOS attack Supports anti-ARP attack Supports anti-ICMP attack Supports CPU protection Supports CPU anti-attack Supports BPDU guard, Root guard Supports uRPF (unicast reverse path forwarding), preventing IP source address spoofing, preventing viruses and attacks Supports binding of IP/Port/MACSupports plaintext and MD5 ciphertext authentication of OSPF, RIPv2 packets Supports PKI (Public Key Infrastructure, public key infrastructure) |
| Management and Maintenance | Supports hot patch functionality for online patch upgrades. Supports XModem/FTP/TFTP loading and upgrade methods. Supports CLI, Telnet, and Console port for configuration. Supports integrated AC. Supports netcool network management platform. Supports cloud management and local management. Supports SNMPv1/v2/v3, RMON (Remote Monitoring). Supports hardware BFD for VRRP/IS-IS/BGP/RIP/OSPF/Static routing with minimum detection interval of 3ms. Supports iMC intelligent management center. Supports Syslog, system logs, hierarchical alarms, and debug information output. Supports NTP. Supports Power Supply alarm functions, Fan and temperature alarms. Supports Ping and Tracert. Supports VCT (Virtual Cable Test) cable detection functionality. Supports DLDP (Device Link Detection Protocol) unidirectional link detection protocol. Supports LLDP. Supports hardware BFD with minimum 3ms detection interval. Supports BFD for BGP/IS-IS/OSPF/Static routing, etc. Supports Y.1731. Supports OAM. Supports Telemetry visualization. Supports NETCONF network management protocol. Supports Python script management and operations. Supports Loopback-detection Port loop detection. Supports Net Stream function with traffic analysis sampling ratio of 1:1. Supports SFLOW. Supports USB for file upload and download, and USB initialization. Supports ID indicator light for device location identification via LED flashing |
| iNQA | Supports iNQA intelligent network quality analysis. Supports direct marking of business packets to obtain real-time statistics of packet loss count and packet loss rate. Supports packet loss count and packet loss rate statistics at network level and device level. |
| Green Energy Saving | Port automatic power down function, Port scheduled power down function (Schedule job), EEE (802.3az) energy saving standard support |
| Catalog Description | |
| Description | H3C S5590-48TS4X2QC-EI L3 Ethernet Switch with 24*10/100/1000Base-T Ports, 24*100/1000 SFP Ports, 4*1G/10G SFP Plus Ports, 2*40G QSFP Plus Ports and 1*Slot, Without Power Supplies |
| Key Features | |
| SmartMC (Smart Management Center) | With the increase in the size of the network, a large number of access devices need to be used at the edge of the network, which makes the management of these devices very cumbersome. The main purpose of SmartMC is to solve the centralized management of a large number of scattered network devices. SmartMC is designed to solve the switch-based operation and maintenance tasks of small businesses. smartMC built-in devices and graphical operation to achieve unified operation and maintenance of the network and management SmartMC four service modules to simplify the operation and maintenance of small and medium-sized parks and management: intelligent management: mainly includes device role selection, FTP server configuration, global configuration and network management port configuration, etc. smart management: mainly includes group management, group management, FTP server configuration, network management port configuration, etc. Intelligent management: mainly includes device role selection, global configuration and network management port configuration, etc. Intelligent operation and maintenance: mainly includes group management, device or group upgrade and backup, monitoring and device failure replacement, etc. Visualization: mainly includes group topology visualization and management, device list display, etc. Intelligent service: mainly includes user management, etc.: After creating and successfully activating the users of the network access class, these users can access the inside of the SmartMC network through the one-key-armed ports. The H3C S5590-EI Series switch has a built-in SmartMC to realize the vertical virtualization unified management function. |
| Highly available M-LAG architecture | H3C S5590-EI Series switches support M-LAG (Multichassis Link Aggregation Group) cross-device link aggregation technology (formerly DRNI technology), which realizes cross-device link aggregation by virtualizing two physical devices at the forwarding level into a single device, keeping the control level independent of each other, and improving to device-level Reliability. M-LAG decouples the control plane from the data level, and the equipment at each node can be upgraded independently, guaranteeing zero interruption of user services. Dual-activity access of devices provides device-level redundancy protection and traffic load sharing while improving system reliability. It is applicable to overlay and traditional underlay scenarios with flexible networking. |
| Multi-service convergence | H3C S5590-EI Series switches are based on H3C's Open Application Architecture (OAA), which not only provides the functions of traditional switches, but also integrates security module plug-in cards, mini-iMC plug-in cards, and Eagle View plug-in cards including FW, IPS, and load balancing, so that the S5590-EI Series switches can become a converged multi-service bearer platform. H3C S5590-EI Series switches support converged ACs and managed AP devices for integrated wired and wireless management. High-performance IPv4/IPv6 Service Capability The H3C S5590-EI Series switch realizes hardware-based IPv4/IPv6 dual-stack platform, supports multiple tunneling technologies, rich IPv4 and IPv6 Layer 3 routing protocols, multicast technology, and policy-based routing mechanisms, providing users with a complete IPv4/IPv6 solution. |
| IRF2 (Intelligent Resilient Architecture Second Generation) | H3C S5590-EI Series switches support IRF2 (Intelligent Resilient Fabric Second Generation) technology, which is to connect multiple physical devices to each other so that they are virtualized as a single logical device, that is to say, the user can view these multiple devices as a single device for management and use. IRF can bring the following benefits to the user: Simplified management After the formation of the IRF architecture, it is possible to After the formation of IRF architecture, you can log into a unified logical device by connecting to any port of any device, and achieve the effect of managing the entire intelligent resilient system as well as all the member devices in the system through the configuration of a single device, instead of physically connecting to each member device to configure and manage them separately. Simplify the business IRF formed in the logical device running a variety of control protocols are also unified as a single device, such as routing protocols will be calculated as a single device, and with the application of cross-device link aggregation technology can replace the original Spanning Tree Protocol, which eliminates the need for a large number of inter-device protocol message interactions, simplifies the network operation, and shortens the time of convergence in the event of network turbulence. Flexible Expansion Flexible expansion can be realized according to user requirements to ensure user investment. Moreover, new devices can be "hot-plugged" when they join or leave the IRF architecture, without affecting the normal operation of other devices. High Reliability The high reliability of IRF is reflected in three aspects: link, device and protocol. The physical ports between member devices support aggregation function, and the physical connections between IRF system and upper and lower layer devices also support aggregation function, which improves the reliability of links through multiple link backups; IRF system consists of multiple member devices, and once the Master device fails, the system will quickly and automatically elect a new Master to ensure that the service through the system is not interrupted, thus realizing 1:N backup at the device level; IRF system also supports 1:N backup at the device level; and IRF system also supports 1:N backup at the device level. IRF system will have real-time protocol hot backup function responsible for backing up the protocol configuration information to all other member devices, thus realizing 1:N protocol reliability. High Performance |
| VxLAN Features | H3C S5590-EI Series switches support VxLAN (Virtual Extensible LAN) technology, which transmits packets sent by VMs over a physical IP network by encapsulating them in UDP and using the IP/MAC of the physical network as the outer-header, and then unencapsulates them by the tunnel endpoint and sends the data to the target VM after arriving at the destination. destination, the tunnel termination point decapsulates the packets and sends the data to the target VM, solving the problem of long-distance VM migration between geographically dispersed data centers, and supporting EVPN mode for automatic tunnel establishment. Telemetry Visualization The H3C S5590-EI Series switch supports Telemetry technology, which allows you to upload real-time resource information and alarm information to the switch via the GRPC protocol. The H3C S5590-EI Series switches support Telemetry technology, which can send real-time resource information and alarm information from the switch to the operation and maintenance platform through the GRPC protocol, and the operation and maintenance platform analyzes the real-time data, which can realize the functions of network quality retrospecting, fault troubleshooting, risk early warning, and architectural optimization, and accurately guarantee the user experience. Net Stream Visualization Net Stream is a statistical technology based on the information of network streams, which defines a method used for the device to output the statistical data of the network traffic. The device performs statistics and analysis on the data forwarded through it and reports it to the network traffic analyzer, which is merged and processed and stored in the database for further analysis and processing. H3C S5590-EI Series switches support the Netstream network flow information statistics technology, which can realize the analysis and statistics of the traffic flow, and establish the flow table to realize the unidirectional/bidirectional Net Stream MOD Mirror On Drop MOD (Mirror On Drop) is a technology specifically designed to monitor packet loss that occurs during the forwarding of messages within a device. Once MOD monitors the packet loss inside the device, it immediately collects the time of packet loss, the reason for packet loss, and the characteristics of the dropped packet, and reports them to the remote collector so that the administrator can understand the packet loss inside the device in time. H3C |
| Ordering Information | |
| Base Configuration | |
| 0235A4HC | LS-5590-48TS4X2QC-EI |
| Extension Module | |
| 0231A2TC | LSWM2QP2P; 2-Port40G QSFP Plus Interface Card; Type: Extension Module |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0; 40G QSFP+ 1m Cable; Type: QSFP+ Port |
| 0231A1LT | LSWM1QSTK1; 40G QSFP+ 3m Cable; Type: QSFP+ Port |
| 0231A1LU | LSWM1QSTK2; 40G QSFP+ 5m Cable; Type: QSFP+ Port |
| 0231A9CT | QSFP-40G-D-AOC-3M; 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable; Type: QSFP+ Port |
| 0231A3U4 | QSFP-40G-D-AOC-10M; 40G QSFP+ to 40G QSFP+10m AOC; Type: QSFP+ Port |
| 0231A3U5 | QSFP-40G-D-AOC-20M; 40G QSFP+ to 40G QSFP+20m AOC; Type: QSFP+ Port |
| 0231A3U3 | QSFP-40G-D-AOC-7M; 40G QSFP+ to 40G QSFP+7m AOC; Type: QSFP+ Port |
| 0231A1LV | LSWM1QSTK3; 40G QSFP+ to 4x10G SFP+ 1m Cable; Type: QSFP+ Port |
| 0231A1LW | LSWM1QSTK4; 40G QSFP+ to 4x10G SFP+ 3m Cable; Type: QSFP+ Port |
| 0231A1LX | LSWM1QSTK5; 40G QSFP+ to 4x10G SFP+ 5m Cable; Type: QSFP+ Port |
| 0231A2E4 | QSFP-40G-LR4-WDM1300; QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC); Type: QSFP+ Port |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850; QSFP+ 40G BIDI Optical Module (850nm, 100m, SR); Type: QSFP+ Port |
| 0231A4PB | QSFP-40G-LR4L-WDM1300; QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC); Type: QSFP+ Port |
| 0231A4UG | QSFP-40G-ER4-WDM1300; QSFP+ 40G Optical Module (1310nm, 40km, ER4, LC); Type: QSFP+ Port |
| 0231A2NF | QSFP-40G-SR4-MM850; Type: QSFP+ Port |
| 0231A2KL | QSFP-40G-CSR4-MM850; Type: QSFP+ Port |
| Extension Module | |
| 0231AK60 | LSWM2QP2PB; Type: Extension Module |
| 0231A2TB | LSWM2SP8P; 8-Port10GSFP Plus Interface Card; Type: Extension Module |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP+ 10G Port |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI; SFP GigabitBIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI; SFP GigabitBIDI Optical Module (TX 1490 nm/RX 1550 nm, 70 km, LC); Type: SFP+ 10G Port |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550 nm/RX 1310 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC); Type: SFP+ 10G Port |
| 0231A54T | SFP-STACK-Kit; Type: SFP+ 10G Port |
| 0231ADWF | SFP-GE-LH20-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 20 km, LC); Type: SFP+ 10G Port |
| 0231ADWE | SFP-GE-LH40-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP+ 10G Port |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP+ 10G Port |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP+ 10G Port |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: SFP+ 10G Port |
| 0231A964 | SFP-GE-LH80-SM1550-D; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP+ 10G Port |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP+ 10G Port |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP+ 10G Port |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1310/RX1490, 10 km, LC; Type: SFP+ 10G Port |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1490/RX1310, 10 km, LC; Type: SFP+ 10G Port |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit Optical Module (850 nm, 550 m, SX, LC); Type: SFP+ 10G Port |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit Optical Module (1310 nm, 10 km, LX, LC); Type: SFP+ 10G Port |
| 0231A085 | SFP-GE-T; SFP GE Electrical Port Module (100m, RJ45); Type: SFP+ 10G Port |
| 0231A960 | SFP-GE-T-D; SFP GE Electrical Port Module (100m, RJ45); Type: SFP+ 10G Port |
| 0231A3TA | SFP-XG-D-AOC-10M; SFP+ to SFP+10m AOC; Type: SFP+ 10G Port |
| 0231A3TB | SFP-XG-D-AOC-20M; SFP+ to SFP+20m AOC; Type: SFP+ 10G Port |
| 0231A3T9 | SFP-XG-D-AOC-7M; SFP+ to SFP+7m AOC; Type: SFP+ 10G Port |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI; SFP+ 10GBIDI Optical Module (TX 1270nm/RX 1330nm, 10km, LC); Type: SFP+ 10G Port |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI; SFP+ 10GBIDI Optical Module (TX 1270nm/RX 1330nm, 40km, LC); Type: SFP+ 10G Port |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI; SFP+ 10GBIDI Optical Module (TX 1330nm/RX 1270nm, 10km, LC); Type: SFP+ 10G Port |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI; SFP+ 10GBIDI Optical Module (TX 1330nm/RX 1270nm, 40km, LC); Type: SFP+ 10G Port |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI; SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC); Type: SFP+ 10G Port |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI; SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC); Type: SFP+ 10G Port |
| 0231AEUQ | SFP-XG-LX-SM1310-S; SFP+ 10G Optical Module (1310nm, 10km, LX, LC); Type: SFP+ 10G Port |
| 0231AEUM | SFP-XG-SX-MM850-S; SFP+ 10G optical module (850nm, 300m, SX, LC); Type: SFP+ 10G Port |
| 0231A0A8 | SFP-XG-LX-SM1310; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A1RQ | SFP-XG-LX-SM1310-D; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A2L3 | SFP-XG-LX-SM1310-E; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A0SP | SFP-XG-LH40-SM1550; SFP+ 10G Module (1550nm, 40km, LC); Type: SFP+ 10G Port |
| 0231A1RR | SFP-XG-LH40-SM1550-D; SFP+ 10G Module (1550nm, 40km, LC); Type: SFP+ 10G Port |
| 0231A1PA | SFP-XG-LH80-SM1550; SFP+ 10G Module (1550nm, 80km, LC); Type: SFP+ 10G Port |
| 0231A2T6 | SFP-XG-LH80-SM1550-D; SFP+ 10G Module (1550nm, 80km, LC); Type: SFP+ 10G Port |
| 0231A0A6 | SFP-XG-SX-MM850-A; SFP+ 10G Module (850nm, 300m, LC); Type: SFP+ 10G Port |
| 0231A1RP | SFP-XG-SX-MM850-D; SFP+ 10G Module (850nm, 300m, LC); Type: SFP+ 10G Port |
| 0231A2L4 | SFP-XG-SX-MM850-E; SFP+ 10G Module (850nm, 300m, LC); Type: SFP+ 10G Port |
| 0231ALXU | SFP-XG-LX-SM1310-F; SFP+ All-Optical 3.010G Optical Module (1310nm, 10km, SM, LC); Type: SFP+ 10G Port |
| 0231A0AK | LSWM1STK; SFP+Cable0.65m; Type: SFP+ 10G Port |
| 0231A0AL | LSWM2STK; SFP+Cable1.2m; Type: SFP+ 10G Port |
| 0231A0AM | LSWM3STK; SFP+Cable3m; Type: SFP+ 10G Port |
| 0231A0G1 | LSTM1STK; SFP+Cable5m; Type: SFP+ 10G Port |
| Extension Module | |
| 0231A9UF | LSWM2SP2PB; H3C 2-Port 10GSFP Plus Ethernet Optical Interface Module; Type: Extension Module |
| 0231A9UG | LSWM2SP4PB; H3C 4-Port 10GSFP Plus Ethernet Optical Interface Module; Type: Extension Module |
| 0231A4F7 | LSPM6FWD; Type: Extension Module |
| 0231AB53 | LSWM2ZQP2P; 2-Port100G QSFP28Interface Module; Type: Extension Module |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M; 100G QSFP28 to 100G QSFP28 10m AOC; Type: QSFP28-Port |
| 0231A4AY | QSFP-100G-D-CAB-1M; 100G QSFP28 to 100G QSFP28 1m Passive Cable; Type: QSFP28-Port |
| 0231A4B4 | QSFP-100G-D-AOC-20M; 100G QSFP28 to 100G QSFP28 20m AOC; Type: QSFP28-Port |
| 0231A4B0 | QSFP-100G-D-CAB-3M; 100G QSFP28 to 100G QSFP28 3m Passive Cable; Type: QSFP28-Port |
| 0231A5HB | QSFP-100G-D-CAB-5M; 100G QSFP28 to 100G QSFP28 5m passive cable; Type: QSFP28-Port |
| 0231A4B2 | QSFP-100G-D-AOC-7M; 100G QSFP28 to 100G QSFP28 7m AOC; Type: QSFP28-Port |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M; 100G QSFP28 to 4x25G SFP28 1m Passive Cable; Type: QSFP28-Port |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M; 100G QSFP28 to 4x25G SFP28 3m Passive Cable; Type: QSFP28-Port |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M; 100G QSFP28 to 4x25G SFP28 5m Passive Cable; Type: QSFP28-Port |
| 0231A5HA | QSFP-100G-PSM4-SM1310; 100G QSFP28 Optical Module (1310nm, 500m, PSM4, MPO/APC); Type: QSFP28-Port |
| 0231A4UF | QSFP-100G-LR4-WDM1300; 100G QSFP28 Optical Module (1310nm, 10km, LR4, WDM, LC); Type: QSFP28-Port |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300; 100G QSFP28 Optical Module (1310nm, 40km, ER4L, WDM, LC); Type: QSFP28-Port |
| 0231A4B1 | QSFP-100G-SR4-MM850; 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO); Type: QSFP28-Port |
| 0231A5H6 | 100G QSFP28 Optical Module (850nm, 100m OM4, SWDM4, LC); Type: QSFP28-Port |
| 0231A5LL | QSFP-100G-LR4L-WDM1300; 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC); Type: QSFP28-Port |
| 0231A2UQ | QSFP-40G-LR4-PSM1310; QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, Parallel Single-Mode); Type: QSFP28-Port |
| Extension Module | |
| 0231AB52 | LSWM2ZSP8P; 8-Port25G SFP28Interface Module; Type: Extension Module |
| SFP28-Port | |
| 0231A6NG | SFP-25G-D-AOC-10M; 25G SFP28 to 25G SFP28 10m Active Optical Cable; Type: SFP28-Port |
| 0231A5GY | SFP-25G-D-CAB-1M; 25G SFP28 to 25G SFP28 1m Passive Cable; Type: SFP28-Port |
| 0231A6NH | SFP-25G-D-AOC-20M; 25G SFP28 to 25G SFP28 20m Active Optical Cable; Type: SFP28-Port |
| 0231A5H0 | SFP-25G-D-CAB-3M; 25G SFP28 to 25G SFP28 3m Passive Cable; Type: SFP28-Port |
| 0231A6ND | SFP-25G-D-AOC-3M; 25G SFP28 to 25G SFP28 3m Active Optical Cable; Type: SFP28-Port |
| 0231A5H1 | SFP-25G-D-CAB-5M; 25G SFP28 to 25G SFP28 5m Passive Cable; Type: SFP28-Port |
| 0231A6NE | SFP-25G-D-AOC-5M; 25G SFP28 to 25G SFP28 5m Active Optical Cable; Type: SFP28-Port |
| 0231A6NF | SFP-25G-D-AOC-7M; 25G SFP28 to 25G SFP28 7m Active Optical Cable; Type: SFP28-Port |
| 0231ABR6 | SFP-25G-LR-SM1310; 25G SFP28 Optical Module (1310nm, 10km, LR, SM, LC); Type: SFP28-Port |
| 0231A4Y2 | SFP-25G-SR-MM850; 25G SFP28 Optical Module (850nm, 100m, SR, MM, LC); Type: SFP28-Port |
| 0231ALXT | SFP-25G-LR-SM1310-F; 25G SFP28 All-Optical 3.0 Optical Module (1310nm, 10km, LR, SM, LC); Type: SFP28-Port |
| Extension Module | |
| 0231ADSD | LSWM2EC; Type: Extension Module |
| 0231ADT7 | LSWM2ZSP4P; H3C 4-Port25G SFP28Interface Module; Type: Extension Module |
| SFP28-Port | |
| 0231AK6M | H3C-LSWM2ZSP4P—4-Port 25G SFP28 Interface Module—Combined Domestic and International Version; Type: SFP28-Port |
| 0231AK6L | H3C-LSWM2ZSP4P—4-Port 25G SFP28 Interface Module—Combined Domestic and International Version; Type: SFP28-Port |
| 0231AK6E | H3C-LSWM2ZSP4P—4-Port 25G SFP28 Interface Module—Combined Domestic and International Version; Type: SFP28-Port |
| 0231AK6H | H3C-LSWM2ZSP4P—4-Port 25G SFP28 Interface Module—Combined Domestic and International Version; Type: SFP28-Port |
| SFP Gigabit Optical Port | |
| 0231A890 | SFP-FE-BX15-U-SM1310; SFP Module, -40~85C, 1310nm, 15km, LC; Type: SFP Gigabit Optical Port |
| 0231A12U | SFP-FE-LX-SM1550-BIDI; SFP Fast Ethernet BIDI Optical Module (TX 1550 nm/RX 1310 nm, 15 km, LC); Type: SFP Gigabit Optical Port |
| 0231A12T | SFP-FE-LX-SM1310-BIDI; SFP Fast Ethernet BIDI Optical Module (TX 1310 nm/RX 1550 nm, 15 km, LC); Type: SFP Gigabit Optical Port |
| 0231A564 | SFP-FE-LX-SM1310-A; Single-mode SFP 100M/155M optical module (1310 nm, 15 km, LC); Type: SFP Gigabit Optical Port |
| 0231A965 | SFP-FE-LX-SM1310-D; Single-mode SFP 100M/155M optical module (1310 nm, 15 km, LC); Type: SFP Gigabit Optical Port |
| 0231A320 | SFP-FE-SX-MM1310-A; Optical Module-SFP 100M/155M-Multimode Module (1310nm, 2km, LC); Type: SFP Gigabit Optical Port |
| 0231A089 | SFP-FE-LH40-SM1310; Single-mode SFP 100M/155M optical module (1310 nm, 40 km, LC); Type: SFP Gigabit Optical Port |
| 0231A090 | SFP-FE-LH80-SM1550; Optical Module-SFP 100M/155M Single-mode Long-Reach Module (1550nm, 80km, LC); Type: SFP Gigabit Optical Port |
| 0231AK6N | H3C S5590-EI switch Series; Type: SFP Gigabit Optical Port |
| 0231AK6J | H3C S5590-EI switch Series; Type: SFP Gigabit Optical Port |
| 0231AK6K | H3C S5590-EI switch Series; Type: SFP Gigabit Optical Port |
| 0231AK6G | H3C S5590-EI switch Series; Type: SFP Gigabit Optical Port |
| 0231ALXS | SFP-GE-LX-SM1310-F; Type: SFP Gigabit Optical Port |
| 0231AK6F | H3C S5590-EI switch Series; Type: SFP Gigabit Optical Port |
| 0231A0BY | SFP-GE-LX10-SM1310; SFP GE Optical Module (-40°C~85°C, 1310nm, 10km, LX, SM, LC); Type: SFP Gigabit Optical Port |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I; Optical Module - SFP Gigabit BIDI Optical Module (-40°C to 85°C, TX 1310/RX 1490, 10 km, LC); Type: SFP Gigabit Optical Port |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I; Optical Module - SFP Gigabit BIDI Optical Module (-40°C to 85°C, TX 1490/RX 1310, 10 km, LC); Type: SFP Gigabit Optical Port |
| SFP/SFP+10G Optical Port | |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310; SFP+ 10G CPRI Optical Module (-40°C to 85°C, 1310nm, 1.4km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310; SFP+ 10G CPRI Optical Module (-40°C to 85°C, 1310nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| Fan Options | |
| 0231AG9E | LSPM1FANSA-SN; Type: Fan Options |
| 0231AG9F | LSPM1FANSB-SN; Type: Fan Options |
| Power Supply Module | |
| 0231AG3A | PSR180-12A-B; 180W Asset Management AC Power Supply Module (Power Supply Side-Exhaust); Type: Power Supply Module |
| 0231AG3B | PSR180-12A-F; 180W Asset Management AC Power Supply Module (Power Supply Side Air Intake); Type: Power Supply Module |
| 0231AG39 | PSR180-12D-B; 180W Asset Management DC Power Supply Module; Type: Power Supply Module |
| Configuration Options | |
| 3130A1Y2 | LIS-LSP-IPS-1Y; H3C Sec Blade-Standard IPS signature database update service license certificate, 1 year |
| 3130A1Y3 | LIS-LSP-IPS-3Y; H3C Sec Blade-Standard IPS signature database update service license certificate, 3 years |
| 3130A1YA | LIS-LSP-LB; H3C Sec Blade-Standard L Blicense certificate |
| 3130A1Y8 | LIS-LSP-SSL-100; H3C Sec Blade-Standard SSL VPN 100 x user license certificate |
| 3130A1Y9 | LIS-LSP-SSL-500; H3C Sec Blade-Standard SSL VPN 500 x user license certificate |
| 3130A3UB | LIS-LSP-WAF-1Y |
| 3130A3UC | LIS-LSP-WAF-3Y |
| 3130A1Y6 | LIS-LSP-ACG-1Y; H3C Sec Blade-Standard application identificationsignature database update service license certificate, 1 year |
| 3130A1Y7 | LIS-LSP-ACG-3Y; H3C Sec Blade-Standard application identificationsignature database update service license certificate, 3 years |
| 3130A1Y4 | LIS-LSP-AV-1Y |
| 3130A1Y5 | LIS-LSP-AV-3Y |
| 3130A37A | LIS-SST-URL-1Y; H3C Secblade Standard UR Lsignature database update service license certificate, 1 year |
| 3130A373 | LIS-SST-URL-3Y; H3C Secblade Standard UR Lsignature database update service license certificate, 3 years |
| 3130A4DY | LIS-SECBLADES-TI-1Y; H3C Secblade-Standard Security Threat Intelligence Upgrade Service License Certificate, 1 year |
| 3130A4DF | LIS-SECBLADES-TI-3Y; H3C Secblade-Standard Security Threat Intelligence Upgrade Service License Certificate, 3 years |
| Wireless License Options | |
| 3130A1LD | LIS-WX-128-BE; Type: Wireless License Options |
| 3130A1LB | LIS-WX-16-BE; Type: Wireless License Options |
| 3130A2HB | LIS-WX-4-BE; Type: Wireless License Options |
| 3130A2HC | LIS-WX-64-BE; Type: Wireless License Options |
| Port and Cable Configuration | |
| 04042967 | CAB-CON-1.8m; Configuration Serial Cable—1.8 m (DB9 Female to 8-pin Ethernet Port); Type: Port and Cable Configuration |
| 0404A1EE | CAB-Console-1.8m-W31R; Configuration Port Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Port and Cable Configuration |
| Product Identity | |
| Brand | H3C |
| Series | H3C S55xxSeries Switches |
No reviews yet
Be the first to review this enterprise product.
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
Still have questions?
