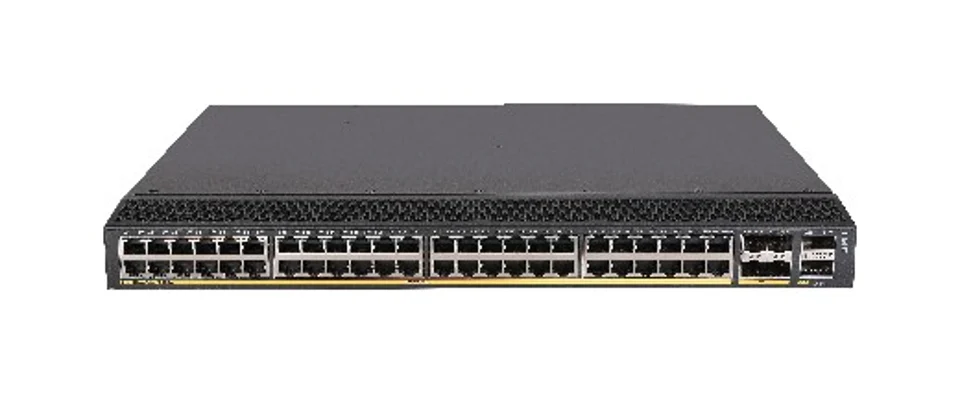

H3C LS-5850-54QS Layer 3 Ethernet Switch Chassis, supports 48 10/100/1000Base-T ports, 4 1G/10GBase-X SFP+ ports, 2 40G QSFP+ ports, no power supply
Brand H3C
N/AVerified
H3C LS-5850-54QS
Model (MPN)
0235A2GM
Condition
Factory Sealed
Out of Stock
H3C LS-5850-54QS Layer 3 Ethernet Switch Chassis, supports 48 10/100/1000Base-T ports, 4 1G/10GBase-X SFP+ ports, 2 40G QSFP+ ports, no power supply. Switching Capacity: 1.28Tbps/11.52Tbps. Packet Forwarding Rate: 252Mpps. Out-of-band Management Ethernet Port: 2 ports
Key Specifications
DescriptionH3C S5850-54QS Layer 3 Ethernet Switch Chassis, supports 48 10/100/1000Base-T ports, 4 1G/10GBase-X SFP+ ports, 2 40G QSFP+ ports, no power supply
Switching Capacity1.28Tbps/11.52Tbps
Packet Forwarding Rate252Mpps
Out-of-band Management Ethernet Port2 ports
SFP+ port4 ports
QSFP+ Port2 ports
Your Price
Best Value
$1,079.96
List Price: $15,428.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S5850-54QS Layer 3 Ethernet Switch Chassis, supports 48 10/100/1000Base-T ports, 4 1G/10GBase-X SFP+ ports, 2 40G QSFP+ ports, no power supply |
| Key Specifications | |
| Switching Capacity | 1.28Tbps/11.52Tbps |
| Packet Forwarding Rate | 252Mpps |
| Out-of-band Management Ethernet Port | 2 ports |
| SFP+ port | 4 ports |
| QSFP+ Port | 2 ports |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Full Configuration Weight | ≤7.5kg |
| Serial Console port | 1 |
| Out-of-band Management Ethernet Port | 2 ports |
| USB port | 1 |
| Mini USB Console port | 1 |
| 1000BASE-T port | 48 ports |
| SFP+ port | 4 ports |
| QSFP+ Port | 2 ports |
| Input voltage | AC 100~240V |
| DC | -48~ -60V |
| Power Module | Dual Modular Power Supply |
| Fan Module | Dual hot-swappable Fan Module, front-to-back or rear-to-front ventilation. |
| Operating Environment Temperature | 0ºC～45ºC |
| Operating Environment Humidity (Non-condensing) | 5%～95% |
| Supports Features | S5850-54QS |
| Switching Capacity | 1.28Tbps/11.52Tbps |
| Packet Forwarding Rate | 252Mpps |
| Buffer | 8M |
| Forwarding Mode | Supports store-forward mode. |
| Device Virtualization | Supports IRF2 horizontal virtualization, supports local and remote stacking, supports M-LAG*Supports distributed device management, distributed link aggregation. |
| Network Virtualization | Supports BGP-EVPN and GRE Tunnel |
| SDN Controller | Supports Seer Engine-DC |
| Programmable | Supports Open Flow. |
| MAC Address Table | Supports dynamic, static and blackhole MAC address entries, supports automatic MAC address learning and aging, supports source MAC address filtering, MAC address table ≥115K entries. |
| VLAN | Supports Port-based, Protocol-based, MAC-based VLAN. Supports Default VLAN. Supports PVLAN. Supports Super VLAN. Supports Voice VLAN. Supports QinQ and Flexible QinQ. |
| Traffic Monitoring | Supports s Flow and Telemetry. |
| DHCP | DHCP Server and DHCP Client; DHCP Snooping and DHCP Relay |
| ARP | Supports ARP, RARP, gratuitous ARP, supports Dynamic ARP Inspection, supports ARP anti-attack, supports ARP source suppression, supports ARP Detection function, Static ARP entries ≥2K, Dynamic ARP entries ≥24K. |
| IP Routing | Supports static routing and default routing, supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, ISIS, supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, ISISv6, supports equal-cost routing, policy routing, routing table entries ≥135K |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery), supports PMTU Discovery (Path MTU Discovery), supports ICMPv6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3, supports IPv6-Portal and IPv6 Tunnel |
| Multicast Protocol | Supports IGMP Snooping v2/v3, supports IGMP v1/v2/v3, supports PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, supports MLD Snooping, supports multicast policies, supports multicast VLAN |
| MPLS | Supports MCE |
| Reliability | Supports STP, RSTP, MSTP, supports BPDU protection, root protection, loop protection, supports PVST, supports LACP, supports DLDP, supports RRPP, supports ERPS Ethernet Ring Protection Protocol (G.8032), supports Smart Link, supports VRRP |
| QoS | Supports port inbound/outbound traffic rate limiting, supports ACL, CAR, priority remarking, queues, supports multiple queue scheduling methods such as SP, WRR, WFQ, SP+WRR, SP+WFQ, supports Layer 2 to Layer 4 packet filtering, supports flow classification based on source MAC, destination MAC, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, Port, protocol, VLAN, supports traffic shaping, supports minimum rate limiting of 64 Bytes, supports congestion avoidance mechanisms such as WRED, tail drop |
| Mirroring | Supports traffic Mirroring, supports N:4-Port Mirroring, supports local Mirroring and remote Port Mirroring (ERSPAN) |
| Security Features | Supports user level management and password protection, supports multiple authentication methods such as 802.1x, AAA, RADIUS, HWTACACS, supports combination binding of IP, MAC, Port, VLAN, supports prevention of DOS, ARP, ICMP attacks, supports IP Source Guard, Port isolation, supports HTTPS, SSL |
| Management and Maintenance | Supports Telemetry visualization function, Supports Zero Configuration Auto-config and Configuration Rollback, Supports Command Line Interface (CLI) Configuration, Supports Console, Telnet, SSH access methods, Supports RMON (Remote Monitoring), Supports SNMP v1/v2c/v3, Supports Network Management System, Supports Netconf and Python, Supports System Log and User Operation Log, Supports Hierarchical Alarm, Supports Power Supply, Fan, Temperature Alarm Functions, Supports NTP Network Time Protocol, Supports Jumbo Frame, Supports Ping, Tracert and other debugging information output, Supports file upload and download via FTP, TFTP, USB, etc., Supports XModem protocol loading and upgrade |
| Ordering Information | |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| Fan | |
| 0231ACJL | LSPM1FANSB - H3C Fan Module(Fan Side Outlet, Tencent Specialized) |
| 0231ACJM | LSPM1FANSA - H3C Fan Module(Fan side air intake, for Tencent) |
| 0231AG9E | LSPM1FANSA-SN - H3C Fan Module (Fan side air intake) |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| Power Supply | |
| 0231A1U0 | LSPM2150A - 150W Asset ManagementAC Power Module |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5850 Series Switch |
