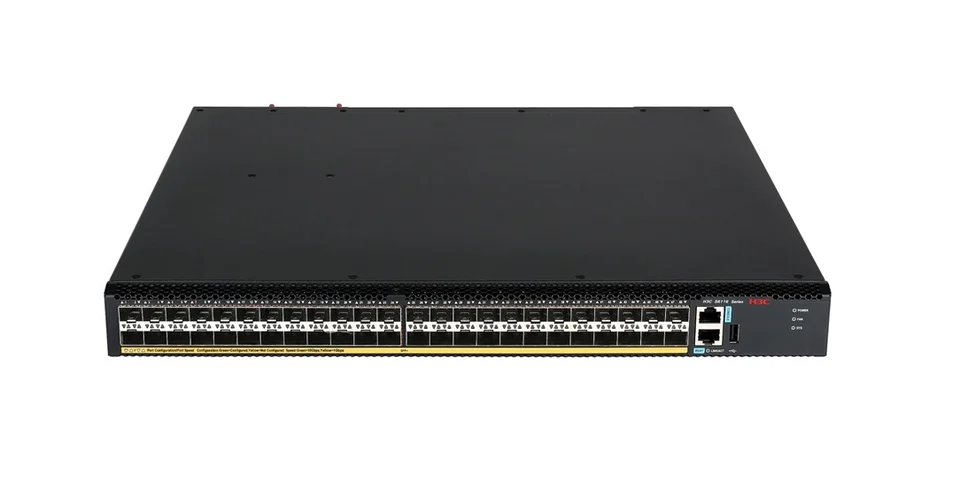

H3C LS-6116-48X The H3C S6116-48 L1 Low-Latency Switch supports 48 SFP+ ports and is non-powered
Brand H3C
N/AVerified
H3C LS-6116-48X
Model (MPN)
0235A4AA
Condition
Factory Sealed
Out of Stock
H3C LS-6116-48X The H3C S6116-48 L1 Low-Latency Switch supports 48 SFP+ ports and is non-powered. Out-of-band Management Ethernet Port: 1 100/1000Base-T external network Electrical Port. Dimensions (Width x Depth x Height) (Unit: mm): 440×400×43.6. SFP+ port: 48 (1/10GE)
Key Specifications
DescriptionThe H3C S6116-48X L1 Low-Latency Switch supports 48 SFP Plus ports and is non-powered.
Out-of-band Management Ethernet Port1 100/1000Base-T external network Electrical Port
SFP+ port48 (1/10GE)
Dimensions (Width x Depth x Height) (Unit: mm)440×400×43.6
Full Configuration Weight≤7.3kg
Input voltageAC
Your Price
Best Value
$10,799.95
List Price: $154,285.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | The H3C S6116-48X L1 Low-Latency Switch supports 48 SFP Plus ports and is non-powered. |
| Key Specifications | |
| Out-of-band Management Ethernet Port | 1 100/1000Base-T external network Electrical Port |
| SFP+ port | 48 (1/10GE) |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×43.6 |
| Full Configuration Weight | ≤7.3kg |
| Input voltage | AC |
| Operating Environment Temperature | 0ºC～45ºC |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×43.6 |
| Full Configuration Weight | ≤7.3kg |
| Console Port | 1 |
| Out-of-band Management Ethernet Port | 1 100/1000Base-T external network Electrical Port |
| USB port | 1 |
| SFP+ port | 48 (1/10GE) |
| Input voltage | AC |
| DC | -40v~-72v |
| Power Module | Dual Modular Power Supply |
| Fan Module | 5 hot-swappable Fan Modules, with front-to-back or rear-to-front ventilation |
| Operating Environment Temperature | 0ºC～45ºC |
| Operating Environment Humidity (Non-condensing) | 5%～95% |
| minimum latency | 1.5ns |
| Layer 1 Features | Supports Patch Panel (achieving two-port, bidirectional traffic interconnection) Supports Tapping (mirroring the ingress port traffic to achieve Traffic Monitoring on the ingress port) Supports Fan out (fanning out port ingress traffic to multiple ports for 1:N traffic replication) |
| Security Features | Supports user level management and password protection Supports SSHv1.5 SSHv2.0 |
| Loading and Upgrade | Supports FTP (File Transfer Protocol) loading upgrade, supports TFTP (Trivial File Transfer Protocol) loading upgrade |
| Management and Maintenance | Supports Configuration rollback Supports command-line interface (CLI) Configuration Supports Telnet remote Configuration, Configuration via Console port, Supports SSH Configuration, Supports RMON (Remote Monitoring) alarms, events, historical records Supports SNMP v1/v2c/v3 Supports IMC network management system Supports system logs and user operation logs Supports level-based alarms Supports Power Supply, Fan, temperature alarms Supports file upload and download via FTP, TFTP, USB, etc. Supports XModem protocol loading and upgrade Supports Telnet remote maintenance Supports Ping, Tracert Supports USB for file upload and download Supports SFP module diagnostic information Supports port bidirectional indicator lights for real-time signal status display on ports |
| Ordering Information | |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| Fan | |
| 0231AG9E | LSPM1FANSA-SN - H3C Fan Module (Fan side air intake) |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| Power Supply | |
| 0231A6N9 | PSR450-12A - 450W AC power Module (air intake on the power supply panel side) |
| 0231A6NA | PSR450-12AHD - 450W High-Voltage DC power Module (Supports AC/336V High-Voltage DC, with air exhaust on the front panel) |
| 0231A6NB | PSR450-12D - 450W DC power Module (Power Supply panel-side airflow exhaust) |
| 0231A6NC | PSR450-12A1 - 450W AC power Module (Air Exhaust on Power Panel Side) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6116&S6216 Series Switch |
