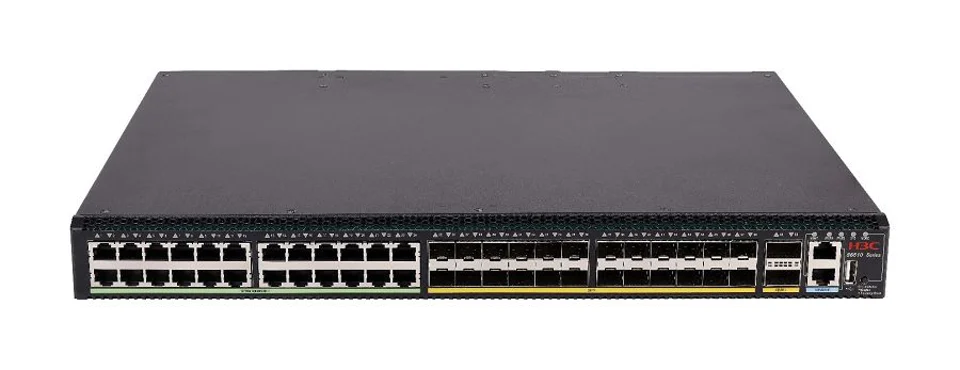

H3C LS-6510-50QS Layer 3 Ethernet Switch Chassis, 24 10/100/1000BASE-T Port, 24 1G/10G SFP+ Port, 2 40G QSFP+ Port, no Power Supply
Brand H3C
N/AVerified
H3C LS-6510-50QS
Model (MPN)
9801A48A
Condition
Factory Sealed
Out of Stock
H3C LS-6510-50QS Layer 3 Ethernet Switch Chassis, 24 10/100/1000BASE-T Port, 24 1G/10G SFP+ Port, 2 40G QSFP+ Port, no Power Supply. Switching Capacity: 2.56Tbps/25.6Tbps. Packet Forwarding Rate: 1476Mpps. Manage Ethernet ports: 1×10/100/1000BASE-T
Key Specifications
DescriptionH3C S6510-50QS L3 Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-T Port,Supports 24 x1G/10G SFP Plus Port,Supports 2 x40G QSFP Plus Port,no Power Supply
Switching Capacity2.56Tbps/25.6Tbps
Packet Forwarding Rate1476Mpps
Manage Ethernet ports1x10/100/1000BASE-T
1/10GE SFP+Port24
40GE QSFP+Port2
Your Price
Best Value
$849.94
List Price: $12,142.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6510-50QS L3 Ethernet Switch Chassis,Supports 24 x10/100/1000BASE-T Port,Supports 24 x1G/10G SFP Plus Port,Supports 2 x40G QSFP Plus Port,no Power Supply |
| Key Specifications | |
| Switching Capacity | 2.56Tbps/25.6Tbps |
| Packet Forwarding Rate | 1476Mpps |
| Manage Ethernet ports | 1x10/100/1000BASE-T |
| 1/10GE SFP+Port | 24 |
| 40GE QSFP+Port | 2 |
| Full Configuration Weight | ≤7.0kg |
| Product Specifications | |
| Switching Capacity | 2.56Tbps/25.6Tbps |
| Packet Forwarding Rate | 1476Mpps |
| Full Configuration Weight | ≤7.0kg |
| Dimensions (W x D x H) (Unit:mm) | 440×360×44 |
| Console Port | 1 RJ45 port |
| Manage Ethernet ports | 1x10/100/1000BASE-T |
| USB port | 1 |
| 10/100/1000Base-T Port | 24 |
| 1/10GE SFP+Port | 24 |
| 40GE QSFP+Port | 2 |
| Power Module slot | 2 ports |
| Input voltage | AC |
| HVDC | Rated voltage range: 240V HVDC maximum voltage range: 180V～320V DC |
| DC | Rated voltage range: -48V～-60V DC Maximum voltage range: -36V～-72V DC |
| Static Power Consumption | Single AC: 38W Double AC: 45W Single DC: 38W Double DC: 45W |
| Typical power consumption | Single AC: 76W Double AC: 82W Single DC: 76W Double DC: 82W |
| Full Load Power Consumption | Single AC: 85W Double AC: 92W Single DC: 85W Double DC: 92W |
| Operating Environment Temperature | -5ºC～45ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Device Virtualization | Supported IRF2 stacking, up to Supported 9 devices for stacking |
| Link aggregation | Supports 10GE Port Aggregation |
| Jumbo Frame | Support 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| VLAN | Supports 802.1Q VLAN |
| Traffic Monitoring | Support s Flow |
| DHCP | DHCPv4/v6 Client |
| ARP | Supports Static entries |
| Routing protocols | Support IPv4/IPv6 static routing, support dual-stack |
| IPv6 features | Supports ND (Neighbor Discovery) |
| Multicast Protocol | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| Zero Configuration | Supports DHCP auto-config and CWMP-TR069 zero-configuration methods |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols |
| QoS/ACL | Supports limiting the rate of received and transmitted packets on Port |
| Mirroring | Supports Flow Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| Loading and Upgrade | Supports Xmodem protocol for loading and upgrade |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231AK6N | 0231AK6N - H3C S6510 Switch Series |
| 0231AK6J | 0231AK6J - H3C S6510 Switch Series |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231AK6K | 0231AK6K - H3C S6510 Switch Series |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231AK6G | 0231AK6G - H3C S6510 Switch Series |
| 0231ALXS | SFP-GE-LX-SM1310-F - SFPGigabit All-Optical 3.0 Optical Module (1310nm, 10km, SM, LC) |
| 0231AK6F | 0231AK6F - H3C S6510 Switch Series |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231AK6M | 0231AK6M - H3C S6510 Switch Series |
| 0231AK6L | 0231AK6L - H3C S6510 Switch Series |
| 0231AK6E | 0231AK6E - H3C S6510 Switch Series |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231AK6H | 0231AK6H - H3C S6510 Switch Series |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| Power Module | |
| 0231AG3A | PSR180-12A-B - 180W Asset Management AC power Module (Air Exhaust on Power Supply Side) |
| 0231AG3B | PSR180-12A-F - 180W Asset Management AC power Module (Air Intake on Power Supply Side) |
| 0231AG39 | PSR180-12D-B - 180W Asset ManagementDC Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6510 Series Switch |
