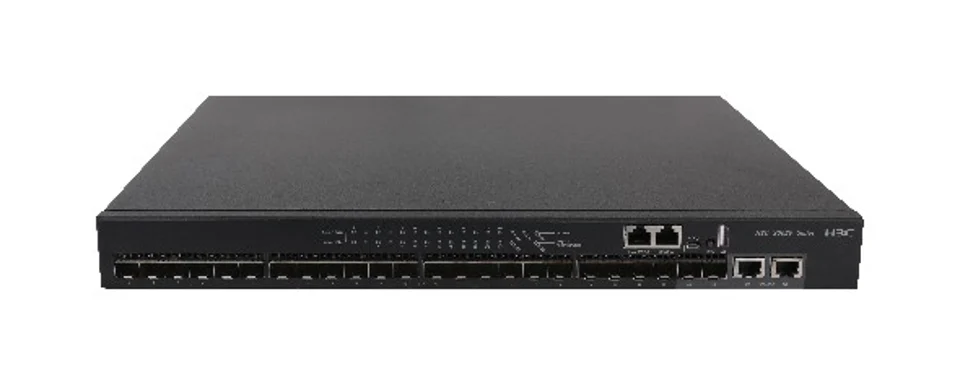

H3C LS-6520X-24ST-SI Layer 3 Ethernet Switch Chassis, supports 24 1G/10G BASE-X SFP+ ports (2 G Combo), without power supply
Brand H3C
N/AVerified
H3C LS-6520X-24ST-SI
Model (MPN)
0235A3JA
Condition
Factory Sealed
Out of Stock
H3C LS-6520X-24ST-SI Layer 3 Ethernet Switch Chassis, supports 24 1G/10G BASE-X SFP+ ports (2 G Combo), without power supply. Switching Capacity: 2.56Tbps/25.6Tbps. Packet Forwarding Rate: 360Mpps. Management Ethernet port: 1
Key Specifications
DescriptionH3C S6520X-24ST-SI L3 Ethernet Switch Chassis, supports 24 1G/10G BASE-X SFP Plus ports (2XG Combo), without power supply
Switching Capacity2.56Tbps/25.6Tbps
Packet Forwarding Rate360Mpps
Management Ethernet port1
Dimensions (Width x Depth x Height) (Unit: mm)440×360×43.6
Full Configuration Weight≤7kg
Your Price
Best Value
$537.95
List Price: $7,685.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6520X-24ST-SI L3 Ethernet Switch Chassis, supports 24 1G/10G BASE-X SFP Plus ports (2XG Combo), without power supply |
| Key Specifications | |
| Switching Capacity | 2.56Tbps/25.6Tbps |
| Packet Forwarding Rate | 360Mpps |
| Management Ethernet port | 1 |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×43.6 |
| Full Configuration Weight | ≤7kg |
| Input voltage | Rated Voltage Range: 100V~240V, 50/60Hz |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×43.6 |
| Full Configuration Weight | ≤7kg |
| Console Port | 1 |
| Management Ethernet port | 1 |
| USB port | 1 |
| Micro USB port | 1 |
| Front panel service port description | 24 1/2.5/10GE SFP+ ports (2 Combo 1G/2.5G/5G/10G Base-T adaptive Ethernet ports) |
| extended slot | None |
| Expansion line cards | None |
| POE | PWR and HPWR models support 802.3at/POE+ power standard, UPWR models support 802.3bt/POE++ power standard |
| Input voltage | Rated Voltage Range: 100V~240V, 50/60Hz |
| DC | Rated voltage range: -48V to -60V |
| Power Consumption (Static) | AC：26W |
| DC：23W | DC：25W |
| Power Consumption (Full Load) | AC：70W |
| DC：97W | DC：72W |
| Operating Environment Temperature | -5ºC～45ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Switching Capacity | 2.56Tbps/25.6Tbps |
| Packet Forwarding Rate | 360Mpps |
| Lateral Virtualization | Supports IRF2 Intelligent Elastic Architecture for distributed device management, distributed link aggregation, and distributed elastic routing. Supports stacking via standard Ethernet Interface, including local stacking and remote stacking. Supports MAD stacking split detection mechanisms based on LACP, BFD, and ARP. |
| Link aggregation | Supports 10GE Port Aggregation |
| Jumbo Frame | Supports |
| MAC Address Table | Supports Static MAC address, Blackhole MAC address, Port MAC address learning maximum count, and Openflow1.3 |
| VLAN | Supports Port-based VLAN (4094), Default VLAN, QINQ, Flexible QINQ, VLAN MAPPING, PVST+, and RPVST+ |
| Traffic Monitoring | Support s Flow |
| DHCP | DHCP SnoopingDHCP RelayDHCP ServerDHCP Snooping option82/DHCP Relay option82 |
| ARP | Supports Static entries, Supports free ARP, Supports standard proxy ARP and local proxy ARP, Supports Dynamic ARP Inspection, Supports ARP anti-attack, Supports ARP source suppression, Supports ARP Detection function (can check according to DHCP Snooping security table entries, 802.1x table entries, or IP/MAC Static binding table entries) |
| Routing protocols | Supports Static routing for IPv4/IPv6, Supports dual stack, Supports RIPv1/v2, RIPng, Supports OSPFv1/v2, OSPFv3, Supports BGP4, BGP4+ for IPv6, Supports IS-IS, IS-IS V6, Supports equal-cost routing, Supports policy routing, Supports VRRP/VRRPv3 |
| IPv6 Features | Supports ND (Neighbor Discovery), Supports ND Snooping, Supports PMTU, Supports ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3, Supports IPv6-Portal, Supports IPv6 tunnel |
| Multicast Protocol | Supports IGMP Snooping v2/v3, IGMP Snooping Fast-leave, IGMP Snooping Group-policy, PIM-SM, PIM-SSM, PIM snooping, MVRP, MFF, Enhanced Three-layer Multicast Protocol |
| Zero Configuration | Supports DHCP auto-config and CWMP-TR069 zero-configuration methods |
| Broadcast/Multicast/Unicast storm suppression | Supports Storm suppression based on Port rate percentage, Storm suppression based on pps, Storm suppression based on bps |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols, STP Root Guard, BPDU Guard, ERPS Ethernet Ring Protection Protocol (G.8032) |
| QoS/ACL | Supports rate limiting on both incoming and outgoing packet rates per Port with CAR functionality. Each Port supports 8 output queues with flexible queue scheduling algorithms, allowing configuration based on both Port and queue. Supports multiple modes including SP and WRR. Supports reclassification of 802.1p and DSCP priorities. Provides Layer 2 to Layer 4 packet filtering with flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, Port, protocol, and VLAN. Supports Time Range configuration. |
| Mirroring | Supports flow Mirroring. Supports N:1-Port Mirroring. Supports local and remote Port Mirroring. Supports ERSPAN. |
| Security Features | Supports user level management and password protection Supports centralized MAC authentication Supports 802.1XSupports storm control Supports AAA authentication Supports Portal authentication Supports RADIUS authentication Supports HWTACACSSupports SSH 2.0Supports Port isolation, Port security, Sticky MACSupports binding of IP, MAC, Port, VLAN combinations Supports IP Source Guard Supports SAVI, SAVA to ensure IPv6 environment security Supports HTTPSSupports SSLSupports PKI (Public Key Infrastructure)Supports Dynamic ARP Inspection (DAI) to prevent man-in-the-middle attacks and ARP denial of service Supports DoS attack protection Supports ARP attack protection Supports ICMP attack protection Supports CPU protection Supports CPU attack protection Supports basic network protection |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading Supports FTP (File Transfer Protocol) for loading and upgrading Supports TFTP (Trivial File Transfer Protocol) for loading and upgrading |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration Supports Telnet Remote Configuration Supports Console Port Configuration Supports Schedule Job Supports ISSU Supports 802.1AG and 802.3AH Supports SNMP (Simple Network Management Protocol) Supports IMC Management System Supports Telemetry Visualization Supports NETCONF Network Management Protocol Supports Python Script Management and Operations Supports Public Cloud Management Supports System Log syslog Supports Hierarchical Alarm Supports NTP Supports Power Supply Alarm Function Supports Fan and Temperature Alarm Supports Debug Information Output Supports Ping and Tracert Supports Track Supports Telnet Remote Maintenance Supports USB for File Upload and Download |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Power Module | |
| 0231A1U0 | LSPM2150A - 150W Asset ManagementAC Power Module |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6520X-SI Series Switch |
