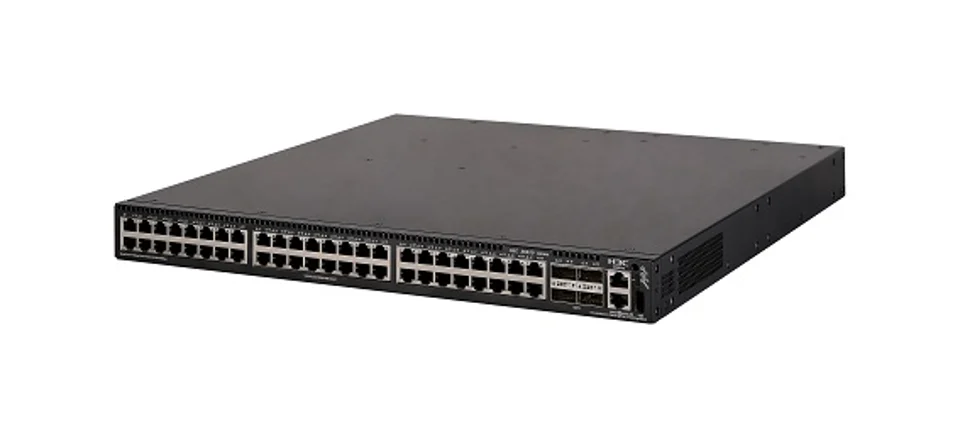

H3C LS-6520X-54XC-UPWR-SI Layer 3 Ethernet Switch Chassis, supports 48 1G/2.5G/5G/10GBase-T UPoE ports, 4 QSFP+ ports, supports 1 slot, without power supply
Brand H3C
N/AVerified
H3C LS-6520X-54XC-UPWR-SI
Model (MPN)
0235A3FE
Condition
Factory Sealed
Out of Stock
H3C LS-6520X-54XC-UPWR-SI Layer 3 Ethernet Switch Chassis, supports 48 1G/2.5G/5G/10GBase-T UPoE ports, 4 QSFP+ ports, supports 1 slot, without power supply. Switching Capacity: 2.56Tbps/25.6Tbps. Packet Forwarding Rate: 1080Mpps. Management Ethernet port: 1
Key Specifications
DescriptionH3C S6520X-54XC-UPWR-SI L3 Ethernet Switch Chassis, supports 48 1G/2.5G/5G/10GBase-T UPoE ports, 4 QSFP Plus ports, supports 1 slot, without power supply
Switching Capacity2.56Tbps/25.6Tbps
Packet Forwarding Rate1080Mpps
Management Ethernet port1
Dimensions (Width x Depth x Height) (Unit: mm)440×460×43.6
Full Configuration Weight≤10.0kg
Your Price
Best Value
$2,111.97
List Price: $30,171.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6520X-54XC-UPWR-SI L3 Ethernet Switch Chassis, supports 48 1G/2.5G/5G/10GBase-T UPoE ports, 4 QSFP Plus ports, supports 1 slot, without power supply |
| Key Specifications | |
| Switching Capacity | 2.56Tbps/25.6Tbps |
| Packet Forwarding Rate | 1080Mpps |
| Management Ethernet port | 1 |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×460×43.6 |
| Full Configuration Weight | ≤10.0kg |
| Input voltage | Rated Voltage Range: 100V~240V, 50/60Hz |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×460×43.6 |
| Full Configuration Weight | ≤10.0kg |
| Console Port | 1 |
| Management Ethernet port | 1 |
| USB port | 1 |
| Micro USB port | 1 |
| Front panel service port description | 48 100M/1G/2.5G/5G/10G Base-T (UPOE) ports, 4 QSFP+ interfaces |
| extended slot | 1 |
| Expansion line cards | 8-Port 10G SFP+ Optical Interface Line Card |
| POE | PWR and HPWR models support 802.3at/POE+ power standard, UPWR models support 802.3bt/POE++ power standard |
| Input voltage | Rated Voltage Range: 100V~240V, 50/60Hz |
| DC | Rated voltage range: -48V to -60V |
| Power Consumption (Static) | Single AC: 65W Dual AC: 74W |
| DC：23W | Single DC: 83W Dual DC: 65W |
| Power Consumption (Full Load) | Single AC: 1054W Dual AC: 2333W |
| DC：97W | Single DC: 406W Dual DC: 1031W |
| Operating Environment Temperature | -5ºC～45ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Switching Capacity | 2.56Tbps/25.6Tbps |
| Packet Forwarding Rate | 1080Mpps |
| Lateral Virtualization | Supports IRF2 Intelligent Elastic Architecture for distributed device management, distributed link aggregation, and distributed elastic routing. Supports stacking via standard Ethernet Interface, including local stacking and remote stacking. Supports MAD stacking split detection mechanisms based on LACP, BFD, and ARP. |
| Link aggregation | Supports 10GE/40GE Port aggregation |
| Jumbo Frame | Supports |
| MAC Address Table | Supports Static MAC address, Blackhole MAC address, Port MAC address learning maximum count, and Openflow1.3 |
| VLAN | Supports Port-based VLAN (4094), Default VLAN, QINQ, Flexible QINQ, VLAN MAPPING, PVST+, and RPVST+ |
| Traffic Monitoring | Support s Flow |
| DHCP | DHCP SnoopingDHCP RelayDHCP ServerDHCP Snooping option82/DHCP Relay option82 |
| ARP | Supports Static entries, Supports free ARP, Supports standard proxy ARP and local proxy ARP, Supports Dynamic ARP Inspection, Supports ARP anti-attack, Supports ARP source suppression, Supports ARP Detection function (can check according to DHCP Snooping security table entries, 802.1x table entries, or IP/MAC Static binding table entries) |
| Routing protocols | Supports Static routing for IPv4/IPv6, Supports dual stack, Supports RIPv1/v2, RIPng, Supports OSPFv1/v2, OSPFv3, Supports BGP4, BGP4+ for IPv6, Supports IS-IS, IS-IS V6, Supports equal-cost routing, Supports policy routing, Supports VRRP/VRRPv3 |
| IPv6 Features | Supports ND (Neighbor Discovery), Supports ND Snooping, Supports PMTU, Supports ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3, Supports IPv6-Portal, Supports IPv6 tunnel |
| Multicast Protocol | Supports IGMP Snooping v2/v3, IGMP Snooping Fast-leave, IGMP Snooping Group-policy, PIM-SM, PIM-SSM, PIM snooping, MVRP, MFF, Enhanced Three-layer Multicast Protocol |
| Zero Configuration | Supports DHCP auto-config and CWMP-TR069 zero-configuration methods |
| Broadcast/Multicast/Unicast storm suppression | Supports Storm suppression based on Port rate percentage, Storm suppression based on pps, Storm suppression based on bps |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols, STP Root Guard, BPDU Guard, ERPS Ethernet Ring Protection Protocol (G.8032) |
| QoS/ACL | Supports rate limiting on both incoming and outgoing packet rates per Port with CAR functionality. Each Port supports 8 output queues with flexible queue scheduling algorithms, allowing configuration based on both Port and queue. Supports multiple modes including SP and WRR. Supports reclassification of 802.1p and DSCP priorities. Provides Layer 2 to Layer 4 packet filtering with flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, Port, protocol, and VLAN. Supports Time Range configuration. |
| Mirroring | Supports flow Mirroring. Supports N:1-Port Mirroring. Supports local and remote Port Mirroring. Supports ERSPAN. |
| Security Features | Supports user level management and password protection Supports centralized MAC authentication Supports 802.1XSupports storm control Supports AAA authentication Supports Portal authentication Supports RADIUS authentication Supports HWTACACSSupports SSH 2.0Supports Port isolation, Port security, Sticky MACSupports binding of IP, MAC, Port, VLAN combinations Supports IP Source Guard Supports SAVI, SAVA to ensure IPv6 environment security Supports HTTPSSupports SSLSupports PKI (Public Key Infrastructure)Supports Dynamic ARP Inspection (DAI) to prevent man-in-the-middle attacks and ARP denial of service Supports DoS attack protection Supports ARP attack protection Supports ICMP attack protection Supports CPU protection Supports CPU attack protection Supports basic network protection |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading Supports FTP (File Transfer Protocol) for loading and upgrading Supports TFTP (Trivial File Transfer Protocol) for loading and upgrading |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration Supports Telnet Remote Configuration Supports Console Port Configuration Supports Schedule Job Supports ISSU Supports 802.1AG and 802.3AH Supports SNMP (Simple Network Management Protocol) Supports IMC Management System Supports Telemetry Visualization Supports NETCONF Network Management Protocol Supports Python Script Management and Operations Supports Public Cloud Management Supports System Log syslog Supports Hierarchical Alarm Supports NTP Supports Power Supply Alarm Function Supports Fan and Temperature Alarm Supports Debug Information Output Supports Ping and Tracert Supports Track Supports Telnet Remote Maintenance Supports USB for File Upload and Download |
| Ordering Information | |
| Expansion Module | |
| 0231A2TB | LSWM2SP8P - 8-Port10GSFP Plus Interface Card |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A2TC | LSWM2QP2P - 2-Port40G QSFP Plus Interface Card |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A4F7 | LSPM6FWD - H3C S5000 series Sec Blade IV next-generation firewall Module |
| 0231A5RG | LSPM4G4T6P - 4-Port Gigabit Electrical Port + 6-Port SFP (2*Combo) Interface Module |
| SFP Gigabit Port | |
| 0231A5RQ | LSWM4SP8PM - 8-Port 10G SFP+ Interface Module with MACSec |
| 0231A8HW | LSWM2MGT8P - 8-Port 1/2.5/5G BASE-T Ethernet Electrical Interface Module |
| 0231A8HX | LSWM2XMGT8P - 8-Port 1/2.5/5/10G BASE-T Ethernet Port Module |
| 0231A8J8 | LSWM2ZSP2P - 2-Port25G SFP28Ethernet Optical Interface Module |
| SFP28-Port | |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A9UF | LSWM2SP2PB - H3C 2-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231A9UG | LSWM2SP4PB - H3C 4-Port10GSFP Plus Ethernet Optical Interface Module |
| 0231ADSD | LSWM2EC - H3C Eagle Vision Scanner Module |
| 0231ADT6 | LSWM2FPGAB - H3C Net Stream Interface Modulewithoutoptical port |
| 0231AESG | LSWM2XMGT2PM - H3C 2-Port 1G/2.5G/5G/10G BASE-T Ethernet Interface Module with MACSec |
| 0231AFDB | LSWM2-iMC - H3C Intelligent Network Management System Module |
| 0231AH8J | LSPM6FWDB - H3C S5000Series Sec Blade IV Next Generation FirewallBModule |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| Fan Options | |
| 0231A2VU | LSPM1FANSB - Fan Module(SW, 4028,Fan Panel Side Air Outlet) |
| Power Module | |
| 0231A5PV | PSR560-56D - 560WDC Pluggable Power Module |
| Security License Options | |
| 3130A1Y2 | LIS-LSP-IPS-1Y - H3C Sec Blade-Standard IPS signature database update service license certificate,1 year |
| 3130A1Y3 | LIS-LSP-IPS-3Y - H3C Sec Blade-Standard IPS signature database update service license certificate,3 years |
| 3130A1YA | LIS-LSP-LB - H3C Sec Blade-Standard LBlicense certificate |
| 3130A1Y8 | LIS-LSP-SSL-100 - H3C Sec Blade-Standard SSL VPN 100 x user license certificate |
| 3130A1Y9 | LIS-LSP-SSL-500 - H3C Sec Blade-Standard SSL VPN 500 x user license certificate |
| 3130A3UB | LIS-LSP-WAF-1Y - H3C Sec Blade-Standard WAF feature library upgrade license certificate,1 year |
| 3130A3UC | LIS-LSP-WAF-3Y - H3C Sec Blade-Standard WAF Signature Database Upgrade License, 3 years |
| 3130A1Y6 | LIS-LSP-ACG-1Y - H3C Sec Blade-Standard application identificationsignature database update service license certificate,1 year |
| 3130A1Y7 | LIS-LSP-ACG-3Y - H3C Sec Blade-Standard application identificationsignature database update service license certificate,3 years |
| 3130A1Y4 | LIS-LSP-AV-1Y - H3C Sec Blade-Standard antivirus security service license certificate,1 year |
| 3130A1Y5 | LIS-LSP-AV-3Y - H3C Sec Blade-Standard Antivirus Security Service License, 3 years |
| 3130A37A | LIS-SST-URL-1Y - H3C Secblade Standard URLsignature database update service license certificate,1 year |
| 3130A373 | LIS-SST-URL-3Y - H3C Secblade Standard URLsignature database update service license certificate,3 years |
| 3130A4DY | LIS-SECBLADES-TI-1Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Service license certificate,1 year |
| 3130A4DF | LIS-SECBLADES-TI-3Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Servicelicense certificate,3 years |
| Wireless License Options | |
| 3130A1L9 | LIS-WX-1-BE - Enhanced Wireless Controller License Authorization Letter - Management 1AP - For Enterprise Networks - V7V9 |
| 3130A1LA | LIS-WX-8-BE - Enhanced Wireless Controller License Authorization Letter - Manage 8AP - Enterprise Network Only - V7V9 |
| 3130A1LB | LIS-WX-16-BE - Enhanced Wireless Controller License Authorization Letter - Manage 16APs - For Enterprise Networks - V7V9 |
| 3130A1LC | LIS-WX-32-BE - Enhanced Wireless Controller License Authorization Letter - Manage 32APs - For Enterprise Networks - V7V9 |
| 3130A1LD | LIS-WX-128-BE - Enhanced Wireless Controller License Agreement - Manages 128 APs - Enterprise Network Exclusive - V7V9 |
| 3130A2HB | LIS-WX-4-BE - Enhanced Wireless Controller License Authorization Letter - Manage 4AP - Enterprise Network Only - V7V9 |
| 3130A2HC | LIS-WX-64-BE - Enhanced Wireless Controller License Authorization Letter - Manages 64 APs - Enterprise Network Exclusive - V7V9 |
| AP | |
| 9801A20E | EWP-WA5330-FIT - H3C WA5330 Tri-Band, 6-Stream 802.11ac/n Wave 2 Wireless Access Point with Internal Antenna - FIT - Global |
| T310 Unit | |
| 9801A20L | IOT-T301-R - H3C T301-R IoT Module 2.4GHz Wireless IoT Access Unit, Supports RFID/Bluetooth |
| 9801A20N | 9801A20N - H3C T310M Managed IoT Gateway, Wireless IoT Access Unit with Built-in Expansion Slot |
| 9801A20P | IOT-T301-Z - H3C T301-Z IoT Module Zig Bee Wireless IoT Access Unit |
| 9801A20Q | 9801A20Q - H3C T310 IoT Gateway with Built-in Expansion Slot for Wireless IoT Access Unit |
| 9801A20R | 9801A20R - H3C T301-R IoT Module: 2.4 GHz External Antenna Wireless IoT Access Unit, supports RFID/Bluetooth |
| 9801A20S | 9801A20S - H3C T301-Z IoT Module: Zig Bee External Antenna Wireless IoT Access Unit |
| 9801A297 | 9801A297 - H3C S6520X-SI Switch Series |
| Power Adapter | |
| 0231A1SS | EWPAM2NPOE - H3C Single-Port PoE Injector (includes 25W power supply, Gigabit, side-by-side installation supported) |
| 0231A4QB | ADP040-54V - 54V 40Whigh-power adapter Power Module |
| AP Mounting Accessory | |
| 2150A0CB | EWPA-CE-4320H - WA4320H-ACN Wall-Mount Kit |
| 9801A23V | EWP-WA6330-FIT - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 2115A03Q | EWPA-TR-EWMK - Adjustable Wall-Mount Kit |
| T300 Unit | |
| 0202A2HC | PINPOINT-T300-PB-UWB-IN - Pinbo T300-PB-UWB Indoor Positioning Plug-in Card |
| 9801A26L | IOTGM1T301L4 - H3C T301-L4 470 MHz Band Lo RaWAN Wireless IoT Access Unit |
| 9801A26P | 9801A26P - H3C T320-ZR Zigbee & 2.4 GHz (RFID or BLE) Dual-Band Wireless IoT Access Unit |
| 9801A26R | IOT-T320 - H3C T320 Wireless IoT Access Unit with Built-in 2.4 GHz (RFID or BLE) & Expansion Slot |
| 9801A26S | 9801A26S - H3C T320-DR 2.4 GHz RFID & BLE Dual-Band Wireless IoT Access Unit |
| 9801A26U | IOT-T320M - H3C T320M Wireless IoT Gateway with Built-in 2.4 GHz (RFID or BLE) & Expansion Slot, Manageable, Standalone Deployable |
| IoTAccessory | |
| 0202A2HB | PINPOINT-T-B1011 - Pinbo UWB Location Terminal - T-B1011 |
| 0202A2HE | PINPOINT-HULSI - Pinbo High-Precision UWB Positioning Service Implementation (Please note the specific service location when placing an order) - 1 person-day - HULSI |
| 0202A2MD | PINPOINT-T-H2011 - Pinbo Personnel Safety Helmet Tracking Device - T-H2011 |
| 0202A2ME | PINPOINT-KT-1421-ZD - Pinbo Explosion-Proof Positioning Terminal - KT-1421-ZD |
| 0202A2MF | PINPOINT-TU-1900 - Pinbo Tamper-Proof Wristband Unlocker - TU-1900 |
| 0202A2MG | PINPOINT-TC-1500 - Pinbo Tamper-Proof Wristband Charger - TC-1500 |
| 0202A2MH | PINPOINT-TC-1311 - Pinbo Standard Wristband Charger - TC-1311 |
| 0202A2MJ | PINPOINT-T-W2511-X - Pinbo Personnel Tracking Tamper-Proof Heart Rate Monitoring Wristband - T-W2511-X |
| 0202A2MK | PINPOINT-T-W2511 - Pinbo Personnel Tracking Tamper-Proof Wristband - T-W2511 |
| 0202A2ML | PINPOINT-T-W1311-P - Pinbo Smart Location Tracking Wristband - T-W1311-P |
| 0202A2MM | PINPOINT-T-G1010 - Pinbo Asset Tracking Terminal - T-G1010 |
| 0202A2MN | PINPOINT-T-W1311 - Pinbo Personnel Tracking Wristband - T-W1311 |
| 0202A2MR | 0202A2MR - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MT | 0202A2MT - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MU | HSJC-MR3837C - Huashi Jingcheng 2.4 GHz Non-Tamper-Resistant Active RFID Tag - MR3837C |
| 0202A2MV | 0202A2MV - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MW | HSJC-MR3848 - Huashi Jingcheng 2.4 GHz Light-Sensing Tamper-Proof Active Asset Management Tag - MR3848 |
| 0202A2N0 | 0202A2N0 - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 9801A280 | 9801A280 - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT |
| 9801A24H | EWP-WA6622-FIT - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MR | 0202A2MR - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MT | 0202A2MT - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2MV | 0202A2MV - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 0202A2N0 | 0202A2N0 - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 9801A280 | 9801A280 - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT |
| 9801A24F | EWP-WA6638-FIT - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 9802A00D | EWPAM1UPOE2 - Two-Port Network Power Adapter 60W-55V-1.1A-DC-1m |
| 0202A2MR | 0202A2MR - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 0202A2MT | 0202A2MT - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 0202A2MV | 0202A2MV - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 0202A2N0 | 0202A2N0 - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| 9801A280 | 9801A280 - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6520X-SI Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching Capacity specification for LS-6520X-54XC-UPWR-SI?
LS-6520X-54XC-UPWR-SI lists Switching Capacity as 2.56Tbps/25.6Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate specification for LS-6520X-54XC-UPWR-SI?
LS-6520X-54XC-UPWR-SI lists Packet Forwarding Rate as 1080Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Console Port specification for LS-6520X-54XC-UPWR-SI?
LS-6520X-54XC-UPWR-SI lists Console Port as 1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W x D x H) (Unit: Mm) specification for LS-6520X-54XC-UPWR-SI?
LS-6520X-54XC-UPWR-SI lists Dimensions (W x D x H) (Unit: Mm) as 440×460×43.6. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
