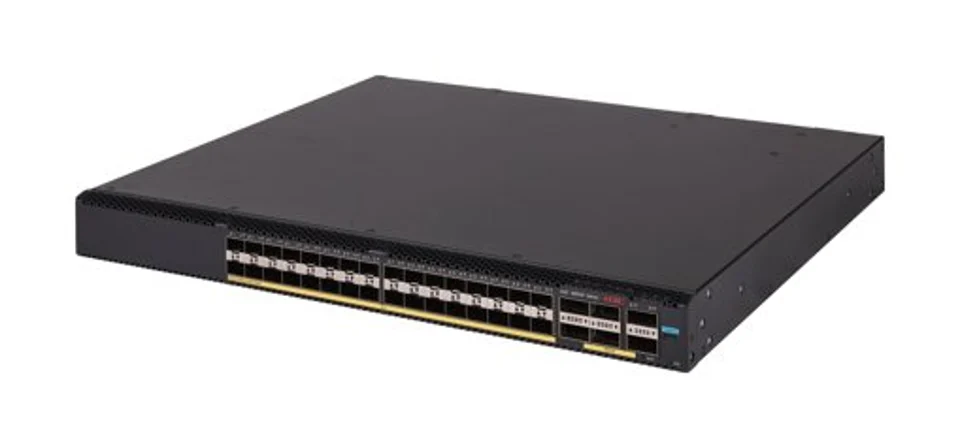

H3C LS-6526XE-32X6CC-HI Layer 3 Ethernet Switch Chassis, supports 32 1G/10G SFP+ ports, supports 6 40G/100G QSFP28 ports, supports 1 slot, no power supply
Brand H3C
N/AVerified
H3C LS-6526XE-32X6CC-HI
Model (MPN)
0235A4SN
Condition
Factory Sealed
Out of Stock
H3C LS-6526XE-32X6CC-HI Layer 3 Ethernet Switch Chassis, supports 32 1G/10G SFP+ ports, supports 6 40G/100G QSFP28 ports, supports 1 slot, no power supply. Switching Capacity: 4.8Tbps/48Tbps. Packet Forwarding Rate: 1620Mpps. Manage Ethernet ports: 1×10/100/1000Base-T Port
Key Specifications
DescriptionH3C S6526XE-32X6CC-HI Layer 3 Ethernet Switch Chassis, supports 32 1G/10G SFP+ ports, supports 6 40G/100G QSFP28 ports, supports 1 slot, no power supply
Switching Capacity4.8Tbps/48Tbps
Packet Forwarding Rate1620Mpps
Manage Ethernet ports1x10/100/1000Base-T Port
1/10GE SFP+Port32
40/100GE QSFP28-Port6
Your Price
Best Value
$1,222.97
List Price: $17,471.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6526XE-32X6CC-HI Layer 3 Ethernet Switch Chassis, supports 32 1G/10G SFP+ ports, supports 6 40G/100G QSFP28 ports, supports 1 slot, no power supply |
| Key Specifications | |
| Switching Capacity | 4.8Tbps/48Tbps |
| Packet Forwarding Rate | 1620Mpps |
| Manage Ethernet ports | 1x10/100/1000Base-T Port |
| 1/10GE SFP+Port | 32 |
| 40/100GE QSFP28-Port | 6 |
| Full Configuration Weight | ≤7.9kg |
| Product Specifications | |
| Switching Capacity | 4.8Tbps/48Tbps |
| Packet Forwarding Rate | 1620Mpps |
| Full Configuration Weight | ≤7.9kg |
| Dimensions (W x D x H) (Unit:mm) | 440×400×44 |
| Console Port | 1 RJ45 port, 1 Type-C port |
| Manage Ethernet ports | 1x10/100/1000Base-T Port |
| USB port | 1, supports USB zero-touch provisioning |
| 1/10GE SFP+Port | 32 |
| 40/100GE QSFP28-Port | 6 |
| extended slot | 1 |
| Power Module slot | 2 ports |
| Fan Module slot | 4 ports |
| Input voltage | AC |
| DC | Rated voltage range: -48V～-60V DC Maximum voltage range: -36V～-72V DC |
| Static Power Consumption | Single AC: 89W Dual AC: 90W Single DC: 86W Dual DC: 98W |
| Typical power consumption | Single AC: 117W Dual AC: 125W Single DC: 123W Dual DC: 126W |
| Maximum Power Consumption | Single AC: 237W Dual AC: 242W Single DC: 249W Dual DC: 256W |
| Operating Environment Temperature | -5ºC～45ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Device Virtualization | Supports IRF2 Stacking |
| Link aggregation | Supports 10GE Port Aggregation |
| Jumbo Frame | Supports 9K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Support Open Flow 1.3 standard, support multi-controllers (EQUAL mode, active-standby mode), support multi-table pipeline, support Group table, support Meter |
| VLAN | Supports 802.1Q VLAN |
| Traffic Monitoring | Support s Flow |
| MPLS* | Support MPLS MCE |
| DHCP | DHCPv4/v6 Client |
| ARP | Supports Static entries |
| Routing protocols | Support IPv4/IPv6 static routing, support dual-stack |
| IPv6 features | Supports ND (Neighbor Discovery) |
| VxLAN | Supports VXLAN Layer 2 switching |
| Data Center Features | Support PFC, ECN |
| Multicast Protocol | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| Zero Configuration | Supports DHCP auto-config and CWMP-TR069 zero-configuration methods |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols |
| QoS/ACL | Supports limiting the rate of received and transmitted packets on Port |
| Mirroring | Supports Flow Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| Loading and Upgrade | Supports Xmodem protocol for loading and upgrade |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration |
| Ordering Information | |
| Expansion Module | |
| 0231A2TC | LSWM2QP2P - 2-Port40G QSFP Plus Interface Card |
| QSFP+ Port | |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A5RQ | LSWM4SP8PM - 8-Port 10G SFP+ Interface Module with MACSec |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A2TB | LSWM2SP8P - 8-Port10GSFP Plus Interface Card |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AMCQ | LSWM2XMGT4PM - H3C 4-Port1G/2.5G/5G/10G BASE-T MACSec Ethernetelectrical interface Module |
| 0231AH8J | LSPM6FWDB - H3C S5000Series Sec Blade IV Next Generation FirewallBModule |
| 0231A4F7 | LSPM6FWD - H3C S5000 series Sec Blade IV next-generation firewall Module |
| 0231AB53 | LSWM2ZQP2P - 2-Port 100G QSFP28 Interface Module |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A9V9 | QSFP-100G-CWDM4-SM1300-A - 100G QSFP28 Optical Module (1310 nm, 2 km, CWDM4, LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231AB52 | LSWM2ZSP8P - 8-Port25G SFP28Interface Module |
| SFP28-Port | |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| SFP/SFP+10GOptical Port | |
| 0231AK6N | 0231AK6N - SFP GEEthernetelectrical interface Module (100m, RJ45) |
| 0231AK6J | 0231AK6J - SFPGigabitBIDI Optical Module (TX1310/RX1490,10km,LC) |
| 0231AK6K | 0231AK6K - SFPGigabitBIDI Optical Module (TX1490/RX1310,10km,LC) |
| 0231AK6G | 0231AK6G - SFPGigabit Optical Module(1310nm,40km,LC) |
| 0231AK6F | 0231AK6F - SFP stacking cable—(150 cm, includes stacking module) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231A7R2 | UN-SFP-XG-SX-MM850-A1-X - SFP+ 10GModule(850nm,300m,LC) |
| 0231AK6M | 0231AK6M - SFP+10GBIDI Optical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231AK6L | 0231AK6L - SFP+10GBIDI Optical Module (TX1330nm/RX1270nm, 10km, LC) |
| 0231AK6E | 0231AK6E - SFP+10G Optical Module(1550nm,40km,LC) |
| 0231AK6H | 0231AK6H - SFP+Cable5m |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231AFJB | QSFP-100G-ER4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 40km, ER4, WDM, LC) |
| 0231AFJA | QSFP-100G-ZR4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC) |
| 0231AM91 | QSFP-100G-FR1-SM1310 - 100G QSFP28 Optical Module(1310nm,2km,FR1,LC) |
| 0231AJHT | QSFP-40G-LX4-WDM1300 - QSFP+ 40G Optical Module (1310nm, 150m, OM3, LX4) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| Fan Options | |
| 0231AG9E | LSPM1FANSA-SN - H3C Fan Module (Fan side air intake) |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| Power Module | |
| 0231A6NC | PSR450-12A1 - 450W AC power Module (Air Exhaust on Power Panel Side) |
| 0231A6N9 | PSR450-12A - 450W AC power Module (air intake on the power supply panel side) |
| 0231A6NB | PSR450-12D - 450W DC power Module (Power Supply panel-side airflow exhaust) |
| Power Supply Cable | |
| 0404A0K4 | CAB-PDU-2.0m-C14-C13-MUL-50598 - PDU Power Supply Cable - 2.0 m - 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV) & H05VV-F & SJT) - (C13) - Chinese Standard + U.S. Standard + European Standard + Korean Standard |
| 0404A27L | CAB-AC-1.0m-CHN-51004 - PDUPower Supply Cable-1.0m-3*0.75mm^2-Black-(C14 Connector(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector(3P) Straight Female 250V10A)-National Standard |
| 0404A0U5 | CAB-HVDC PWR-2m-PDU - PDUPower Supply Cable-2.0m-1.0mm^2-Yellow 121C-(C14 Connector (3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector (3P) Straight Female 250V10A)-National Standard |
| 0404A098 | CAB-C13-C14-1.5m - PDUPower Supply Cable-1.5m-1.0mm^2-Black-(C14 Connector (3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector (3P) Straight Female 250V10A)-National Standard |
| 0404A1GY | Cab-PDU-C14-3m-C13-CHN - PDUPower Supply Cable-3.0m-1.0mm^2-Black-(C14 Connector (3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector (3P) Straight Female 250V10A)-National Standard |
| Security License Options | |
| 3130A1Y2 | LIS-LSP-IPS-1Y - H3C Sec Blade-Standard IPS signature database update service license certificate,1 year |
| 3130A1Y3 | LIS-LSP-IPS-3Y - H3C Sec Blade-Standard IPS signature database update service license certificate,3 years |
| 3130A1YA | LIS-LSP-LB - H3C Sec Blade-Standard LBlicense certificate |
| 3130A1Y8 | LIS-LSP-SSL-100 - H3C Sec Blade-Standard SSL VPN 100 x user license certificate |
| 3130A1Y9 | LIS-LSP-SSL-500 - H3C Sec Blade-Standard SSL VPN 500 x user license certificate |
| 3130A3UB | LIS-LSP-WAF-1Y - H3C Sec Blade-Standard WAF feature library upgrade license certificate,1 year |
| 3130A3UC | LIS-LSP-WAF-3Y - H3C Sec Blade-Standard WAF Signature Database Upgrade License, 3 years |
| 3130A1Y6 | LIS-LSP-ACG-1Y - H3C Sec Blade-Standard application identificationsignature database update service license certificate,1 year |
| 3130A1Y7 | LIS-LSP-ACG-3Y - H3C Sec Blade-Standard application identificationsignature database update service license certificate,3 years |
| 3130A1Y4 | LIS-LSP-AV-1Y - H3C Sec Blade-Standard antivirus security service license certificate,1 year |
| 3130A1Y5 | LIS-LSP-AV-3Y - H3C Sec Blade-Standard Antivirus Security Service License, 3 years |
| 3130A37A | LIS-SST-URL-1Y - H3C Secblade Standard URLsignature database update service license certificate,1 year |
| 3130A373 | LIS-SST-URL-3Y - H3C Secblade Standard URLsignature database update service license certificate,3 years |
| 3130A4DY | LIS-SECBLADES-TI-1Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Service license certificate,1 year |
| 3130A4DF | LIS-SECBLADES-TI-3Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Servicelicense certificate,3 years |
| Wireless License Options | |
| 3130A1LA | LIS-WX-8-BE - Enhanced Wireless Controller License Authorization Letter - Manage 8AP - Enterprise Network Only - V7V9 |
| 3130A1LB | LIS-WX-16-BE - Enhanced Wireless Controller License Authorization Letter - Manage 16APs - For Enterprise Networks - V7V9 |
| 3130A1LD | LIS-WX-128-BE - Enhanced Wireless Controller License Agreement - Manages 128 APs - Enterprise Network Exclusive - V7V9 |
| 3130A2HB | LIS-WX-4-BE - Enhanced Wireless Controller License Authorization Letter - Manage 4AP - Enterprise Network Only - V7V9 |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6526XE Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching Capacity specification for LS-6526XE-32X6CC-HI?
LS-6526XE-32X6CC-HI lists Switching Capacity as 4.8Tbps/48Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate specification for LS-6526XE-32X6CC-HI?
LS-6526XE-32X6CC-HI lists Packet Forwarding Rate as 1620Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Console Port specification for LS-6526XE-32X6CC-HI?
LS-6526XE-32X6CC-HI lists Console Port as 1 RJ45 port, 1 Type-C port. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W x D x H) (Unit:mm) specification for LS-6526XE-32X6CC-HI?
LS-6526XE-32X6CC-HI lists Dimensions (W x D x H) (Unit:mm) as 440×400×44. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
