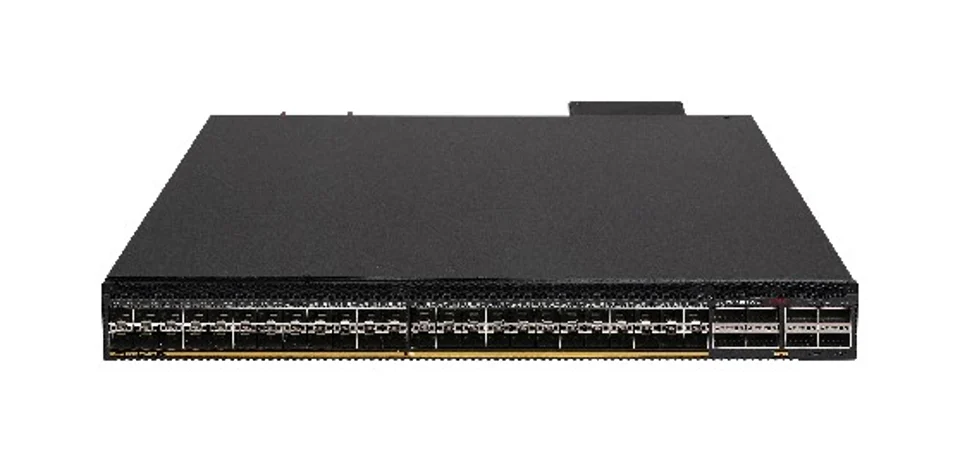

H3C LS-6550X-32H-HI Layer 3 Ethernet Switch Chassis, supports 32 QSFP28 ports, 1 slot, without power supply
Brand H3C
N/AVerified
H3C LS-6550X-32H-HI
Model (MPN)
0235A2Q3
Condition
Factory Sealed
Out of Stock
H3C LS-6550X-32H-HI Layer 3 Ethernet Switch Chassis, supports 32 QSFP28 ports, 1 slot, without power supply. Device Virtualization: Supports IRF2 Stacking. SDN/Openflow: Supports Open Flow 1.3 Standard. VLAN: Supports 802.1Q VLAN
Key Specifications
DescriptionH3C S6550X-32H-HI Layer 3 Ethernet Switch Chassis, supports 32 QSFP28 ports, 1 slot, without power supply
Device VirtualizationSupports IRF2 Stacking
Link aggregationSupports Distributed Device Management, Distributed Link Aggregation, Distributed Elastic Routing
Jumbo FrameSupports
SDN/OpenflowSupports Open Flow 1.3 Standard
MAC Address TableSupports Static, Dynamic, and Blackhole MAC Address
Your Price
Best Value
$4,410.00
List Price: $63,000.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Key Specifications | |
|---|---|
| Description | H3C S6550X-32H-HI Layer 3 Ethernet Switch Chassis, supports 32 QSFP28 ports, 1 slot, without power supply |
| Product Specifications | |
| Device Virtualization | Supports IRF2 Stacking |
| Link aggregation | Supports Distributed Device Management, Distributed Link Aggregation, Distributed Elastic Routing |
| Jumbo Frame | Supports |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| VLAN | Supports 802.1Q VLAN |
| DHCP | DHCPv4/v6 Client |
| ARP | Supports Static entries |
| Routing protocols | Supports Static routing IPv4/IPv6 |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| IPv6 Features | Supports ND (Neighbor Discovery) |
| VxLAN | Supports VXLAN Layer 2 switching |
| Zero Configuration | Supports DHCP auto-config, CWMP-TR069, USB and other zero Configuration methods* |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols |
| QoS/ACL | Supports limiting the rate of received and transmitted packets on Port |
| Mirroring | Supports Flow Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration |
| Catalog Description | |
| Description | H3C S6550X-32H-HI Layer 3 Ethernet Switch Chassis, supports 32 QSFP28 ports, 1 slot, without power supply |
| Ordering Information | |
| Expansion Module | |
| 0231A4F7 | LSPM6FWD - H3C S5000 series Sec Blade IV next-generation firewall Module |
| 0231AFDB | LSWM2-iMC - H3C Intelligent Network Management System Module |
| 0231ADSD | LSWM2EC - H3C Eagle Vision Scanner Module |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| Fan Options | |
| 0231AMY0 | FAN-40B-1-A-CP - H3C Corrosion Resistant Asset Management Fan Module (Fan Panel Side Air Outlet) |
| 0231AE54 | FAN-40F-1-A - H3C Asset Management Fan Module (Fan panel side air intake) |
| 0231AE55 | FAN-40B-1-A - H3C Asset Management Fan Module (Fan Panel Side Air Outlet) |
| Power Module | |
| 0231A6NC | PSR450-12A1 - 450W AC power Module (Air Exhaust on Power Panel Side) |
| 0231A6N9 | PSR450-12A - 450W AC power Module (air intake on the power supply panel side) |
| 0231A6NA | PSR450-12AHD - 450W High-Voltage DC power Module (Supports AC/336V High-Voltage DC, with air exhaust on the front panel) |
| 0231A6NB | PSR450-12D - 450W DC power Module (Power Supply panel-side airflow exhaust) |
| Authorization Letter Options | |
| 3130A3UB | LIS-LSP-WAF-1Y - H3C Sec Blade-Standard WAF feature library upgrade license certificate,1 year |
| 3130A3UC | LIS-LSP-WAF-3Y - H3C Sec Blade-Standard WAF Signature Database Upgrade License, 3 years |
| 3130A37A | LIS-SST-URL-1Y - H3C Secblade Standard URLsignature database update service license certificate,1 year |
| 3130A373 | LIS-SST-URL-3Y - H3C Secblade Standard URLsignature database update service license certificate,3 years |
| 3130A4DY | LIS-SECBLADES-TI-1Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Service license certificate,1 year |
| 3130A4DF | LIS-SECBLADES-TI-3Y - H3C Secblade-Standard Security Threat Intelligence Upgrade Servicelicense certificate,3 years |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6550X-HI Series Switch |
