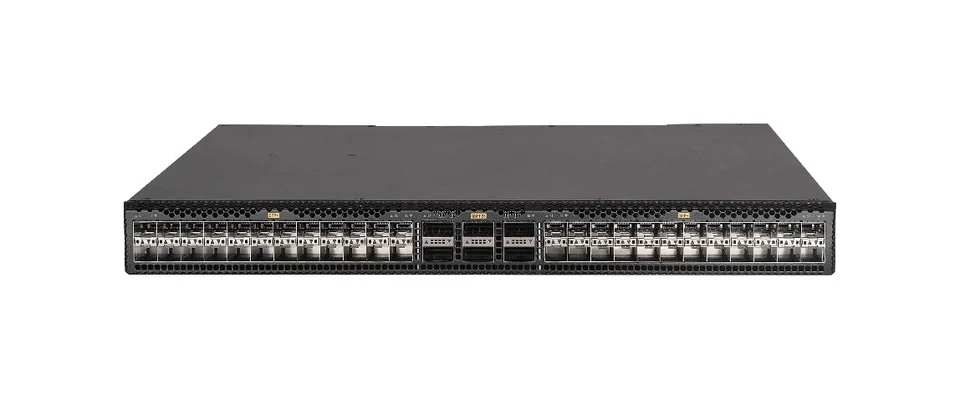

H3C LS-6805-54HF Layer 3 Ethernet Switch Chassis, 48 SFP+ Port, 6 QSFP28 Port
Brand H3C
N/AVerified
H3C LS-6805-54HF
Model (MPN)
0235A3EU
Condition
Factory Sealed
Out of Stock
H3C LS-6805-54HF Layer 3 Ethernet Switch Chassis, 48 SFP+ Port, 6 QSFP28 Port. Switching Capacity: 4.8Tbps/96Tbps. Packet Forwarding Rate: 2000Mpps 2000Mpps/2560Mpps. Out-of-band Management Ethernet Port: 1x 10/100/1000M RJ45 Electrical Port 1x 100/1000M SFP Optical Port
Key Specifications
DescriptionH3C S6805-54HF L3 Ethernet Switch Chassis,Supports 48 x SFP Plus Port,6 x QSFP28-Port
Switching Capacity4.8Tbps/96Tbps
Packet Forwarding Rate2000Mpps 2000Mpps/2560Mpps
Out-of-band Management Ethernet Port1x 10/100/1000M RJ45 Electrical Port 1x 100/1000M SFP Optical Port
40/100GE QSFP28-Port6 units
1/10GE SFP+ Port48 ports
Your Price
Best Value
$2,829.96
List Price: $40,428.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6805-54HF L3 Ethernet Switch Chassis,Supports 48 x SFP Plus Port,6 x QSFP28-Port |
| Key Specifications | |
| Switching Capacity | 4.8Tbps/96Tbps |
| Packet Forwarding Rate | 2000Mpps 2000Mpps/2560Mpps |
| Out-of-band Management Ethernet Port | 1x 10/100/1000M RJ45 Electrical Port 1x 100/1000M SFP Optical Port |
| 40/100GE QSFP28-Port | 6 units |
| 1/10GE SFP+ Port | 48 ports |
| 100M/1G/2.5G/5G/10G Base-T Adaptive Ethernet Port | 48 ports |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×44 |
| Full Configuration Weight | ≤10kg |
| Serial Console port | 1 |
| Out-of-band Management Ethernet Port | 1x 10/100/1000M RJ45 Electrical Port 1x 100/1000M SFP Optical Port |
| Mini USB Console port | 1 |
| USB port | 1 |
| 40/100GE QSFP28-Port | 6 units |
| 1/10GE SFP+ Port | 48 ports |
| 100M/1G/2.5G/5G/10G Base-T Adaptive Ethernet Port | 48 ports |
| Input voltage | 90v~290v |
| DC | -36V~-72V |
| Power Module | Dual Modular Hot-swappable Power Supply |
| Fan Module | 5 Hot-swappable Fan Modules, front-to-back or back-to-front airflow |
| Operating Environment Temperature | 0ºC～45ºC |
| Operating environment relative humidity | 5%~95%, Non-condensing |
| 10G Base-T Port | 48 ports |
| Supports Features | S6805-54HF/ S6805-54HT S6805-56HF-G/S6805-56HT-G |
| Switching Capacity | 4.8Tbps/96Tbps |
| Packet Forwarding Rate | 2000Mpps 2000Mpps/2560Mpps |
| Forwarding Mode | Supports store-forward mode and cut-through mode. |
| Device Virtualization | Supports IRF2 horizontal virtualization, supports local and remote stacking, supports distributed device management, distributed link aggregation, distributed elastic routing, supports cross-device link aggregation M-LAG. |
| Network Virtualization | VxLAN Layer 2 and Layer 3 gateway support VxLAN Bridging and Routing support BGP-EVPN support VxLAN over IPv6 support Emulate-ping VxLAN support VxLAN OAM: VxLAN ping, VxLAN tracert support QinQ in VxLAN support GRE Tunnel |
| SDN Controller | Supports Seer Engine-DC |
| Data Center Features | Supports EVPN Distributed Gateway Supports VxLAN Mapping for multi-DC Layer 2 interworking Supports Service Chain Service chain Supports RDMA and RoCE (RoCE v1 and RoCE v2)Supports one-click PFC: No Packet Loss Cache auto-configuration*Supports FCoESupports DCBX, PFC, ETS, ECN, *QCNSupports AI ECN, IPCC, iNOFECN support Vxlan Overlay scenario support DLB: Dynamic Load Balancing |
| Programmable | Supports Open Flow, Ansible automation Configuration |
| MAC Address Table | Supports dynamic, static, and blackhole MAC address table entries. Supports MAC address auto-learning and aging. Supports source MAC address filtering. |
| VLAN | Supports Port-based, Protocol-based, MAC-based VLAN. Supports Default VLAN. Supports PVLAN. Supports Super VLAN. Supports Voice VLAN. Supports QinQ and Flexible QinQ. |
| Traffic Monitoring | Supports s Flow/Net Stream Supports Telemetry Supports INT (In-band Network Telemetry) Supports Telemetry Stream functionality, full hardware level 1:1 sampling for real-time analysis, monitoring, and uploading Supports INQA traffic monitoring technology |
| DHCP | DHCP Server and DHCP Client; DHCP Snooping and DHCP Relay |
| ARP | Supports ARP, RARP, and Gratuitous ARP. Supports Dynamic ARP Inspection. Supports ARP anti-attack. Supports ARP source suppression. Supports ARP Detection function. |
| IP Routing | Supports static and default routes Supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, and ISIS Supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, and ISISv6 Supports Equivalent Routing, Policy Routing Supports IPv4/IPv6 Dual Stack Protocols |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery) Supports IPv6 VxLAN over IPv4 Supports PMTU Discovery (Path MTU Discovery) Supports ICMPv4/v6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3 Supports TCP over IPv6, Ping, Tracert, Socket, UDP, RawIP Support IPv6-Portal and IPv6 Tunnel Support IPv6SAVI |
| Multicast Protocol | Supports IGMP Snooping v2/v3, Supports IGMP v1/v2/v3, Supports fast leave for multicast member interfaces, Supports multicast traffic suppression, Supports PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Supports MLD Snooping, Supports multicast policies, Supports multicast VLAN, Supports multicast over VxLAN |
| MPLS | Supports MPLSSupports MCE Supports MPLS VPN, VPLSSupports MPLS TESupports L3 VPN Reliability |
| QoS | Supports port send/receive message rate limiting Supports ACL, CAR, priority re-tagging, queuing Supports standard ACL, extended ACL, port-based ACL, VLAN-based ACL (can be applied to VLAN virtual ports) Supports SP, WRR, WFQ, SP+WRR, SP+WFQ and other queue scheduling Supports Layer 2~Layer 4 packet filtering Supports flow classification based on source MAC, destination MAC, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, VLAN, etc. Supports traffic shaping and congestion avoidance mechanisms such as WRED and tail drop. |
| Mirroring | Support for traffic mirroring Support for N:4 port mirroring Support for 8 port mirroring SESSION Support for local and remote port mirroring ERSPAN |
| TAP | /Supports Port, Traffic N:M replication, M or N ≥ 48Supports GRE tunnels stripping encapsulation, Supports homogeneous same-homing, Supports message truncation Supports source Port identification, Supports adding timestampand Ethernet header identifying the specified message, modifying the mac address or IP address and then copy and forward the message. |
| Security Features | Supports user hierarchical management and password protection Supports command line hierarchical protection, unauthorized users cannot intrude Supports port isolation, port security, Sticky MAC Supports 802.1x, AAA, Radius, HWTACACS, and other kinds of authentication Supports IP, MAC, port, VLAN combination binding Supports preventing attacks such as DOS, ARP, and ICMP Supports IP Source Guard, port isolation support HTTPs, SSL support MOD support TCB support IP fragmentation and reorganization support micro-segmentation: fine-grained micro-segmentation security isolation (IPv4 and IPv6), reduce ACL resource consumption |
| Loading and Upgrade | Supports FTP (File Transfer Protocol) loading upgrade, supports TFTP (Trivial File Transfer Protocol) loading upgrade |
| Management and Maintenance | Supports Telemetry visualization function Supports network-wide path detection Supports cache microburst detection Supports zero-configuration Auto-config and configuration rollback Supports command line interface (CLI) configuration Supports configuration via Console, Telnet, SSH, etc. Supports RMON (Remote Monitoring) Supports SNMP v1/v2c/v3 support for network management system support for Netconf and Python support for system logs and user logs support for hierarchical alarm support for power, fan, temperature alarm function support for NTP network time protocol support for Jumbo Frame support for Trace Route support for Ping, Tracert and other debugging information output support for FTP, TFTP, USB and other ways to upload and download files support for FTP, TFTP, USB and other ways to upload and download files support for FTP, TFTP, USB and other ways to support the use of the network, Support FTP, TFTP, USB and other ways to upload and download files Support BootROM upgrade and remote online upgrade Support XModem protocol loading upgrade Support Hot Patch Support ZTP, SZTP* Support NTP network time protocol Support Jumbo Frame Support Trace Route Support Ping, Tracert, etc. |
| Compatible with Multiple Cloud Platforms | Supports adaptation and compatibility with third-party cloud platform products and technical capabilities. |
| Ordering Information | |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231AJ2K | 0231AJ2K - S6805 |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| 0231AKBF | SFP-XG-D-AOC-10M-H - SFP+ to SFP+ 10m Active Fiber Cable |
| 0231AKBE | SFP-XG-D-AOC-20M-H - SFP+ to SFP+ 20m Active Fiber Cable |
| 0231AKBK | SFP-XG-D-AOC-7M-H - SFP+ to SFP+ 7m Active Fiber Cable |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231AKBJ | 0231AKBJ - S6805 |
| 0231AKBC | SFP-XG-SX-MM850-H - SFP+ 10G Optical Module(850nm,300m,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231AFJB | QSFP-100G-ER4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 40km, ER4, WDM, LC) |
| 0231AFJA | QSFP-100G-ZR4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231AM91 | QSFP-100G-FR1-SM1310 - 100G QSFP28 Optical Module(1310nm,2km,FR1,LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231AM90 | QSFP-100G-DR1-SM1310 - 100G QSFP28 Singlemode Optical Module(1310nm,500m,DR1,LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A7W9 | QSFP-100G-BIDI-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, BIDI, LC) |
| 0231AH0E | QSFP-100G-SR4-MM850-H - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231AM8Y | QSFP-100G-LR1-SM1310-DC - 100G QSFP28 Optical Module (for Data Center)-(1310nm,10km,LR1,LC) |
| 0231AJ2R | 0231AJ2R - S6805 |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231AJHT | QSFP-40G-LX4-WDM1300 - QSFP+ 40G Optical Module (1310nm, 150m, OM3, LX4) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231AG54 | QSFP-40G-LR4-PSM1310-A - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231AKDE | QSFP-40G-SR4-MM850-H - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| SFP Ethernet Management Optical Port | |
| Fan | |
| 0231A2VU | LSPM1FANSB - Fan Module(SW, 4028,Fan Panel Side Air Outlet) |
| 0231ACJL | LSPM1FANSB - H3C Fan Module(Fan Side Outlet, Tencent Specialized) |
| 0231ACJM | LSPM1FANSA - H3C Fan Module(Fan side air intake, for Tencent) |
| 0231AG9E | LSPM1FANSA-SN - H3C Fan Module (Fan side air intake) |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| 0231APU6 | FAN-40B-1-C - Fan Module(Fan Panel Side Air Outlet, Supports Electronic Labeling) |
| Power Supply | |
| 0231A6M0 | PSR250-12A - 250W AC power Module (Power Supply panel-side airflow intake) |
| 0231A6N9 | PSR450-12A - 450W AC power Module (air intake on the power supply panel side) |
| 0231A6NA | PSR450-12AHD - 450W High-Voltage DC power Module (Supports AC/336V High-Voltage DC, with air exhaust on the front panel) |
| 0231A6NB | PSR450-12D - 450W DC power Module (Power Supply panel-side airflow exhaust) |
| 0231A6NC | PSR450-12A1 - 450W AC power Module (Air Exhaust on Power Panel Side) |
| 0231A8FP | PSR250-12A1 - 250W AC power Module (Power Supply panel-side airflow exhaust) |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Rack Rail | |
| H3CSWSLR | H3CSWSLR - S6805 |
| functions feature license certificate | |
| 3130A5N7 | LIS-B-LOSSLESS - H3C box Switch Lossless Ethernet Enhanced Features license certificate, 1 device |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6805 Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Serial Console port specification for LS-6805-54HF?
LS-6805-54HF lists Serial Console port as 1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (Width x Depth x Height) (Unit: mm) specification for LS-6805-54HF?
LS-6805-54HF lists Dimensions (Width x Depth x Height) (Unit: mm) as 440×400×44. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Full Configuration Weight specification for LS-6805-54HF?
LS-6805-54HF lists Full Configuration Weight as ≤10kg. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Power Module specification for LS-6805-54HF?
LS-6805-54HF lists Power Module as Dual Modular Hot-swappable Power Supply. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
