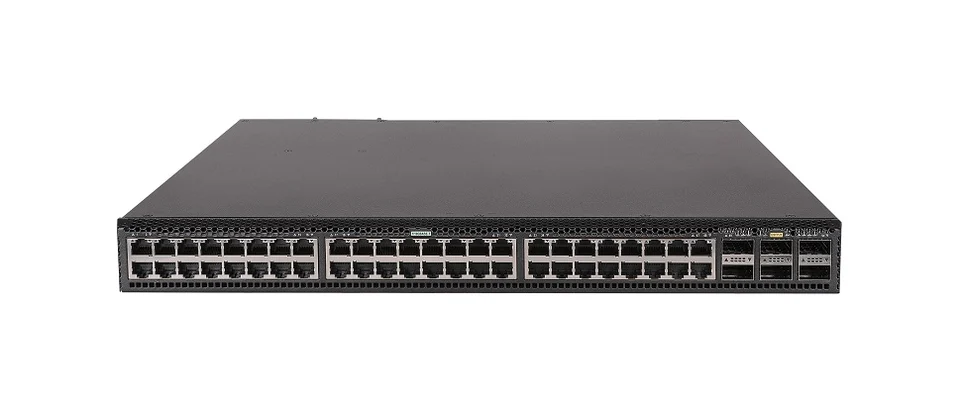

H3C LS-6805-54HT-H1 S6805-54HT Layer 3 Ethernet Switch Chassis, 48 10GBASE-T Port, 6 QSFP28 Port
Brand H3C
N/AVerified
H3C LS-6805-54HT-H1
Model (MPN)
0235A4AG
Condition
Factory Sealed
Out of Stock
H3C LS-6805-54HT-H1 S6805-54HT Layer 3 Ethernet Switch Chassis, 48 10GBASE-T Port, 6 QSFP28 Port. Switching Capacity: 4.8Tbps/96Tbps. Packet Forwarding Rate: 2000Mpps 2000Mpps/2560Mpps. Device Virtualization: Supports IRF2 horizontal virtualization, supports local and remote stacking, supports distributed device management, distributed link aggregation, distributed elastic routing, supports cross-device link aggregat
Key Specifications
DescriptionH3C S6805-54HT L3 Ethernet Switch Chassis,Supports 48 x10GBASE-T Port,6 x QSFP28-Port
Switching Capacity4.8Tbps/96Tbps
Packet Forwarding Rate2000Mpps 2000Mpps/2560Mpps
Supports FeaturesS6805-54HF/ S6805-54HT S6805-56HF-G/S6805-56HT-G
Forwarding ModeSupports store-forward mode and cut-through mode.
SDN ControllerSupports Seer Engine-DC
Your Price
Best Value
$5,239.15
List Price: $74,845.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6805-54HT L3 Ethernet Switch Chassis,Supports 48 x10GBASE-T Port,6 x QSFP28-Port |
| Key Specifications | |
| Switching Capacity | 4.8Tbps/96Tbps |
| Packet Forwarding Rate | 2000Mpps 2000Mpps/2560Mpps |
| Supports Features | S6805-54HF/ S6805-54HT S6805-56HF-G/S6805-56HT-G |
| Forwarding Mode | Supports store-forward mode and cut-through mode. |
| SDN Controller | Supports Seer Engine-DC |
| Programmable | Supports Open Flow, Ansible automation Configuration |
| Product Specifications | |
| Supports Features | S6805-54HF/ S6805-54HT S6805-56HF-G/S6805-56HT-G |
| Switching Capacity | 4.8Tbps/96Tbps |
| Packet Forwarding Rate | 2000Mpps 2000Mpps/2560Mpps |
| Forwarding Mode | Supports store-forward mode and cut-through mode. |
| Device Virtualization | Supports IRF2 horizontal virtualization, supports local and remote stacking, supports distributed device management, distributed link aggregation, distributed elastic routing, supports cross-device link aggregation M-LAG. |
| Network Virtualization | VxLAN Layer 2 and Layer 3 gateway support VxLAN Bridging and Routing support BGP-EVPN support VxLAN over IPv6 support Emulate-ping VxLAN support VxLAN OAM: VxLAN ping, VxLAN tracert support QinQ in VxLAN support GRE Tunnel |
| SDN Controller | Supports Seer Engine-DC |
| Data Center Features | Supports EVPN Distributed Gateway Supports VxLAN Mapping for multi-DC Layer 2 interworking Supports Service Chain Service chain Supports RDMA and RoCE (RoCE v1 and RoCE v2)Supports one-click PFC: No Packet Loss Cache auto-configuration*Supports FCoESupports DCBX, PFC, ETS, ECN, *QCNSupports AI ECN, IPCC, iNOFECN support Vxlan Overlay scenario support DLB: Dynamic Load Balancing |
| Programmable | Supports Open Flow, Ansible automation Configuration |
| MAC Address Table | Supports dynamic, static, and blackhole MAC address table entries. Supports MAC address auto-learning and aging. Supports source MAC address filtering. |
| VLAN | Supports Port-based, Protocol-based, MAC-based VLAN. Supports Default VLAN. Supports PVLAN. Supports Super VLAN. Supports Voice VLAN. Supports QinQ and Flexible QinQ. |
| Traffic Monitoring | Supports s Flow/Net Stream Supports Telemetry Supports INT (In-band Network Telemetry) Supports Telemetry Stream functionality, full hardware level 1:1 sampling for real-time analysis, monitoring, and uploading Supports INQA traffic monitoring technology |
| DHCP | DHCP Server and DHCP Client; DHCP Snooping and DHCP Relay |
| ARP | Supports ARP, RARP, and Gratuitous ARP. Supports Dynamic ARP Inspection. Supports ARP anti-attack. Supports ARP source suppression. Supports ARP Detection function. |
| IP Routing | Supports static and default routes Supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, and ISIS Supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, and ISISv6 Supports Equivalent Routing, Policy Routing Supports IPv4/IPv6 Dual Stack Protocols |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery) Supports IPv6 VxLAN over IPv4 Supports PMTU Discovery (Path MTU Discovery) Supports ICMPv4/v6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3 Supports TCP over IPv6, Ping, Tracert, Socket, UDP, RawIP Support IPv6-Portal and IPv6 Tunnel Support IPv6SAVI |
| Multicast Protocol | Supports IGMP Snooping v2/v3, Supports IGMP v1/v2/v3, Supports fast leave for multicast member interfaces, Supports multicast traffic suppression, Supports PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Supports MLD Snooping, Supports multicast policies, Supports multicast VLAN, Supports multicast over VxLAN |
| MPLS | Supports MPLSSupports MCE Supports MPLS VPN, VPLSSupports MPLS TESupports L3 VPN Reliability |
| QoS | Supports port send/receive message rate limiting Supports ACL, CAR, priority re-tagging, queuing Supports standard ACL, extended ACL, port-based ACL, VLAN-based ACL (can be applied to VLAN virtual ports) Supports SP, WRR, WFQ, SP+WRR, SP+WFQ and other queue scheduling Supports Layer 2~Layer 4 packet filtering Supports flow classification based on source MAC, destination MAC, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, VLAN, etc. Supports traffic shaping and congestion avoidance mechanisms such as WRED and tail drop. |
| Mirroring | Support for traffic mirroring Support for N:4 port mirroring Support for 8 port mirroring SESSION Support for local and remote port mirroring ERSPAN |
| TAP | /Supports Port, Traffic N:M replication, M or N ≥ 48Supports GRE tunnels stripping encapsulation, Supports homogeneous same-homing, Supports message truncation Supports source Port identification, Supports adding timestampand Ethernet header identifying the specified message, modifying the mac address or IP address and then copy and forward the message. |
| Security Features | Supports user hierarchical management and password protection Supports command line hierarchical protection, unauthorized users cannot intrude Supports port isolation, port security, Sticky MAC Supports 802.1x, AAA, Radius, HWTACACS, and other kinds of authentication Supports IP, MAC, port, VLAN combination binding Supports preventing attacks such as DOS, ARP, and ICMP Supports IP Source Guard, port isolation support HTTPs, SSL support MOD support TCB support IP fragmentation and reorganization support micro-segmentation: fine-grained micro-segmentation security isolation (IPv4 and IPv6), reduce ACL resource consumption |
| Loading and Upgrade | Supports FTP (File Transfer Protocol) loading upgrade, supports TFTP (Trivial File Transfer Protocol) loading upgrade |
| Management and Maintenance | Supports Telemetry visualization function Supports network-wide path detection Supports cache microburst detection Supports zero-configuration Auto-config and configuration rollback Supports command line interface (CLI) configuration Supports configuration via Console, Telnet, SSH, etc. Supports RMON (Remote Monitoring) Supports SNMP v1/v2c/v3 support for network management system support for Netconf and Python support for system logs and user logs support for hierarchical alarm support for power, fan, temperature alarm function support for NTP network time protocol support for Jumbo Frame support for Trace Route support for Ping, Tracert and other debugging information output support for FTP, TFTP, USB and other ways to upload and download files support for FTP, TFTP, USB and other ways to upload and download files support for FTP, TFTP, USB and other ways to support the use of the network, Support FTP, TFTP, USB and other ways to upload and download files Support BootROM upgrade and remote online upgrade Support XModem protocol loading upgrade Support Hot Patch Support ZTP, SZTP* Support NTP network time protocol Support Jumbo Frame Support Trace Route Support Ping, Tracert, etc. |
| Compatible with Multiple Cloud Platforms | Supports adaptation and compatibility with third-party cloud platform products and technical capabilities. |
| Ordering Information | |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231AFJB | QSFP-100G-ER4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 40km, ER4, WDM, LC) |
| 0231AFJA | QSFP-100G-ZR4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A7W9 | QSFP-100G-BIDI-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, BIDI, LC) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231AJ2R | 0231AJ2R - S6805 |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231AJHT | QSFP-40G-LX4-WDM1300 - QSFP+ 40G Optical Module (1310nm, 150m, OM3, LX4) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231AG54 | QSFP-40G-LR4-PSM1310-A - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| Fan | |
| 0231A2VU | LSPM1FANSB - Fan Module(SW, 4028,Fan Panel Side Air Outlet) |
| 0231ACJL | LSPM1FANSB - H3C Fan Module(Fan Side Outlet, Tencent Specialized) |
| 0231ACJM | LSPM1FANSA - H3C Fan Module(Fan side air intake, for Tencent) |
| 0231AG9E | LSPM1FANSA-SN - H3C Fan Module (Fan side air intake) |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| 0231APU6 | FAN-40B-1-C - Fan Module(Fan Panel Side Air Outlet, Supports Electronic Labeling) |
| Power Supply | |
| 0231A6N9 | PSR450-12A - 450W AC power Module (air intake on the power supply panel side) |
| 0231A6NA | PSR450-12AHD - 450W High-Voltage DC power Module (Supports AC/336V High-Voltage DC, with air exhaust on the front panel) |
| 0231A6NB | PSR450-12D - 450W DC power Module (Power Supply panel-side airflow exhaust) |
| 0231A6NC | PSR450-12A1 - 450W AC power Module (Air Exhaust on Power Panel Side) |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Rack Rail | |
| H3CSWSLR | H3CSWSLR - S6805 |
| functions feature license certificate | |
| 3130A5N7 | LIS-B-LOSSLESS - H3C box Switch Lossless Ethernet Enhanced Features license certificate, 1 device |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6805 Series Switch |
