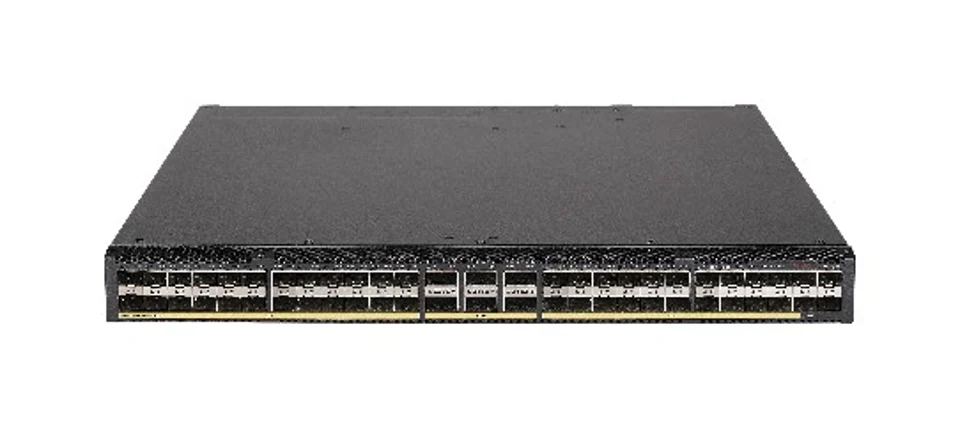

H3C LS-6812-48X6C Layer 3 Ethernet Switch, supports 48 SFP+ ports, 6 QSFP28 ports, non-powered
Brand H3C
N/AVerified
H3C LS-6812-48X6C
Model (MPN)
0235A2SQ
Condition
Factory Sealed
Out of Stock
H3C LS-6812-48X6C Layer 3 Ethernet Switch, supports 48 SFP+ ports, 6 QSFP28 ports, non-powered. Switching Capacity: 4Tbps/36Tbps. Packet Forwarding Rate: 2000Mpps. Out-of-band Management Ethernet Port: 1 x 10/100/1000M RJ45 Electrical Port
Key Specifications
DescriptionH3C S6812-48X6C Layer 3 Ethernet Switch, supports 48 SFP Plus ports, 6 QSFP28 ports, non-powered
Switching Capacity4Tbps/36Tbps
Packet Forwarding Rate2000Mpps
Out-of-band Management Ethernet Port1 x 10/100/1000M RJ45 Electrical Port
1/10GE SFP+ Port48 ports
40/100GE QSFP28-Port6 units
Your Price
Best Value
$2,016.00
List Price: $28,800.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6812-48X6C Layer 3 Ethernet Switch, supports 48 SFP Plus ports, 6 QSFP28 ports, non-powered |
| Key Specifications | |
| Switching Capacity | 4Tbps/36Tbps |
| Packet Forwarding Rate | 2000Mpps |
| Out-of-band Management Ethernet Port | 1 x 10/100/1000M RJ45 Electrical Port |
| 1/10GE SFP+ Port | 48 ports |
| 40/100GE QSFP28-Port | 6 units |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Full Configuration Weight | ≤6kg |
| Serial Console port | 1 |
| Out-of-band Management Ethernet Port | 1 x 10/100/1000M RJ45 Electrical Port |
| 1/10GE SFP+ Port | 48 ports |
| 40/100GE QSFP28-Port | 6 units |
| Input voltage | 90V～290V |
| Power Module | Dual Modular Power Supply |
| Fan Module | 3 hot-swappable Fan Modules, front-to-back or back-to-front airflow |
| Maximum Power Consumption | Dual AC: 162W |
| Operating Environment Temperature | -5℃～45℃ |
| Operating environment relative humidity | 5%~95%, Non-condensing |
| Switching Capacity | 4Tbps/36Tbps |
| Packet Forwarding Rate | 2000Mpps |
| Forwarding Mode | Supports store-forward mode and cut-through mode. |
| Device Virtualization | Supports IRF2 horizontal virtualization, local and remote stacking, distributed device management, distributed link aggregation, distributed elastic routing, M-LAG, and i Stack stacking. |
| Network Virtualization | Supports VxLAN Layer 2 and Layer 3 gateways, BGP-EVPN, QinQ in VxLAN, and GRE Tunnel. |
| SDN Controller | Supports Seer Engine-DC |
| Data Center Features | Supports VxLAN Mapping, Service chain, RDMA, RoCE v1, RoCE v2 lossless networks, PFC, and ECN. |
| Programmable | Supports Open Flow, Ansible automation Configuration |
| MAC Address Table | Supports dynamic, static, blackhole MAC address table entries, MAC address automatic learning and aging, Source MAC address filtering, Port-based MAC address learning limit |
| VLAN | Supports Port-based, protocol-based, and MAC-based VLANs, Default VLAN, PVLAN, Super VLAN, Voice VLAN, QinQ and Flexible QinQ, and Access, Trunk, Hybrid modes. |
| Traffic Monitoring | Supports s Flow and Telemetry. |
| DHCP | DHCP Server and DHCP Client; DHCP Snooping and DHCP Relay |
| ARP | Supports ARP, RARP, and Gratuitous ARP. Supports Dynamic ARP Inspection. Supports ARP anti-attack. Supports ARP source suppression. Supports ARP Detection function. |
| IP Routing | Supports Static routing and default routing; supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, ISIS; supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, ISISv6; supports Equal-cost Multi-Path routing, Policy-based routing; supports IP fragment reassembly. |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery); supports IPv6 VxLAN over IPv4; supports PMTU Discovery (Path MTU Discovery); supports ICMPv6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3; supports IPv6-Portal and IPv6 Tunnel; supports IPv6 TCP, Ping, Tracert, Socket, UDP, RawIP; supports SAVI. |
| Multicast Protocol | Supports IGMP Snooping v2/v3; supports IGMP v1/v2/v3; supports PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP; supports MLD Snooping; supports IGMP Proxy; supports Multicast Policy; supports Multicast VLAN; supports Multicast over VxLAN; supports Multicast Member Interface Fast Leave; supports Multicast Traffic Suppression. |
| MPLS | Supports MPLS, MCE, MPLS VPN, VPLS, MPLS TE |
| Reliability | Supports STP, RSTP, MSTP; Supports BPDU protection, root protection, loop protection; Supports PVST; Supports LACP; Supports DLDP; Supports RRPP; Supports ERPS Ethernet ring protection protocol (G.8032); Supports Smart Link and multi-instance; Supports hardware BFD with minimum 3.3ms packet sending interval; Supports VRRP, VRRP load sharing, BFD for VRRP; Supports BFD for BGP/IS-IS/OSPF/Static routing |
| QoS | Supports Port transmit/receive packet rate limiting; Supports ACL, CAR, priority remarking, queue; Supports SP, WRR, SP+WRR and other queue scheduling; Supports Layer 2~Layer 4 packet filtering functions; Supports traffic classification based on source MAC, destination MAC, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, Port, protocol, VLAN; Supports traffic shaping; Supports WRED, tail drop and other congestion avoidance mechanisms |
| Mirroring | Supports traffic mirroring. Supports N:4-Port mirroring. Supports local and remote Port mirroring (ERSPAN). |
| Security Features | Supports user level management and password protection; Command line level protection; prevents unauthorized user intrusion; Supports 802.1x, AAA, Radius, HWTACACS and other authentication; Supports combined binding of IP, MAC, Port, VLAN; Supports prevention of DOS, ARP, ICMP and other attacks; Supports IP Source Guard, Port isolation, Port security, Sticky MAC; Supports HTTPs, SSL |
| Management and Maintenance | Supports full network path detection, Telemetry visualization function, buffer micro-burst detection, converged AC, Zero Configuration Auto-config and Configuration rollback, Command Line Interface (CLI) Configuration, Console, Telnet, SSH, etc. Configuration methods, RMON (Remote Monitoring), SNMP v1/v2c/v3, Network Management System, Netconf and Python, System logs and user operation logs, graded alarms, Power Supply, Fan, Temperature alarm functions, NTP Network Time Protocol, Jumbo Frame, Ping, Tracert, etc. debug information output, FTP, TFTP, USB, etc. file upload and download, XModem protocol loading upgrade, BootROM upgrade and remote online upgrade, hot patch, ZTP. |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231AFJA | QSFP-100G-ZR4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231AJHT | QSFP-40G-LX4-WDM1300 - QSFP+ 40G Optical Module (1310nm, 150m, OM3, LX4) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| Fan Options | |
| 0231AG9E | LSPM1FANSA-SN - H3C Fan Module (Fan side air intake) |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| Power Module | |
| 0231AG3A | PSR180-12A-B - 180W Asset Management AC power Module (Air Exhaust on Power Supply Side) |
| 0231AG3B | PSR180-12A-F - 180W Asset Management AC power Module (Air Intake on Power Supply Side) |
| 0231AG39 | PSR180-12D-B - 180W Asset ManagementDC Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6812&S6813 Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Serial Console port specification for LS-6812-48X6C?
LS-6812-48X6C lists Serial Console port as 1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (Width x Depth x Height) (Unit: mm) specification for LS-6812-48X6C?
LS-6812-48X6C lists Dimensions (Width x Depth x Height) (Unit: mm) as 440×360×44. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Full Configuration Weight specification for LS-6812-48X6C?
LS-6812-48X6C lists Full Configuration Weight as ≤6kg. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Power Module specification for LS-6812-48X6C?
LS-6812-48X6C lists Power Module as Dual Modular Power Supply. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
