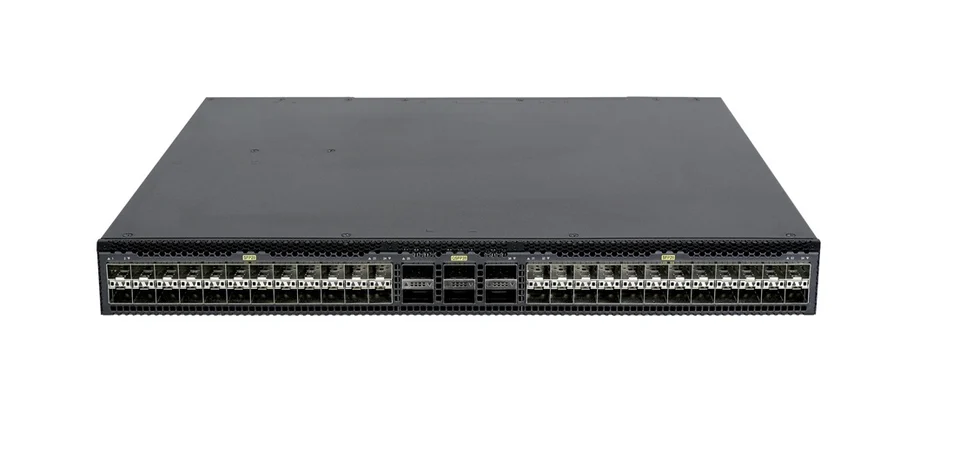

H3C LS-6825-54HF Layer 3 Ethernet Switch Chassis, 48 25G SFP28 Port, 6 100G QSFP28 Port
Brand H3C
N/AVerified
H3C LS-6825-54HF
Model (MPN)
0235A2LJ
Condition
Factory Sealed
Out of Stock
H3C LS-6825-54HF Layer 3 Ethernet Switch Chassis, 48 25G SFP28 Port, 6 100G QSFP28 Port. Switching Capacity: 8Tbps/96Tbps. Packet Forwarding Rate: 2400Mpps. Out-of-band Management Ethernet Port: 2 ports
Key Specifications
DescriptionH3C S6825-54HF L3 Ethernet Switch Chassis,Supports 48 x25G SFP28-Port,6 x100G QSFP28-Port
Switching Capacity8Tbps/96Tbps
Packet Forwarding Rate2400Mpps
Out-of-band Management Ethernet Port2 ports
QSFP28 port6 units
SFP28 port48 ports
Your Price
Best Value
$3,799.95
List Price: $54,285.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6825-54HF L3 Ethernet Switch Chassis,Supports 48 x25G SFP28-Port,6 x100G QSFP28-Port |
| Key Specifications | |
| Switching Capacity | 8Tbps/96Tbps |
| Packet Forwarding Rate | 2400Mpps |
| Out-of-band Management Ethernet Port | 2 ports |
| QSFP28 port | 6 units |
| SFP28 port | 48 ports |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×44 |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×44 |
| Full Configuration Weight | ≤10kg |
| Serial Console port | 1 |
| Out-of-band Management Ethernet Port | 2 ports |
| Mini USB Console port | 1 |
| USB port | 1 |
| QSFP28 port | 6 units |
| SFP28 port | 48 ports |
| Input voltage | AC 90v~290v |
| DC | -36v~-72v |
| Power Module | Dual Modular Power Supply |
| Fan Module | 5 Hot-swappable Fan Modules, front-to-back or back-to-front airflow |
| Operating Environment Temperature | 0ºC～45ºC |
| Operating environment relative humidity | 5%~95%, Non-condensing |
| Supports Features | S6825-54HF |
| Switching Capacity | 8Tbps/96Tbps |
| Packet Forwarding Rate | 2400Mpps |
| Forwarding Mode | Supports store-forward mode and cut-through mode. |
| Device Virtualization | Supports IRF2 horizontal virtualization, supports local and remote stacking, supports distributed device management, distributed link aggregation, distributed elastic routing, supports cross-device link aggregation M-LAG. |
| Network Virtualization | Supports VxLAN Layer 2 and Layer 3 gateways, supports VxLAN Over IPv6, supports BGP-EVPN, supports VxLAN OAM: VxLAN ping, VxLAN tracert, supports QinQ in VxLAN, supports GRE Tunnel. |
| SDN Controller | Supports Seer Engine-DC |
| Data Center Features | Supports EVPN distributed gateway, VxLAN Mapping, Service chain, RoCE v1, RoCE v2 lossless network, one-click PFC: lossless packet buffer auto-configuration, FCoE, DCBX, PFC, ETS, ECN, QCN, AI ECN, IPCC, Inof, DLB: Dynamic Load Balancing, adaptive adjustment of ECN waterline parameters based on traffic models, ensures RoCE service Port bandwidth utilization can reach above 90% |
| Programmable | Supports Open Flow, Ansible automation Configuration |
| MAC Address Table | Supports dynamic, static, and blackhole MAC address table entries. Supports MAC address auto-learning and aging. Supports source MAC address filtering. |
| VLAN | Supports Port-based, Protocol-based, MAC-based VLAN. Supports Default VLAN. Supports PVLAN. Supports Super VLAN. Supports Voice VLAN. Supports QinQ and Flexible QinQ. |
| Traffic Monitoring | Supports s Flow, Telemetry, INT (In-band Network Telemetry) |
| DHCP | DHCP Server and DHCP Client; DHCP Snooping and DHCP Relay |
| ARP | Supports ARP, RARP, and Gratuitous ARP. Supports Dynamic ARP Inspection. Supports ARP anti-attack. Supports ARP source suppression. Supports ARP Detection function. |
| IP Routing | Supports static routing and default routing. Supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, ISIS. Supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, ISISv6. Supports equal-cost routing and policy-based routing. |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery), IPv6 VxLAN over IPv4, PMTU Discovery (Path MTU Discovery), ICMPv6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3, IPv6 TCP, Ping, Tracert, Socket, UDP, RawIP, IPv6-Portal and IPv6 Tunnel |
| Multicast Protocol | Supports IGMP Snooping v2/v3, Supports IGMP v1/v2/v3, Supports fast leave for multicast member interfaces, Supports multicast traffic suppression, Supports PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Supports MLD Snooping, Supports multicast policies, Supports multicast VLAN, Supports multicast over VxLAN |
| MPLS | Supports MPLS, MCE, MPLS VPN, VPLS, MPLS TE |
| Reliability | Supports STP, RSTP, MSTP; Supports BPDU Guard, Root Guard, Loop Protection; Supports PVST; Supports LACP; Supports DLDP; Supports RRPP; Supports ERPS Ethernet Ring Protection Protocol (G.8032); Supports Smart Link and Multi-Instance; Supports BFD with minimum 3.3ms packet transmission interval; Supports VRRP, VRRP Load Sharing, BFD for VRRP; Supports BFD for BGP/IS-IS/OSPF/Static Routing; Supports BFD for VxLAN |
| QoS | Supports Port transmit/receive packet rate limiting. Supports ACL, CAR, priority remarking, and queues. Supports multiple queue scheduling such as SP, WRR, WFQ, SP+WRR, SP+WFQ. Supports Layer 2~Layer 4 packet filtering. Supports flow classification based on Source MAC, Destination MAC, Source IP (IPv4/IPv6) address, Destination IP (IPv4/IPv6) address, Port, Protocol, VLAN. Supports traffic shaping. Supports congestion avoidance mechanisms such as WRED and tail drop. |
| Mirroring | Supports traffic mirroring. Supports N:4-Port mirroring. Supports local and remote Port mirroring (ERSPAN). |
| Security Features | Supports user level management, password protection, and command line level protection; unauthorized users cannot intrude; supports Port isolation, Port security, Sticky MAC; supports 802.1x, AAA, RADIUS, HWTACACS and other authentication methods; supports IP, MAC, Port, VLAN combination binding; supports prevention of DoS, ARP, ICMP and other attacks; supports IP Source Guard, Port isolation; supports HTTPS, SSL; supports micro-segmentation: fine-grained micro-segmentation security isolation (IPv4 and IPv6), reducing ACL resource usage |
| Loading and Upgrade | Supports FTP (File Transfer Protocol) loading upgrade, supports TFTP (Trivial File Transfer Protocol) loading upgrade |
| Management and Maintenance | Supports Telemetry visualization, full network path detection, cache micro-burst detection, Zero Configuration Auto-config and Configuration rollback, Command Line Interface (CLI) Configuration, Configuration via Console, Telnet, SSH, etc., RMON (Remote Monitoring), SNMP v1/v2c/v3, Network Management System, NETCONF and Python, System Logs and User Operation Logs, Graded Alarms, Power Supply, Fan, Temperature Alarm functions, NTP Network Time Protocol, Jumbo Frame, Ping, Tracert, etc. debug information output, uploading and downloading files via FTP, TFTP, USB, etc., BootROM upgrade and remote online upgrade, XModem protocol loading upgrade, 802.3az Energy Efficient Ethernet (EEE), Hot Patch, ZTP |
| Ordering Information | |
| SFP28-Port | |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231ABUS | SFP-25G-D-CAB-3M-A - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231ABUW | SFP-25G-D-CAB-1M-A - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231ABUX | SFP-25G-D-CAB-5M-A - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231AC0H | SFP-25G-D-CAB-2M-A - 25G SFP28 to 25G SFP28 2m Passive Cable |
| 0231AFVF | SFP-25G-CSR-MM850 - 25G SFP28Optical Module(850nm,300m OM3,CSR,MM,LC) |
| 0231AH0D | SFP-25G-SR-MM850-H - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231AJ2T | 0231AJ2T - S6825 |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231AFJB | QSFP-100G-ER4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 40km, ER4, WDM, LC) |
| 0231AFJA | QSFP-100G-ZR4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231AM91 | QSFP-100G-FR1-SM1310 - 100G QSFP28 Optical Module(1310nm,2km,FR1,LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231AM90 | QSFP-100G-DR1-SM1310 - 100G QSFP28 Singlemode Optical Module(1310nm,500m,DR1,LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A7W9 | QSFP-100G-BIDI-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, BIDI, LC) |
| 0231AH0E | QSFP-100G-SR4-MM850-H - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231AM8Y | QSFP-100G-LR1-SM1310-DC - 100G QSFP28 Optical Module (for Data Center)-(1310nm,10km,LR1,LC) |
| 0231AJ2R | 0231AJ2R - S6825 |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231AJHT | QSFP-40G-LX4-WDM1300 - QSFP+ 40G Optical Module (1310nm, 150m, OM3, LX4) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231AG54 | QSFP-40G-LR4-PSM1310-A - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231AKDE | QSFP-40G-SR4-MM850-H - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| SFP Ethernet Management Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231AJ2K | 0231AJ2K - S6825 |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Fan | |
| 0231ACJL | LSPM1FANSB - H3C Fan Module(Fan Side Outlet, Tencent Specialized) |
| 0231ACJM | LSPM1FANSA - H3C Fan Module(Fan side air intake, for Tencent) |
| 0231AG9E | LSPM1FANSA-SN - H3C Fan Module (Fan side air intake) |
| 0231AG9F | LSPM1FANSB-SN - H3C Fan Module (Side-Exhaust Fan) |
| 0231APU6 | FAN-40B-1-C - Fan Module(Fan Panel Side Air Outlet, Supports Electronic Labeling) |
| Power Supply | |
| 0231A6N9 | PSR450-12A - 450W AC power Module (air intake on the power supply panel side) |
| 0231A6NA | PSR450-12AHD - 450W High-Voltage DC power Module (Supports AC/336V High-Voltage DC, with air exhaust on the front panel) |
| 0231A6NB | PSR450-12D - 450W DC power Module (Power Supply panel-side airflow exhaust) |
| 0231A6NC | PSR450-12A1 - 450W AC power Module (Air Exhaust on Power Panel Side) |
| functions feature license certificate | |
| 3130A5N7 | LIS-B-LOSSLESS - H3C box Switch Lossless Ethernet Enhanced Features license certificate, 1 device |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Rack Rail | |
| H3CSWSLR | H3CSWSLR - S6825 |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6825 Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching Capacity specification for LS-6825-54HF?
LS-6825-54HF lists Switching Capacity as 8Tbps/96Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate specification for LS-6825-54HF?
LS-6825-54HF lists Packet Forwarding Rate as 2400Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Serial Console port specification for LS-6825-54HF?
LS-6825-54HF lists Serial Console port as 1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (Width x Depth x Height) (Unit: mm) specification for LS-6825-54HF?
LS-6825-54HF lists Dimensions (Width x Depth x Height) (Unit: mm) as 440×400×44. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
