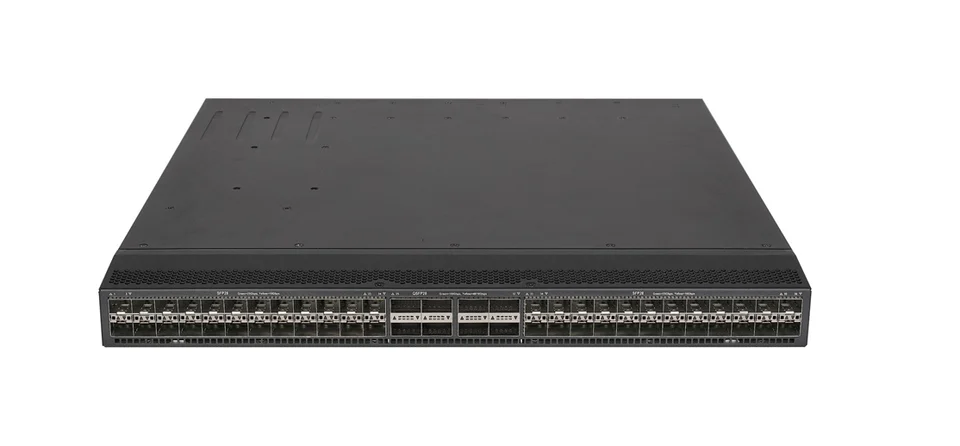

H3C LS-6826-48Y8C Layer 3 Ethernet Switch Chassis, 48 SFP28 Port, 8 QSFP28 Port
Brand H3C
N/AVerified
H3C LS-6826-48Y8C
Model (MPN)
9801A34D
Condition
Factory Sealed
Out of Stock
H3C LS-6826-48Y8C Layer 3 Ethernet Switch Chassis, 48 SFP28 Port, 8 QSFP28 Port. Packet Forwarding Rate: 3200Mpps. Out-of-band Management Ethernet Port: 2 Gigabit interfaces (optical, electrical). Dimensions (Width x Depth x Height) (Unit: mm): 440×460×43.6
Key Specifications
DescriptionH3C S6826-48Y8C L3 Ethernet Switch Chassis,Supports 48 x SFP28-Port,8 x QSFP28-Port
Packet Forwarding Rate3200Mpps
Out-of-band Management Ethernet Port2 Gigabit interfaces (optical, electrical)
QSFP28 port8 units
SFP28 port48 ports
SFP port2
Your Price
Best Value
$4,499.95
List Price: $64,285.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6826-48Y8C L3 Ethernet Switch Chassis,Supports 48 x SFP28-Port,8 x QSFP28-Port |
| Key Specifications | |
| Packet Forwarding Rate | 3200Mpps |
| Out-of-band Management Ethernet Port | 2 Gigabit interfaces (optical, electrical) |
| QSFP28 port | 8 units |
| SFP28 port | 48 ports |
| SFP port | 2 |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×460×43.6 |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×460×43.6 |
| Full Configuration Weight | ≤15kg |
| Console Port | 1 |
| Out-of-band Management Ethernet Port | 2 Gigabit interfaces (optical, electrical) |
| Mini USB Port | 1 |
| USB port | 1 |
| QSFP28 port | 8 units |
| SFP28 port | 48 ports |
| SFP port | 2 |
| Input voltage | AC 90v~264v |
| DC | -40v~-72v |
| Power Module | Dual Modular Power Supply |
| Fan Module | 5 Hot-swappable Fan Modules, front-to-back or back-to-front airflow |
| Power Consumption (Static) | Single AC: 188W |
| Power Consumption (Typical) | Single AC: 228W |
| Operating Environment Temperature | 0ºC～45ºC |
| Operating Environment Humidity (Non-condensing) | 10%～90% |
| Supports Features | S6826-48Y8C |
| Line rate switching | Switching Capacity 4Tbps/40Tbps |
| Packet Forwarding Rate | 3200Mpps |
| Forwarding Mode | Supports store-forward mode and cut-through mode. |
| Link aggregation | Supports 10GE/25GE/40GE/100GE Port aggregation |
| Data Center Features | Supports netconf, python |
| Jumbo Frame | Supports |
| MAC Address Table | Supports Static MAC address |
| VLAN | Supports Port-based VLAN (4094) |
| DHCP | Supports DHCP Server/Client |
| ARP | Supports Gratuitous ARP |
| IP Routing | Supports Static routing, RIP v1/2, OSPFv1/v2/v3, BGP, IS-IS |
| IPv6 Features | Supports ND (Neighbor Discovery) |
| Multicast Protocol | Supports IGMP Snooping v2/v3 |
| Zero Configuration | Supports Auto-config |
| MPLS | Supports MPLS L3VPN, MPLS L2VPN, VPLS |
| MSTP | Supports STP/RSTP/MSTP protocols |
| Layer 2 Ring Protocol | Supports ERPS Ethernet Ring Protection Protocol (G.8032) |
| QoS/ACL | Supports limiting the rate of received and transmitted packets on Port |
| Mirroring | Supports Flow Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management and Maintenance | Supports Command Line Interface (CLI) Configuration |
| Ordering Information | |
| SFP Gigabit Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| SFP28-Port | |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A9V9 | QSFP-100G-CWDM4-SM1300-A - 100G QSFP28 Optical Module (1310 nm, 2 km, CWDM4, LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231AC0J | QSFP-100G-LR4-WDM1300-A - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A9VA | 0231A9VA - S6826 |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| SFP Ethernet Management Optical Port | |
| Fan | |
| 0231A4BB | LSWM1FANSA - Fan Module(SW, 4056, DC, Fan Panel Side Air Intake) |
| 0231A4BC | LSWM1FANSAB - Fan Module(SW, 4056, DC, Fan Panel Side Air Out) |
| Power Supply | |
| 0231A0QM | LSVM1AC650 - 650W AC power Module (air intake on the power supply panel side) |
| 0231A0QP | LSVM1DC650 - 650W DC power Module (air intake on the power supply panel side) |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6826 Series Switch |
