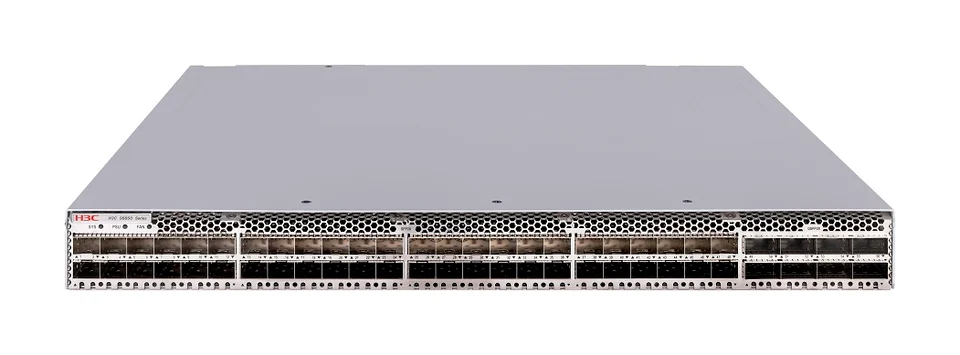

H3C LS-6850-56HF-H3 S6850-56HF Layer 3 Ethernet Switch, 48 SFP28 Port, 8 QSFP28 Port
Brand H3C
N/AVerified
H3C LS-6850-56HF-H3
Model (MPN)
0235A4L7
Condition
Factory Sealed
Out of Stock
H3C LS-6850-56HF-H3 S6850-56HF Layer 3 Ethernet Switch, 48 SFP28 Port, 8 QSFP28 Port. Switching Capacity: 8Tbps/128Tbps. Packet Forwarding Rate: 2400Mpps. Out-of-band Management Ethernet Port: 1 Gigabit Electrical Port
Key Specifications
DescriptionH3C S6850-56HF L3 Ethernet Switch,Supports 48 x SFP28-Port,8 x QSFP28-Port
Switching Capacity8Tbps/128Tbps
Packet Forwarding Rate2400Mpps
Out-of-band Management Ethernet Port1 Gigabit Electrical Port
40/100GE QSFP28-Port8 units
10/25GE SFP28-Port48 ports
Your Price
Best Value
$5,377.19
List Price: $76,817.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6850-56HF L3 Ethernet Switch,Supports 48 x SFP28-Port,8 x QSFP28-Port |
| Key Specifications | |
| Switching Capacity | 8Tbps/128Tbps |
| Packet Forwarding Rate | 2400Mpps |
| Out-of-band Management Ethernet Port | 1 Gigabit Electrical Port |
| 40/100GE QSFP28-Port | 8 units |
| 10/25GE SFP28-Port | 48 ports |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×44 |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×44 |
| Full Configuration Weight | ≤10kg |
| Serial Console port | 1 |
| Out-of-band Management Ethernet Port | 1 Gigabit Electrical Port |
| USB port | 1 |
| 40/100GE QSFP28-Port | 8 units |
| 10/25GE SFP28-Port | 48 ports |
| Input voltage | 90V~264V |
| DC | 190V~310V |
| Power Module | Dual Modular Power Supply, supports hot-swappable |
| Fan Module | 4 hot-swappable Fan Modules, front-to-back or back-to-front airflow. |
| Power Consumption (Static) | Single AC: 92W Dual AC: 97W |
| Power Consumption (Typical) | Single AC: 143W Dual AC: 150W |
| Operating Environment Temperature | 0ºC～45ºC |
| Operating environment relative humidity | 5%~95%, Non-condensing |
| Switching Capacity | 8Tbps/128Tbps |
| Packet Forwarding Rate | 2400Mpps |
| Forwarding Mode | Supports store-forward mode and cut-through mode. |
| Device Virtualization | Supports IRF2 Intelligent Resilient Framework, supports local and remote stacking, distributed device management, distributed link aggregation, distributed elastic routing, supports Multi-chassis Link Aggregation Group (M-LAG) |
| Network Virtualization | Supports VxLAN Layer 2 and Layer 3 gateways, supports BGP-EVPN, supports VxLAN over IPv6, supports Emulate-ping VxLAN, supports VxLAN OAM: VxLAN ping, VxLAN tracert, supports QinQ in VxLAN, supports GRE Tunnel |
| SDN Controller | Supports Seer Engine-DC |
| Data Center Features | Supports VxLAN Mapping, achieving multi-DC Layer 2 interconnectivity. Supports Service chain. Supports RoCE v1, RoCE v2 lossless network. Supports one-click PFC: no packet loss buffer automatic configuration. Supports RoCE network KPI quality visibility. Supports FCoE. Supports DCBX, PFC, ETS, ECN, QCN. Supports AI ECN, IPCC, iNOFECN. Supports VxLAN Overlay scenarios. Supports DLB: Dynamic Load Balancing. Supports sending CNP packets to source server NIC, shortening CNP packet feedback path. |
| Programmable | Supports Open Flow, Ansible automation Configuration |
| MAC Address Table | Supports dynamic, static, and blackhole MAC address table entries. Supports MAC address auto-learning and aging. Supports source MAC address filtering. |
| VLAN | Supports Port-based, Protocol-based, MAC-based VLAN. Supports Default VLAN. Supports PVLAN. Supports Super VLAN. Supports Voice VLAN. Supports QinQ and Flexible QinQ. |
| Traffic Monitoring | Supports s Flow/Net Stream. Supports Telemetry. Supports INT (In-band Network Telemetry). Supports Telemetry Stream function (Packet Event packet loss and ultra-long latency visibility function). Supports INQA Traffic Monitoring technology. |
| DHCP | DHCP Server and DHCP Client; DHCP Snooping and DHCP Relay |
| ARP | Supports ARP, RARP, and Gratuitous ARP. Supports Dynamic ARP Inspection. Supports ARP anti-attack. Supports ARP source suppression. Supports ARP Detection function. |
| IP Routing | Supports static routing and default routing. Supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, ISIS. Supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, ISISv6. Supports equal-cost routing and policy-based routing. |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery), Supports IPv6 VxLAN over IPv4, Supports PMTU Discovery (Path MTU Discovery), Supports ICMPv6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3, Supports TCP, Ping, Tracert, Socket, UDP, RawIP over IPv6, Supports IPv6-Portal and IPv6 Tunnel |
| Multicast Protocol | Supports IGMP Snooping v2/v3, Supports IGMP v1/v2/v3, Supports fast leave for multicast member interfaces, Supports multicast traffic suppression, Supports PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Supports MLD Snooping, Supports multicast policies, Supports multicast VLAN, Supports multicast over VxLAN |
| MPLS | Supports MPLS, MCE, MPLS VPN, VPLS, MPLS TE |
| Reliability | Supports STP, RSTP, MSTP; Supports BPDU protection, Root protection, Loop protection; Supports PVST; Supports LACP; Supports DLDP; Supports RRPP; Supports ERPS Ethernet Ring Protection Protocol (G.8032); Supports Smart Link and multi-instance; Supports BFD 3.3ms packet interval; Supports BFD for BGP/IS-IS/OSPF/Static routing; Supports VRRP, VRRP load sharing, BFD for VRRP; Supports BFD for VxLAN |
| QoS | Supports Port transmit/receive packet rate limiting. Supports ACL, CAR, priority remarking, and queues. Supports multiple queue scheduling such as SP, WRR, WFQ, SP+WRR, SP+WFQ. Supports Layer 2~Layer 4 packet filtering. Supports flow classification based on Source MAC, Destination MAC, Source IP (IPv4/IPv6) address, Destination IP (IPv4/IPv6) address, Port, Protocol, VLAN. Supports traffic shaping. Supports congestion avoidance mechanisms such as WRED and tail drop. |
| Mirroring | Supports traffic mirroring. Supports N:4-Port mirroring. Supports local and remote Port mirroring (ERSPAN). |
| Security Features | Supports user hierarchical management and password protection; supports command line hierarchical protection, unauthorized users cannot intrude; supports Port isolation, Port security, Sticky MAC; supports 802.1x, AAA, Radius, HWTACACS and other authentication; supports IP, MAC, Port, VLAN combination binding; supports prevention of DoS, ARP, ICMP attacks; supports IP Source Guard, Port isolation; supports HTTPS, SSL; supports anti-DDoS, ARP attack and ICMP attack functions; supports micro-segmentation: fine-grained micro-segmentation security isolation (IPv4 and IPv6), reducing ACL resource usage. |
| Management and Maintenance | Supports Telemetry visualization function, supports full network path detection, supports cache micro-burst detection, supports Zero Configuration Auto-config and Configuration rollback, supports Command Line Interface (CLI) Configuration, supports Console, Telnet, SSH, and other Configuration methods, supports RMON (Remote Monitoring), supports SNMP v1/v2c/v3, supports Network Management System, supports NETCONF and Python, supports system logs and user operation logs, supports graded alarms, supports Power Supply, Fan, and Temperature alarm functions, supports NTP, SNTP Network Time Protocol, supports Jumbo Frame, supports Ping, Tracert, and other debug information output, supports FTP, TFTP, USB, and other methods for uploading and downloading files, supports BootROM upgrade and remote online upgrade, supports 802.3az Energy Efficient Ethernet (EEE), supports XModem protocol load upgrade, supports hot patch, supports ZTP, SZTP*Fan Module, supports temperature, speed, etc. monitoring, Power Module supports temperature, etc. monitoring |
| Compatible with Multiple Cloud Platforms | Supports adaptation and compatibility with third-party cloud platform products and technical capabilities. |
| Ordering Information | |
| SFP28-Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231AJ2K | 0231AJ2K - S6850 |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231AH0L | SFP-25G-D-AOC-10M-H - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231AH0F | SFP-25G-D-AOC-20M-H - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231AH0M | SFP-25G-D-AOC-5M-H - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231AH0G | SFP-25G-D-AOC-7M-H - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231AH0D | SFP-25G-SR-MM850-H - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231AJ2T | 0231AJ2T - S6850 |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| 0231AKBF | SFP-XG-D-AOC-10M-H - SFP+ to SFP+ 10m Active Fiber Cable |
| 0231AKBE | SFP-XG-D-AOC-20M-H - SFP+ to SFP+ 20m Active Fiber Cable |
| 0231AKBK | SFP-XG-D-AOC-7M-H - SFP+ to SFP+ 7m Active Fiber Cable |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AKBC | SFP-XG-SX-MM850-H - SFP+ 10G Optical Module(850nm,300m,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231AH0H | QSFP-100G-D-AOC-10M-H - 100G QSFP28 to 100G QSFP28 10m Active Optical Cable |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231AH0J | QSFP-100G-D-AOC-20M-H - 100G QSFP28 to 100G QSFP28 20m Active Optical Cable |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231AH0K | QSFP-100G-D-AOC-7M-H - 100G QSFP28 to 100G QSFP28 7m Active Optical Cable |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231AFJB | QSFP-100G-ER4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 40km, ER4, WDM, LC) |
| 0231AFJA | QSFP-100G-ZR4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231AM91 | QSFP-100G-FR1-SM1310 - 100G QSFP28 Optical Module(1310nm,2km,FR1,LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231AM90 | QSFP-100G-DR1-SM1310 - 100G QSFP28 Singlemode Optical Module(1310nm,500m,DR1,LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A7W9 | QSFP-100G-BIDI-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, BIDI, LC) |
| 0231AH0E | QSFP-100G-SR4-MM850-H - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231AM8Y | QSFP-100G-LR1-SM1310-DC - 100G QSFP28 Optical Module (for Data Center)-(1310nm,10km,LR1,LC) |
| 0231AJ2S | 0231AJ2S - S6850 |
| 0231AJ2R | 0231AJ2R - S6850 |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231AG54 | QSFP-40G-LR4-PSM1310-A - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231AJ2M | 0231AJ2M - S6850 |
| 0231AJ2N | 0231AJ2N - S6850 |
| Fan | |
| 0231AKLC | FAN-40F-1-D - H3C Fan Module (air intake on the fan panel side) |
| 0231APU6 | FAN-40B-1-C - Fan Module(Fan Panel Side Air Outlet, Supports Electronic Labeling) |
| Power Supply | |
| 0231AKX6 | SW-A-PSR550-12A-B - 550W AC System Power Module (Power Supply Side Outlet) (Platinum) |
| 0231AKX7 | 0231AKX7 - 550W AC System Power Module (Power Supply Side Outlet) (Platinum) |
| 0231ANFA | PSR800-12D-S - 800WDC System Power Module (Power Supply Side Outlet) |
| functions feature license certificate | |
| 3130A5N7 | LIS-B-LOSSLESS - H3C box Switch Lossless Ethernet Enhanced Features license certificate, 1 device |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6850 Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching capacity specification for LS-6850-56HF-H3?
LS-6850-56HF-H3 lists Switching capacity as 4 Tbps / 3.6Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Serial console port specification for LS-6850-56HF-H3?
LS-6850-56HF-H3 lists Serial console port as RJ45 / RJ45. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the max ND table size for IPv6 specification for LS-6850-56HF-H3?
LS-6850-56HF-H3 lists max ND table size for IPv6 as 136K max. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Weight specification for LS-6850-56HF-H3?
LS-6850-56HF-H3 lists Weight as ≤ 10 kg (22.05 lb) / ≤ 16 kg (35.27 lb). Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
