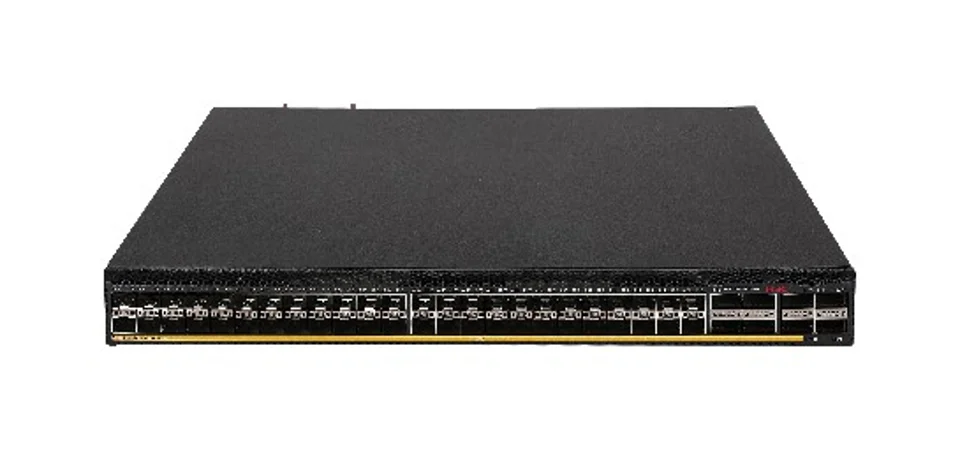

H3C LS-6880-48Y8C Layer 3 Ethernet Switch Chassis, supports 48 SFP28 ports, 8 QSFP28 ports, no power supply
Brand H3C
N/AVerified
H3C LS-6880-48Y8C
Model (MPN)
0235A2RE
Condition
Factory Sealed
Out of Stock
H3C LS-6880-48Y8C Layer 3 Ethernet Switch Chassis, supports 48 SFP28 ports, 8 QSFP28 ports, no power supply. Switching Capacity: 8Tbps/76.8Tbps. Packet Forwarding Rate: 2800Mpps. Out-of-band Management Ethernet Port: 1*10/100/1000M RJ45Electrical Port
Key Specifications
DescriptionH3C S6880-48Y8C L3 Ethernet Switch Chassis, supports 48 SFP28 ports, 8 QSFP28 ports, no power supply
Switching Capacity8Tbps/76.8Tbps
Packet Forwarding Rate2800Mpps
Out-of-band Management Ethernet Port1*10/100/1000M RJ45Electrical Port
40/100GE QSFP28-Port8 units
10/25GE SFP28-Port48 ports
Your Price
Best Value
$3,500.00
List Price: $50,000.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S6880-48Y8C L3 Ethernet Switch Chassis, supports 48 SFP28 ports, 8 QSFP28 ports, no power supply |
| Key Specifications | |
| Switching Capacity | 8Tbps/76.8Tbps |
| Packet Forwarding Rate | 2800Mpps |
| Out-of-band Management Ethernet Port | 1*10/100/1000M RJ45Electrical Port |
| 40/100GE QSFP28-Port | 8 units |
| 10/25GE SFP28-Port | 48 ports |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×43.6 |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400×43.6 |
| Full Configuration Weight | ≤8.5kg |
| Serial Console port | 1 |
| Out-of-band Management Ethernet Port | 1*10/100/1000M RJ45Electrical Port |
| Mini USB Console port | None |
| USB port | 1 |
| 40/100GE QSFP28-Port | 8 units |
| 10/25GE SFP28-Port | 48 ports |
| Input voltage | AC |
| DC | -36v~-72v |
| Power Module | Dual Module Power Supply, |
| Fan Module | 4 hot-swappable Fan Modules, front-to-back or back-to-front airflow. |
| Operating Environment Temperature | 0ºC～45ºC |
| Operating environment relative humidity | 5%~95%, Non-condensing |
| Switching Capacity | 8Tbps/76.8Tbps |
| Packet Forwarding Rate | 2800Mpps |
| Forwarding Mode | Supports store-forward mode and cut-through mode. |
| Device Virtualization | Supports distributed device management, distributed link aggregation, distributed elastic routing. Supports cross-device link aggregation and M-LAG. |
| Network Virtualization | Supports VxLAN Layer 2 and Layer 3 gateways, BGP-EVPN, Emulate-ping VxLAN, VxLAN Tracert, etc., and GRE Tunnel |
| SDN Controller | Supports Seer Engine-DC |
| Data Center Features | Supports VxLAN Mapping, Service chain, RoCEv1, RoCEv2 lossless Ethernet functions, DCBX, PFC, ETS, ECN, AI ECN* INOF, IPCC, RoCE over VxLAN, ECN overlay, RoCE traffic visibility. Supports proportional scheduling of RoCE and TCP traffic, with scheduling ratio error within 5% of Port bandwidth. Supports adaptive adjustment of ECN watermark parameters based on traffic models, ensuring RoCE business Port bandwidth utilization can reach above 90%. Supports PFC deadlock detection and deadlock prevention. |
| Programmable | Supports Open Flow, Ansible automation Configuration |
| MAC Address Table | Supports dynamic, static, and blackhole MAC address table entries. Supports MAC address auto-learning and aging. Supports source MAC address filtering. |
| VLAN | Supports Port-based VLAN, Protocol-based VLAN, MAC-based VLAN, Default VLAN, PVLAN, Super VLAN, Voice VLAN, QinQ and Flexible QinQ |
| Traffic Monitoring | Supports s Flow, Telemetry, INT (In-band Network Telemetry) |
| DHCP | Supports DHCP Server and DHCP Client, Supports DHCP Snooping and DHCP Relay |
| ARP | Supports ARP, RARP, and Gratuitous ARP. Supports Dynamic ARP Inspection. Supports ARP anti-attack. Supports ARP source suppression. Supports ARP Detection function. |
| IP Routing | Supports static routing and default routing. Supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, ISIS. Supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, ISISv6. Supports equal-cost routing and policy-based routing. |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery), Supports IPv6 VxLAN over IPv4, Supports PMTU Discovery (Path MTU Discovery), Supports ICMPv6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3, Supports IPv6-Portal and IPv6 Tunnel |
| Multicast Protocol | Supports IGMP Snooping v2/v3, Supports IGMP v1/v2/v3, Supports PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Supports MLD Snooping, Supports Multicast Policy, Supports Multicast VLAN, Supports Multicast over VxLAN (Layer 3 Multicast over vxlan*) |
| MPLS | Supports MPLS, Supports MCE, Supports MPLS VPN, VPLS |
| Reliability | Supports STP, RSTP, MSTP, Supports BPDU Protection, Root Protection, Loop Protection, Supports PVST, Supports LACP, Supports DLDP, Supports RRPP, Supports ERPS Ethernet Ring Protection Protocol (G.8032), Supports Smart Link, Supports BFD minimum 3.3ms packet transmission interval, Supports VRRP |
| QoS | Supports Port transmit and receive packet rate limiting. Supports ACL, CAR, priority remarking. Queue supports SP, WRR, WFQ, SP+WRR, SP+WFQ, and other queue scheduling. Supports Layer 2~Layer 4 packet filtering. Supports flow classification based on source MAC, destination MAC, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, Port, protocol, VLAN. Supports traffic shaping, tail drop, and other congestion avoidance mechanisms. |
| Mirroring | Supports Traffic Mirroring. Supports N:N Port Mirroring. Supports local and remote Port Mirroring ERSPAN. |
| Security Features | Supports user level management and password protection. Supports 802.1x, AAA, Radius, HWTACACS, and other authentication. Supports IP, MAC, Port, VLAN combination binding. Supports prevention of DoS, ARP, ICMP, and other attacks. Supports IP Source Guard, Port isolation. Supports HTTPS, SSL. Supports anti-DDoS, ARP attack, and ICMP attack functions. Supports ARP detection. |
| Management and Maintenance | Supports Telemetry visualization, supports cache micro-burst detection, supports Zero Configuration Auto-config and Configuration rollback, supports Command Line Interface (CLI) Configuration, supports Console, Telnet, SSH, and other Configuration methods, supports RMON (Remote Monitoring), supports SNMP v1/v2c/v3, supports Network Management System, supports Netconf and Python, supports system logs and user operation logs, supports graded alarms, supports Power Supply, Fan, Temperature alarm functions, supports NTP, SNTP Network Time Protocol, supports Jumbo Frame, supports Ping, Tracert, and other debug information output, supports FTP, TFTP, USB, and other methods for uploading and downloading files, supports XModem protocol loading and upgrade |
| Ordering Information | |
| SFP28-Port | |
| 0231A6NG | SFP-25G-D-AOC-10M - 25G SFP28 to 25G SFP28 10m Active Optical Cable |
| 0231A5GY | SFP-25G-D-CAB-1M - 25G SFP28 to 25G SFP28 1m Passive Cable |
| 0231A6NH | SFP-25G-D-AOC-20M - 25G SFP28 to 25G SFP28 20m Active Optical Cable |
| 0231A5H0 | SFP-25G-D-CAB-3M - 25G SFP28 to 25G SFP28 3m Passive Cable |
| 0231A6ND | SFP-25G-D-AOC-3M - 25G SFP28 to 25G SFP28 3m Active Optical Cable |
| 0231A5H1 | SFP-25G-D-CAB-5M - 25G SFP28 to 25G SFP28 5m Passive Cable |
| 0231A6NE | SFP-25G-D-AOC-5M - 25G SFP28 to 25G SFP28 5m Active Optical Cable |
| 0231A6NF | SFP-25G-D-AOC-7M - 25G SFP28 to 25G SFP28 7m Active Optical Cable |
| 0231AEDQ | 0231AEDQ - H3C S6880 Switch Series |
| 0231ABR6 | SFP-25G-LR-SM1310 - 25G SFP28Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A4Y2 | SFP-25G-SR-MM850 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231AFVF | SFP-25G-CSR-MM850 - 25G SFP28Optical Module(850nm,300m OM3,CSR,MM,LC) |
| 0231ALXT | SFP-25G-LR-SM1310-F - 25G SFP28 All-Optical 3.0 Optical Module(1310nm,10km,LR,SM,LC) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| Fan Options | |
| 0231AMY0 | FAN-40B-1-A-CP - H3C Corrosion Resistant Asset Management Fan Module (Fan Panel Side Air Outlet) |
| 0231AE54 | FAN-40F-1-A - H3C Asset Management Fan Module (Fan panel side air intake) |
| 0231AE55 | FAN-40B-1-A - H3C Asset Management Fan Module (Fan Panel Side Air Outlet) |
| Power Module | |
| 0231A6NC | PSR450-12A1 - 450W AC power Module (Air Exhaust on Power Panel Side) |
| 0231A6N9 | PSR450-12A - 450W AC power Module (air intake on the power supply panel side) |
| 0231A6NA | PSR450-12AHD - 450W High-Voltage DC power Module (Supports AC/336V High-Voltage DC, with air exhaust on the front panel) |
| 0231A6NB | PSR450-12D - 450W DC power Module (Power Supply panel-side airflow exhaust) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S6880 Series Switch |
