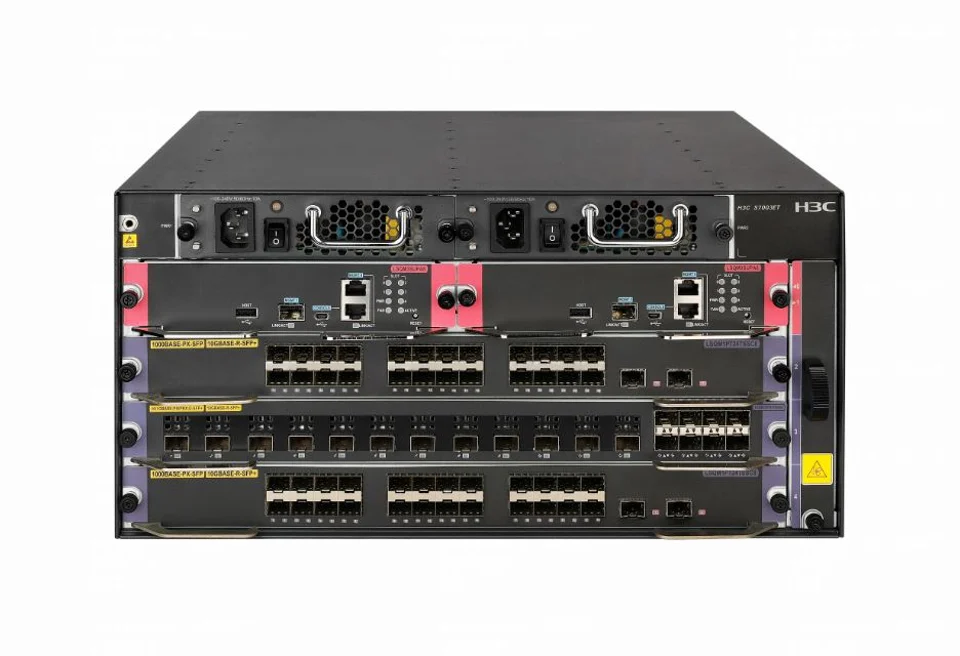

H3C LS-7003ET Ethernet Switch Chassis
Brand H3C
N/AVerified
H3C LS-7003ET
Model (MPN)
0235A48R
Condition
Factory Sealed
Out of Stock
H3C LS-7003ET Ethernet Switch Chassis. Switching Capacity: 38.4Tbps /168Tbps. Packet Forwarding Rate: 7200Mpps /36000Mpps. Maximum OLT PON Port Count: EPON：7210G EPON：36
Key Specifications
DescriptionH3C S7003ET Ethernet Switch Chassis
Switching Capacity38.4Tbps /168Tbps
Packet Forwarding Rate7200Mpps /36000Mpps
Maximum OLT PON Port CountEPON：7210G EPON：36
Interface Connector Type1000BASE-PX-D (EPON Interface), 10GBASE-R-SFP+
1000BASE-PX-D Port Count (PON)24
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S7003ET Ethernet Switch Chassis |
| Key Specifications | |
| Switching Capacity | 38.4Tbps /168Tbps |
| Packet Forwarding Rate | 7200Mpps /36000Mpps |
| Maximum OLT PON Port Count | EPON：7210G EPON：36 |
| Interface Connector Type | 1000BASE-PX-D (EPON Interface), 10GBASE-R-SFP+ |
| 1000BASE-PX-D Port Count (PON) | 24 |
| 10GBASE-R-SFP+ Port Count (SNI) | 2 |
| Product Specifications | |
| Switching Capacity | 38.4Tbps /168Tbps |
| Packet Forwarding Rate | 7200Mpps /36000Mpps |
| Slot Quantity | 5 (including 3 service slots) |
| Service Module Slot Quantity | 3 |
| Redundancy design | Power Supply, Supervisor Redundancy, Device Redundancy |
| Maximum OLT PON Port Count | EPON：7210G EPON：36 |
| EPON features | Compliance with IEEE 802.3av/802.3ah EPON standards, EPON interoperability support, CTC3.0 compatibility, rogue ONU detection support, standard OAM and extended OAM management functions, FEC functionality support, bidirectional encryption functionality support, PON port optical transmit power and receive power detection, maximum split ratio 1:64 (EPON)/1:128 (10G EPON), support for backbone optical links and all-optical protection functions, support for ONU software batch upgrade and real-time upgrade, support for DBA dynamic algorithm with DBA granularity 64Kbit/s, support for ONU authentication, illegal ONU registration event reporting, support for ONU blacklist, support for EPON TRAP event query, support for ONU voice intelligent management, support for POE management, support for stacking, support for co-location deployment of GigabitEPON and 10GEPON in the same chassis, support for Type B and Type C dual-homing protection across OLT devices, support for Type B and Type C single-homing protection across OLT line cards |
| Ethernet Features | Supports IEEE 802.1P (CoS priority) Supports IEEE 802.1Q (VLAN) Supports IEEE 802.1d (STP)/802.1w (RSTP)/802.1s (MSTP) Supports IEEE 802.1ad (QinQ), flexible QinQ and VLAN mapping Supports IEEE 802.3x (full-duplex flow control) and back pressure flow control (half-duplex) Supports IEEE 802.3ad (link aggregation) and cross-board link aggregation Supports RRPP (Rapid Ring Protection Protocol) Supports cross-board Port/flow Mirroring Supports Port broadcast/multicast/unknown unicast storm suppression Supports Jumbo Frame Supports VLAN division based on Port, protocol, subnet and MAC Supports SuperVLAN Supports PVLAN Supports Multicast VLAN+ Supports point-to-point single VLAN cross-connection, double VLAN cross-connection Supports maximum VLAN MAPPING/flexible QinQ table entries Supports GVRP Supports LLDP |
| IPv4 routing features | Supports ARP Proxy Supports DHCP Relay Supports DHCP Server Supports Static Routing Supports RIPv1/v2Supports OSPFv2Supports IS-ISSupports BGPv4Supports OSPF/IS-IS/BGP GR (Graceful Restart)Supports Equal-Cost Routing Supports Policy Routing Supports Routing Policy |
| IPv6 Routing Features | Supports ICMPv6, ICMPv6 Redirect, DHCPv6, ACLv6, OSPFv3, RIPng, BGP4+, IS-ISv6, Manual tunnel, ISATAP, 6to4 tunnel, IPv6 and IPv4 dual stack, SAVI function |
| Multicast | Supports IGMPv1/v2/v3 Snooping, IGMP Filter, IGMP Fast leave, PIM-SM/PIM-DM/PIM-SSM, MSDP, Any Cast-RP, MLDv2/MLDv2 Snooping, PIM-SMv6, PIM-DMv6, PIM-SSMv6 |
| ACL/QoS | Supports standard and extended ACL, VLAN-based ACL, Ingress/Egress ACL, Ingress/Egress CAR with granularity as low as 8Kbps, VLAN aggregation CAR, MAC aggregation CAR, traffic shaping (Traffic Shaping), 802.1P/DSCP priority marking/remark, hierarchical QoS (H-QoS) with three-level queue scheduling, queue scheduling mechanisms including SP, WRR, SP+WRR, WFQ, congestion avoidance mechanisms including Tail-Drop, WRED, flow mirroring |
| Security | Supports EAD security solution, Portal authentication, MAC authentication, IEEE 802.1x, AAA/Radius, HWTACACS, command line authentication, SSHv1.x/SSHv2, ACL traffic filtering mechanism, OSPF, RIPv2 and BGPv4 packet plaintext and MD5 ciphertext authentication, command line adopts hierarchical protection mode to prevent unauthorized illegal intrusion, users of different levels have different Configuration permissions, supports Telnet login and password mechanism for restricted IP addresses, supports binding of IP address, VLAN ID, MAC address and Port in multiple combinations, supports uRPF, supports master-slave data backup mechanism, supports alarm and self-recovery after fault, supports data logging |
| Reliability | Supports Supervisor Engine Module 1+1 Redundancy Backup Supports Power Supply 1+1 Redundancy Backup All Line Cards Support Hot Swap Supports CPU Protection Technology Supports VRRP Supports Ethernet OAM (802.1ag and 802.3ah) Supports MAC Tracert Supports RRPP, ERPS Supports Graceful Restart for OSPF/BGP/IS-IS Supports DLDP Supports VCT Supports Smart-Link Supports Hot Patch |
| System Management | Supports FTP, TFTP, Xmodem; Supports SNMP v1/v2/v3; Supports s Flow traffic statistics; Supports RMON; Supports NTP clock; Supports Net Stream traffic statistics; Supports intelligent Power Supply management, supports 802.3az energy-efficient Ethernet; Supports online status monitoring mechanism for key components including supervisor engine, backplane, chips and storage; Supports Telemetry traffic visualization; Supports INQA function for packet loss statistics at network and device levels through packet marking; Supports built-in intelligent management, enables one-click deployment of device Configuration via graphical interface and intelligent version upgrade via command |
| Power Supply | DC: Input Voltage －48V～－60VAC: Input Voltage 100V～240V |
| Environmental requirements | Relative humidity: 5%～95% (non-condensing) |
| Dimensions (Width×Height×Depth)(mm) | 436 x 216 x 420 |
| Fully Configured Weight(kg) | ≤35kg |
| Interface Connector Type | 1000BASE-PX-D (EPON Interface), 10GBASE-R-SFP+ |
| 1000BASE-PX-D Port Count (PON) | 24 |
| 10GBASE-R-SFP+ Port Count (SNI) | 2 |
| Compliant with standards | IEEE 802.3-2005、IEEE 802.1D-2004、IEEE 802.1Q-2003、IEEE802.1X-2004 |
| 10G EPON OLTOptical Interface | 12 |
| Splitter | 1:2 Average 1:2 5%&95% 1:2 25%&75% 1:2 40%&60% |
| Insertion Loss (dB) | <3.8 <15.0/<0.6 <7.2/<1.9 <5.0/<3.0 |
| Return Loss (dB) | >40 >40 >40 >40 |
| Dimensions (L×W×H)mm | <90×20×10 |
| Operating Wavelength | 1260~1360nm & 1480~1560nm |
| Input/Output Connector Type | SC/PC |
| Fiber Type | SMF-28 |
| Fiber Diameter | 3.0mm |
| operating temperature | -10℃～70℃ |
| Ordering Information | |
| Main Control Engine Board | |
| 0231AHSC | LSQM3SUPA8 - H3C S7003ET Master Control Engine Module,Class A |
| SFP Gigabit Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| EPON OLTService Module | |
| 0231AHSD | LSQM2XPT12TSFD8 - H3C S7000ET 12-Port10GEPON OLToptical interface(SFP+,SC)+8-Port10GEthernetoptical interface Module(SFP+,LC)(FD) |
| SFP+ 10G Port | |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| SFP+ OLT Port | |
| 0231AHW4 | SFP-XG-PR30-D-SM1577-C - H3C SFP+ PR30 OLT Optical Module(1577nm,TX10G/RX10G,20km,SC/PC) |
| 0231AHW3 | SFP-XG-PR40-D-SM1577-C - H3C SFP+ PR40 OLT Optical Module(1577nm,TX10G/RX10G,20km,SC/PC) |
| 0231AHSA | LSQM1PT24TSSC8 - H3C S7000ET 24-Port GigabitEPON OLToptical interface(SFP,SC)+2-Port10GEthernetoptical interface Module(SFP+,LC)(SC) |
| 0231A0J7 | SFP-GE-PX20-D-SM1490-M - SFPGigabit Module-(1490nm(transmit)/1310nm(receive),20km,RSSI,SC/UPC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| SA-Class Service Board | |
| 0231AHSH | LSQM1TGS16GPSA8 - H3C S7000ET 16-Port10GEthernetoptical interface(SFP+,LC)+24-Port Gigabit Ethernetoptical interface Module(SFP,LC)(SA) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A1J8 | LSTM2STK - SFP+ cable7m |
| 0231AHSE | LSQM2GP24TSSA8 - H3C S7000ET 24-Port Gigabit Ethernetoptical interface(SFP,LC)+4-Port10GEthernetoptical interface Module(SFP+,LC)(SA) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231AHSJ | LSQM2GP24SA8 - H3C S7000ET 24-Port Gigabit Ethernetoptical interface Module(SFP,LC)(SA) |
| 0231AHSG | LSQM2GP48SA8 - H3C S7000ET 48-Port Gigabit Ethernetoptical interface Module(SFP,LC)(SA) |
| 0231AHSF | LSQM2GT48SA8 - H3C S7000ET 48-Port Gigabit Ethernetelectrical interface Module(RJ45)(SA) |
| Power Module | |
| 0231A79R | LSQM1AC650 - H3C PSR650A AC power Module,650W |
| 0231A79S | LSQM1DC650 - H3C PSR650D DC power Module,650W |
| 0231A91B | LSQM1AC300 - AC power Module,300W |
| Fan Frame | |
| 0231A5RP | LSQM103MFAN - Fan Bay Module 03 |
| Air Filter | |
| 0231A5RN | LSQM103MDUST - Air Filter Module 03 |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S7000ETSeries Optical Line Terminal (EPON OLT) |
