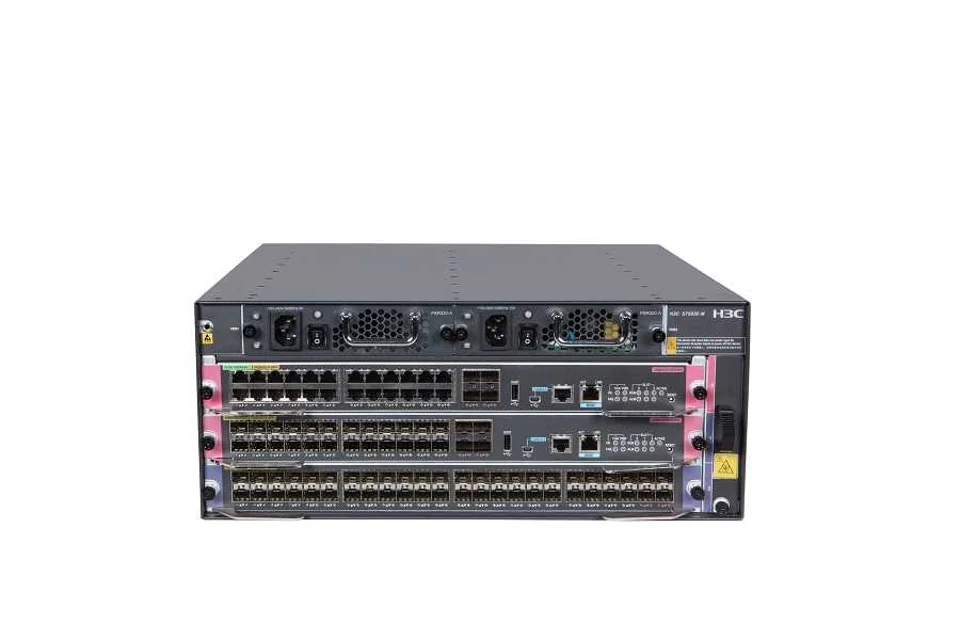

H3C LS-7503E-M

Name: H3C LS-7503E-M
Brand: H3C
SKU: LS-7503E-M
Price: 129.99 USD
Availability: InStock

Model (MPN)

0235A1Y1

SKU

LS-7503E-M

Condition

Factory Sealed

Original Packaging (NIB)

Out of Stock

H3C LS-7503E-M Ethernet Switch Chassis. Switching Capacity: 51.2Tbps/201.6Tbps. IPv4Packet Forwarding Rate: 7200Mpps/36000Mpps. Dimensions (Width×Height×Depth)(mm): 436 x 175 x 420

Key Specifications

DescriptionH3C S7503E-MEthernet Switch Chassis

Switching Capacity51.2Tbps/201.6Tbps

IPv4Packet Forwarding Rate7200Mpps/36000Mpps

Dimensions (Width×Height×Depth)(mm)436 x 175 x 420

Fully Configured Weight(kg)≤27kg

Power SupplyDC：–48V～–60VAC： 100V～240V

Your Price

Best Value

$129.99

List Price: $1,857.00Save 93%

Availability Out of Stock

Quantity

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment

VISA

Pay

WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs

Avg. Shipping

99%

On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year

Warranty

0.1%

RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+

Countries

20k+

Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7

Assistance

CCIE

Certified

Overview

H3C LS-7503E-M Ethernet Switch Chassis

Specifications

Catalog Description
Description	H3C S7503E-MEthernet Switch Chassis
Key Specifications
Switching Capacity	51.2Tbps/201.6Tbps
IPv4Packet Forwarding Rate	7200Mpps/36000Mpps
Dimensions (Width×Height×Depth)(mm)	436 x 175 x 420
Fully Configured Weight(kg)	≤27kg
Power Supply	DC：–48V～–60VAC： 100V～240V
Slot Quantity	3
Product Specifications
Switching Capacity	51.2Tbps/201.6Tbps
IPv4Packet Forwarding Rate	7200Mpps/36000Mpps
Slot Quantity	3
Service Module Slot Quantity	3
Redundancy design	Power Supply, Supervisor Engine Module redundant
Layer 2 Features	Supports IEEE 802.1P (CoS priority) Supports IEEE 802.1Q (VLAN) Supports IEEE 802.1d (STP)/802.1w (RSTP)/802.1s (MSTP) Supports IEEE 802.1ad (QinQ), flexible QinQ and VLAN mapping Supports IEEE 802.3x (full-duplex flow control) and back pressure flow control (half-duplex) Supports IEEE 802.3ad (link aggregation) and cross-board link aggregation Supports IEEE 802.3 (10Base-T)/802.3u (100Base-T) Supports IEEE 802.3z (1000BASE-X)/802.3ab (1000BaseT) Supports IEEE 802.3ae (10Gbase) Supports IEEE 802.3af (PoE) Supports IEEE 802.3at (PoE+) Supports RRPP (Rapid Ring Protection Protocol) Supports cross-board Port/flow Mirroring Supports Port broadcast/multicast/unknown unicast storm suppression Supports Jumbo Frame Supports VLAN division based on Port, protocol, subnet and MAC Supports SuperVLAN Supports PVLAN Supports Multicast VLAN+ Supports point-to-point single VLAN cross-connection and dual VLAN cross-connection, all relying on VLAN-ID for forwarding, N/AMAC address learning Supports maximum VLAN MAPPING/flexible QinQ table entries Supports GVRP Supports LLDP
IPv4 routing features	Supports ARP Proxy Supports DHCP Relay Supports DHCP Server Supports Static Routing Supports RIPv1/v2Supports OSPFv2Supports IS-ISSupports BGPv4Supports OSPF/IS-IS/BGP GR (Graceful Restart)Supports Equal-Cost Routing Supports Policy Routing Supports Routing Policy
IPv6 Routing Features	Supports ICMPv6, ICMPv6 Redirect, DHCPv6, ACLv6, OSPFv3, RIPng, BGP4+, IS-ISv6, Manual Tunnel, ISATAP, 6to4 Tunnel, Dual Stack of IPv6 and IPv4
Multicast	Supports IGMPv1/v2/v3 Supports IGMPv1/v2/v3 Snooping Supports IGMP Filter Supports IGMP Fast leave Supports PIM-SM/PIM-DM/PIM-SSM Supports MSDP Supports Any Cast-RP Supports MLDv2/MLDv2 Snooping Supports PIM-SMv6, PIM-DMv6, PIM-SSMv6
ACL/QoS	Supports standard and extended ACLs Supports VLAN-based ACLs Supports Ingress/Egress ACL Supports Ingress/Egress CAR with granularity as low as 8Kbps Supports VLAN aggregate CAR Supports MAC aggregate CAR Functions Supports traffic shaping (Traffic Shaping) Supports 802.1P/DSCP priority Mark/Remark Supports hierarchical QoS (H-QoS) Supports 8 priority queues Supports queue scheduling mechanisms including SP, WRR, SP+WRR, WFQ Supports congestion avoidance mechanisms including Tail-Drop, WRED Supports Mirroring
VXLAN	Support VXLAN Layer 2 switching Support VXLAN routing switching Support VXLAN gateway Support IS-IS+ENDP VXLAN distributed control plane Support Open Flow+Netconf VXLAN centralized control plane
MPLS/VPLS	Supports L3 MPLS VPN, L2 VPN: VLL (Martini, Kompella), MCE, MPLS OAM, VPLS, VLL, Hierarchical VPLS, P/PE functions, LDP protocol
Security Mechanisms	Supports EAD security solution, Portal authentication, MAC authentication, IEEE 802.1x and IEEE 802.1x SERVER, AAA/Radius, HWTACACS, command line authentication, SSHv1.x/SSHv2, ACL traffic filtering mechanism, OSPF, RIPv2 and BGPv4 packet plaintext and MD5 ciphertext authentication, command line adopts hierarchical protection mode to prevent unauthorized illegal intrusion, users of different levels have different Configuration permissions, supports Telnet login and password mechanism for restricted IP addresses, supports binding of IP address, VLAN ID, MAC address and Port in multiple combinations, supports uRPF, supports master-slave data backup mechanism, supports fault alarm and self-recovery, supports data logging, supports micro-segmentation
System Management	Supports FTP, TFTP, Xmodem; Supports SNMP v1/v2/v3; Supports s Flow traffic statistics; Supports RMON; Supports NTP clock; Supports Net Stream traffic statistics; Supports intelligent Power Supply management; Supports 802.3az energy-efficient Ethernet; Supports online status monitoring mechanism for key components including supervisor engine, backplane, chips, and storage; Supports Telemetry traffic visualization; Supports INQA function for packet marking to achieve network-level and device-level packet loss statistics; Supports built-in intelligent management with graphical interface for Configuration deployment and intelligent version upgrade; Supports eMDI technology
programmability	Supports Ansible automation for Configuration, enabling batch distribution of network Configuration. Supports automation orchestration of networks through Python/NETCONF/TCL, etc., achieving Dev Ops automated operations and maintenance.
SDN/OPENFLOW	Supports OPENFLOW 1.3 standard, multiple controllers (EQUAL mode, active-standby mode), multi-table pipeline, Group table support, Meter support
Multi-service convergence	Supports integrated wireless AC functionality; No need for independent AC Service Module card; Supports wireless AP management; Supports professional wireless AC Service Module card; Supports integrated wireless AC with wireless AC Service Module card for coordinated operation; Supports unified management of wired and wireless functions; Supports integrated SDN functionality; Supports integrated Eagle Eye functionality
Reliability	Supports Supervisor Engine Module 1+1 Redundancy Backup Supports Power Supply 1+1 Redundancy Backup Adopt Passive Backplane Design All Line Cards Support Hot Swappable Supports CPU Protection Technology Supports Surge Protection +/-8KVSupports VRRPSupports Ethernet OAM (802.1ag and 802.3ah)Supports MAC Tracert Supports RRPP, ERPSSupports Graceful Restart for OSPF/BGP/IS-ISSupports DLDPSupports VCTSupports Smart-Link Supports Hot Patch Port Supports 200ms Buffer Supports Hardware BFD
Environmental requirements	Operating temperature: 0°C to 45°C Relative humidity: 10% to 95% (non-condensing)
Compliance and EMC Certification	Passed CE, FCC PART 15, TUV-GS, UL-CUL, ICES003 and VCCI Certifications
Power Supply	DC：–48V～–60VAC： 100V～240V
Dimensions (Width×Height×Depth)(mm)	436 x 175 x 420
Fully Configured Weight(kg)	≤27kg
fabric slot	2 (Supervisor Engine Integrated)
Ordering Information
Main Control Engine Board
0231A5UD	0231A5UD - S7500E V7 Switch Series
SFP+ 10G Port
02312173	SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC)
0231A563	SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC)
0231A962	SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC)
02312170	SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC)
0231A963	SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC)
02312172	SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC)
0231A964	SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC)
0231A562	SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC)
0231A961	SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC)
0231A11U	SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC
0231A11V	SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC
0231A085	SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45)
0231A960	SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45)
0231ABSQ	SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC)
0231ABSP	SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC)
0231ABSR	SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC)
0231ABSS	SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC)
0231ABST	SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC)
0231ABSU	SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC)
0231A0A8	SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC)
0231A1RQ	SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC)
0231A2L3	SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC)
0231A0SP	SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC)
0231A1RR	SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC)
0231A1PA	SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC)
0231A2T6	SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC)
0231A0A6	SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC)
0231A1RP	SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC)
0231A2L4	SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC)
0231A0AK	LSWM1STK - SFP+Cable0.65m
0231A0AL	LSWM2STK - SFP+Cable1.2m
0231A0AM	LSWM3STK - SFP+Cable3m
0231A0G1	LSTM1STK - SFP+Cable5m
0231A1J8	LSTM2STK - SFP+ cable7m
QSFP+ Port
0231A4B3	QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC
0231A4AY	QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable
0231A4B4	QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC
0231A4B0	QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable
0231A4B2	QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC
0231A5LL	QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC)
0231ABS7	QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC)
0231A5HA	QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC)
0231A5UL	QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO)
0231A5H6	0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC)
0231A4B1	QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO)
0231A1LS	LSWM1QSTK0 - 40G QSFP+ 1m Cable
0231A1LT	LSWM1QSTK1 - 40G QSFP+ 3m Cable
0231A1LU	LSWM1QSTK2 - 40G QSFP+ 5m Cable
0231A3U4	QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC
0231A3U5	QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC
0231A3U3	QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC
0231A2E4	QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC)
0231A4Q7	QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR)
0231A4PB	QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC)
0231A4UG	QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC)
0231A2NF	QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting)
0231A2KL	QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting)
0231A5M7	LSQM1CGP24TSSC0 - H3C S7503E-M Switching and Routing Engine Module, 24-Port Gigabit Ethernet Optical Interfaces (SFP, LC) + 4-Port 10 Gigabit Ethernet Optical Interfaces (SFP+, LC) (SC)
SFP Gigabit Port
0231A12T	SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC)
0231A12U	SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC)
0231A564	SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC)
0231A965	SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC)
0231A320	SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC)
0231A089	SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC)
0231A2UL	SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC)
0231A2UM	SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC)
0231A5M5	LSQM1CGT24TSSC0 - H3C S7503E-M Switching and Routing Engine Module, 24-Port Gigabit Ethernet Electrical Interfaces (RJ45) + 4-Port 10 Gigabit Ethernet Optical Interfaces (SFP+, LC) (SC)
Wireless Service Board
0231A5AT	0231A5AT - S7500E V7 Switch Series
license certificate
3130A1L9	LIS-WX-1-BE - Enhanced Wireless Controller License Authorization Letter - Management 1AP - For Enterprise Networks - V7V9
3130A1LA	LIS-WX-8-BE - Enhanced Wireless Controller License Authorization Letter - Manage 8AP - Enterprise Network Only - V7V9
3130A1LB	LIS-WX-16-BE - Enhanced Wireless Controller License Authorization Letter - Manage 16APs - For Enterprise Networks - V7V9
3130A1LC	LIS-WX-32-BE - Enhanced Wireless Controller License Authorization Letter - Manage 32APs - For Enterprise Networks - V7V9
3130A1LD	LIS-WX-128-BE - Enhanced Wireless Controller License Agreement - Manages 128 APs - Enterprise Network Exclusive - V7V9
3130A1LE	LIS-WX-1024-BE - Enhanced Wireless Controller License Agreement—Manages 1,024 APs—Enterprise Network Exclusive—V7V9
3130A1QM	LIS-WX-512-BE - Enhanced Wireless Controller License Agreement—Manages 512 APs—Enterprise Network Exclusive—V7V9
3130A2HB	LIS-WX-4-BE - Enhanced Wireless Controller License Authorization Letter - Manage 4AP - Enterprise Network Only - V7V9
3130A2HC	LIS-WX-64-BE - Enhanced Wireless Controller License Authorization Letter - Manages 64 APs - Enterprise Network Exclusive - V7V9
Wireless Terminator Super Body
9801A11W	9801A11W - WirelessACModuleV7Fit
Power Module
0231A2KX	LSVM3PSRA - H3C 1800WAC Power Module (Power Supply with Panel-Side Air Exhaust)
Wireless Terminator
9801A11V	9801A11V - H3C WT2024-U-PWR-24-Port Wireless Terminator Super Body
Wireless Terminator Unit
9801A11T	9801A11T - H3C WT1010-QU 10-Port Wireless Terminator
9801A0TB	9801A0TB - H3C WT1010-QU 10-Port Wireless Terminator
9801A0WA	9801A0WA - H3C WT1010-QU 10-Port Wireless Terminator
Wall-Mounted Wireless Termination Unit Module
9801A15R	9801A15R - H3C WTU420H Dual-Band 802.11ac/n Panel-Mount Wireless Terminal Unit with Built-in Antenna
9801A1BV	EWP-WTU430-EI - H3C WTU430-EI Dual-Band, 4-Stream 802.11ac/n Wave 2 Wireless Access Point with Built-in Antenna
9801A1E8	9801A1E8 - H3C WT1010-QU 10-Port Wireless Terminator
AP Antenna
9821A012	9821A012 - H3C WTU430-HI - Dual-Band, 5-Stream 802.11ac/n Wave 2 Wireless Access Point with Internal and External Antennas
Cable
0404A122	CAB-RF-0.2m-2*MMCX - RF Cable—0.2 m—(MMCX50 Male Straight)—(COAX-1.37 mm)—(MMCX50 Female Straight)
9801A1G1	9801A1G1 - H3C WT1010-QU 10-Port Wireless Terminator
T300 Unit
0202A2HC	PINPOINT-T300-PB-UWB-IN - Pinbo T300-PB-UWB Indoor Positioning Plug-in Card
9801A19A	9801A19A - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
9801A19B	9801A19B - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
9801A19C	9801A19C - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
9801A1FL	9801A1FL - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
9801A1FM	9801A1FM - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
9801A20L	IOT-T301-R - H3C T301-R IoT Module 2.4GHz Wireless IoT Access Unit, Supports RFID/Bluetooth
9801A20N	9801A20N - H3C T310M Managed IoT Gateway, Wireless IoT Access Unit with Built-in Expansion Slot
9801A20P	IOT-T301-Z - H3C T301-Z IoT Module Zig Bee Wireless IoT Access Unit
9801A20Q	9801A20Q - H3C T310 IoT Gateway with Built-in Expansion Slot for Wireless IoT Access Unit
9801A26L	IOTGM1T301L4 - H3C T301-L4 470 MHz Band Lo RaWAN Wireless IoT Access Unit
IoTAccessory
0202A2HB	PINPOINT-T-B1011 - Pinbo UWB Location Terminal - T-B1011
0202A2HE	PINPOINT-HULSI - Pinbo High-Precision UWB Positioning Service Implementation (Please note the specific service location when placing an order) - 1 person-day - HULSI
0202A2MD	PINPOINT-T-H2011 - Pinbo Personnel Safety Helmet Tracking Device - T-H2011
0202A2ME	PINPOINT-KT-1421-ZD - Pinbo Explosion-Proof Positioning Terminal - KT-1421-ZD
0202A2MF	PINPOINT-TU-1900 - Pinbo Tamper-Proof Wristband Unlocker - TU-1900
0202A2MG	PINPOINT-TC-1500 - Pinbo Tamper-Proof Wristband Charger - TC-1500
0202A2MH	PINPOINT-TC-1311 - Pinbo Standard Wristband Charger - TC-1311
0202A2MJ	PINPOINT-T-W2511-X - Pinbo Personnel Tracking Tamper-Proof Heart Rate Monitoring Wristband - T-W2511-X
0202A2MK	PINPOINT-T-W2511 - Pinbo Personnel Tracking Tamper-Proof Wristband - T-W2511
0202A2ML	PINPOINT-T-W1311-P - Pinbo Smart Location Tracking Wristband - T-W1311-P
0202A2MM	PINPOINT-T-G1010 - Pinbo Asset Tracking Terminal - T-G1010
0202A2MN	PINPOINT-T-W1311 - Pinbo Personnel Tracking Wristband - T-W1311
0202A2MR	0202A2MR - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
0202A2MT	0202A2MT - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
0202A2MU	HSJC-MR3837C - Huashi Jingcheng 2.4 GHz Non-Tamper-Resistant Active RFID Tag - MR3837C
0202A2MV	0202A2MV - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
0202A2MW	HSJC-MR3848 - Huashi Jingcheng 2.4 GHz Light-Sensing Tamper-Proof Active Asset Management Tag - MR3848
0202A2N0	0202A2N0 - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
9801A280	9801A280 - H3C WTU430-IOT Dual-Band, 5-Stream 802.11ac/n Wave 2 IoT Wireless Terminal Unit with Built-in Antenna
9801A16J	9801A16J - H3C WT1010-QU 10-Port Wireless Terminator
9801A19A	9801A19A - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
9801A19B	9801A19B - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
9801A19C	9801A19C - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
9801A1FL	9801A1FL - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
9801A1FM	9801A1FM - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
0202A2MR	0202A2MR - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
0202A2MT	0202A2MT - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
0202A2MV	0202A2MV - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
0202A2N0	0202A2N0 - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
9801A280	9801A280 - H3C WTU430H-IOT—Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Terminal with Built-in Antenna
AP Mounting Accessory
2150A0CB	EWPA-CE-4320H - WA4320H-ACN Wall-Mount Kit
9821A00H	EWPA-CO-IOT-A - WTU430H-IOT Installation Mounting Accessory Kit
9801A14D	9801A14D - H3C WT1010-QU 10-Port Wireless Terminator
9801A28M	9801A28M - H3C WT1010-QU 10-Port Wireless Terminator
9801A3DD	EWP-WTU630-IOT - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
9801A19A	9801A19A - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
9801A19B	9801A19B - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
9801A19C	9801A19C - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
9801A1FL	9801A1FL - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
9801A1FM	9801A1FM - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
0202A2MR	0202A2MR - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
0202A2MT	0202A2MT - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
0202A2MV	0202A2MV - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
0202A2N0	0202A2N0 - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
9801A280	9801A280 - H3C WTU630-IOT Dual-Band, 4-Stream 802.11ax/ac/n IoT Wireless Terminal Unit with Built-in Antenna
9801A294	EWP-WTU630H - H3C WTU630H Panel-Mounted Wireless Termination Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
9801A2LA	EWP-WTU632H-IOT - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
2115A03N	EWPA-TR-WMK-WA5300 - Wall Mount Bracket - WA5300
9821A06K	EWPA-TR-Indoor-B - WTU632H-IOT-Indoor Wall-Mount Installation Kit—Structural Components
9821A06M	EWPA-TR-Indoor-D - WA6322H-HI-Front Cover-Structural Parts-20PCS
9801A19A	9801A19A - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
9801A19B	9801A19B - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
9801A19C	9801A19C - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
9801A1FL	9801A1FL - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
9801A1FM	9801A1FM - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
0202A2MR	0202A2MR - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
0202A2MT	0202A2MT - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
0202A2MV	0202A2MV - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
0202A2N0	0202A2N0 - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
9801A280	9801A280 - H3C WTU632H-IOT Panel-Mounted IoT Wireless Terminal Unit with Built-in Antenna, Dual-Band, 4-Stream 802.11ax/ac/n
Optical Module
9801A0TA	9801A0TA - WirelessACModuleV7Fit
9801A11T	9801A11T - H3C WT1020 - 20-Port Wireless Access Point
9801A0TB	9801A0TB - H3C WT1020 - 20-Port Wireless Access Point
9801A0WA	9801A0WA - H3C WT1020 - 20-Port Wireless Access Point
9801A1E8	9801A1E8 - H3C WT1020 - 20-Port Wireless Access Point
9801A1G1	9801A1G1 - H3C WT1020 - 20-Port Wireless Access Point
9801A16J	9801A16J - H3C WT1020 - 20-Port Wireless Access Point
9801A14D	9801A14D - H3C WT1020 - 20-Port Wireless Access Point
9801A28M	9801A28M - H3C WT1020 - 20-Port Wireless Access Point
9801A1LR	EWP-WT1024-Q - H3C WT1024-Q - 24-Port Silent Wireless Terminator
9801A11T	9801A11T - H3C WT1024-Q - 24-Port Silent Wireless Terminator
9801A0TB	9801A0TB - H3C WT1024-Q - 24-Port Silent Wireless Terminator
9801A0WA	9801A0WA - H3C WT1024-Q - 24-Port Silent Wireless Terminator
9801A1E8	9801A1E8 - H3C WT1024-Q - 24-Port Silent Wireless Terminator
9801A1G1	9801A1G1 - H3C WT1024-Q - 24-Port Silent Wireless Terminator
9801A16J	9801A16J - H3C WT1024-Q - 24-Port Silent Wireless Terminator
9801A14D	9801A14D - H3C WT1024-Q - 24-Port Silent Wireless Terminator
9801A28M	9801A28M - H3C WT1024-Q - 24-Port Silent Wireless Terminator
9801A1G3	EWP-WT1024-X-HI - H3C WT1024-X-HI-24-Port Enhanced Wireless Terminator
9801A11T	9801A11T - H3C WT1024-X-HI-24-Port Enhanced Wireless Terminator
9801A0TB	9801A0TB - H3C WT1024-X-HI-24-Port Enhanced Wireless Terminator
9801A0WA	9801A0WA - H3C WT1024-X-HI-24-Port Enhanced Wireless Terminator
9801A1E8	9801A1E8 - H3C WT1024-X-HI-24-Port Enhanced Wireless Terminator
9801A1G1	9801A1G1 - H3C WT1024-X-HI-24-Port Enhanced Wireless Terminator
9801A16J	9801A16J - H3C WT1024-X-HI-24-Port Enhanced Wireless Terminator
9801A14D	9801A14D - H3C WT1024-X-HI-24-Port Enhanced Wireless Terminator
9801A28M	9801A28M - H3C WT1024-X-HI-24-Port Enhanced Wireless Terminator
9801A1G2	PSR380-24A - Hot-Swappable AC power Module (380W)
9801A1MF	PSR720-24A - Hot-Swappable AC power Module (720W)
Wireless Terminator Card
9801A1G5	EWPTM1XG02 - H3C WT1024-X-HI-2-Port10GEthernet Interface Module(SFP+,LC)
9801A1L1	9801A1L1 - H3C WT1024-X-HI-2-Port Gigabit Ethernetelectrical interface Module
9801A1LQ	EWP-WT1024-X-Q - H3C WT1024-X-Q - 24-Port Silent 10G Uplink Wireless Terminator
9801A11T	9801A11T - H3C WT1024-X-Q - 24-Port Silent 10G Uplink Wireless Terminator
9801A0TB	9801A0TB - H3C WT1024-X-Q - 24-Port Silent 10G Uplink Wireless Terminator
9801A0WA	9801A0WA - H3C WT1024-X-Q - 24-Port Silent 10G Uplink Wireless Terminator
9801A1E8	9801A1E8 - H3C WT1024-X-Q - 24-Port Silent 10G Uplink Wireless Terminator
9801A1G1	9801A1G1 - H3C WT1024-X-Q - 24-Port Silent 10G Uplink Wireless Terminator
9801A16J	9801A16J - H3C WT1024-X-Q - 24-Port Silent 10G Uplink Wireless Terminator
9801A14D	9801A14D - H3C WT1024-X-Q - 24-Port Silent 10G Uplink Wireless Terminator
9801A28M	9801A28M - H3C WT1024-X-Q - 24-Port Silent 10G Uplink Wireless Terminator
9801A1LS	9801A1LS - H3C WT1024-X-QH - 24-Port Silent Enhanced 10 Gigabit Uplink Wireless Terminator
9801A11T	9801A11T - H3C WT1024-X-QH - 24-Port Silent Enhanced 10 Gigabit Uplink Wireless Terminator
9801A0TB	9801A0TB - H3C WT1024-X-QH - 24-Port Silent Enhanced 10 Gigabit Uplink Wireless Terminator
9801A0WA	9801A0WA - H3C WT1024-X-QH - 24-Port Silent Enhanced 10 Gigabit Uplink Wireless Terminator
9801A1E8	9801A1E8 - H3C WT1024-X-QH - 24-Port Silent Enhanced 10 Gigabit Uplink Wireless Terminator
9801A1G1	9801A1G1 - H3C WT1024-X-QH - 24-Port Silent Enhanced 10 Gigabit Uplink Wireless Terminator
9801A16J	9801A16J - H3C WT1024-X-QH - 24-Port Silent Enhanced 10 Gigabit Uplink Wireless Terminator
9801A14D	9801A14D - H3C WT1024-X-QH - 24-Port Silent Enhanced 10 Gigabit Uplink Wireless Terminator
9801A28M	9801A28M - H3C WT1024-X-QH - 24-Port Silent Enhanced 10 Gigabit Uplink Wireless Terminator
Wireless Terminal
0235A1X2	0235A1X2 - WirelessACModuleV7Fit
Power Adapter
0231A1SS	EWPAM2NPOE - H3C Single-Port PoE Injector (includes 25W power supply, Gigabit, side-by-side installation supported)
Antenna
2701A022	ANT-2503C-S4 - 2.4 GHz (3d Bi) & 5.150–5.850 GHz (5d Bi), Smart Dual-Band MIMO Omnidirectional Ceiling Antenna, RP-SMA-J ×4, Indoor, Ceiling
BLE module
9801A0YQ	9801A0YQ - H3C UAP200 External Antenna Dual-Band 4-Stream 802.11ac/n IoT Wireless Access Point - FIT
9801A1CT	9801A1CT - WirelessACModuleV7Fit
0231A4QB	ADP040-54V - 54V 40Whigh-power adapter Power Module
9801A19A	9801A19A - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
9801A19B	9801A19B - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
9801A19C	9801A19C - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
9801A1FL	9801A1FL - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
9801A1FM	9801A1FM - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
9801A26P	9801A26P - H3C T320-ZR Zigbee & 2.4 GHz (RFID or BLE) Dual-Band Wireless IoT Access Unit
9801A26R	IOT-T320 - H3C T320 Wireless IoT Access Unit with Built-in 2.4 GHz (RFID or BLE) & Expansion Slot
9801A26S	9801A26S - H3C T320-DR 2.4 GHz RFID & BLE Dual-Band Wireless IoT Access Unit
9801A26U	IOT-T320M - H3C T320M Wireless IoT Gateway with Built-in 2.4 GHz (RFID or BLE) & Expansion Slot, Manageable, Standalone Deployable
0202A2MR	0202A2MR - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
0202A2MT	0202A2MT - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
0202A2MV	0202A2MV - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
0202A2N0	0202A2N0 - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
9801A280	9801A280 - H3C UAP300-SI Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point with Internal Antenna - FIT
9801A15K	9801A15K - WirelessACModuleV7Fit
9801A19A	9801A19A - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
9801A19B	9801A19B - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
9801A19C	9801A19C - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
9801A1FL	9801A1FL - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
9801A1FM	9801A1FM - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
0202A2MR	0202A2MR - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
0202A2MT	0202A2MT - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
0202A2MV	0202A2MV - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
0202A2N0	0202A2N0 - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
9801A280	9801A280 - H3C UAP300built-in antennadual-band4-stream802.11ac/n Wave2wireless access point-FIT
9801A1DV	9801A1DV - WirelessACModuleV7Fit
Power Supply Cable
04041104	Cable-Power-AC - AC power Cord for Wall Outlet - 3.0 m - 3 × 1.0 mm² - Black - (GB1002 Plug (3P) Straight Male 250 V 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - Chinese National Standard
0202A2MR	0202A2MR - H3C UAP380 Dual-Band, 4-Stream 802.11ac/n Wave 2 Wireless Access Point with Internal and External Antennas - FIT
0202A2MT	0202A2MT - H3C UAP380 Dual-Band, 4-Stream 802.11ac/n Wave 2 Wireless Access Point with Internal and External Antennas - FIT
0202A2MV	0202A2MV - H3C UAP380 Dual-Band, 4-Stream 802.11ac/n Wave 2 Wireless Access Point with Internal and External Antennas - FIT
0202A2N0	0202A2N0 - H3C UAP380 Dual-Band, 4-Stream 802.11ac/n Wave 2 Wireless Access Point with Internal and External Antennas - FIT
9801A280	9801A280 - H3C UAP380 Dual-Band, 4-Stream 802.11ac/n Wave 2 Wireless Access Point with Internal and External Antennas - FIT
9801A263	EWP-WA2610H-LI-FIT - H3C WA2610H-LI Single-Band 2×2 802.11n Panel-Mount Wireless Access Point with Built-in Antennas - FIT
9801A11S	9801A11S - WirelessACModuleV7Fit
9801A0VY	9801A0VY - WirelessACModuleV7Fit
0235A1PR	0235A1PR - WirelessACModuleV7Fit
9801A0UG	EWP-WA4320-ACN-C-FIT - H3C WA4320-ACN-C-built-in antennadual-band2*2 802.11ac/nwireless access point-FIT
9801A11H	EWP-WA4320-ACN-D-FIT - H3C WA4320-ACN-D-built-in antennadual-band2*2 802.11ac/nwireless access point-FIT
9801A0X7	EWP-WA4320-ACN-E-FIT - H3C WA4320-ACN-E - Built-in Antenna Dual-Band Enhanced 802.11ac/n Wireless Access Point - FIT
9801A0T7	EWP-WA4320-ACN-SI-FIT - H3C WA4320-ACN-SI-built-in antennadual-band2*2 802.11ac/nwireless access point-FIT
9801A1TE	9801A1TE - WirelessACModuleV7Fit
9801A0X9	9801A0X9 - WirelessACModuleV7Fit
9801A0UE	9801A0UE - WirelessACModuleV7Fit
9801A0YG	9801A0YG - WirelessACModuleV7Fit
9801A1HL	9801A1HL - WirelessACModuleV7Fit
0235A1PQ	EWP-WA4320i-X-R-FIT - H3C WA4320i-X-R - Smart X-Share Dual-Band 2-Stream 802.11ac/n AP - FIT
9802A00Q	ADP12-12A - Power Adapter - 12W - 12V - 1A - 1.5M
Amplifier
9801A1SN	EWPAM1WPD528 - H3C WPD528 External Antenna Dual-Band 802.11ax/ac/n 1-to-8 Splitter
2701A01M	ANT-2503CM - 2.4GHz (3d Bi), 5.150–5.850GHz (3d Bi), Dual-Band Mini Decorative Antenna, RP-SMA ×1, Indoor, Ceiling, Wall
2701A01T	ANT-2503C-S - 2.4 GHz (3 d Bi) & 5.150–5.850 GHz (5 d Bi), Dual-Band Omnidirectional Ceiling-Mounted Antenna, RP-SMA-J ×1, Indoor, Ceiling
RF Cable
0404A0FS	CAB-RF-5m-2*SMA - Coaxial Cable - 5 m - (Reverse-polarity SMA50 straight male) - (COXA-LMR240 white) - (Reverse-polarity SMA50 straight female)
0404A0FT	CAB-RF-10m-2*SMA - Coaxial Cable - 10 m - (Reverse-Polarity SMA50 Straight Male) - (COXA-LMR240 White) - (Reverse-Polarity SMA50 Straight Female)
0404A0HV	CAB-RF-RG8-5m - Coaxial Cable - 5 m - (Reverse-Polarity SMA50 Straight Male) - (COAX-RG8 White) - (Reverse-Polarity SMA50 Straight Female)
0404A0HW	CAB-RF-RG8-10m - Coaxial Cable - 10 m - (Reverse-Polarity SMA50 Straight Male) - (COAX-RG8 White) - (Reverse-Polarity SMA50 Straight Female)
0404A126	CAB-RF-20m-2*RSMAF - RF Cable - 20 m - (Reverse-polarity SMA50 straight female) - (COXA-LMR240 white) - (Reverse-polarity SMA50 straight female)
IoT Unit
2120A01Q	2120A01Q - H3C WA4320i-X-R - Smart X-Share Dual-Band 2-Stream 802.11ac/n AP - FIT
Load
2711A000	PSMA-50KR - Load - DC to 12.4 GHz, 50 ohms, ≤1.25, 1 W, RSMA Female
0235A1GS	0235A1GS - WirelessACModuleV7Fit
2120A01Q	2120A01Q - H3C WA4320i-X - Smart X-Share Dual-Band 2-Stream 802.11ac/n AP-FIT
9801A0YD	9801A0YD - WirelessACModuleV7Fit
0213A03K	FSP025-1AD207A - Primary Power Supply - 0°C to 40°C - 90 VAC to 264 VAC - 48 V/0.52 A, detachable AC power cord
2115A03Q	EWPA-TR-EWMK - Adjustable Wall-Mount Kit
0404A06Q	CAB-AC Pwr CHI-1.8m - Wall-mounted AC power cord—1.8 m—3 × 0.75 mm²—black—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), straight female, 250 V, 10 A)—Chinese National Standard
9801A18Q	EWP-WA5320-C-FIT - H3C WA5320-C Built-in Antenna Dual-Band Quad-Stream 802.11ac/n Wave 2 Wireless Access Point-FIT
9801A18R	EWP-WA5320-C-EI-FIT - H3C WA5320-C-EI built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A1YG	EWP-WA5320-C-IOT-FIT - H3C WA5320-C—IoT wireless access point with built-in antenna, dual-band, 4-stream, 802.11ac/n Wave 2—FIT
9801A1WB	EWP-WA5320-D-FIT - H3C WA5320-D Dual-Band Tri-Stream 802.11ac/n Wave 2 Wireless Access Point with Built-in Antenna - FIT
9801A1B3	EWP-WA5320-SI-FIT - H3C WA5320-SI built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A1E4	EWP-WA5320-TI-FIT - H3C WA5320-TI Dual-Band, 4-Stream 802.11ac/n Wave 2 Wireless Access Point with Built-in Antenna for Railway Applications - FIT
9801A0YE	9801A0YE - WirelessACModuleV7Fit
2701A00M	C5060-510002-A - Omnidirectional Antenna—2.4–2.5 GHz, 4.9–5.825GHz-2d [email protected],3d Bi @ 5 GHz—Vertical Polarization—Omnidirectional Antenna—1 W—SMA Reverse-Polarity Connector—Whip Antenna (White)
2701A023	ANT-5014P-M2 - 5150–5850 MHz (14 d Bi), Directional MIMO Antenna, N Female x 2, Outdoor
Cables
0404A0FL	CAB-RF-1.2m-(N50SM+RSMA50SF) - RF Cable - 1.2 m - (N50 Male Straight) - (COAX-LMR240 Black) - (RSMA50 Female Straight)
9801A0YC	9801A0YC - WirelessACModuleV7Fit
9801A25D	9801A25D - WirelessACModuleV7Fit
9801A20W	9801A20W - WirelessACModuleV7Fit
9801A19A	9801A19A - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
9801A19B	9801A19B - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
9801A19C	9801A19C - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
9801A1FL	9801A1FL - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
9801A1FM	9801A1FM - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
0202A2MR	0202A2MR - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
0202A2MT	0202A2MT - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
0202A2MV	0202A2MV - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
0202A2N0	0202A2N0 - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
9801A280	9801A280 - H3C WA5320H-HI built-in antennadual-band5-stream802.11ac/n Wave 2wall-platewireless access point-FIT
9801A262	EWP-WA5320H-LI-FIT - H3C WA5320H-LI-built-in antennadual-band4-stream802.11ac/n Wave 2wall-platewireless access point-FIT
9801A2LB	EWP-WA5320S-E-FIT - H3C WA5320S-E Built-in Antenna Dual-Band Tri-Stream 802.11ac/n Wave 2 Wireless Access Point-FIT
9801A17D	9801A17D - WirelessACModuleV7Fit
9821A00N	EWPA-WP-RJ45-5630X - Waterproof Connector - 10PCS-WA5630X
0202A1DE	0202A1DE - Single-Port Fiber PoE Power Supply - (-40°C to 65°C) - 90 VAC to 264 VAC - 60 W - 55 V - 1.1 A - DC
9802A00D	EWPAM1UPOE2 - Two-Port Network Power Adapter 60W-55V-1.1A-DC-1m
0231A0BY	SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC)
0202A2HD	PINPOINT-T300-PB-UWB-OUT - Pinbo T300-PB-UWB Outdoor Location Module
9801A19A	9801A19A - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19B	9801A19B - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19C	9801A19C - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1FL	9801A1FL - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1FM	9801A1FM - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1H2	9801A1H2 - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1H4	9801A1H4 - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A26N	IOT-T320MX - H3C T320MX Industrial-Grade, Manageable, Standalone Deployable Wireless IoT Gateway with Built-in 2.4 GHz RFID/BLE Dual-Band Capability
9801A26V	IOT-T320X - H3C T320X Industrial-Grade Wireless IoT Access Unit with Built-in 2.4 GHz RFID/BLE Dual-Band
0202A2MR	0202A2MR - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MT	0202A2MT - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MV	0202A2MV - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A280	9801A280 - H3C WA5320X built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1CS	9801A1CS - WirelessACModuleV7Fit
Antenna and Feedline Surge Arresters
1902A002	MHT6000-N-1 - Antenna Surge Protector - 10KA - 20V - 2.4~6.0GHz - 100W - N-F/N-M
2701A01K	ANT-2506V-M4-E - 2.4 GHz (6d Bi), 5.150–5.850 GHz (8d Bi), Smart Dual-Band MIMO Omnidirectional Antenna, N-Type × 4, Outdoor
2701A01U	ANT-2513P-M2 - 2.4 GHz/5.150–5.850 GHz (13 d Bi), dual-band directional MIMO antenna, N-type female × 2, outdoor
2701A01Y	ANT-5018P-M2 - 5150–5900 MHz (18 d Bi), dual-band directional MIMO antenna, N-type female × 2, outdoor
2701A020	ANT-2515P-M4 - 11.5d Bi @ 2400–2500 MHz/15d Bi @ 5150–5850 MHz, dual-band directional MIMO antenna, N-type female x4, with mounting bracket, outdoor
2701A02K	ANT-2547V - 2.4 GHz (4d Bi) & 5.150–5.850 GHz (7d Bi), dual-band omnidirectional antenna, N-type male connector, outdoor
0404A08W	CAB-RF-4.5m-(2*NSM+RG8/U) - RF Cable—4.5 m—50 ohms—N50 Straight Male—(COAX-RG8/U)—N50 Straight Male
0404A08X	CAB-RF-10m-(2*NSM+RG8/U) - RF Cable—10 m—50 ohms—N50 Straight Male—(COAX-RG8/U)—N50 Straight Male
0404A0CD	CAB-RF-0.4m-(NSM+RG402+NSM) - Single Cable - RF Cable - 0.40 m - (N50 Straight Male) - (COAX-RG402) - (N50 Straight Male)
0404A0FM	CAB-RF-1.2m-2*N50SM - RF Cable - 1.2 m - (N50 Straight Male) - (COAX-LMR240 Black) - (N50 Straight Male)
RF Connectors
14040288	BNC-RF-N-50-KK - RF Coaxial Connector - N - 50 ohm - Straight - Female - Adapter for Cable with N-Type Connector - Dual Female Adapter, Tri-Alloy Plated Housing
9801A1YH	EWP-WA5320X-E-ANT-FIT - H3C WA5320X-E Dual-Band 4-Stream 802.11ac/n Wave 2 Outdoor Wireless Access Point with Built-in Omnidirectional Antenna - FIT
Fiber Connector
1413A002	OP-DLC-10m-S - Fiber Connector - DLC (GM-8T) - SC*2 - Single-mode - 7 mm - 10 m
9801A260	EWP-WA5320X-LI-FIT - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19A	9801A19A - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19B	9801A19B - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19C	9801A19C - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1FL	9801A1FL - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1FM	9801A1FM - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1H2	9801A1H2 - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1H4	9801A1H4 - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MR	0202A2MR - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MT	0202A2MT - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MV	0202A2MV - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A280	9801A280 - H3C WA5320X-LI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1CR	9801A1CR - WirelessACModuleV7Fit
9801A19A	9801A19A - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19B	9801A19B - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19C	9801A19C - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1FL	9801A1FL - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1FM	9801A1FM - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1H2	9801A1H2 - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1H4	9801A1H4 - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MR	0202A2MR - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MT	0202A2MT - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MV	0202A2MV - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A280	9801A280 - H3C WA5320X-SI built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A2FE	EWP-WA5320XS-LI-FIT - H3C WA5320XS-LI Built-in Antenna Dual-band 4-stream 802.11ac/n Wave 2 Enhanced Wireless Access Point - FIT
9801A1BX	9801A1BX - WirelessACModuleV7Fit
9801A19A	9801A19A - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A19B	9801A19B - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A19C	9801A19C - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A1FL	9801A1FL - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A1FM	9801A1FM - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
0202A2MR	0202A2MR - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
0202A2MT	0202A2MT - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
0202A2MV	0202A2MV - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
0202A2N0	0202A2N0 - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A280	9801A280 - H3C WA5320i built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A265	EWP-WA5320i-LI-FIT - H3C WA5320i-LI built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A19A	9801A19A - H3C WA5320i-LI built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A19B	9801A19B - H3C WA5320i-LI built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A19C	9801A19C - H3C WA5320i-LI built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A1FL	9801A1FL - H3C WA5320i-LI built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A1FM	9801A1FM - H3C WA5320i-LI built-in smart antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT
9801A266	9801A266 - WirelessACModuleV7Fit
9801A1R8	9801A1R8 - WirelessACModuleV7Fit
9801A19A	9801A19A - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A19B	9801A19B - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A19C	9801A19C - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A1FL	9801A1FL - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A1FM	9801A1FM - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
0202A2MR	0202A2MR - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
0202A2MT	0202A2MT - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
0202A2MV	0202A2MV - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
0202A2N0	0202A2N0 - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A280	9801A280 - H3C WA5340 built-in antennaquad-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A1E7	9801A1E7 - WirelessACModuleV7Fit
2701A02G	ANT-5014P-Q4 - Directional Antenna—5150–5850 MHz—14 d Bi @ 5 GHz—Vertical @ 30° & Horizontal @ 30°—50 W—QMA Type
9801A0YF	9801A0YF - WirelessACModuleV7Fit
9801A1YF	EWP-WA5530-LI-FIT - H3C WA5530-LI built-in antennatri-band5-stream802.11ac/n Wave 2wireless access point-FIT
9801A1BW	EWP-WA5530-SI-FIT - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A19A	9801A19A - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A19B	9801A19B - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A19C	9801A19C - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A1FL	9801A1FL - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A1FM	9801A1FM - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
0202A2MR	0202A2MR - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
0202A2MT	0202A2MT - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
0202A2MV	0202A2MV - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
0202A2N0	0202A2N0 - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A280	9801A280 - H3C WA5530-SI built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT
9801A261	EWP-WA5530S-FIT - H3C WA5530S Tri-Band, 7-Stream 802.11ac/n Wave 2 Wireless Access Point with Built-in Antenna - FIT
9801A1TF	9801A1TF - WirelessACModuleV7Fit
9801A19A	9801A19A - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
9801A19B	9801A19B - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
9801A19C	9801A19C - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
9801A1FL	9801A1FL - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
9801A1FM	9801A1FM - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
0202A2MR	0202A2MR - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
0202A2MT	0202A2MT - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
0202A2MV	0202A2MV - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
0202A2N0	0202A2N0 - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
9801A280	9801A280 - H3C WA5530i Wireless Access Point with Built-in AI Smart Antenna, Tri-Band, 6-Stream, 802.11ac/n Wave 2 – FIT
9801A0YH	9801A0YH - WirelessACModuleV7Fit
0213A05R	ADP040-54 - 40W Adapter - Input 90–264 VAC - Output 54 VDC - Energy-Saving VI - Detachable AC power Cord
9801A19E	EWP-WA5620E-T-FIT - H3C WA5620E-T External Antenna Dual-Band 8-Stream 802.11ac/n Wave 2 Metro-Specific Wireless Access Point - FIT
2701A02H	ANT-5014P-M4 - Directional Antenna - 5150–5850 MHz - 14 d Bi @ 5 GHz - Vertical @ 30° & Horizontal @ 30° - 50 W - N-Type
0404A1NK	CAB-RF-4.5m-W36D - RF Cable - 4.5 m - (N, 50 Ohm, Straight Male) - (RG8) - (N, 50 Ohm, Angled Male)
0404A1NL	CAB-RF-4.5m-W36B - RF Cable - 4.5 m - (N, 50 ohm, straight male) - (RG8) - (N, 50 ohm, straight male)
0404A1NM	CAB-RF-10m-W36C - RF Cable - 10 m - (N 50 Ohm Straight Male) - (RG8) - (N 50 Ohm Straight Male)
0404A1NN	CAB-RF-10m-W36E - RF Cable - 10 m - (N 50 Ohm Straight Male) - (RG8) - (N50 Ohm Angled Male)
Lightning Protection for Antenna and Feed Systems
9821A00Q	EWPA-IM-Power Connector-WA5620E - WAGO Power Connector - WA5620E
9801A1E6	EWP-WA5620X-FIT - H3C WA5620X external antennadual-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
Passive Splitter
2702A003	GFQ-2B-2458G - Passive Splitter—2.4 GHz/5 GHz—1-to-2 Power Splitter—2400–6000 MHz—N(F)
0235A1SV	0235A1SV - WirelessACModuleV7Fit
9801A17C	EWP-WA5630X-FIT - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19A	9801A19A - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19B	9801A19B - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A19C	9801A19C - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1FL	9801A1FL - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1FM	9801A1FM - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1H2	9801A1H2 - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A1H4	9801A1H4 - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MR	0202A2MR - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MT	0202A2MT - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2MV	0202A2MV - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A280	9801A280 - H3C WA5630X built-in antennatri-band8-stream802.11ac/n Wave 2outdoorwireless access point-FIT
9801A2N1	9801A2N1 - H3C WA6320-SI built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A2BS	EWP-WA6320-C-FIT - H3C WA6320-C built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A2BT	EWP-WA6320-D-FIT - H3C WA6320-D Dual-Band, Tri-Stream 802.11ax/ac/n Wireless Access Point with Built-in Antenna - FIT
9801A3G1	EWP-WA6320-HI-FIT - H3C WA6320-HI built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A42A	EWP-WA6320-SI-H20-FIT - H3C WA6320-SI-H20 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A297	9801A297 - WirelessACModuleV7Fit
9801A2JD	9801A2JD - H3C WA6320H-XEPON built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
Fiber Optic Attenuator
45030021	AT-1315-5-LC - Fiber Optic Fixed Attenuator - 1310/1550 nm - 5 dB - LC/PC -> 45 dB
45030022	AT-1315-10-LC - Fixed Fiber Optic Attenuator - 1310/1550 nm - 10 dB - LC/PC -> 45 dB
9801A2BU	EWP-WA6320H-LI-FIT - H3C WA6320H-LI built-in antennadual-band4-stream802.11ax/ac/nwall-platewireless access point-FIT
9801A3DA	EWP-WA6320S-C-FIT - H3C WA6320S-C Built-in Antenna Dual-Band Quad-Stream 802.11ax/ac/n Wireless Access Point-FIT
9801A34A	EWP-WA6320S-E-FIT - H3C WA6320S-E Built-in Antenna Dual-Band Tri-Stream 802.11ax/ac/n Wireless Access Point-FIT
9801A23U	EWP-WA6322-FIT - H3C WA6322 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2MR	0202A2MR - H3C WA6322 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6322 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6322 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6322 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6322 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A2RK	9801A2RK - WirelessACModuleV7Fit
9801A2FC	9801A2FC - WirelessACModuleV7Fit
9821A06L	EWPA-TR-Indoor-C - WA6322H - Front Cover - Structural Parts - 20 PCS
9801A2QQ	EWP-WA6322H-HI-FIT - H3C WA6322H-HI built-in antennadual-band4-stream802.11ax/ac/nwall-platewireless access point-FIT
9801A2PX	EWP-WA6322H-LI-FIT - H3C WA6322H-LI built-in antennadual-band4-stream802.11ax/ac/nwall-platewireless access point-FIT
9801A23V	EWP-WA6330-FIT - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MR	0202A2MR - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6330 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
9801A2BV	EWP-WA6330-LI-FIT - H3C WA6330-LI built-in antennatri-band5-stream802.11ax/ac/nwireless access point-FIT
0202A2MR	0202A2MR - H3C WA6330-LI built-in antennatri-band5-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6330-LI built-in antennatri-band5-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6330-LI built-in antennatri-band5-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6330-LI built-in antennatri-band5-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6330-LI built-in antennatri-band5-stream802.11ax/ac/nwireless access point-FIT
9801A2DQ	EWP-WA6338-FIT - H3C WA6338 Built-in Antenna Tri-band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9821A06P	EWPA-TR-Indoor-A - WA6320—Indoor Mounting Hardware—Structural Components
0202A2MR	0202A2MR - H3C WA6338 Built-in Antenna Tri-band Octastream 802.11ax/ac/n Wireless Access Point-FIT
0202A2MT	0202A2MT - H3C WA6338 Built-in Antenna Tri-band Octastream 802.11ax/ac/n Wireless Access Point-FIT
0202A2MV	0202A2MV - H3C WA6338 Built-in Antenna Tri-band Octastream 802.11ax/ac/n Wireless Access Point-FIT
0202A2N0	0202A2N0 - H3C WA6338 Built-in Antenna Tri-band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9801A280	9801A280 - H3C WA6338 Built-in Antenna Tri-band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9801A2QR	EWP-WA6338-HI-FIT - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
0202A2MR	0202A2MR - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6338-HI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
9801A2PY	EWP-WA6338-LI-FIT - H3C WA6338-LI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
0202A2MR	0202A2MR - H3C WA6338-LI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6338-LI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6338-LI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6338-LI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6338-LI built-in antennatri-band8-stream802.11ax/ac/nwireless access point-FIT
9801A3HM	EWP-WA6510E-T - H3C WA6510E-T External Antenna Single-Band 4-Stream 802.11ax/ac/n Metro-Specific Wireless Access Point
2701A02L	ANT-2510P-M4 - Directional Antenna—2400–2500 MHz & 4900–5950 MHz—10 d [email protected]&10d-Bi@5 GHz—Vertical@40° & Horizontal @ 40 degrees – 20W – N-J Type
0231A9X2	SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC)
0231A9X3	SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC)
Supplementary Materials
04041307	CAB-PGND-Pwr-3m - External Power Supply Cable – Chassis PGND – 12 AWG – 3 m – (OT6-4)
9801A3L5	EWP-WA6520-FIT - H3C WA6520 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9802A01Q	PWR-S36B51-540A067-C4 - Power Adapter - 36W - 54V/0.67A - 1.5m (Phoenix Connector) - Wall-Mounted
Accessory
1408A048	CON-2P-U4 - Ethernet Connector—Non-Integrated Transformer—1-Port—Single Row—Unshielded—2-Pin—Plug—4mm—UPOE—Gray
0231AJXK	SFP-2.5G-LX10-SM1310-DR-I - SFP 2.5G/1G Single-Mode Industrial-Temperature Optical Module (1310 nm, 10 km, LC)
9801A3PF	9801A3PF - H3C WA6520-HI built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A3HK	EWP-WA6520H-EGPON-FIT - H3C WA6520H-EGPON built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9802A01P	PWR-RD1201500-C55-81GB - Power Supply Adapter—18W—12V/1.5A—1.5m—Wall-Mounted
9821A08J	EWPA-IM-DC Phoenix Connector - DC power Connector (Phoenix Connector) – Pack of 100
9801A3L6	EWP-WA6522-FIT - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2MR	0202A2MR - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6522 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A3L7	9801A3L7 - H3C WA6522H-HI built-in antennadual-band4-stream802.11ax/ac/nwall-platewireless access point-FIT
9801A2VC	EWP-WA6526-FIT - H3C WA6526 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
9801A2VD	EWP-WA6526E-FIT - H3C WA6526E external antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
9827A005	ANT-2507P-S4 - Directional Antenna - 2400–2500 MHz & 5150–5850 MHz - 7d [email protected]&7d Bi@5GHz - Vertical@35° & Horizontal@60° - 20W - RP-SMA - J-Type
0404A090	CAB-RF-6.1m-(N+RG8+SMA) - RF Cable—6.1 m—50 ohms—N50 Male Straight—(COAX-RG8/U)—Reverse-Polarity SMA Female Straight
0202A2MR	0202A2MR - H3C WA6526E external antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6526E external antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6526E external antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6526E external antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6526E external antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
9801A2Q8	EWP-WA6526H-FIT - H3C WA6526H-built-in antennadual-band6-stream802.11ax/ac/nwall-platewireless access point-FIT
0202A2MR	0202A2MR - H3C WA6526H-built-in antennadual-band6-stream802.11ax/ac/nwall-platewireless access point-FIT
0202A2MT	0202A2MT - H3C WA6526H-built-in antennadual-band6-stream802.11ax/ac/nwall-platewireless access point-FIT
0202A2MV	0202A2MV - H3C WA6526H-built-in antennadual-band6-stream802.11ax/ac/nwall-platewireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6526H-built-in antennadual-band6-stream802.11ax/ac/nwall-platewireless access point-FIT
9801A280	9801A280 - H3C WA6526H-built-in antennadual-band6-stream802.11ax/ac/nwall-platewireless access point-FIT
9801A1LH	EWP-WA6528-FIT - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9801A19A	9801A19A - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9801A19B	9801A19B - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9801A19C	9801A19C - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9801A1FL	9801A1FL - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9801A1FM	9801A1FM - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
0202A2MR	0202A2MR - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
0202A2MT	0202A2MT - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
0202A2MV	0202A2MV - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
0202A2N0	0202A2N0 - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9801A280	9801A280 - H3C WA6528 Built-in Antenna Dual-Band Octastream 802.11ax/ac/n Wireless Access Point-FIT
9801A3GR	EWP-WA6528X-E-FIT - H3C WA6528X-E External Antenna Dual-Band 8-Stream 802.11ax/ac/n Industrial-Grade Wireless Access Point - FIT
0202A7DF	0202A7DF - Single-Port 10 Gigabit Fiber PoE Power Supply - (-40°C to 65°C) - 90 VAC - 264 VAC - 60 W - 55 V - 1.1 A - DC
9821A04F	EWPA-WP-M25*1.5 - Waterproof Connector—WA5300X Outdoor Series—M25×1.5—10 pcs
9821A06Q	EWPA-TR-Outdoor-B - WA6620X—Outdoor Mounting Kit—Structural Components
9804A027	H3C GC-FPLC6U1V01 - H3C GC-FPLC6U1V01, (OS2-UPC-PVC-1 meter) LC single-core single-mode pigtail
9804A03A	H3C GC-FPLC6U1V02 - H3C GC-FPLC6U1V02, (OS2-UPC-PVC-2 meters) LC single-core single-mode pigtail
0231AKNR	SFP-GE-POE - SFP Gigabit Optical-Electrical Hybrid Module (-40°C to 85°C, 1310 nm, 10 km, LC)
0231AKNS	SFP-XG-POE-MR - SFP 10G Multi-Rate Optical Transceiver Module (-40°C to 85°C, 1310 nm, 1.4 km, LC)
9801A2RE	EWP-WA6528i-FIT - H3C WA6528i built-in antennadual-band8-stream802.11ax/ac/n wireless access point-FIT
0202A2MR	0202A2MR - H3C WA6528i built-in antennadual-band8-stream802.11ax/ac/n wireless access point-FIT
0202A2MT	0202A2MT - H3C WA6528i built-in antennadual-band8-stream802.11ax/ac/n wireless access point-FIT
0202A2MV	0202A2MV - H3C WA6528i built-in antennadual-band8-stream802.11ax/ac/n wireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6528i built-in antennadual-band8-stream802.11ax/ac/n wireless access point-FIT
9801A280	9801A280 - H3C WA6528i built-in antennadual-band8-stream802.11ax/ac/n wireless access point-FIT
9801A2VY	EWP-WA6530-FIT - H3C WA6530 built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
9801A2VX	EWP-WA6530-LI-FIT - H3C WA6530-LI Built-in Antenna Tri-band Six-stream 802.11ax/ac/n Wireless Access Point-FIT
9801A3L8	EWP-WA6530i-FIT - H3C WA6530i built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
9821A0NL	EWPA-IM-PhoenixToTerminals - Power Supply Adapter Cable—Phoenix Connector to Terminal Block—Pack of 50
0202A2MR	0202A2MR - H3C WA6530i built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6530i built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6530i built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6530i built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6530i built-in antennatri-band6-stream802.11ax/ac/nwireless access point-FIT
9801A2BQ	9801A2BQ - WirelessACModuleV7Fit
0202A2MR	0202A2MR - H3C WA6620 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6620 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6620 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6620 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6620 built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT
9801A2F5	EWP-WA6620X-FIT - H3C WA6620X Switchable Indoor/Outdoor Antenna Dual-Band 4-Stream 802.11ax/ac/n Industrial-Grade Wireless Access Point - FIT
27110001	N-50JR - Load - 0–6 GHz - 50 ohms - <1.25–2 W - N Male
9821A0Q7	9821A0Q7 - Extended Waterproof Connector - WA7300X Outdoor Series - M25 - L80
0202A2MR	0202A2MR - H3C WA6620X Switchable Indoor/Outdoor Antenna Dual-Band 4-Stream 802.11ax/ac/n Industrial-Grade Wireless Access Point - FIT
0202A2MT	0202A2MT - H3C WA6620X Switchable Indoor/Outdoor Antenna Dual-Band 4-Stream 802.11ax/ac/n Industrial-Grade Wireless Access Point - FIT
0202A2MV	0202A2MV - H3C WA6620X Switchable Indoor/Outdoor Antenna Dual-Band 4-Stream 802.11ax/ac/n Industrial-Grade Wireless Access Point - FIT
0202A2N0	0202A2N0 - H3C WA6620X Switchable Indoor/Outdoor Antenna Dual-Band 4-Stream 802.11ax/ac/n Industrial-Grade Wireless Access Point - FIT
9801A280	9801A280 - H3C WA6620X Switchable Indoor/Outdoor Antenna Dual-Band 4-Stream 802.11ax/ac/n Industrial-Grade Wireless Access Point - FIT
9801A2XD	EWP-WA6620X-LI-FIT - H3C WA6620X-LI Built-in Antenna Dual Band Quad Stream 802.11ax/ac/n Industrial Grade Wireless Access Point-FIT
9801A2XE	EWP-WA6620XE-LI-FIT - H3C WA6620XE-LI Self-contained external omni-directional antenna dual-band quad-stream 802.11ax/ac/n industrial-grade wireless access point-FIT
9801A3PH	9801A3PH - H3C WA6620XM Dual-Band, 4-Stream 802.11ax/ac/n Industrial-Grade Wireless Module - FIT
9801A24H	EWP-WA6622-FIT - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MR	0202A2MR - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MT	0202A2MT - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2MV	0202A2MV - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
0202A2N0	0202A2N0 - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
9801A280	9801A280 - H3C WA6622 built-in antennadual-band6-stream802.11ax/ac/nwireless access point-FIT
9801A2ES	EWP-WA6628E-T - H3C WA6628E-T External Antenna Dual-Band 12-Stream 802.11ax/ac/n Metro-Specific Wireless Access Point
9801A2ER	EWP-WA6628X-FIT - H3C WA6628X External Antenna Dual-Band 12-Stream 802.11ax/ac/n Industrial-Grade Wireless Access Point - FIT
9801A2U9	EWP-WA6628XM-FIT - H3C WA6628XM External Antenna Dual-Band 4-Stream 802.11ax/ac/n Industrial-Grade Wireless Access Point - Dedicated Module - FIT
9801A2K2	EWP-WA6636-FIT - H3C WA6636 Internal Antenna, Tri-Band, 10-Stream 802.11ax/ac/n Wireless Access Point - FIT
0202A2MR	0202A2MR - H3C WA6636 Internal Antenna, Tri-Band, 10-Stream 802.11ax/ac/n Wireless Access Point - FIT
0202A2MT	0202A2MT - H3C WA6636 Internal Antenna, Tri-Band, 10-Stream 802.11ax/ac/n Wireless Access Point - FIT
0202A2MV	0202A2MV - H3C WA6636 Internal Antenna, Tri-Band, 10-Stream 802.11ax/ac/n Wireless Access Point - FIT
0202A2N0	0202A2N0 - H3C WA6636 Internal Antenna, Tri-Band, 10-Stream 802.11ax/ac/n Wireless Access Point - FIT
9801A280	9801A280 - H3C WA6636 Internal Antenna, Tri-Band, 10-Stream 802.11ax/ac/n Wireless Access Point - FIT
9801A24F	EWP-WA6638-FIT - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT
0202A2MR	0202A2MR - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT
0202A2MT	0202A2MT - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT
0202A2MV	0202A2MV - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT
0202A2N0	0202A2N0 - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT
9801A280	9801A280 - H3C WA6638 Wireless Access Point with Built-in Antennas, Tri-Band, 12 Streams, 802.11ax/ac/n - FIT
9801A2ET	9801A2ET - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT
0202A2MR	0202A2MR - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT
0202A2MT	0202A2MT - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT
0202A2MV	0202A2MV - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT
0202A2N0	0202A2N0 - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT
9801A280	9801A280 - H3C WA6638i Wireless Access Point with Built-in Smart Antenna, Tri-Band, 16-Stream, 802.11ax/ac/n – FIT
Rail Delivery Services
8814A084	SV-PS-RTE-F - First Section of Rail Transit Project Delivered (Inside)
8814A085	SV-PS-RTE-C - Delivery of the Entire Rail Transit Project (Inside)
IoT Services
0504A1AF	PINPOINT-ABELL-SV901 - Pinbo UWB Indoor Positioning System Software - ABELL-SV901
0504A1AG	PINPOINT-Engine-SV901 - Pinbo UWB Positioning Engine - Engine-SV901
0231A5AV	0231A5AV - H3C S7500E/S7600 20G Wireless Controller Service Module
Security Service Module
0231A4PU	LSQM1FWDSC0 - H3C S7500E Sec Blade IV Next Generation Firewall
0231A4PV	LSQM1NSDSC0 - H3C S7500E Sec Blade IV Traffic Analysis Module
0231A6PV	LSQM2FWDSC0 - H3C S7500E/S10500 Sec BladeIV-Lite Next Generation Firewall
0231A4BM	0231A4BM - S7500E V7 Switch Series
0231A5XH	LSQM1IPSDSC0 - H3C S75E/S10500 Sec Blade IV Intrusion Prevention System Module
0231A5XJ	LSQM1ADEDSC0 - H3C S75E/S10500 Sec Blade IV Application Delivery Engine Module
0150A140	0150A140 - H3C Sec Path ACG1000-Blade-E Application Control Module (S7500E Sec BladeIV) with 1-year Feature Library Upgrade License, Bundled with 1TB SATAHard Drive
EPON OLTService Module
0231A6VA	0231A6VA - H3C S7500E 12-Port10GEPON OLToptical interface(XFP,SC)+8-Port10GEthernetoptical interface Module(SFP+,LC)(FD)
XFP OLT Port
0231A8LU	XFP-PR30-D-SM1577 - XFP OLT Optical Module (1577nm, Tx10G/Rx10G, 20KM, SC/PC)
0231A8LT	XFP-PRX30-D-SM1577 - XFP OLT Optical Module (1577nm, Tx10G/Rx1G, 20KM, SC/PC)
0231A4BG	LSQM1PT24TSSC0 - 24-Port GigabitEPON OLToptical interface(SFP,SC)+2-Port10GEthernetoptical interface Module(SFP+,LC)(SC)
0231A0J7	SFP-GE-PX20-D-SM1490-M - SFPGigabit Module-(1490nm(transmit)/1310nm(receive),20km,RSSI,SC/UPC)
0231A4BH	LSQM1PT8TSSC0 - 8-Port GigabitEPON OLToptical interface(SFP,SC)+2-Port10GEthernetoptical interface Module(SFP+,LC)(SC)
SA-Class Service Board
0231A5KD	LSQM2GP24SA0 - 24-Port Gigabit Ethernetoptical interface Module(SFP,LC)(SA)
0231A8UP	LSQM1TGS16GPSA0 - H3C S7500E 16-Port10GEthernetoptical interface(SFP+,LC)+24-Port Gigabit Ethernetoptical interface Module(SFP,LC)(SA)
0231A2UN	SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC)
0231A2UP	SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC)
0231A4ET	LSQM2GP24TSSA0 - 24-Port Gigabit Ethernetoptical port(SFP,LC)+4-Port10GEthernetoptical interface Module(SFP+,LC)(SA)
0231A4EV	LSQM2GP48SA0 - 48-Port Gigabit Ethernetoptical interface Module(SFP,LC)(SA)
0231A4EU	LSQM2GT48SA0 - S7500E V7 Switch Series
SC Class Service Module
0231A2XX	LSQM2GP24TSSC0 - 24-Port Gigabit Ethernetoptical port(SFP,LC)+4-Port10GEthernetoptical interface Module(SFP+,LC)
0231A2XY	LSQM2GT24PTSSC0 - 24-Port Gigabit Ethernetelectrical interface(RJ45)+20-Port Gigabit Ethernetoptical port(SFP,LC)+4-Port10GEthernetoptical interface Module(SFP+,LC)
0231A2Y0	LSQM2GT24TSSC0 - 24-Port Gigabit Ethernet Electrical Interface(RJ45)+4-Port10GEthernet Optical Interface Module(SFP+,LC)
0231A2XW	LSQM2GP44TSSC0 - 44-Port Gigabit Ethernetoptical port(SFP,LC)+4-Port10GEthernetoptical interface Module(SFP+,LC)
0231A2YA	0231A2YA - S7500E V7 Switch Series
0231A1PW	0231A1PW - S7500E V7 Switch Series
0231A1LV	LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable
0231A1LW	LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable
0231A1LX	LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable
0231A4WC	0231A4WC - S7500E V7 Switch Series
FD-Class Service Board
0231A8UM	LSQM1TGT24FD0 - H3C S7500E 24-Port 10 Gigabit Multi-Rate Ethernet Electrical Interface Module (RJ45) (FD)
0231A5PF	LSQM1TGS16FD0 - H3C S7500E 16-Port10GEthernetoptical interface Module(SFP+,LC)(FD)
0231A5UE	LSQM1TGS24QSFD0 - H3C S7500E 24-Port10GEthernetoptical interface(SFP+,LC)+2-Port40G/1-Port100GEthernetoptical interface Module(QSFP28)(FD)
0231A5P8	LSQM1TGS24FD0 - H3C S7500E 24-Port10GEthernetoptical interface Module(SFP+,LC)(FD)
0231A5SS	LSQM1GP40TS8FD0 - S7500E V7 Switch Series
0231A5SC	LSQM1GP48FD0 - H3C S7500E 48-Port Gigabit Ethernetoptical interface Module(SFP,LC)(FD)
0231A5SK	LSQM1GT48FD0 - H3C S7500E 48-Port Gigabit Ethernetelectrical interface Module(RJ45)(FD)
FE-Class Service Board
0231A5PM	0231A5PM - H3C S7500E 2-Port100GEthernetoptical interface Module(QSFP28)(FE)
QSFP28-Port
0231A4UF	QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC)
EPON/GPONModule
Security License Certificate
3130A3V8	LIS-U-AV-1Y-ADE - H3C Secblade-Advance-ADE AV antivirus security license certificate,1 year
3130A3VG	3130A3VG - S7500E V7 Switch Series
3130A3W1	LIS-U-IPS-1Y-ADE - H3C Secblade-Advance-ADE IPSsignature database update service license certificate,1 year
3130A3W0	3130A3W0 - S7500E V7 Switch Series
3130A3VV	LIS-U-WAF-1Y-ADE - H3C Secblade-Advance-ADE WAF Feature Library Upgrade License, 1 year
3130A3W7	3130A3W7 - S7500E V7 Switch Series
0231A79R	LSQM1AC650 - H3C PSR650A AC power Module,650W
0231A79S	LSQM1DC650 - H3C PSR650D DC power Module,650W
0231A91B	LSQM1AC300 - AC power Module,300W
Fan Frame
0231A6CR	FAN-92-3-A - Fan Frame Module (03M)
Air Filter
0231A79U	LSQM17502EDUST - Air Filter Module 02
Serial Cable
04042967	CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port)
0404A1EE	CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP)
Product Identity
Brand	H3C
Series	H3C S7500E V7 Series Switch

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

1-Year Advance Replacement (RMA)
3-Year Free Repair Service
Full coverage for functionality defects

Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

30-Day satisfaction guarantee return window
Automated RMA portal access for instant tracking
Restocking fee waived for functionality issues

Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

Free pre-sales topology consultation
Remote troubleshooting & firmware advice
Simulation lab testing before dispatch

Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

Double-walled boxes with customer molded foam
Blind shipping support for channel partners
Real-time tracking via FedEx / DHL / UPS

Resources

No downloads available for this product.

FAQ

What is the Switching Capacity specification for LS-7503E-M?

LS-7503E-M lists Switching Capacity as 51.2Tbps/201.6Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.

What is the IPv4Packet Forwarding Rate specification for LS-7503E-M?

LS-7503E-M lists IPv4Packet Forwarding Rate as 7200Mpps/36000Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.

What is the Fully Configured Weight(Kg) specification for LS-7503E-M?

LS-7503E-M lists Fully Configured Weight(Kg) as ≤27kg. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.

What is the Slot Quantity specification for LS-7503E-M?

LS-7503E-M lists Slot Quantity as 3. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.

Is this product Brand New?

Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.

What is the warranty period?

We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.

Do you offer volume discounts?

Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.

How fast can you ship?

In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.

Still have questions?
