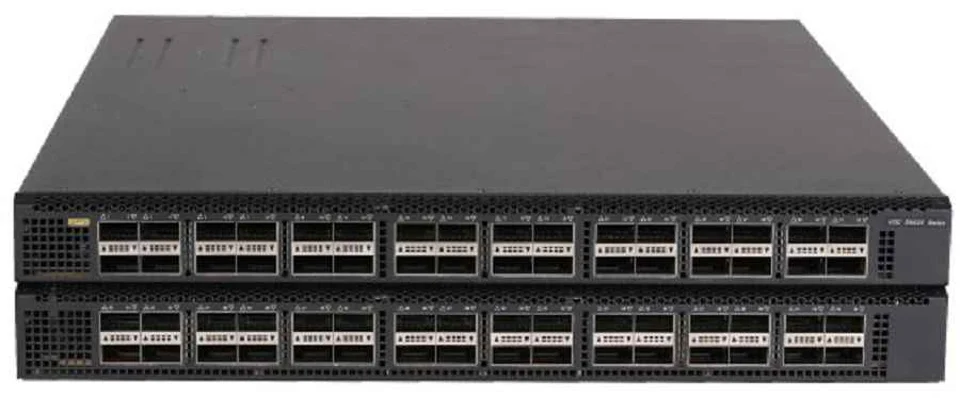

H3C LS-9820-64H Layer 3 Ethernet Switch Chassis, 64 QSFP28 Port
Brand H3C
N/AVerified
H3C LS-9820-64H
Model (MPN)
0235A3J4
Condition
Factory Sealed
Out of Stock
H3C LS-9820-64H Layer 3 Ethernet Switch Chassis, 64 QSFP28 Port. Switching Capacity: 12.8Tbps/204.8Tbps. Packet Forwarding Rate: 4482Mpps. Out-of-band Management Ethernet Port: 2: 1*10/100/1000M RJ45 electrical port, 1*100/1000M SFP Optical Interface
Key Specifications
DescriptionH3C S9820-64H L3 Ethernet Switch Chassis,Supports 64 x QSFP28-Port
Switching Capacity12.8Tbps/204.8Tbps
Packet Forwarding Rate4482Mpps
Out-of-band Management Ethernet Port2: 1*10/100/1000M RJ45 electrical port, 1*100/1000M SFP Optical Interface
40/100GE QSFP28-Port64-Ports
Dimensions (Width x Depth x Height) (Unit: mm)440×540×88.1
Your Price
Best Value
$9,800.00
List Price: $140,000.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S9820-64H L3 Ethernet Switch Chassis,Supports 64 x QSFP28-Port |
| Key Specifications | |
| Switching Capacity | 12.8Tbps/204.8Tbps |
| Packet Forwarding Rate | 4482Mpps |
| Out-of-band Management Ethernet Port | 2: 1*10/100/1000M RJ45 electrical port, 1*100/1000M SFP Optical Interface |
| 40/100GE QSFP28-Port | 64-Ports |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×540×88.1 |
| Full Configuration Weight | ≤27kg |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×540×88.1 |
| Full Configuration Weight | ≤27kg |
| Serial Console port | 1 |
| Out-of-band Management Ethernet Port | 2: 1*10/100/1000M RJ45 electrical port, 1*100/1000M SFP Optical Interface |
| Mini USB Console port | 1 |
| USB port | 1 |
| 40/100GE QSFP28-Port | 64-Ports |
| Input voltage | AC |
| DC | -40v~-72v |
| Power Module | 4-module Power Supply. |
| Fan Module | 3 hot-swappable Fan Modules, front-to-back or back-to-front airflow |
| Power Consumption (Static) | Dual AC: 336W |
| Power Consumption (Typical) | Dual AC: 519W |
| Operating Environment Temperature | 0ºC～45ºC |
| Operating environment relative humidity | 5%~95%, Non-condensing |
| Switching Capacity | 12.8Tbps/204.8Tbps |
| Packet Forwarding Rate | 4482Mpps |
| Forwarding Mode | Supports store-forward mode and cut-through mode |
| Device Virtualization | Supports IRF2 horizontal virtualization, local and remote stacking, distributed elastic routing, and Multi-Chassis Link Aggregation (M-LAG) |
| Network Virtualization | Supports BGP-EVPN, VxLAN, Emulate-ping VxLAN, VxLAN OAM: VxLAN ping, VxLAN tracert, QinQ in VxLAN, GRE Tunnel |
| SDN Controller | Supports Seer Engine-DC |
| Data Center Features | Supports VxLAN Mapping, Service chain, RDMA, RoCEv1, RoCE v2 lossless network, RoCE over VxLAN, FCoE, DCBX, PFC, ETS, ECN, QCN, PFC deadlock detection and deadlock prevention. Supports DLB: Dynamic Load Balancing |
| Programmable | Supports Open Flow, NETCONF, Python, Ansible automation Configuration |
| MAC Address Table | Supports dynamic, static, blackhole MAC address table entries, MAC address automatic learning and aging, Source MAC address filtering, Port-based MAC address learning limit |
| VLAN | Supports Port-based, Protocol-based, and MAC-based VLANs; Supports Default VLAN; Supports PVLAN; Supports Super VLAN; Supports Voice VLAN; Supports QinQ and Flexible QinQ; Supports Access, Trunk, and Hybrid modes; Supports MVRP |
| Traffic Monitoring | Supports s Flow; Supports Net Stream; Supports Telemetry; Supports INT (In-band Network Telemetry) |
| DHCP | DHCP Server and DHCP Client; DHCP Snooping and DHCP Relay |
| ARP | Supports ARP, RARP, and Gratuitous ARP. Supports Dynamic ARP Inspection. Supports ARP anti-attack. Supports ARP source suppression. Supports ARP Detection function. |
| IP Routing | Supports static routing and default routing. Supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, ISIS. Supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, ISISv6. Supports equal-cost routing and policy-based routing. |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery); Supports IPv6 VxLAN over IPv4; Supports PMTU Discovery (Path MTU Discovery); Supports ICMPv6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3; Supports IPv6-Portal and IPv6 Tunnel; Supports IPv6 TCP, Ping, Tracert, Socket, UDP, RawIP |
| Multicast Protocol | Supports IGMP Snooping v2/v3, IGMP Snooping Proxy, IGMP v1/v2/v3, PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, MLD Snooping, Multicast Policy, Multicast VLAN, Multicast over VxLAN, Fast Leave for Multicast Member Interfaces, Multicast Traffic Suppression |
| MPLS | Supports MPLS, MCE, MPLS VPN, VPLS, MPLS TE |
| Reliability | Supports STP, RSTP, MSTP, BPDU Protection, Root Protection, Loop Protection, PVST, LACP, DLDP, RRPP, ERPS Ethernet Ring Protection Protocol (G.8032), Smart Link and Multiple Instances, BFD with minimum 3.3ms packet transmission interval, VRRP, BFD for IPv6 (IPv6 Static Routing/RIPng/OSPFv3/BGP4+/ISISv6) |
| QoS | Supports Port transmit/receive packet rate limiting, ACL, CAR, and priority remarking. Queue scheduling supports SP, WRR, WFQ, SP+WRR, SP+WFQ, and other methods. Supports Layer 2~Layer 4 packet filtering. Supports flow classification based on source MAC, destination MAC, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, Port, protocol, and VLAN. Supports traffic shaping and tail drop and other congestion avoidance mechanisms. |
| Mirroring | Supports traffic mirroring. Supports N:4-Port mirroring. Supports local and remote Port mirroring (ERSPAN). |
| Security Features | Supports user level management and password protection with command line level protection to prevent unauthorized user intrusion. Supports 802.1x, AAA, Radius, HWTACACS, and other authentication methods. Supports IP, MAC, Port, VLAN combination binding. Supports prevention of DDOS, ARP, and ICMP attacks. Supports IP Source Guard and Port isolation. Supports HTTPS and SSL. |
| Management and Maintenance | Supports network-wide path detection, Telemetry visualization, Zero Configuration Auto-config and Configuration rollback, Command Line Interface (CLI) Configuration, Configuration via Console, Telnet, SSH, etc., RMON (Remote Monitoring), SNMP v1/v2c/v3, Network Management System, NETCONF and Python, system logs and user operation logs, hierarchical alarms, Power Module supports temperature and other information monitoring, Fan Module supports temperature, speed, etc. monitoring, NTP network time protocol, Jumbo Frame, Ping, Tracert debug information output, FTP, TFTP, USB file upload and download, XModem protocol loading upgrade, BootROM upgrade and remote online upgrade, hot patches, ZTP. |
| Ordering Information | |
| QSFP28-Port | |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231A7W9 | QSFP-100G-BIDI-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, BIDI, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231AFJA | QSFP-100G-ZR4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC) |
| 0231AFJB | QSFP-100G-ER4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 40km, ER4, WDM, LC) |
| 0231AH0E | QSFP-100G-SR4-MM850-H - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231AH0H | QSFP-100G-D-AOC-10M-H - 100G QSFP28 to 100G QSFP28 10m Active Optical Cable |
| 0231AH0J | QSFP-100G-D-AOC-20M-H - 100G QSFP28 to 100G QSFP28 20m Active Optical Cable |
| 0231AH0K | QSFP-100G-D-AOC-7M-H - 100G QSFP28 to 100G QSFP28 7m Active Optical Cable |
| 0231AJ2R | 0231AJ2R - S9820 |
| 0231AJ2S | 0231AJ2S - S9820 |
| 0231AM8Y | QSFP-100G-LR1-SM1310-DC - 100G QSFP28 Optical Module (for Data Center)-(1310nm,10km,LR1,LC) |
| 0231AM90 | QSFP-100G-DR1-SM1310 - 100G QSFP28 Singlemode Optical Module(1310nm,500m,DR1,LC) |
| 0231AM91 | QSFP-100G-FR1-SM1310 - 100G QSFP28 Optical Module(1310nm,2km,FR1,LC) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231AG54 | QSFP-40G-LR4-PSM1310-A - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231AJ2M | 0231AJ2M - S9820 |
| 0231AJ2N | 0231AJ2N - S9820 |
| 0231AJHT | QSFP-40G-LX4-WDM1300 - QSFP+ 40G Optical Module (1310nm, 150m, OM3, LX4) |
| 0231AKDB | QSFP-40G-CSR4-MM850-H - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231AKDC | QSFP-40G-D-AOC-20M-H - 40G QSFP+ to 40G QSFP+ 20m Active Optical Cable |
| 0231AKDD | QSFP-40G-D-AOC-10M-H - 40G QSFP+ to 40G QSFP+ 10m Active Optical Cable |
| 0231AKDE | QSFP-40G-SR4-MM850-H - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231AKDF | QSFP-40G-D-AOC-7M-H - 40G QSFP+ to 40G QSFP+ 7m Active Optical Cable |
| SFP Ethernet Management Optical Port | |
| 0231AJ2K | 0231AJ2K - S9820 |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Fan | |
| 0231A2Y6 | LSWM1BFANSCB - Fan Module(Fan Panel Side Air Outlet) |
| 0231A2Y7 | LSWM1BFANSC - Fan Module (Fan panel side air intake) |
| 0231AG9G | LSWM1BFANSC-SN - H3C Fan Module (Fan side air intake) |
| 0231AG9K | LSWM1BFANSCB-SN - H3C Fan Module (Side-Exhaust Fan) |
| Power Supply | |
| 0231A0QM | LSVM1AC650 - 650W AC power Module (air intake on the power supply panel side) |
| 0231A0QP | LSVM1DC650 - 650W DC power Module (air intake on the power supply panel side) |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| functions feature license certificate | |
| 3130A5N7 | LIS-B-LOSSLESS - H3C box Switch Lossless Ethernet Enhanced Features license certificate, 1 device |
| Product Identity | |
| Brand | H3C |
| Series | H3C S9820 Series Switch |
