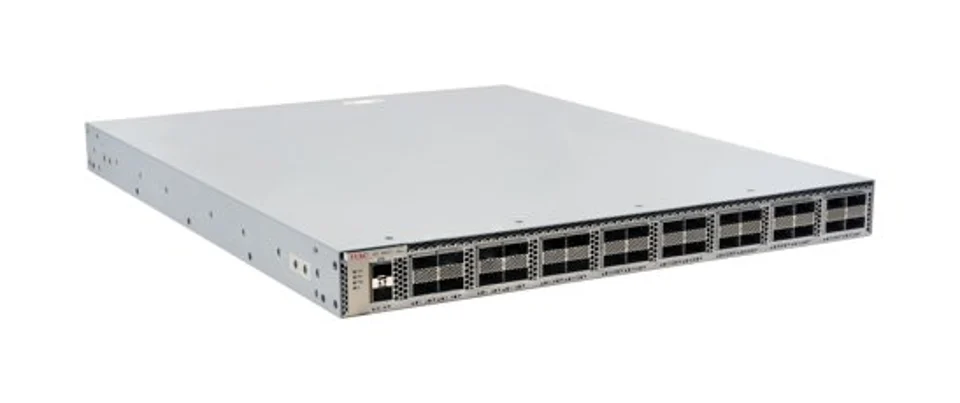

H3C LS-9855-32DH-G Layer 3 Ethernet Switch, 32 100G/200G/400G QSFP112 Port
Brand H3C
N/AVerified
H3C LS-9855-32DH-G
Model (MPN)
0235A50H
Condition
Factory Sealed
Out of Stock
H3C LS-9855-32DH-G Layer 3 Ethernet Switch, 32 100G/200G/400G QSFP112 Port. Switching Capacity: 25.6/256Tbps. Packet Forwarding Rate: 19200Mpps. Out-of-band Management Ethernet Port: 1 Electrical port
Key Specifications
DescriptionH3C S9855-32DH-G L3 Ethernet Switch,Supports 32 x100G/200G/400G QSFP112-Port
Switching Capacity25.6/256Tbps
Packet Forwarding Rate19200Mpps
Out-of-band Management Ethernet Port1 Electrical port
100G/200G/400G QSFP112-Port32
10G/25G SFP28-Port2
Your Price
Best Value
$26,399.94
List Price: $377,142.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S9855-32DH-G L3 Ethernet Switch,Supports 32 x100G/200G/400G QSFP112-Port |
| Key Specifications | |
| Switching Capacity | 25.6/256Tbps |
| Packet Forwarding Rate | 19200Mpps |
| Out-of-band Management Ethernet Port | 1 Electrical port |
| 100G/200G/400G QSFP112-Port | 32 |
| 10G/25G SFP28-Port | 2 |
| Dimensions (Width x Depth x Height) (Unit: mm) | 442×550×44(1U) |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 442×550×44(1U) |
| Full Configuration Weight | ≤15kg |
| Serial Console port | 1 |
| Out-of-band Management Ethernet Port | 1 Electrical port |
| USB port | 1 x USB2.0 |
| 100G/200G/400G QSFP112-Port | 32 |
| 10G/25G SFP28-Port | 2 |
| slot | 8 |
| Input voltage | 100V~240V |
| DC | 240V |
| Power Module | Dual Modular Power Supply |
| Power Consumption (Static) | Single AC: 258W; Dual AC: 272W |
| Power Consumption (Typical) | Single AC: 344W; Dual AC: 350W |
| Operating Environment Temperature | 0ºC～40ºC |
| Operating Environment Humidity (Non-condensing) | 5%～95% |
| Switching Capacity | 25.6/256Tbps |
| Packet Forwarding Rate | 19200Mpps |
| Forwarding Mode | Supports store-forward mode. |
| Network Virtualization | Supports BGP-EVPN and VxLAN |
| SDN Controller | Supports VCF Controller |
| Data Center Features | Supported VxLAN Mapping Supported service chain Supported RoCE v1, RoCE v2 lossless network Supported RDMA lossless network Supported BUFFER visualization Supported DCBX, PFC, ETS, ECN Supported CNP response and CNP retransmission |
| Programmable | Supports NETCONF, Supports Python, Supports Ansible Automation Configuration |
| MAC Address Table | Supports dynamic, static, and blackhole MAC address table entries. Supports MAC address auto-learning and aging. Supports source MAC address filtering. |
| VLAN | Supports Port-based, Protocol-based, and MAC-based VLANs. Supports Default VLAN. |
| Traffic Monitoring | Supports s Flow Supports Telemetry Supports Telemetry Stream |
| ARP | Supports ARP, RARP, and Gratuitous ARP. Supports Dynamic ARP Inspection. Supports ARP anti-attack. Supports ARP source suppression. Supports ARP Detection function. |
| IP Routing | Supports static routing and default routing. Supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, ISIS. Supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, ISISv6. Supports equal-cost routing and policy-based routing. |
| IPv6 Features | Supported IPv6 ND (Neighbor Discovery) Supported IPv6 VxLAN over IPv4 Supported PMTU discovery (Path MTU Discovery) Supported ICMPv6, Telnetv6, SFTPv6, SNMPv6, VRRPv3 Supported IPv6-Portal and IPv6 Tunnel |
| Reliability | Supported STP, RSTP, MSTP Supported BPDU protection, root protection, loop protection Supported LACP Supported DLD P Supported Smart Link |
| QoS | Supports Port transmit/receive packet rate limiting. Supports ACL, CAR, priority remarking, and queues. Supports multiple queue scheduling such as SP, WRR, WFQ, SP+WRR, SP+WFQ. Supports Layer 2~Layer 4 packet filtering. Supports flow classification based on Source MAC, Destination MAC, Source IP (IPv4/IPv6) address, Destination IP (IPv4/IPv6) address, Port, Protocol, VLAN. Supports traffic shaping. Supports congestion avoidance mechanisms such as WRED and tail drop. |
| Mirroring | Supported traffic mirroring Supported N:4 ports mirroring Supported local and remote ports mirroring ERSPAN Supported ERSPAN enhanced features/ERSPAN v3 |
| Security Features | Supported hierarchical user management and password protection Supported combination binding of IP, MAC, ports, VLAN Supported prevention of attacks such as DOS, ARP, ICMP, etc. Supported IP Source Guard, ports isolation Supported HTTPS, SSL |
| Management and Maintenance | Supported Telemetry visualization functions Supported buffer micro-burst detection Supported zero-configuration Auto-config and configuration rollback Supported command line interface (CLI) configuration Supported configuration via Console, Telnet, SSH, etc. Supported RMON (Remote Monitoring) Supported SNMP v1/v2c/v3 Supported network management system Supported Netconf and Python Supported system log and user operation log Supported hierarchical alarm Supported power, fan, and temperature alarm functions Supported NTP network time protocol Supported Jumbo Frame 9216 bytes Supported Ping, Tracert, and other debugging information output Supported file upload and download via FTP, TFTP, USB, etc. Supported XModem protocol for loading and upgrade Supported hot patch |
| Compatible with Multiple Cloud Platforms | Supports adaptation and compatibility with third-party cloud platform products and technical capabilities. |
| Ordering Information | |
| Fan Options | |
| 0231AKLC | FAN-40F-1-D - H3C Fan Module (air intake on the fan panel side) |
| 0231ANP4 | FAN-40B-1-H - Fan Module(Fan Panel Side Air Outlet, Supports Electronic Labeling) |
| Power Module | |
| 0231ALSU | PSR1300-12A-C-A - H3C 1300W AC System Power Module (Power Supply Side Outlet) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Rack Rail | |
| 2150A050 | LSV-SL-S5830 - 1U long Rack Rail |
| Product Identity | |
| Brand | H3C |
| Series | H3C S9855-G Series Switch |
