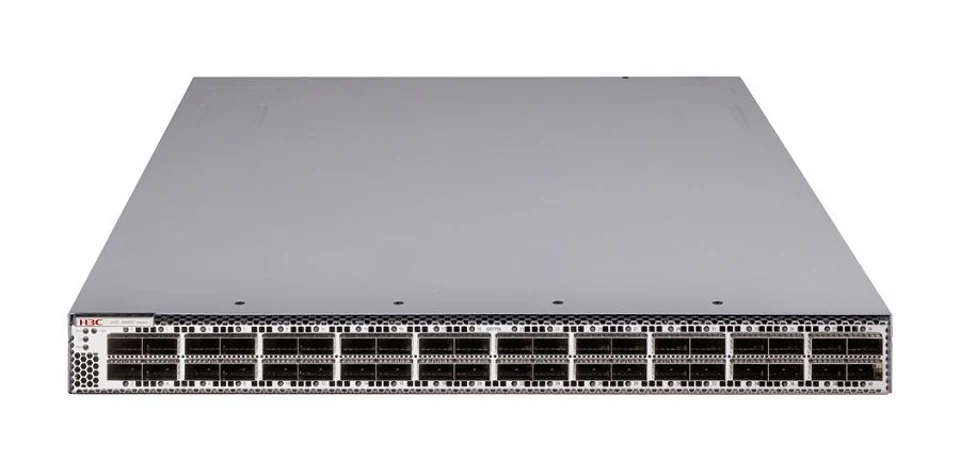

H3C LS-9855-40B 40-Port200GEthernet (QSFP56) Switch
Brand H3C
N/AVerified
H3C LS-9855-40B
Model (MPN)
0235A4R0
Condition
Factory Sealed
Out of Stock
H3C LS-9855-40B 40-Port200GEthernet (QSFP56) Switch. Switching Capacity: 25.6Tbps. Packet Forwarding Rate: 10600Mpps. Out-of-band Management Ethernet Port: 1 electrical port
Key Specifications
DescriptionH3C S9855-40B 40-Port200GEthernet (QSFP56) Switch
Switching Capacity25.6Tbps
Packet Forwarding Rate10600Mpps
Out-of-band Management Ethernet Port1 electrical port
10GE SFP+Port2 units
200GE QSFP56-Port40 ports
Your Price
Best Value
$17,903.97
List Price: $255,771.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S9855-40B 40-Port200GEthernet (QSFP56) Switch |
| Key Specifications | |
| Switching Capacity | 25.6Tbps |
| Packet Forwarding Rate | 10600Mpps |
| Out-of-band Management Ethernet Port | 1 electrical port |
| 10GE SFP+Port | 2 units |
| 200GE QSFP56-Port | 40 ports |
| 400GE QSFP-DD Port | 32 ports |
| Product Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 442×550×44.5 |
| Full Configuration Weight | ≤12kg |
| Serial Console Port (RJ45) | 1 pcs |
| Out-of-band Management Ethernet Port | 1 electrical port |
| USB port | 1 USB2.0 interface |
| 10GE SFP+Port | 2 units |
| 200GE QSFP56-Port | 40 ports |
| Input voltage | 100V~240V |
| DC | 180V~320V |
| Power Module | Dual Modular Power Supply |
| Fan Module | Six hot-swappable Fan Modules, front-to-back ventilation |
| Power Consumption (Static) | Dual AC: 131W |
| Power Consumption (Maximum) | Dual AC: 709W |
| Operating Environment Temperature | 0ºC～40ºC |
| Operating Environment Humidity (Non-condensing) | 5%～95% |
| Switching Capacity | 25.6Tbps |
| Packet Forwarding Rate | 10600Mpps |
| Forwarding Mode | Supports store-forward mode |
| Device Virtualization | Supports Cross-Device Link Aggregation M-LAG |
| Network Virtualization | Supports BGP-EVPN and VxLAN |
| SDN Controller | Supports ADDC |
| Data Center Features | Supports VxLAN Mapping, Supports Service Chain, Supports BUFFER Visualization, Supports DCBX, PFC, ETS, Supports ECN, AI ECN, IPCC, iNOF, Supports intelligent traffic model identification, dynamically adjusts ECN thresholds, Supports latency-based ECN, achieving precise traffic control, Supports PFC deadlock detection and deadlock prevention, Supports RoCE (RoCEv2) lossless network, Supports ECN Overlay functionality, Supports TCP and UDP intelligent traffic analysis functionality |
| Programmable | Supports NETCONF, Supports Python, Supports Ansible Automation Configuration |
| MAC Address Table | Supports dynamic, static, and blackhole MAC address entries, MAC address automatic learning and aging, and source MAC address filtering |
| VLAN | Supports Port-based VLAN and Default VLAN |
| VXLAN | Supports VxLAN Mapping, Layer 2 and Layer 3 VXLAN network interconnection, VXLAN over IPv6, and IPv6 VXLAN over IPv4 |
| Traffic Monitoring | Supports s Flow/Net Stream, Telemetry, RoCE cluster intelligent O&M platform, gRPC high-speed data proactive reporting, network-wide path proactive detection, real-time monitoring of network health status, microsecond-level PFC and headroom monitoring, enabling precise visualized O&M |
| ARP | Supports ARP, RARP, Gratuitous ARP; Supports Dynamic ARP Inspection; Supports ARP anti-attack; Supports ARP Source Suppression; Supports ARP Detection function |
| IP Routing | Supports Static Routing and Default Routing; Supports IPv4 dynamic routing protocols such as RIP, OSPF, BGP, ISIS; Supports IPv6 dynamic routing protocols such as RIPng, OSPFv3, BGP4+, ISISv6; Supports Equal-Cost Routing, Policy-Based Routing |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery) Supports IPv6 VxLAN over IPv4 Supports PMTU Discovery (Path MTU Discovery) Supports ICMPv6, Telnetv6, SFTPv6, SNMPv6, VRRPv3 Supports IPv6 Tunnel |
| Reliability | Supports STP, RSTP, MSTP Supports BPDU protection, Root protection, Loop protection Supports LACP Supports DLDP |
| QoS | Supports Port transmit/receive packet rate limiting, ACL, CAR, priority remarking, queue scheduling supporting SP, WRR, WFQ, SP+WRR, SP+WFQ and other queue scheduling, Layer 2~Layer 4 packet filtering function, flow classification based on source MAC, destination MAC, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, Port, protocol, VLAN, traffic shaping, WRED, tail drop and other congestion avoidance mechanisms |
| Mirroring | Supports traffic mirroring, N:4-Port mirroring, local and remote Port mirroring, ERSPAN |
| Security Features | Supports user level management and password protection; supports IP, MAC, Port, VLAN binding; supports prevention of DoS, ARP, ICMP, etc. attacks; supports IP Source Guard, Port isolation; supports HTTPS, SSL; supports CPU attack prevention function; supports ARP attack prevention function; supports automatic defense (ARP/DHCP/ICMP, etc. attack defense) |
| Management and Maintenance | Support INT, Telemetry Stream, MOD, and other visualization functions; support cache micro-burst detection; support Zero Configuration Auto-config and Configuration rollback; support Command Line Interface (CLI) Configuration; support Console, Telnet, SSH, and other Configuration methods; support RMON (Remote Monitoring); support SNMP v1/v2c/v3; support Network Management System; support NETCONF and Python; support System Logs and User Operation Logs; support Graded Alarms; support Power Supply, Fan, Temperature Alarm functions; support NTP Network Time Protocol; support Jumbo Frame 9216 Bytes; support Ping, Tracert, and other debug information output; support FTP, TFTP, USB, and other methods for uploading and downloading files; support XModem protocol for loading upgrades; support Full Port Independent Security Isolation and Real-time Current Detection; support Automated Online Deployment. |
| 400GE QSFP-DD Port | 32 ports |
| Ordering Information | |
| QSFP-56 Ports | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A9V9 | QSFP-100G-CWDM4-SM1300-A - 100G QSFP28 Optical Module (1310 nm, 2 km, CWDM4, LC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231AM90 | QSFP-100G-DR1-SM1310 - 100G QSFP28 Singlemode Optical Module(1310nm,500m,DR1,LC) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231AM8Y | QSFP-100G-LR1-SM1310-DC - 100G QSFP28 Optical Module (for Data Center)-(1310nm,10km,LR1,LC) |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A9VA | 0231A9VA - H3C S9855 Switch Series |
| 0231AL4Q | QSFP56-200G-D-DAC-1M - 200G QSFP56 1m passive cable |
| 0231AL4X | QSFP56-200G-D-DAC-2M - 200G QSFP56 2m passive cable |
| 0231AL4Y | QSFP56-200G-D-DAC-3M - 200G QSFP56 3m passive cable |
| 0231AL4M | QSFP56-200G-2QSFP56-100G-DAC-1m - 200G QSFP56 to 2x100G QSFP56 1m Passive Cable |
| 0231AL4U | QSFP56-200G-2QSFP56-100G-DAC-2m - 200G QSFP56 to 2x100G QSFP56 2m Passive Cable |
| 0231AL4T | QSFP56-200G-2QSFP56-100G-DAC-3m - 200G QSFP56 to 2x100G QSFP56 3m Passive Cable |
| 0231AJHU | QSFP56-200G-FR4-WDM1300 - 200G QSFP56 Single-Mode Optical Module (1300nm, 2km, FR4, SMF/LC) |
| 0231AJHS | QSFP56-200G-SR4-MM850 - 200G QSFP56 Multimode Optical Module (850 nm, 100 m OM4, 70 m OM3, SR4, MPO12/UPC) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A9CT | QSFP-40G-D-AOC-3M - 40G QSFP+ to 40G QSFP+ 3m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231AJ2M | 0231AJ2M - H3C S9855 Switch Series |
| 0231AJ2N | 0231AJ2N - H3C S9855 Switch Series |
| Fan Options | |
| 0231AKLC | FAN-40F-1-D - H3C Fan Module (air intake on the fan panel side) |
| 0231ANP4 | FAN-40B-1-H - Fan Module(Fan Panel Side Air Outlet, Supports Electronic Labeling) |
| Power Module | |
| 0231ALSU | PSR1300-12A-C-A - H3C 1300W AC System Power Module (Power Supply Side Outlet) |
| Power Supply Cable | |
| 0404A0U5 | CAB-HVDC PWR-2m-PDU - PDU Power Supply Cable - 2.0 m - 3 × 1.0 mm² - Yellow 121C - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - Chinese Standard |
| 0404A02X | CAB-C13-C14-2.0m - PDU Power Supply Cable - 2.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male, 250 V, 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female, 250 V, 10 A) - Chinese National Standard |
| 0404A0W5 | CAB-PDU PWR-5m-C13/C14 - PDU Power Supply Cable - 5.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250 V 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - Chinese Standard |
| 0404A06Q | CAB-AC Pwr CHI-1.8m - Wall-mounted AC power cord—1.8 m—3 × 0.75 mm²—black—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), straight female, 250 V, 10 A)—Chinese National Standard |
| 0404A1GY | Cab-PDU-C14-3m-C13-CHN - PDU Power Supply Cable - 3.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male, 250 V, 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female, 250 V, 10 A) - Chinese National Standard |
| 0404A13V | Cable-Power-AC-CHI-5m - Wall Plug AC power cord-5.0m-3*1.0mm^2-Black-(GB1002 Plug(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector(3P) Straight Female 250V10A)-National Standard |
| 0404A0MV | CAB-AC-10A-PDU-2m-Eu - PDUPower Supply Cable-2.0m-3*0.75mm^2-Black-(C14 Connector(3P) Straight Male 250V10A)-(H05RR-F)-(C15 Connector(3P) Straight Female 250V10A)-European Standard |
| 0404A0GJ | CAB-HVDC-250V10A-3m-Y - Wall-mounted AC power cord—3.0 m—3 × 1.0 mm²—Yellow 121C—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), straight female, 250 V, 10 A)—Chinese National Standard |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S9855 Series Switch |
