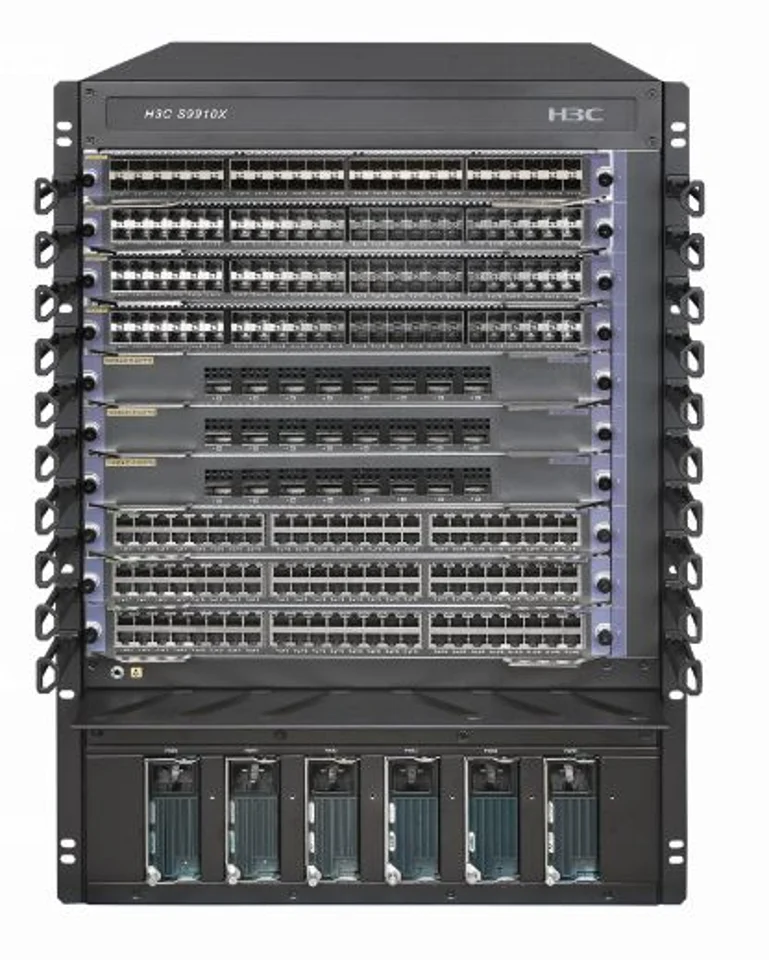

H3C LS-9910X Ethernet Switch Chassis
Brand H3C
N/AVerified
H3C LS-9910X
Model (MPN)
0235A4KV
Condition
Factory Sealed
Out of Stock
H3C LS-9910X Ethernet Switch Chassis. Switching Capacity: 312Tbps/780Tbps. Packet Forwarding Rate: 24000Mpps/120000Mpps. Physical dimensions (H x W x D)/mm: 664mm×440mm×660mm
Key Specifications
DescriptionH3C S9910X Ethernet Switch Chassis
Switching Capacity312Tbps/780Tbps
Packet Forwarding Rate24000Mpps/120000Mpps
Physical dimensions (H x W x D)/mm664mm×440mm×660mm
Power SupplyAC：100V～240VDC：-48V～-60V
Supervisor Engine Module Slot Count2 (master integrated switching network board)
Your Price
Best Value
$33,000.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C S9910X Ethernet Switch Chassis |
| Key Specifications | |
| Switching Capacity | 312Tbps/780Tbps |
| Packet Forwarding Rate | 24000Mpps/120000Mpps |
| Physical dimensions (H x W x D)/mm | 664mm×440mm×660mm |
| Power Supply | AC：100V～240VDC：-48V～-60V |
| Supervisor Engine Module Slot Count | 2 (master integrated switching network board) |
| Service Module Slot Count | 10 |
| Product Specifications | |
| Switching Capacity | 312Tbps/780Tbps |
| Packet Forwarding Rate | 24000Mpps/120000Mpps |
| Supervisor Engine Module Slot Count | 2 (master integrated switching network board) |
| Service Module Slot Count | 10 |
| Hardware Architecture | Orthogonal CLOS Architecture |
| Redundancy design | Master switching module, power supply, fans (front and rear and left and right air ducts) |
| Ethernet Features | Supports 802.1Q Supports LLDP Supports static MAC, dynamic MAC, and black hole MAC configurations Supports limit on the number of MAC addresses to be learned Supports port mirroring (SPAN/ERSPAN/RSPAN) and flow mirroring functions Supports port aggregation Supports 802.1d (STP), 802.1w (RSTP), 802.1s (MSTP) Supports dynamic link Aggregation, Static Port Aggregation and Cross-board Link Aggregation Supports MAC/IP subnets/protocols/policies/VLANs for ports |
| Routing Features | Supports static routes, RIP, OSPF, IS-IS, BGP4, etc.Supports Equivalent Routing Supports Policy Routing Supports Routing Policy Supports IPv4 and IPv6 Dual Stack Supports IPv6 Static Routes, RIPng, OSPFv3, IS-ISv6, BGP4+Supports DHCPv6 Relay Supports DHCP Relay Agent Supports DHCP SNOOPINGSupport DHCP OPTION 82Support DHCP OPTION 43Support VRRPv3Support Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6Support IPv4 to IPv6 transition technology, including: IPv6 manual tunneling, 6to4 tunneling, ISATAP tunnels, GRE tunnels Support for IPv6 Equivalent Routing Support for IPv6 Policy Routing Support for IPv6 Routing Policies |
| Multicast | Support for PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Any-RP and other routing protocols Support for IGMP V1/V2/V3, IGMP V1/V2/V3 Snooping Support for PIM6-DM, PIM6-SM, PIM6-SSM Support for MLD V1/V2, MLD V1/V2 Snooping supports multicast policy and multicast QoS Supports user fast leave mechanism Supports multicast querier |
| ACL/QoS | Supports standard and extended ACLs Supports Ingress/Egress ACLs Supports VLAN ACLs Supports Global ACLs Supports MAC Extended ACLs Supports Layer 2/Layer 3 port ACLs Supports Diff-Serv QoS Supports queue scheduling mechanisms such as SP, WRR, WFQ, PQ, etc. Supports congestion avoidance mechanisms such as WRED, Tail Drop, etc. Supports traffic shaping Supports Priority Mark/Remark support CAR\Schedule and other actions support 802.1p, TOS, DSCP, EXP priority mapping support based on the Layer2 protocol header, Layer3 protocol, Layer4 protocol, 802.1p priority, such as the combination of flow classification |
| Programmability and Automation | Supports Ansible automation technology, enabling Python/NETCONF/TCL/RESTful API for network automation orchestration, achieving Dev Ops automation and operations |
| SDN/OPENFLOW | Supports OPENFLOW 1.3 standard, multiple controllers (EQUAL mode, active-standby mode), multi-table pipeline, Group table support, Meter support |
| MPLS/VPLS | Supports L3 MPLS VPN, L2 VPN: VLL (Martini, Kompella), MCE, MPLS OAM, VPLS, VLL, Hierarchical VPLS, P/PE functions, LDP protocol |
| Security Mechanisms | Supports EAD security solutions Supports Portal authentication Supports MAC authentication Supports IEEE 802.1x and IEEE 802.1x SERVER Supports AAA/Radius Supports HWTACACS,Supports command line authentication Supports SSHv1.5/SSHv2 Supports ACL flow filtering mechanism Supports OSPF, RIPv2 and BGPv4 plaintext and MD5 ciphertext authentication support command line using hierarchical protection to prevent unauthorized users from illegal intrusion, for different levels of users have different configuration privileges support restricted IP address Telnet login and password mechanism support IP address, VLAN ID, MAC addresses and ports, and other combinations of binding support uRPF support MACsec encryption support Master and backup data backup mechanism support OPS open programmable system support failure alarm and self-recovery support data logging support IP Source Guard, support to prevent DoS attacks, ARP attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storm attacks, heavy traffic attacks |
| System Management | Supports FTP, TFTP, Xmodem Supports SNMP v1/v2c/v3 Supports SmartMC Supports s Flow traffic statistics Supports gRPC, INT traffic visualization function Supports RMON Supports NTP clock, PTP clock function Supports power intelligent management Supports Console port login Supports alarm, event, and history recording Supports device online status Monitoring mechanism, including the main control engine, backplane, chip and storage and other key components to achieve detection support for user access authentication, business with the line support for unified user management, subgroups, domains, time-sharing authorization support for BootROM upgrades and remote online upgrades support for hot-patch function, can be online patch upgrade support for user hierarchical management and password protection support for the command line hierarchical protection, unauthorized users can not be invaded Supports IPv6 RA Guard and CPU hardware queuing for hierarchical scheduling and protection of control plane protocol messages. |
| Wireless Management | Supports integrated wireless AC functionality, eliminating the need for a separate AC Service Module card, supporting wireless AP management functionality and unified interface management for wired and wireless functions. |
| Reliability | Key components switching routing processing board supports 1 + 1 redundancy backup, power supply supports M + N redundancy backup Each component supports hot-swappable function Supports CPU protection technology to support a variety of configuration data in the master and backup master real-time hot backup Supports hot patch function, can be upgraded on-line patch Supports NSR/GR for OSFP/BGP/IS-IS, etc. Supports port aggregation, supports link cross-board aggregation Support BFD for VRRP/BGP/IS-IS/OSPF/RSVP/static routing, etc., to realize the fast fault detection mechanism of each protocol, with the fault detection time less than 50ms, and support BFD 3.3ms detection interval. Support Ethernet OAM (802.1ag and 802.3ah), support RRPP, and support DLDP, and support VCT. Smart-Link supports ISSU technology in IRF state, realizing full-service online upgrade. |
| Green Energy Saving | Supports 802.3az Energy Efficient Ethernet |
| Environmental requirements | Temperature range: 0°C～45°C Relative humidity: 5%～95% (non-condensing) |
| Power Supply | AC：100V～240VDC：-48V～-60V |
| Physical dimensions (H x W x D)/mm | 664mm×440mm×660mm |
| Ordering Information | |
| Main Control Engine Board | |
| 0231AKUX | LSUM1MPUS10XEA8 - H3C S9910X Master Switch Module, Class EA |
| SFP Gigabit Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| Supervisor Engine Module Wireless Convergence ACOptional License | |
| 3130A1L9 | LIS-WX-1-BE - Enhanced Wireless Controller License Authorization Letter - Management 1AP - For Enterprise Networks - V7V9 |
| 3130A1LA | LIS-WX-8-BE - Enhanced Wireless Controller License Authorization Letter - Manage 8AP - Enterprise Network Only - V7V9 |
| 3130A1LB | LIS-WX-16-BE - Enhanced Wireless Controller License Authorization Letter - Manage 16APs - For Enterprise Networks - V7V9 |
| 3130A1LC | LIS-WX-32-BE - Enhanced Wireless Controller License Authorization Letter - Manage 32APs - For Enterprise Networks - V7V9 |
| 3130A1LD | LIS-WX-128-BE - Enhanced Wireless Controller License Agreement - Manages 128 APs - Enterprise Network Exclusive - V7V9 |
| 3130A2HB | LIS-WX-4-BE - Enhanced Wireless Controller License Authorization Letter - Manage 4AP - Enterprise Network Only - V7V9 |
| 3130A2HC | LIS-WX-64-BE - Enhanced Wireless Controller License Authorization Letter - Manages 64 APs - Enterprise Network Exclusive - V7V9 |
| SE-Class Service Board | |
| 0231AKUV | LSUM2GT24PTSSE8 - H3C S9900X 24-Port Gigabit Ethernetelectrical interface(RJ45)+20-Port Gigabit Ethernetoptical interface(SFP)+4-Port10GEthernetoptical interface Module(SFP+)(SE) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| SFP+ 10G Port | |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231AKUW | LSUM2GP44TSSE8 - H3C S9900X 44-Port Gigabit Ethernet Optical Interface (SFP) + 4-Port 10 Gigabit Ethernet Optical Interface Module (SFP+) (SE) |
| 0231AKUU | LSUM2GT48SE8 - H3C S9900X 48-Port Gigabit Ethernetelectrical interface Module(RJ45)(SE) |
| SH-Class Service Module | |
| 0231AEU5 | LSUM1TGS48RSH8 - H3C S9900E 48-Port10GEthernetoptical interface Module(SFP+,LC)(SH) |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231A1J8 | LSTM2STK - SFP+ cable7m |
| 0231AKUY | LSUM1CGS8SH8 - H3C S9900X 8-Port100GEthernetoptical interface Module(QSFP28)(SH) |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| FD-Class Service Board | |
| 0231AEU4 | LSUM1TGS24FD8 - H3C S9900E 24-Port10GEthernetoptical interface Module(SFP+,LC)(FD) |
| Third party optical Modulelicense certificate | |
| 3130A3ER | LIS-OPT-100/25G-CA-M - H3C 3rd party optical Modulelicense certificate-Park Switch plug-in frame device (100G/25G) |
| 3130A3ES | LIS-OPT-40/10G-CA-M - H3C 3rd party optical Modulelicense certificate-Park Switch plug-in frame device (up to 40G/10Gand) |
| Power Module | |
| 0231A2LC | LSUM1AC1200 - AC power Module,1200W |
| 0231A0PP | LSUM1AC2500 - AC power Module,2500W |
| 0231A0PR | LSUM1DC2400 - DC power Module,2400W |
| Fan Frame | |
| 0231AASN | FAN-120-10-A - Fan Frame Module (10X Main) |
| 0231AASM | FAN-120-2-B - Fan Frame Module(10X Secondary) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S9900X Series Switch |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Switching Capacity specification for LS-9910X?
LS-9910X lists Switching Capacity as 312Tbps/780Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate specification for LS-9910X?
LS-9910X lists Packet Forwarding Rate as 24000Mpps/120000Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions(H X W X D)/Mm specification for LS-9910X?
LS-9910X lists Dimensions(H X W X D)/Mm as 664mm×440mm×660mm. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Supervisor Engine Module Slot Count specification for LS-9910X?
LS-9910X lists Supervisor Engine Module Slot Count as 2 (master integrated switching network board). Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
