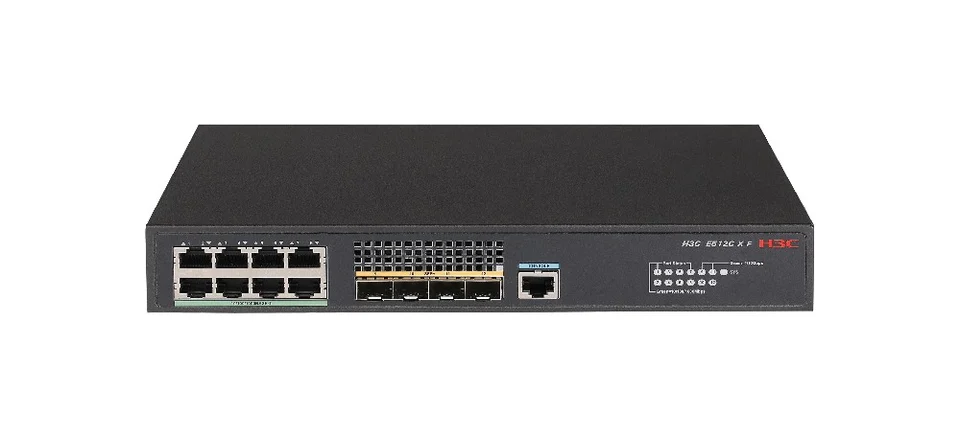

H3C LS-E512C-X-F Layer 2 Ethernet Switch Chassis, 8 10/100/1000BASE-Telectrical port, 4 1G/10GBase-X SFP+ Port, AC
Brand H3C
N/AVerified
H3C LS-E512C-X-F
Model (MPN)
9801A3G7
Condition
Factory Sealed
Out of Stock
H3C LS-E512C-X-F Layer 2 Ethernet Switch Chassis, 8 10/100/1000BASE-Telectrical port, 4 1G/10GBase-X SFP+ Port, AC. Switching Capacity: 672Gbps/6.72Tbps. Packet Forwarding Rate: 126Mpps. Management Port: 1 serial CONSOLE port.
Key Specifications
DescriptionH3C E512C-X-F L2Ethernet Switch Chassis,Supports 8 x10/100/1000BASE-Telectrical port,Supports 4 x1G/10GBase-X SFP Plus Port,Supports AC
Switching Capacity672Gbps/6.72Tbps
Packet Forwarding Rate126Mpps
Dimensions (Width x Depth x Height) (Unit: mm)266*161*43.6
Weight≤1.3kg
Input voltageRated voltage range: 100V～240V AC, 50/60Hz
Your Price
Best Value
$109.97
List Price: $1,571.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C E512C-X-F L2Ethernet Switch Chassis,Supports 8 x10/100/1000BASE-Telectrical port,Supports 4 x1G/10GBase-X SFP Plus Port,Supports AC |
| Key Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 126Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 266*161*43.6 |
| Weight | ≤1.3kg |
| Input voltage | Rated voltage range: 100V～240V AC, 50/60Hz |
| Total Power Consumption | MIN:9WMAX:15W |
| Product Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 126Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 266*161*43.6 |
| Weight | ≤1.3kg |
| Management Port | 1 serial CONSOLE port. |
| Service Port Description | 8 10/100/1000Base-T ports, 4 1/2.5/10GE SFP+ ports |
| Input voltage | Rated voltage range: 100V～240V AC, 50/60Hz |
| Total Power Consumption | MIN:9WMAX:15W |
| Cooling | Fanless silent design for natural heat dissipation |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Functions Features | Characterization |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| VLAN | Supports 802.1Q VLAN |
| ARP | Supports Gratuitous ARP |
| ND | Supports ND |
| DHCP | Supports DHCP/DHCPv6 Client |
| DNS | Supports Static domain name resolution |
| Unicast routing | Supports IPv4/IPv6 dual stack |
| Multicast | Supports IGMPv1/v2/v3 Snooping and rapid leave mechanism |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols |
| QoS/ACL | Supports 802.1p/DSCP priority marking |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| 802.1X | Supports 802.1X authentication |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management | Supports Command Line Interface (CLI) Configuration |
| Maintenance | Supports debug information output |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Ear Hook | |
| 2150A03X | LS-FL-LE-1U - 1Ucompatible lug-1UChassis |
| Low-Voltage Cabinet | |
| 9821A0K8 | H3C GC-KDW4312-HUS1 - 400 × 300 × 120 mm Wall-Mounted Junction Box |
| Power Supply Cable | |
| 0404A213 | CAB-AC PWR-1.5m-CHN-50937 - Wall Plug AC power cable-1.5m-3*0.75mm^2-Black-(GB1002 Plug (3P) Bent Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector (3P) Right Bent Female 250V10A)-National Standard |
| 0404A214 | CAB-AC PWR-1.5m-50936 - Wall Plug AC power Cord-1.5m-3*0.75mm^2-Black-(GB1002 Plug(3P) Curved Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector(3P) Left Curved Female 250V10A)-National Standard |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C E500C-F Series Switch |
