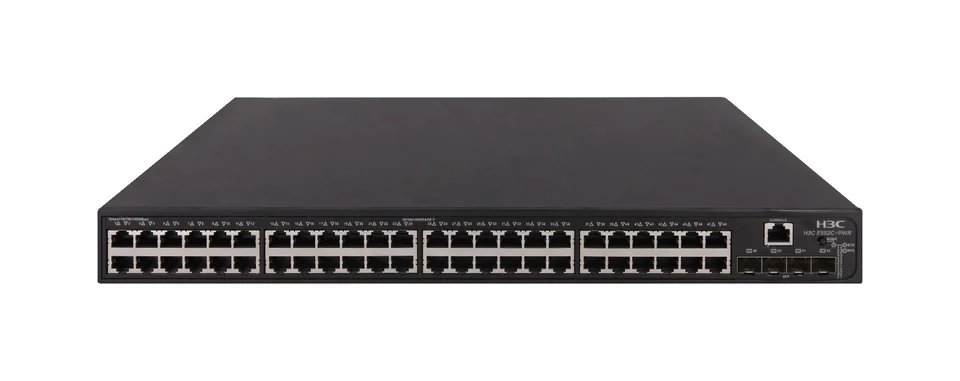

H3C LS-E552C-PWR Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-T PoE+electrical port(AC 370W, DC 740W), 4 1000BASE-X SFP Port, AC/DC
Brand H3C
N/AVerified
H3C LS-E552C-PWR
Model (MPN)
9801A1C9
Condition
Factory Sealed
Out of Stock
H3C LS-E552C-PWR Layer 2 Ethernet Switch Chassis, 48 10/100/1000BASE-T PoE+electrical port(AC 370W, DC 740W), 4 1000BASE-X SFP Port, AC/DC. Switching Capacity (Full Duplex): 672Gbps/6.72Tbps. Packet Forwarding Rate (entire system): 166Mpps. Management Port: 1 Console port
Key Specifications
DescriptionH3C E552C-PWR L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-T PoE+electrical port(AC 370W,DC 740W),Supports 4 x1000BASE-X SFP Port,Supports AC/DC
Switching Capacity (Full Duplex)672Gbps/6.72Tbps
Packet Forwarding Rate (entire system)166Mpps
VLAN Virtual InterfaceSupports
Dimensions (Width x Depth x Height) (Unit: mm)440×400 ×43.6
Weight≤6kg
Your Price
Best Value
$395.99
List Price: $5,657.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C E552C-PWR L2Ethernet Switch Chassis,Supports 48 x10/100/1000BASE-T PoE+electrical port(AC 370W,DC 740W),Supports 4 x1000BASE-X SFP Port,Supports AC/DC |
| Key Specifications | |
| Switching Capacity (Full Duplex) | 672Gbps/6.72Tbps |
| Packet Forwarding Rate (entire system) | 166Mpps |
| VLAN Virtual Interface | Supports |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400 ×43.6 |
| Weight | ≤6kg |
| Input voltage | AC: Rated voltage range: 100V~240V A.C, 50/60Hz DC: Input rated voltage range -48V~-60V DC |
| Product Specifications | |
| Switching Capacity (Full Duplex) | 672Gbps/6.72Tbps |
| Packet Forwarding Rate (entire system) | 166Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×400 ×43.6 |
| Weight | ≤6kg |
| Management Port | 1 Console port |
| PoE | PWR model Supports PoE/PoE+ (802.3af, 802.3at), Maximum PoE output power is 30W per port. |
| Service Port Description | 48 10/100/1000Base-T adaptive Ethernet ports 4 Gigabit SFP ports |
| Input voltage | AC: Rated voltage range: 100V~240V A.C, 50/60Hz DC: Input rated voltage range -48V~-60V DC |
| Total Power Consumption | AC: MIX:23W MAX:451W (PoE: 379W) DC: MIX:16W MAX:853W (PoE: 800W) |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Link aggregation | Supports GE Port Aggregation Supports 10GE Port Aggregation Supports Static Aggregation Supports Dynamic Aggregation Supports Cross-Device Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports |
| MAC Address Table | Supports Blackhole MAC Address Supports Setting the maximum number of PortMAC Address learning |
| SDN/Openflow | Supports the Open Flow 1.3 standard; supports multiple controllers (EQUAL mode, primary/standby mode); supports multi-table pipelining; supports Group tables; supports Meter |
| VLAN | Supports 802.1Q VLAN, port-based VLAN, QinQ, and Flexible QinQ; supports Voice VLAN, protocol-based VLAN, and MAC-based VLAN |
| ARP | Supports Free ARP; Supports Dynamic ARP Inspection (DAI); Supports ARP Rate Limiting |
| ND | Supports ND Supports ND Snooping |
| VLAN Virtual Interface | Supports |
| DHCP | Supports DHCP/DHCPv6 Client Supports DHCP/DHCPv6 Snooping Supports DHCP/DHCPv6 Relay Supports DHCP/DHCPv6 Server Supports DHCP/DHCPv6 Option82 |
| DNS | Supports Static DNS Resolution; Supports Dynamic DNS Client; Supports IPv4 and IPv6 Addresses |
| IP Routing | Supports IPv4 static routing, RIPv1/v2 Supports IPv6 static routing, RIPng Supports OSPFv1/v2, OSPFv3 |
| Multicast | Supports IGMP Snooping Supports MLD Snooping Supports MulticastVLAN |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on port speed percentage; supports storm suppression based on PPS; supports storm suppression based on bps |
| Layer 2 Ring Protocol | Supported STP/RSTP/MSTP protocol Supported STP Root Protection Supported BPDU Protection Supported G.8032 Ethernet Ring Protection Switching (ERPS) Supported RRPP |
| SmartLink | Supports |
| QoS/ACL | Supports 802.1p/DSCP priority marking Supports packet filteringfunctions Supports SP/WRR/SP+WRR queue scheduling Supports Port's rate limiting Supports flow redirection Supports time segments |
| Mirroring | Supports port mirroring; supports remote mirroring |
| Security Features | Supports user role-based management and password protection; supports AAA authentication; supports RADIUS authentication; supports HWTACACS; supports SSH 2.0; supports port isolation; supports 802.1X; supports Port Security; supports MAC address authentication; supports IP Source Guard; supports SAVI; supports DoS attack prevention; supports ARP attack prevention; supports ICMP attack prevention; supports Dynamic ARP Inspection (DAI); supports HTTPS; supports PKI (Public Key Infrastructure) Supports EAD |
| 802.1X | Supports 802.1X authentication; supports port-based and MAC-based authentication; supports Guest VLAN; supports TRUNK port authentication; supports 802.1X-based dynamic provisioning of QoS/ACL/VLAN |
| Loading and Upgrade | Supports XModem protocolsimplementsloading and upgrade Supports FTP (File Transfer Protocol)loading and upgrade Supports TFTP (Trivial File Transfer Protocol)loading and upgrade |
| Management | Supports Command Line Interface (CLI) configuration Supports Telnet remote configuration Supports configuration via the console port Supports SNMP (Simple Network Management Protocol) Supports RMON (Remote Monitoring) Alerts, Events, and History Supports iMC Network Management System Supports Web-Based Network Management Supports Telemetry Visualization Supports NETCONF Network Management Protocol Supports Python Scripting for Operations and Maintenance Supports System Logs Supports Tiered Alerts Supports IRF Supports NTP Supports Power, Fan, and Temperature Alerts |
| Maintenance | Supports debug information output; supports Ping and Tracert; supports remote maintenance via Telnet; supports NQA; supports 802.1ag; supports 802.3ah; supports DLDP; supports Virtual Cable Test |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| Product Identity | |
| Brand | H3C |
| Series | H3C E500C Series Switch |
