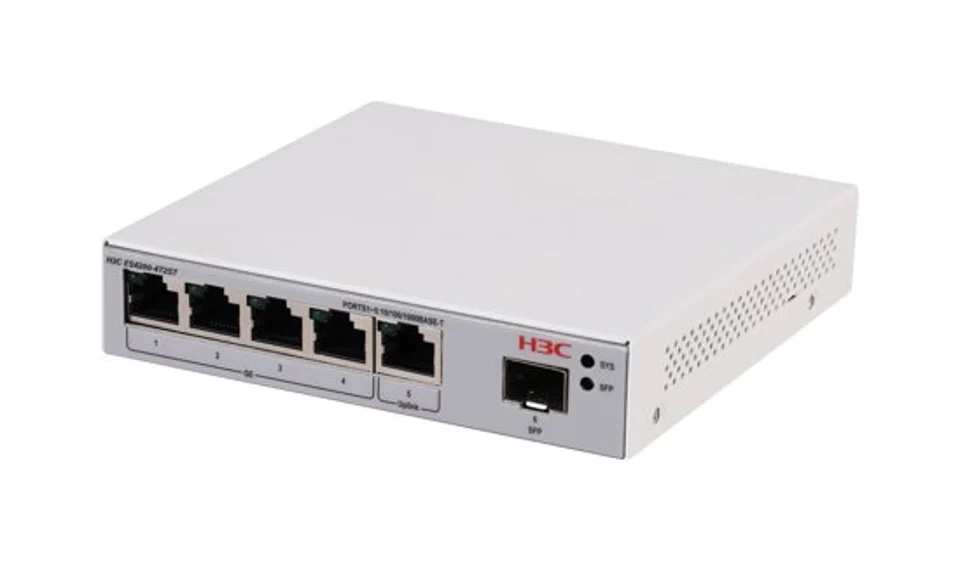

H3C LS-ES4200-4T2ST Layer 2 Ethernet Switch Chassis, 5 10/100/1000BASE-Telectrical port, 1 100M/1G/2.5G SFP Port, AC
Brand H3C
N/AVerified
H3C LS-ES4200-4T2ST
Model (MPN)
9801A5FK
Condition
Factory Sealed
Out of Stock
H3C LS-ES4200-4T2ST Layer 2 Ethernet Switch Chassis, 5 10/100/1000BASE-Telectrical port, 1 100M/1G/2.5G SFP Port, AC. Switching Capacity: 672Gbps/6.72Tbps. Packet Forwarding Rate: 81Mpps/126Mpps. Port: 5 x10/100/1000BASE-T Port, 1 x1/2.5GE SFP Port
Key Specifications
DescriptionH3C ES4200-4T2ST L2Ethernet Switch Chassis,Supports 5 x10/100/1000BASE-Telectrical port,Supports 1 x100M/1G/2.5G SFP Port,AC
Switching Capacity672Gbps/6.72Tbps
Packet Forwarding Rate81Mpps/126Mpps
Dimensions (W x D x H) (Unit:mm)130×124×27
Weight≤0.6kg
Static Power ConsumptionAdapter: 2W
Your Price
Best Value
$35.00
List Price: $500.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C ES4200-4T2ST L2Ethernet Switch Chassis,Supports 5 x10/100/1000BASE-Telectrical port,Supports 1 x100M/1G/2.5G SFP Port,AC |
| Key Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 81Mpps/126Mpps |
| Dimensions (W x D x H) (Unit:mm) | 130×124×27 |
| Weight | ≤0.6kg |
| Static Power Consumption | Adapter: 2W |
| Typical power consumption | Adapter: 4W |
| Product Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 81Mpps/126Mpps |
| Port | 5 x10/100/1000BASE-T Port, 1 x1/2.5GE SFP Port |
| Dimensions (W x D x H) (Unit:mm) | 130×124×27 |
| Weight | ≤0.6kg |
| Static Power Consumption | Adapter: 2W |
| Typical power consumption | Adapter: 4W |
| Maximum Power Consumption | Adapter: 4W |
| Fan | Fanless silent design for natural heat dissipation |
| Operating Environment Temperature | -5ºC～45ºC |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Characteristics | Characterization |
| VLAN | Support for 802.1Q VLANs Support for port-based VLANs |
| DHCP | Supports DHCP Client |
| Security Features | Filtering of illegal MAC addresses Support for broadcast storm suppression Support for port protection Support for CPU protection |
| Management and Maintenance | Supports go to command line web management Supports SDN management Supports Cloudnet public cloud management Supports SmartMC management Supports port rate limiting Supports port mirroring Supports loop prevention Supports VCT cable detection |
| Green Energy Saving | The port auto power down feature supports the EEE (802.3az) energy saving standard |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 0231AK6J | 0231AK6J - H3C ES4200 Switch Series |
| 0231AK6K | 0231AK6K - H3C ES4200 Switch Series |
| 0231ALXS | SFP-GE-LX-SM1310-F - SFPGigabit All-Optical 3.0 Optical Module (1310nm, 10km, SM, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231AJXK | SFP-2.5G-LX10-SM1310-DR-I - SFP 2.5G/1G Single-Mode Industrial-Temperature Optical Module (1310 nm, 10 km, LC) |
| 0231ALXV | SFP-2.5G-LX10-SM1310-DR-I-F - SFP 2.5G/1G All-Optical 3.0 Optical Module(-40°C~85°C,1310nm,10km,SM,LC) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C ES4200 Series Switch |
