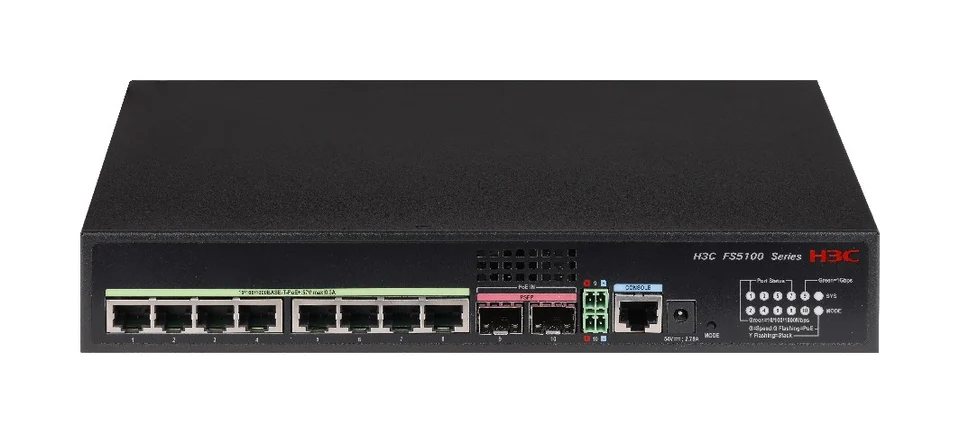

H3C LS-FS5100-8P2RS-EI Layer 2 Ethernet Switch Chassis, supports 8 10/100/1000BASE-T PoE+ ports, supports 2 100/1000 PSFP power-receiving ports, no power supply
Brand H3C
N/AVerified
H3C LS-FS5100-8P2RS-EI
Model (MPN)
9801A4EU
Condition
Factory Sealed
Out of Stock
H3C LS-FS5100-8P2RS-EI Layer 2 Ethernet Switch Chassis, supports 8 10/100/1000BASE-T PoE+ ports, supports 2 100/1000 PSFP power-receiving ports, no power supply. Switching Capacity: 672Gbps/6.72Tbps. Packet Forwarding Rate: 126Mpps. Management Port: 1 serial CONSOLE port.
Key Specifications
DescriptionH3C FS5100-8P2RS-EI Layer 2 Ethernet Switch Chassis, supports 8 10/100/1000BASE-T PoE+ ports, supports 2 100/1000 PSFP power-receiving ports, no power supply
Switching Capacity672Gbps/6.72Tbps
Packet Forwarding Rate126Mpps
Dimensions (Width x Depth x Height) (Unit: mm)266*161*43.6
Weight≤1.2kg (without power adapter)
Total Power ConsumptionMIN Single-port PoE input: 7.5W Dual-port PoE input: 8.5W Adapter input: 8.5WMAX:Single-port PoE input: 71.2W (60W PoE output) Dual-port PoE input: 71.4W (60W PoE output) Adapter input: 150W (125W PoE output)
Your Price
Best Value
$120.96
List Price: $1,728.00Save 93%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C FS5100-8P2RS-EI Layer 2 Ethernet Switch Chassis, supports 8 10/100/1000BASE-T PoE+ ports, supports 2 100/1000 PSFP power-receiving ports, no power supply |
| Key Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 126Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 266*161*43.6 |
| Weight | ≤1.2kg (without power adapter) |
| Total Power Consumption | MIN Single-port PoE input: 7.5W Dual-port PoE input: 8.5W Adapter input: 8.5WMAX:Single-port PoE input: 71.2W (60W PoE output) Dual-port PoE input: 71.4W (60W PoE output) Adapter input: 150W (125W PoE output) |
| Operating Environment Temperature | -5℃～45℃ |
| Product Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 126Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 266*161*43.6 |
| Weight | ≤1.2kg (without power adapter) |
| Management Port | 1 serial CONSOLE port. |
| Service Port Description | 8 10/100/1000Base-T ports, 2 1G PSFP ports, support for power receiving on optical ports |
| PoE | Supports PoE/PoE+ (802.3af, 802.3at), single Port maximum PoE output power is 30W |
| Total Power Consumption | MIN Single-port PoE input: 7.5W Dual-port PoE input: 8.5W Adapter input: 8.5WMAX:Single-port PoE input: 71.2W (60W PoE output) Dual-port PoE input: 71.4W (60W PoE output) Adapter input: 150W (125W PoE output) |
| Cooling | Fanless silent design for natural heat dissipation |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Functions Features | Characterization |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| VLAN | Supports 802.1Q VLAN |
| ARP | Supports Gratuitous ARP |
| ND | Supports ND |
| DHCP | Supports DHCP/DHCPv6 Client |
| DNS | Supports Static domain name resolution |
| Unicast routing | Supports IPv4/IPv6 dual stack |
| Multicast | Supports IGMPv1/v2/v3 Snooping and rapid leave mechanism |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols |
| QoS/ACL | Supports 802.1p/DSCP priority marking |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| 802.1X | Supports 802.1X authentication |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management | Supports Command Line Interface (CLI) Configuration |
| Maintenance | Supports debug information output |
| Ordering Information | |
| Gigabit Optical Hybrid Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231AKNR | SFP-GE-POE - SFP Gigabit Optical-Electrical Hybrid Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| Optical hybrid cable connectorsand pigtails | |
| 1413A01W | PoE-PELC-PELC-1.5 - Hybrid Optical Cable Patch Cord—PELC/PC-PELC/PC—Single-Mode—1.5 m |
| 1413A01X | PoE-PELC-PELC-0.3 - Hybrid Optical Cable Patch Cord—PELC/PC-PELC/PC—Single-Mode—0.3 m |
| 1413A01Y | PoE-PELC-PELC-3.0 - Hybrid Optical Cable Patch Cord—PELC/PC-PELC/PC—Single-Mode—3.0 m |
| 1413A022 | PoE-PELC-ODF-0.4m - Optical-Electrical Hybrid Cable Connector Patch Cord - PELC/PC-ODF - Single-Mode - 0.4 m |
| 1413A023 | PoE-PELC-ODF-1.2m - Optical-Electrical Hybrid Cable Connector Patch Cord - PELC/PC-ODF - Single-Mode - 1.2 m |
| 1413A02R | PoE-PELC-ODF-1.5m - Optical-Electrical Hybrid Cable Connector Patch Cord - PELC/PC-ODF - Single-Mode - 1.5 m |
| Hybrid Optical-Electrical Cable | |
| 2505A006 | CAB-17AWG-500-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 500m (LSZH) |
| 2505A007 | CAB-21AWG-200-PVC - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 200m (PVC) |
| 2505A008 | 2505A008 - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 200m (PVC) |
| 2505A009 | CAB-17AWG-100-PVC - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 100m (PVC) |
| 2505A00A | CAB-21AWG-100-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 100m (LSZH) |
| 2505A00B | CAB-17AWG-100-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 100m (LSZH) |
| 2505A00C | CAB-17AWG-200-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 200m (LSZH) |
| 2505A00D | CAB-21AWG-100-PVC - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 100m (PVC) |
| 2505A00E | CAB-21AWG-500-PVC - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 500m (PVC) |
| 2505A00F | 2505A00F - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 33mm - 17AWG - 2C+2C - 500m (PVC) |
| 2505A00G | CAB-21AWG-200-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 200m (LSZH) |
| 2505A00H | CAB-21AWG-500-LSZH - Symmetrical Twisted Pair Cable - Optical Hybrid Cable - 13mm - 21AWG - 2C+2C - 500m (LSZH) |
| 2505A00J | HYBRID CABLE-200-0.5 - 200-meter hybrid optical-electrical cable |
| 2505A00K | HYBRID CABLE-100-0.5 - 100-meter fiber-optic hybrid cable |
| 2505A00L | HYBRID CABLE-500-0.5 - 500-meter hybrid optical-electrical cable |
| 2505A00M | HCAB-GDJV-20AWG-200m-2F - GDJV-20AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 5.9 mm) |
| 2505A00N | HCAB-GDJV-20AWG-500m-2F - GDJV-20AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 5.9 mm) |
| 2505A00P | HCAB-GDJV-20AWG-100m-2F - GDJV-20AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 5.9 mm) |
| 2505A00Q | HCAB-GDJV-21AWG-200-2F - GDJV-21AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 5.7 mm) |
| 2505A00R | HCAB-GDJV-21AWG-500m-2F - GDJV-21AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 5.7 mm) |
| 2505A00S | HCAB-GDJV-21AWG-100-2F - GDJV-21AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 5.7 mm) |
| 2505A00T | HCAB-GDJV-17AWG-100m-2F - GDJV-17AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 6.2 mm) |
| 2505A00U | HCAB-GDJV-17AWG-200m-2F - GDJV-17AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 6.2 mm) |
| 2505A00V | HCAB-GDJV-17AWG-500m-2F - GDJV-17AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 6.2 mm) |
| 2505A00W | HCAB-GDJH-21AWG-500m-2F - GDJH-21AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 5.7 mm) |
| 2505A00X | HCAB-GDJH-21AWG-200m-2F - GDJH-21AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 5.7 mm) |
| 2505A00Y | HCAB-GDJH-21AWG-100m-2F - GDJH-21AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 5.7 mm) |
| 2505A010 | HCAB-GDJH-20AWG-100m-2F - GDJH-20AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 5.9 mm) |
| 2505A011 | HCAB-GDJH-20AWG-200m-2F - GDJH-20AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 5.9 mm) |
| 2505A012 | HCAB-GDJH-20AWG-500m-2F - GDJH-20AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 5.9 mm) |
| 2505A013 | HCAB-GDJH-17AWG-500m-2F - GDJH-17AWG-2C+2C Hybrid Optical-Electrical Cable, 500 meters (OD 6.2 mm) |
| 2505A014 | HCAB-GDJH-17AWG-100m-2F - GDJH-17AWG-2C+2C Hybrid Optical-Electrical Cable, 100 meters (OD 6.2 mm) |
| 2505A015 | HCAB-GDJH-17AWG-200m-2F - GDJH-17AWG-2C+2C Hybrid Optical-Electrical Cable, 200 meters (OD 6.2 mm) |
| Low-Voltage Cabinet | |
| 9821A0K8 | H3C GC-KDW4312-HUS1 - 400 × 300 × 120 mm Wall-Mounted Junction Box |
| Heat-Shrink Tubing | |
| 9904A0KE | H3C GC-SD-B0 - Optical Hybrid Solution Customized Fiber Fusion Heat Shrink Tubing (2.3mm I.D., 50pcs included) |
| Cold-pressed intermediate terminal | |
| 9904A0KD | H3C GC-BNYF1.25 - Cold-Pressed Intermediate Terminals (BNYF1.25, 100 pcs included) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C FS5100-EI Series Switch |
