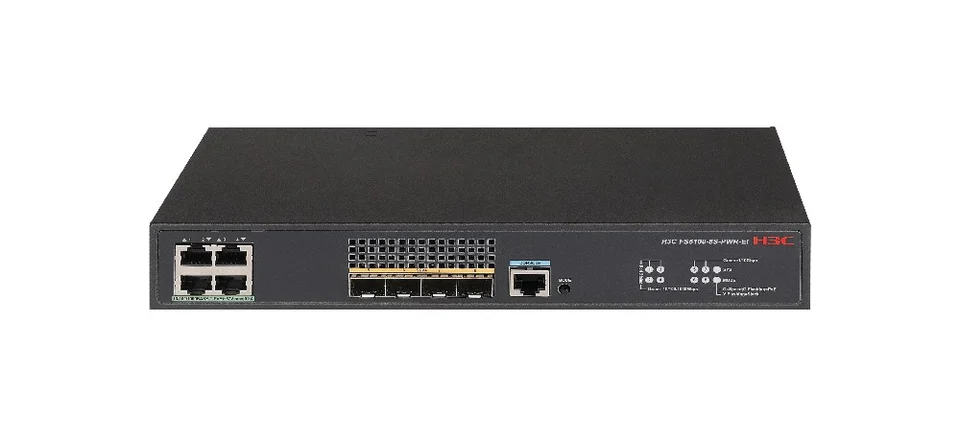

H3C LS-FS5100-8S-PWR-EI Ethernet Switch. H3C FS5100-8S-PWR-EI L2 Ethernet Switch with 4*10/100/1000BASE-T PoE+ Ports (AC 64W) and 4*1G/10GBase-X SFP Plus Ports,(AC).
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-FS5100-8S-PWR-EI Ethernet Switch is H3C FS5100-8S-PWR-EI L2 Ethernet Switch with 4*10/100/1000BASE-T PoE+ Ports (AC 64W) and 4*1G/10GBase-X SFP Plus Ports,(AC).
Compatible and optional SKUs are listed in the ordering information, including 9801A3XB LS-FS5100-8S-PWR-EI, 02312173 SFP-GE-LH80-SM1550, 0231A2UN SFP-GE-LH40-SM1310-BIDI, 0231A2UL SFP-GE-LH70-SM1490-BIDI, 0231A2UP SFP-GE-LH40-SM1550-BIDI.
| Key Specifications | |
|---|---|
| Management | Supports Command Line Interface (CLI) Configuration |
| Link aggregation | Supports GE Port Aggregation |
| Ports | 4*10/100/1000BASE-T PoE+ Ports (AC 64W) and 4*1G/10GBase-X SFP Plus Ports,(AC) |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| Product Specifications | |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| VLAN | Supports 802.1Q VLAN |
| ARP | Supports Gratuitous ARP |
| ND | Supports ND |
| DHCP | Supports DHCP/DHCPv6 Client |
| DNS | Supports Static domain name resolution |
| Unicast routing | Supports IPv4/IPv6 dual stack |
| Multicast | Supports IGMPv1/v2/v3 Snooping and rapid leave mechanism |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP protocols |
| QoS/ACL | Supports 802.1p/DSCP priority marking |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| 802.1X | Supports 802.1X authentication |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management | Supports Command Line Interface (CLI) Configuration |
| Maintenance | Supports debug information output |
| Catalog Description | |
| Description | H3C FS5100-8S-PWR-EI L2 Ethernet Switch with 4*10/100/1000BASE-T PoE+ Ports (AC 64W) and 4*1G/10GBase-X SFP Plus Ports,(AC) |
| Key Features | |
| Green Energy Saving | Design, including auto-power-down (port auto energy-saving), if the interface status is always down for a period of time, the system automatically stops powering the interface and automatically enters the energy-saving mode; support for EEE energy-saving function, if the port is idle for a consecutive period of time, the system will set the port to the energy-saving mode, and then listen to it through the listening sent by the timing When a message is sent or received, the system will wake up the port to resume business by sending out a code stream at regular intervals, thus achieving the effect of energy saving and meeting the EU RoHS standard for environmental protection and safety of materials. |
| Ordering Information | |
| Base Configuration | |
| 9801A3XB | LS-FS5100-8S-PWR-EI; H3C FS5100-8S-PWR-EI L2Ethernet switch Chassis, Supports 4 x10/100/1000BASE-T PoE+Electrical Port (AC 64W), Supports 4 x1G/10G Base-X SFP Plus Port, Supports AC |
| SFP/SFP+10G Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI; SFP GigabitBIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI; SFP GigabitBIDI Optical Module (TX 1490 nm/RX 1550 nm, 70 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550 nm/RX 1310 nm, 40 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A54T | SFP-STACK-Kit; Type: SFP/SFP+10G Optical Port |
| 0231ADWF | SFP-GE-LH20-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 20 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ADWE | SFP-GE-LH40-SM1310-I; SFP Gigabit Optical Module (-40°C to 85°C, 1310 nm, 40 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP/SFP+10G Optical Port |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP/SFP+10G Optical Port |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A964 | SFP-GE-LH80-SM1550-D; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1310/RX1490, 10 km, LC; Type: SFP/SFP+10G Optical Port |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1490/RX1310, 10 km, LC; Type: SFP/SFP+10G Optical Port |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit Optical Module (850 nm, 550 m, SX, LC); Type: SFP/SFP+10G Optical Port |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit Optical Module (1310 nm, 10 km, LX, LC); Type: SFP/SFP+10G Optical Port |
| 0231A085 | SFP-GE-T; SFP GE Electrical Port Module (100m, RJ45); Type: SFP/SFP+10G Optical Port |
| 0231A960 | SFP-GE-T-D; SFP GE Electrical Port Module (100m, RJ45); Type: SFP/SFP+10G Optical Port |
| 0231A3TA | SFP-XG-D-AOC-10M; SFP+ to SFP+10m AOC; Type: SFP/SFP+10G Optical Port |
| 0231A3TB | SFP-XG-D-AOC-20M; SFP+ to SFP+20m AOC; Type: SFP/SFP+10G Optical Port |
| 0231A3T9 | SFP-XG-D-AOC-7M; SFP+ to SFP+7m AOC; Type: SFP/SFP+10G Optical Port |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI; SFP+ 10GBIDI Optical Module (TX 1270nm/RX 1330nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI; SFP+ 10GBIDI Optical Module (TX 1270nm/RX 1330nm, 40km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI; SFP+ 10GBIDI Optical Module (TX 1330nm/RX 1270nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI; SFP+ 10GBIDI Optical Module (TX 1330nm/RX 1270nm, 40km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI; SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC); Type: SFP/SFP+10G Optical Port |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI; SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC); Type: SFP/SFP+10G Optical Port |
| 0231AEUQ | SFP-XG-LX-SM1310-S; SFP+ 10G Optical Module (1310nm, 10km, LX, LC); Type: SFP/SFP+10G Optical Port |
| 0231AEUM | SFP-XG-SX-MM850-S; SFP+ 10G optical module (850nm, 300m, SX, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2L3 | SFP-XG-LX-SM1310-E; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A1RQ | SFP-XG-LX-SM1310-D; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A0A8 | SFP-XG-LX-SM1310; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A0SP | SFP-XG-LH40-SM1550; SFP+ 10G Module (1550nm, 40km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A1RR | SFP-XG-LH40-SM1550-D; SFP+ 10G Module (1550nm, 40km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2T6 | SFP-XG-LH80-SM1550-D; SFP+ 10G Module (1550nm, 80km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A1PA | SFP-XG-LH80-SM1550; SFP+ 10G Module (1550nm, 80km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A2L4 | SFP-XG-SX-MM850-E; SFP+ 10G Module (850nm, 300m, LC); Type: SFP/SFP+10G Optical Port |
| 0231A1RP | SFP-XG-SX-MM850-D; SFP+ 10G Module (850nm, 300m, LC); Type: SFP/SFP+10G Optical Port |
| 0231A0A6 | SFP-XG-SX-MM850-A; SFP+ 10G Module (850nm, 300m, LC); Type: SFP/SFP+10G Optical Port |
| 0231ALXU | SFP-XG-LX-SM1310-F; SFP+ All-Optical 3.010G Optical Module (1310nm, 10km, SM, LC); Type: SFP/SFP+10G Optical Port |
| 0231A0AK | LSWM1STK; SFP+Cable0.65m; Type: SFP/SFP+10G Optical Port |
| 0231A0AL | LSWM2STK; SFP+Cable1.2m; Type: SFP/SFP+10G Optical Port |
| 0231A0AM | LSWM3STK; SFP+Cable3m; Type: SFP/SFP+10G Optical Port |
| 0231A0G1 | LSTM1STK; SFP+Cable5m; Type: SFP/SFP+10G Optical Port |
| Low-Voltage Cabinet | |
| 9821A0K8 | H3C GC-KDW4312-HUS1; 400 × 300 × 120 mm Wall-Mounted Junction Box; Type: Low-Voltage Cabinet |
| Configuration Options | |
| 0404A213 | CAB-AC PWR-1.5m-CHN-50937; Wall-mounted AC power cord—1.5 m—3 × 0.75 mm²—black—(GB1002 plug (3P), right-angled male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), right-angled female, 250 V, 10 A)—Chinese National Standard |
| 0404A214 | CAB-AC PWR-1.5m-50936; Wall-mounted AC power cord—1.5 m—3 × 0.75 mm²—black—(GB1002 plug (3P), right-angled male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), left-angled female, 250 V, 10 A)—Chinese National Standard |
| Port and Cable Configuration | |
| 04042967 | CAB-CON-1.8m; Configuration Serial Cable—1.8 m (DB9 Female to 8-pin Ethernet Port); Type: Port and Cable Configuration |
| 0404A1EE | CAB-Console-1.8m-W31R; Configuration Port Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Port and Cable Configuration |
| Product Identity | |
| Brand | H3C |
| Series | H3C S51xxSeries Switches |
